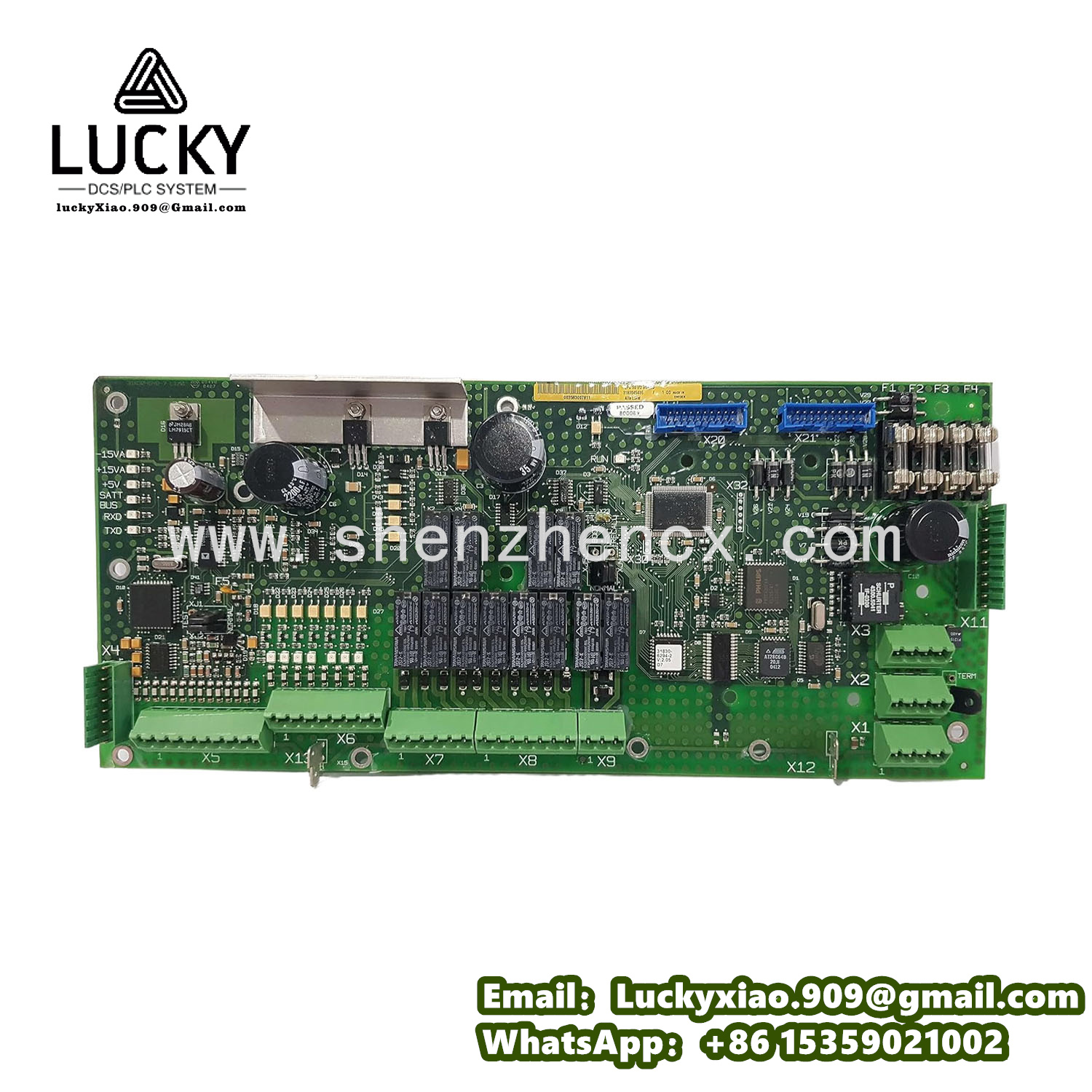

Introduction to ALFA LAVAL 3183045486
The ALFA LAVAL 3183045486 is a high-reliability I/O board, functioning as the “signal processing hub” for ALFA LAVAL EPC50 process control systems. Tailored for industrial automation scenarios demanding precise signal acquisition and control, this board integrates multi-channel analog and digital signal processing capabilities, specializing in connecting sensors, actuators, and controllers to achieve real-time data transmission and control command execution. It is extensively applied in hygiene-critical and process-sensitive industries such as food & beverage, pharmaceutical & biotechnology, chemical & petrochemical, and marine engineering—for example, controlling separators, heat exchangers, and sterilization equipment in dairy production lines, or managing fuel oil separation systems on ships. Its industrial-grade design boasts excellent anti-electromagnetic interference performance and corrosion-resistant circuit protection, ensuring stable operation in harsh environments with temperature fluctuations and mechanical vibrations.
3183045486 Key Technical Specifications
-
Device Type: I/O board for ALFA LAVAL EPC50 process control systems
-
Core Functions: Multi-channel signal acquisition, digital-analog conversion, control signal output, fault self-diagnosis
-
Application Compatibility: Matches ALFA LAVAL separators, heat exchangers, homogenizers, and sterilization equipment
-
I/O Configuration: 8-channel analog input (4-20mA); 6-channel digital input (24V DC); 4-channel analog output (0-10V/4-20mA); 4-channel digital output (24V DC)
-
Signal Accuracy: Analog input accuracy ±0.1% FS; analog output linearity ≤0.2% FS
-
Power Supply: 24V DC (nominal); input range 18-36V DC; typical power consumption ≤12W
-
Communication Interface: RS485 serial port; supports Modbus RTU protocol for data interaction with EPC50 control panel
-
Operating Environment: Temperature -20°C to +60°C; humidity 5-95% (non-condensing); vibration resistance 10-150Hz (1g)
-
Physical Specifications: 160mm × 100mm × 30mm; weight ~0.3kg; DIN rail or chassis mounting (compatible with EPC50 cabinet)
-
Protection Features: Overcurrent/overvoltage protection for input/output ports; ESD protection (±15kV contact discharge); short-circuit protection
-
Certifications: CE compliant; RoHS certified; meets FDA and 3-A hygiene standards for food industry applications
Recommended ALFA LAVAL Related Models
-
ALFA LAVAL 3183045500: High-density I/O expansion board for 3183045486, adds 12 digital I/O channels, ideal for complex separator control systems
-
ALFA LAVAL EPC50 3183045000: Core control panel matching 3183045486, provides centralized operation interface for marine separation equipment
-
ALFA LAVAL 3183045621: High-precision analog signal conditioning module, enhances 3183045486’s data accuracy in pharmaceutical applications
-
ALFA LAVAL FCM One Gas Control Board: Fuel supply system I/O module, compatible with 3183045486 for ship gas boiler control
-
ALFA LAVAL 3183045310: Communication extension module, enables 3183045486 to connect with ALFA LAVAL 800xA monitoring platform
-
ALFA LAVAL MB20 Series Control I/O: Dedicated I/O module for MB20 centrifuges, works with 3183045486 in biopharmaceutical separation processes
-
ALFA LAVAL Aalborg Hybrid Boiler I/O Unit: Marine boiler signal processing board, pairs with 3183045486 for dual-fuel control
-
ALFA LAVAL 3183045700: Redundant I/O backup module, ensures 3183045486-based systems run without interruption in critical processes
-
ALFA LAVAL Culturefuge I/O Adapter: Specialized interface board for Culturefuge centrifuges, expands 3183045486’s compatibility with cell culture equipment
-
ALFA LAVAL 3183045120: Power management module, provides stable 24V DC supply for 3183045486 and associated sensors
-
ALFA LAVAL Heat Exchanger Control Board 3183045800: Tailored for thermal system control, integrates with 3183045486 to regulate temperature parameters
-
ALFA LAVAL 3183045910: Wireless communication adapter, enables remote data transmission for 3183045486 in large-scale factories
-
ALFA LAVAL Sterilization Equipment I/O 3183045200: Hygiene-grade I/O module, compatible with 3183045486 for food & beverage sterilization lines
-
ALFA LAVAL 3183045490: Fault diagnosis extension board, enhances 3183045486’s self-diagnostic capability for quick troubleshooting
-
ALFA LAVAL Marine Fuel Separator I/O 3183045600: Anti-corrosion I/O board, works with 3183045486 in shipboard fuel treatment systems
