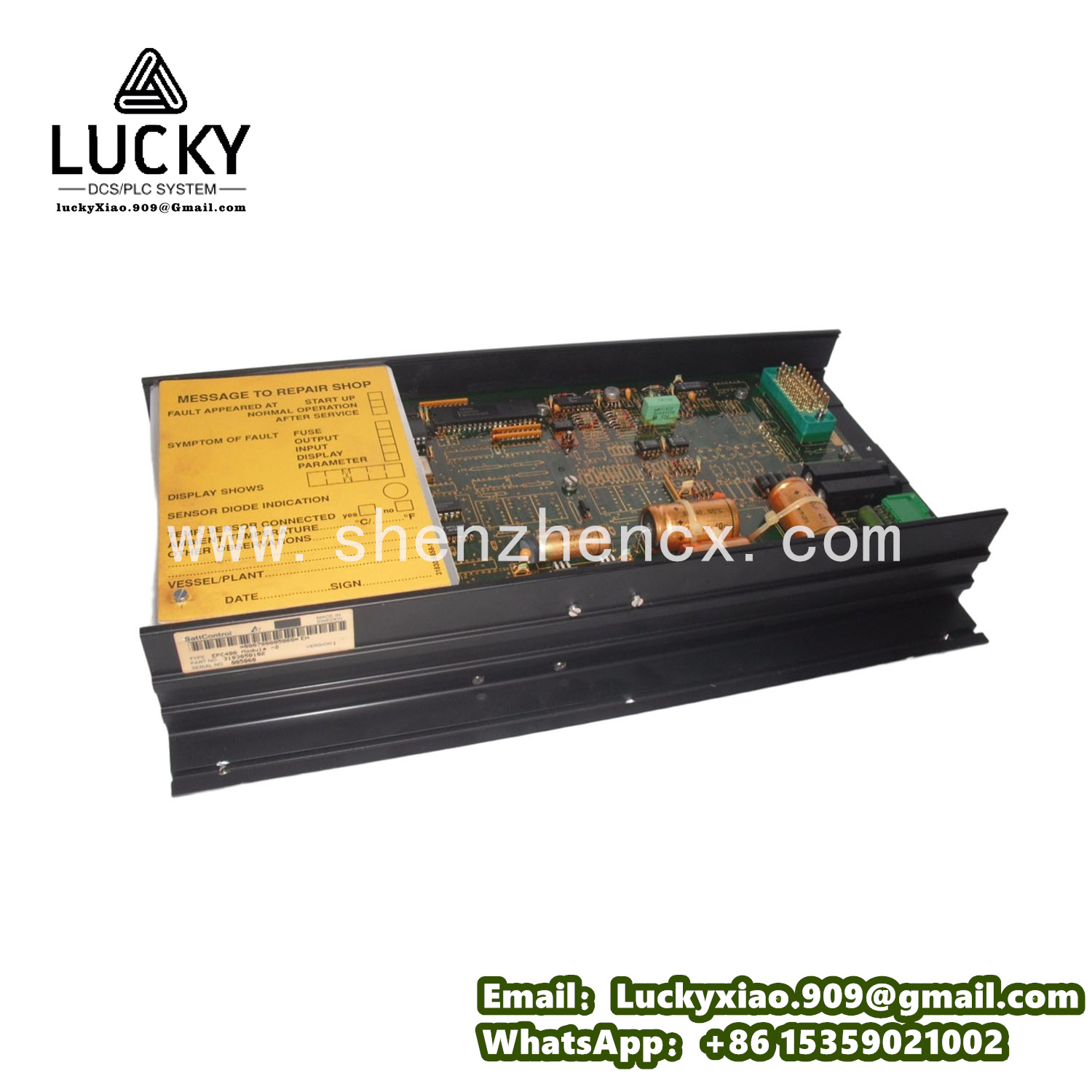

Introduction to ALFA LAVAL EPC400 3183050102
The ALFA LAVAL EPC400 (order number: 3183050102) is an advanced integrated process control module, hailed as the “intelligent control core” for ALFA LAVAL’s separation, heat transfer, and fluid handling systems. As a flagship product in the EPC (Electronic Process Control) series, it integrates multi-variable regulation algorithms, real-time data processing, and human-machine interaction functions, specializing in precise control of key process parameters such as flow, pressure, and separation efficiency. This module is widely applied in marine engineering, food & beverage processing, and petrochemical industries—for example, controlling FOPX-series separators in ship fuel oil treatment systems to remove water and impurities, regulating plate heat exchanger networks in dairy pasteurization lines, or managing fluid transfer systems in edible oil refining plants. Its industrial-grade design features a rugged aluminum alloy housing with IP65 protection rating, resisting oil contamination and vibration in ship engine rooms and industrial workshops.
3183050102 Key Technical Specifications
-
Device Type: Integrated process control module (EPC400 series) for fluid handling and separation systems
-
Core Functions: Multi-parameter regulation (flow/pressure/level), separator discharge control, process data logging, fault alarm
-
Application Compatibility: Matches ALFA LAVAL FOPX separators, M-series plate heat exchangers, and SVP pumps
-
I/O Configuration: 10-channel analog input (4-20mA); 6-channel analog output (0-10V/4-20mA); 12-channel digital I/O
-
Control Performance: Regulation accuracy ±0.2% FS; response time ≤ 5ms; supports cascade control logic
-
Power Supply: 24V DC (redundant input); input range 18-36V DC; typical power consumption ≤ 15W
-
Communication Interface: RS485/Modbus RTU, Ethernet/IP; supports IEC 61850 for marine system integration
-
Operating Environment: Temperature -20°C to +65°C; humidity 5-95% (non-condensing); vibration resistance 10-200Hz (1.5g)
-
Physical Specifications: 200mm × 150mm × 80mm; weight ~1.2kg; DIN rail or panel mounting
-
Protection Features: Overload/short-circuit protection; reverse polarity protection; ESD protection (±15kV contact discharge)
-
Certifications: CE, UL compliant; RoHS certified; meets IMO MARPOL requirements and FDA 21 CFR Part 177 standards
Recommended ALFA LAVAL Related Models
-
ALFA LAVAL EPC400 3183050103: High-pressure variant of 3183050102, suitable for offshore oil platform separation systems
-
ALFA LAVAL EPC50 3183045486: Compact process control module, cost-effective complement for small-scale dairy production lines
-
ALFA LAVAL FCM One 3183045000: Marine fuel control module, collaborates with EPC400 for dual-fuel ship energy optimization
-
ALFA LAVAL M10 Control Adapter 3183062452: Specialized interface for M-series heat exchangers, enhances EPC400’s compatibility
-
ALFA LAVAL 3183050110: Wireless process monitoring module, transmits EPC400 data to remote SCADA systems
-
ALFA LAVAL Aalborg Boiler Control Unit 3183045610: Dedicated boiler controller, pairs with EPC400 for marine thermal system integration
-
ALFA LAVAL 3183050105: Redundant backup module, ensures uninterrupted operation of EPC400 in critical petrochemical processes
-
ALFA LAVAL SVP Pump Control I/O 3183062470: Specialized for SVP series pumps, expands EPC400’s fluid transfer control capability
-
ALFA LAVAL 3183050108: Signal conditioning module, improves EPC400’s measurement accuracy for high-viscosity fluids
-
ALFA LAVAL AK20 Heat Exchanger Adapter 3183062455: For AK-series compact heat exchangers, ideal for craft beer brewing lines
-
ALFA LAVAL 3183050109: Power management module, provides stable 24V DC supply for EPC400 and associated sensors
-
ALFA LAVAL Marine Data Logger 3183045310: Records EPC400’s process data for ship classification society audits
-
ALFA LAVAL MX25B Separator Control Board 3183062480: For MX-series large-capacity separators, expands EPC400’s load control range
-
ALFA LAVAL 3183050112: Fault diagnosis extension, enables predictive maintenance for EPC400-based systems
-
ALFA LAVAL Food-Grade Control I/O 3183062458: Hygiene-compliant module, pairs with EPC400 for pharmaceutical fluid handling
