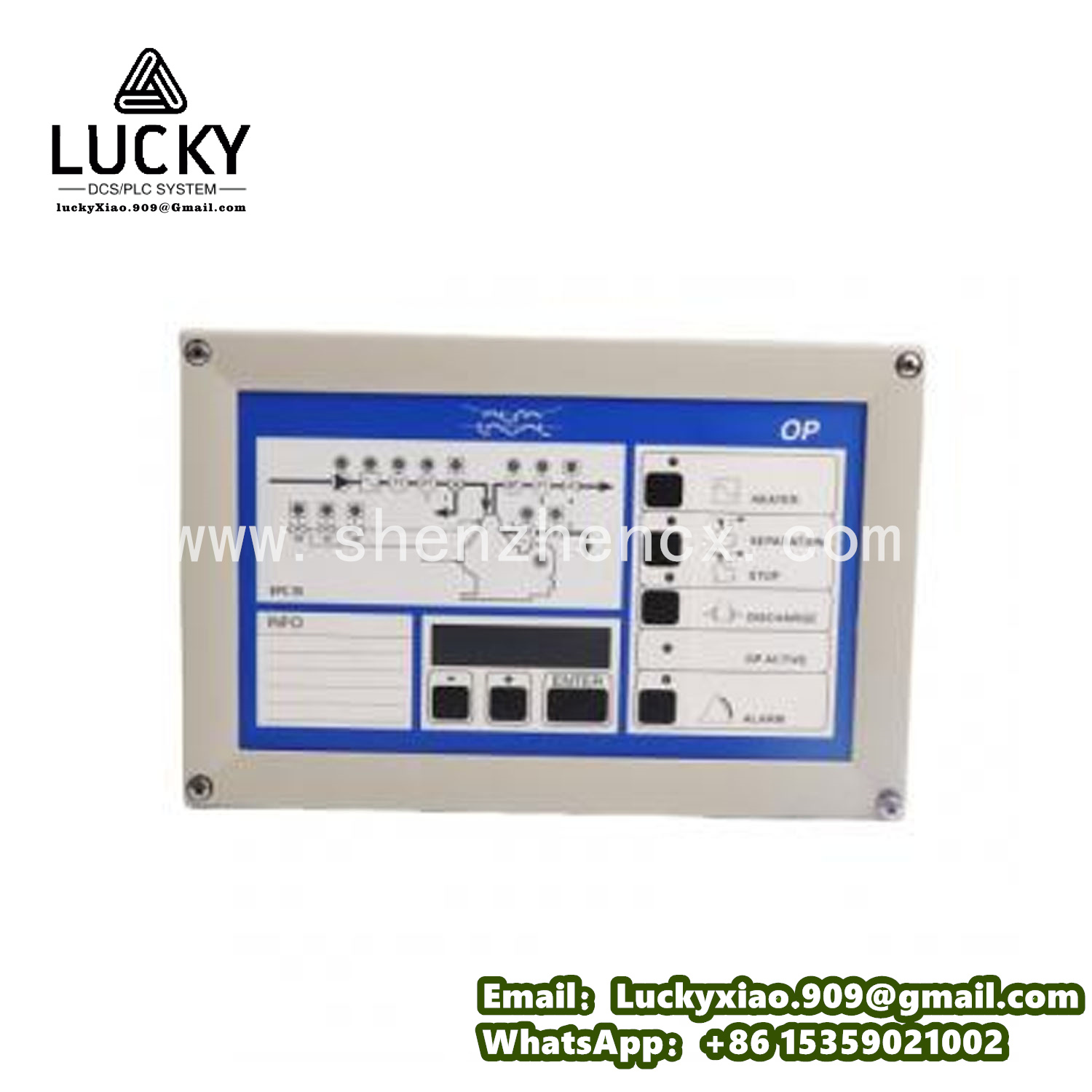

Introduction to ALFA LAVAL 3183062451
The ALFA LAVAL 3183062451 is a high-precision thermal process control module, recognized as the “temperature regulation core” for ALFA LAVAL heat exchange systems and marine power equipment. As a key component in ALFA LAVAL’s thermal management product line, it integrates advanced PID temperature control algorithms, multi-channel sensor signal processing, and adaptive load adjustment capabilities, specializing in maintaining stable temperature parameters during fluid heat exchange processes. This module is widely applied in industries such as marine engineering, petrochemicals, food & beverage, and data center cooling—for instance, regulating the heat transfer efficiency of Aalborg hybrid boilers in green shipping vessels, controlling plate heat exchangers in edible oil refining lines, or managing liquid cooling systems for high-power data centers . Its industrial-grade design features corrosion-resistant housing and enhanced anti-vibration performance, adapting to harsh working environments such as ship engine rooms and chemical plants.
3183062451 Key Technical Specifications
-
Device Type: Thermal process control module for heat exchange and marine power systems
-
Core Functions: Precision temperature regulation, heat load adaptive control, multi-sensor data fusion, fault alarm
-
Application Compatibility: Matches ALFA LAVAL Aalborg boilers, A/M/T series plate heat exchangers, and liquid cooling units
-
I/O Configuration: 6-channel analog input (4-20mA, for PT100/RTD sensors); 4-channel analog output (0-10V/4-20mA); 8-channel digital I/O
-
Control Performance: Temperature control accuracy ±0.3°C; response time ≤ 8ms; PID parameter self-tuning
-
Power Supply: 24V DC (redundant input supported); input range 19-32V DC; typical power consumption ≤ 10W
-
Communication Interface: RS485/Modbus RTU, Ethernet/IP; supports data interaction with ALFA LAVAL 800xA system
-
Operating Environment: Temperature -25°C to +70°C; humidity 5-98% (non-condensing); vibration resistance 5-200Hz (2g)
-
Physical Specifications: 140mm × 90mm × 35mm; weight ~0.25kg; DIN rail mounting (compatible with standard control cabinets)
-
Protection Features: Over-temperature/over-current protection; reverse polarity protection; ESD protection (±20kV air discharge)
-
Certifications: CE, UL compliant; RoHS certified; meets IMO marine equipment standards and FDA food contact requirements
Recommended ALFA LAVAL Related Models
-
ALFA LAVAL 3183062460: High-temperature variant of 3183045486, suitable for Aalborg heat recovery boilers in marine engines
-
ALFA LAVAL 3183062452: Multi-loop control module, ideal for parallel operation systems of 4+ plate heat exchangers
-
ALFA LAVAL Aalborg Hybrid Boiler Control Unit 3183045010: Dedicated controller for new-energy ships, pairs with 3183062451 for dual-fuel thermal regulation
-
ALFA LAVAL M10M Plate Heat Exchanger I/O Adapter: Specialized interface module, enhances 3183062451’s compatibility with M-series heat exchangers
-
ALFA LAVAL 3183062470: Wireless temperature acquisition module, transmits remote sensor data to 3183062451 in large-scale plants
-
ALFA LAVAL FCM One Fuel Control Module: Marine fuel regulation unit, collaborates with 3183062451 to optimize boiler energy efficiency
-
ALFA LAVAL T20-MFG Heat Exchanger Control Board: Tailored for titanium plate heat exchangers, ensures corrosion resistance in seawater applications
-
ALFA LAVAL 3183062480: Redundant backup module, enables seamless switchover for 3183062451 in critical data center cooling systems
-
ALFA LAVAL 3183062455: Signal conditioning module, improves 3183062451’s measurement accuracy for high-viscosity fluid heat exchange
-
ALFA LAVAL AK20 Plate Heat Exchanger Control I/O: Dedicated to AK-series compact heat exchangers, perfect for food & beverage production lines
-
ALFA LAVAL 3183062490: Power management module, provides stable power supply for 3183062451 and associated temperature sensors
-
ALFA LAVAL Marine Thermal Monitoring Unit 3183045610: Centralized data logger, records 3183062451’s control data for ship classification society audits
-
ALFA LAVAL MX25B Heat Exchanger Adapter: For large-capacity MX-series heat exchangers, expands 3183062451’s load control range
-
ALFA LAVAL 3183062458: Fault diagnosis extension board, enables predictive maintenance for 3183062451-based systems
-
ALFA LAVAL Data Center Liquid Cooling Control Module: Specialized for high-density server cooling, pairs with 3183062451 to achieve precise temperature control
