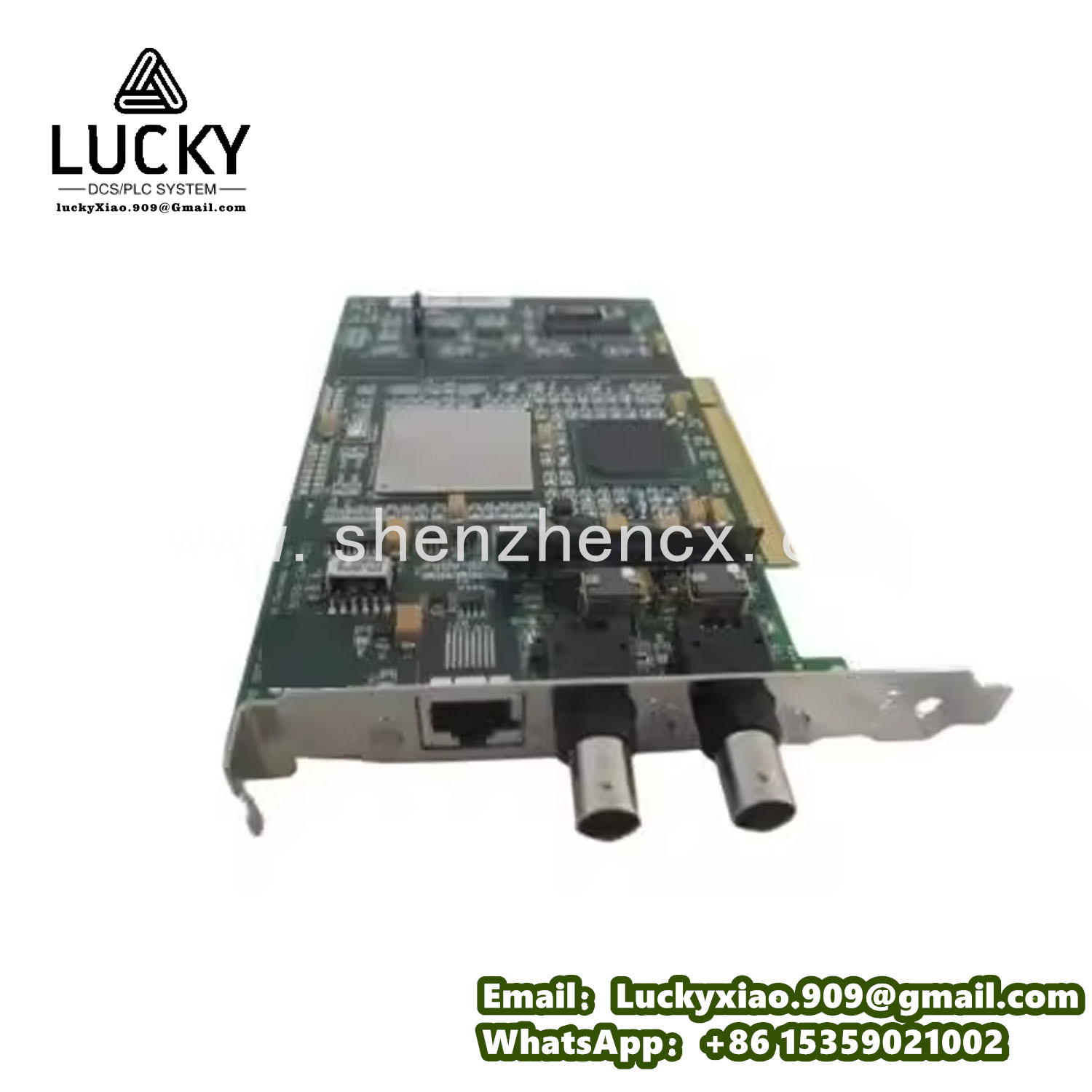

Introduction to SST 5136-CN-PCI
SST 5136-CN-PCI is a high-reliability ControlNet communication card, serving as a core model of the SST 5136 series industrial network interface products. Tailored for industrial automation scenarios, it acts as a critical link between PCI bus-based industrial computers and ControlNet field networks, enabling stable and real-time data exchange. The card supports standard ControlNet protocol communication, seamlessly connecting upper monitoring platforms with field devices like PLCs, sensors and actuators. Featuring industrial-grade rugged design and strong anti-electromagnetic interference capability, it maintains stable operation in harsh environments with temperature fluctuations and electrical noise. It is widely used in process control, factory automation, system debugging and monitoring, and other fields requiring high-reliability data transmission.
-
Product Model: 5136-CN-PCI
-
Product Type: ControlNet Communication Card (SST 5136 Series)
-
Core Functions: Standard ControlNet protocol support; Real-time data transmission and exchange; PCI bus compatibility; Built-in self-diagnostic and fault alarm functions; Seamless integration with industrial control systems.
-
Connection & Installation: 32-bit PCI bus interface (compliant with industrial standards); Standard ControlNet 9-pin D-connector; Supports installation in standard industrial computer chassis with easy wiring.
-
Electrical Parameters: Communication Rate: 5 Mbps (standard ControlNet rate); Operating Voltage: 3.3V/5V (powered via PCI slot); Isolation Protection: Electromagnetic isolation for enhanced anti-interference; Compatible with remote I/O network data access.
-
Environmental Parameters: Operating Temperature: -40°C to 70°C; Storage Temperature: -40°C to 85°C; Relative Humidity: 5%~95% (non-condensing); Anti-vibration and anti-EMI performance.
-
Mechanical & Software Parameters: Housing Material: Industrial-grade high-strength metal; Form Factor: Standard PCI card dimensions; Supported OS: Windows, Linux and mainstream industrial operating systems.
Recommended SST Same-Series Models
-
5136-PFB-VME: PROFIBUS interface card, supports DP master/slave modes and FDL message transmission.
-
5136-DN-VME: DeviceNet VME card, enables CAN-based communication with data rates up to 1 Mbaud.
-
5136-PFB-PCI: PROFIBUS-to-PCI interface card, supports simultaneous DP master/slave operation and FMS communication.
-
5136-DN-104: DeviceNet PC/104 card, ideal for embedded control system integration.
-
5136-EN-PCI: Industrial Ethernet PCI card, supports high-speed transmission and multi-protocol compatibility.
-
5136-CN-VME: ControlNet VME card, optimized for VME bus-based industrial platforms.
-
5136-MB-PCI: Modbus PCI card, compatible with Modbus RTU/TCP protocols.
-
5136-RS-PCI: RS-485/232 serial PCI card, with built-in FIFO buffer for stable transmission.
-
5136-IO-PCI: Integrated I/O PCI card, combines signal acquisition and communication functions.
-
5136-FD-PCI: Fault-tolerant communication card, ensures uninterrupted transmission in critical scenarios.
-
5136-HS-PCI: High-speed communication card, supports baud rates up to 1 Mbaud.
-
5136-LP-PCI: Low-power PCI card, optimized for energy-saving industrial systems.
-
5136-MX-PCI: Multi-channel PCI card, expands field device connection capacity.
-
5136-DI-PCI: Diagnostic-focused PCI card, provides real-time fault monitoring and analysis.
-
5136-EC-PCI: Industrial protocol conversion card, enables seamless multi-protocol conversion.
