Introduction to SST 5136-DNP-VME-4
5136-DNP-VME-4 Product Overview

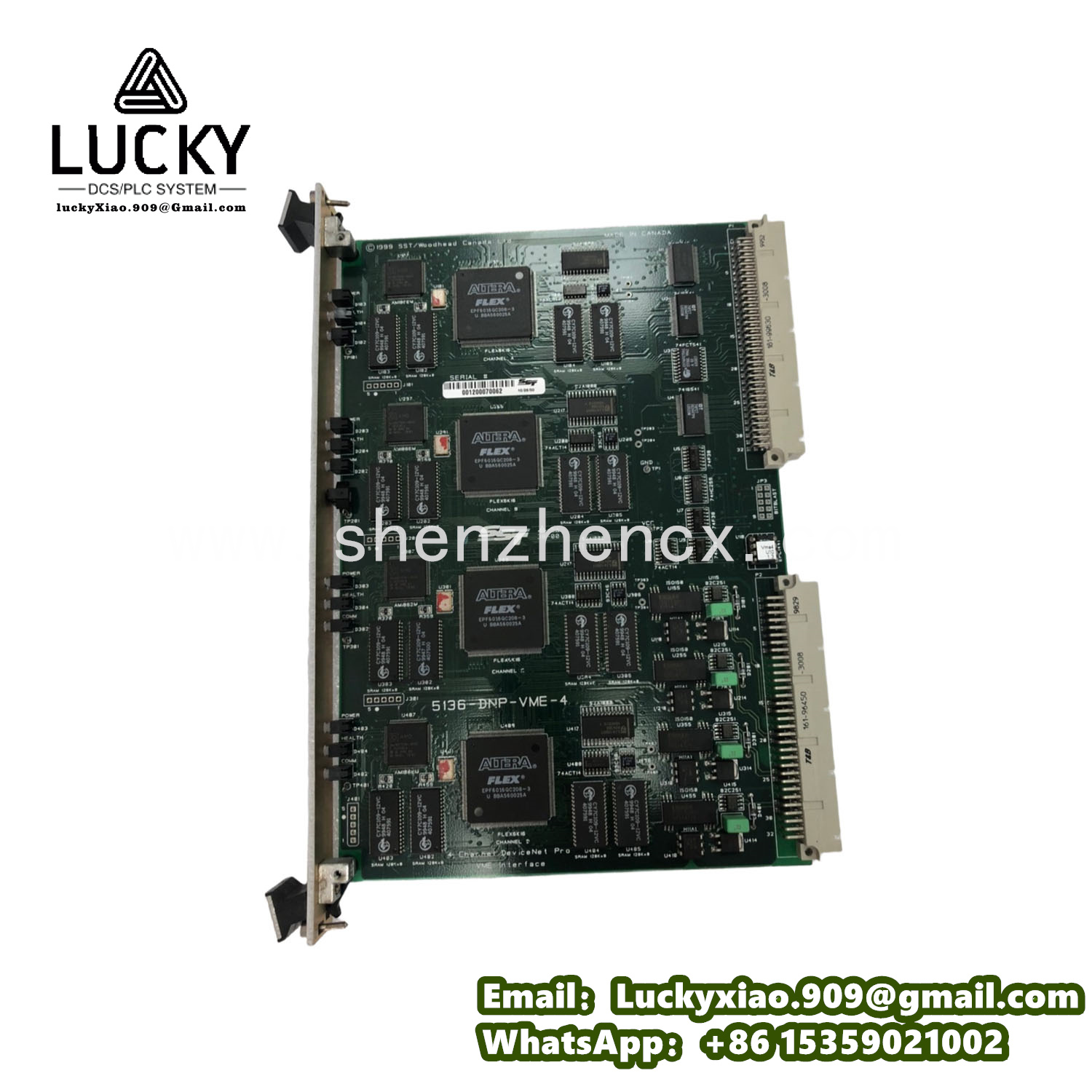

The SST 5136-DNP-VME-4 is an intelligent interface card designed for seamless communication between DeviceNet/CAN-based networks and VME bus systems. Equipped with an on-board CPU that supports downloadable application software modules, it acts as a critical bridge to enable reliable data transmission and protocol conversion in industrial automation environments. Its robust hardware design ensures stable performance even in harsh industrial conditions, making it suitable for integrating various field devices with VME-based host systems. This card is widely applied in industrial control scenarios that require efficient interoperability between DeviceNet networks and VME bus architectures, enhancing the overall connectivity and control efficiency of automation systems.
5136-DNP-VME-4 Technical Specifications
-
Product Model: 5136-DNP-VME-4
-
Product Type: DeviceNet to VME Interface Card
-
Core Functions: DeviceNet/CAN protocol conversion, VME bus communication, downloadable application execution, data transmission management, network status monitoring
-
Communication Performance: Supports CAN data rates up to 1 Mbaud; compatible with DeviceNet and other CAN-based networks
-
Bus Compatibility: Complies with VME64x, VME32 and VME64 bus standards; 6U VME form factor
-
Power Supply: +5 VDC @ 400 mA, +12 VDC @ 10 mA, -12 VDC @ 10 mA
-
Environmental Ratings: Operating temperature: 0°C to 50°C; Storage temperature: -25°C to 70°C; Relative humidity: 5%-95% (non-condensing)
-
Mechanical Dimensions: 6U height, 160mm x 233mm (approx.); Half-length, single width design
-
Interface Type: “F” connector for network connection; VME64x standard P1 compatible connector; Status indicator LEDs
-
Certifications: Complies with relevant industrial communication and safety standards for industrial automation equipment
-
Applications: Industrial automation systems, VME-based control platforms, DeviceNet field device integration, factory automation connectivity
Recommended SST Same-Series Models
-
SST 5136-PFB-VME: Profibus to VME interface card, supports DP master/slave operation and FDL layer 2 messaging
-
SST 5136-PFB-PCI: Profibus to PCI interface card, 32-bit, supports simultaneous DP master/slave and FMS communication
-
SST 5136-MOD-VME-V4: Modicon to VME interface card, with 128 Kbytes shared memory and supports remote I/O master/slave operation
-
SST 5136-SD-ISA: AB ISA DH/DH+/RIO scanner adapter interface card, enables communication between ISA bus and AB industrial networks
-
SST 5136-CN-104: Intelligent front-end module for VME bus masters and Modicon S908 remote I/O networks
-
SST-DNP-cPCI-3U-4-NC: 4-channel DeviceNet Pro CompactPCI module, 3U format with front panel indicator LEDs
-
SST 5136-PFB-PCM: 16-bit PC Card Type II Profibus interface card, 5V power supply @ 450 mA
-
SST-DN3-PCI-1: 1-channel high-performance DeviceNet interface card, supports fragmented explicit and I/O messages
-
SST 5136-CN-ISA: Industrial network interface card for integrating CN networks with ISA bus systems
-
SST-AMAT-DNP-cPCI-2: 2-channel DeviceNet Pro CompactPCI module, tailored for specific industrial integration scenarios
