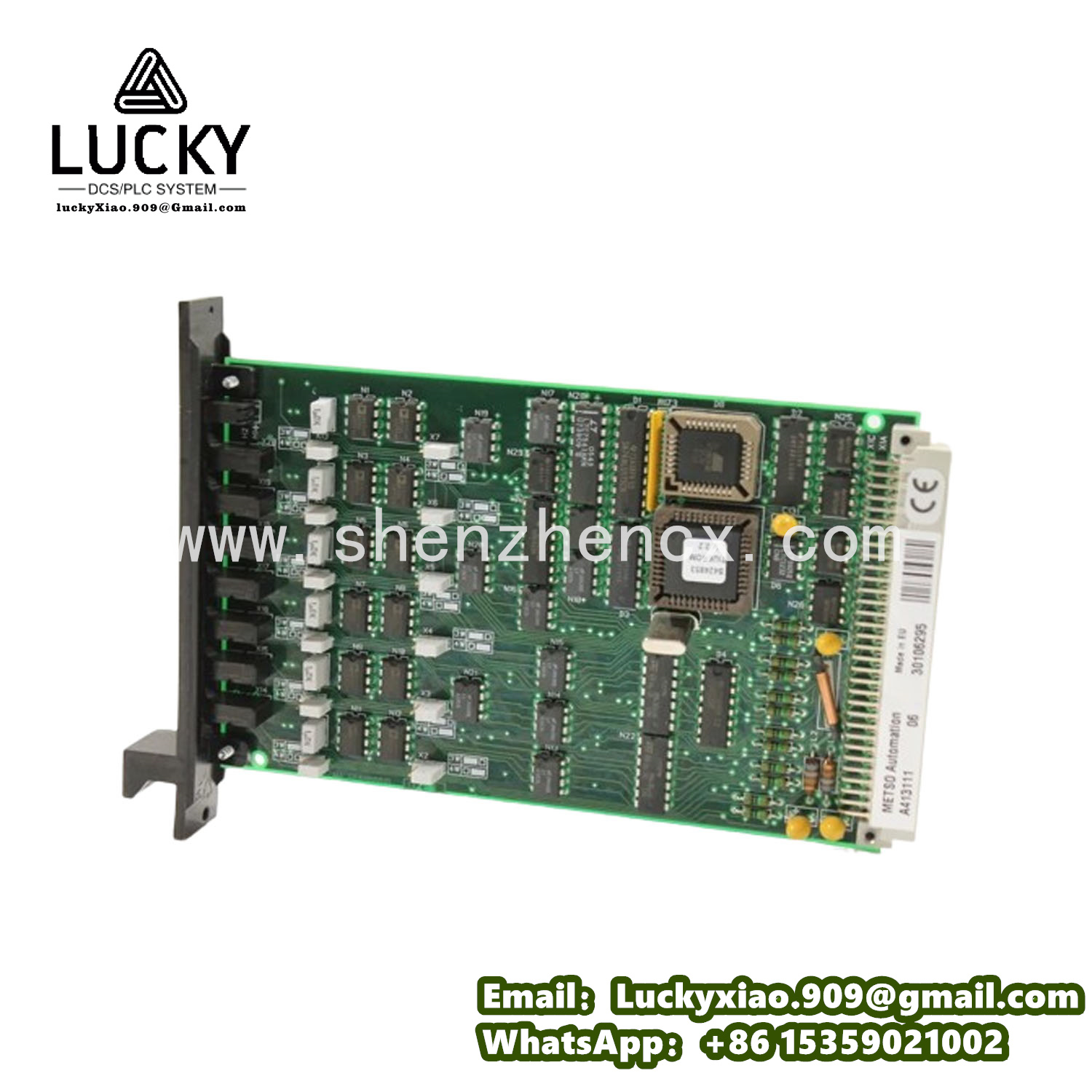

Introduction to METSO A413111

A413111 Product Overview

A413111 Technical Specifications

• Product Model: A413111
• Product Type: Industrial High-Level Conductivity Analysis Module
• Core Functions: High-conductivity measurement and analysis, real-time data transmission, system status monitoring, fault diagnosis and alarm, seamless integration with control systems
• Power Supply: 24 VDC wide voltage input (18 VDC – 30 VDC); Built-in voltage stabilization and reverse polarity protection; Power consumption: ≤ 9 VA
• Measurement Range: Programmable conductivity range: 0.000 to 1999 mS/cm (uncompensated)
• Input Type: Single-channel high-conductivity sensor input; Compatible with METSO standard conductivity sensors
• Output Signal: 4-20 mA analog output; Maximum load resistance: 750 Ω
• Response Performance: Response time: 2-10 seconds (depending on measuring conditions); Linearity deviation: < 5% (best fitting slope)
• Isolation Performance: Photoelectric isolation between input, power supply and output; Isolation voltage: ≥ 2500 VAC (1 minute); Complies with IEC 61000-6-2/4 EMC standards
• Communication Protocols: Supports PROFINET and Ethernet/IP; Seamless integration with METSO DP-100 distributed processing units
• Protection Features: Built-in overcurrent, overvoltage and short-circuit protection; Dust and moisture resistant housing
• Environmental Ratings: Operating temperature: -25°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5% – 95% (non-condensing); Protection class: IP67
• Mechanical & Installation: Compact modular design (approx. L×W×H: 120 mm × 85 mm × 45 mm); Weight: approx. 0.22 kg; DIN rail/panel-mounted; Supports hot-swapping; Compatible with M12 connectors
• Certifications: CE, UL certified; RoHS compliant

Recommended METSO Same-Series Models

1. METSO A413112: Dual-channel high-level conductivity analysis module, suitable for simultaneous monitoring of two process streams
2. METSO A413113: High-precision conductivity analysis module with temperature compensation function, ensuring measurement accuracy under temperature fluctuations
3. METSO A413140 (BIU 8): 8-channel intelligent input module with professional signal conditioning, suitable for high-precision sensor data acquisition
4. METSO A413162: Process control module, facilitating integration of analytical systems into mineral processing control loops
5. METSO A413240: 8-channel configurable input module, supporting multi-type signal acquisition for diverse monitoring scenarios
6. METSO D200533: 8-channel digital I/O module, enabling flexible signal interaction between field devices and controllers

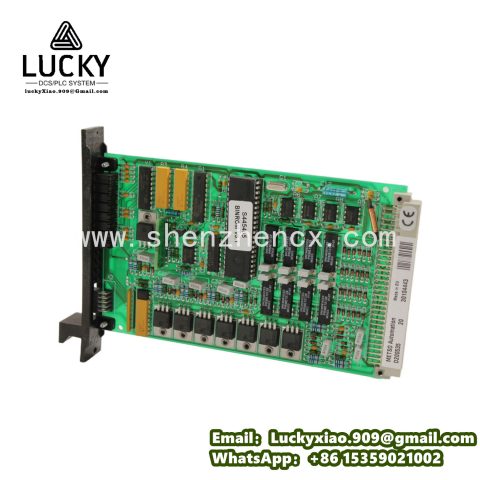

7. METSO D200535: 16-channel configurable digital I/O module, supporting bidirectional signal transmission for large-scale control systems
8. METSO D201189L: 16-channel high-speed digital input module, ideal for large-scale industrial process monitoring
9. METSO D201466: 8-channel configurable digital I/O module with IO-Link support, realizing intelligent device diagnosis
10. METSO DP-100: Distributed processing unit, serving as the core engine of METSO MAX DNA distributed control system
11. METSO MLCP-SIE-S: Local control panel, integrating analysis and I/O modules for mill control in standard ambient environments
12. METSO MLCP-SIE-E: Local control panel, designed for mill control in extreme harsh ambient conditions
