Introduction to METSO A413135
A413135 Product Overview

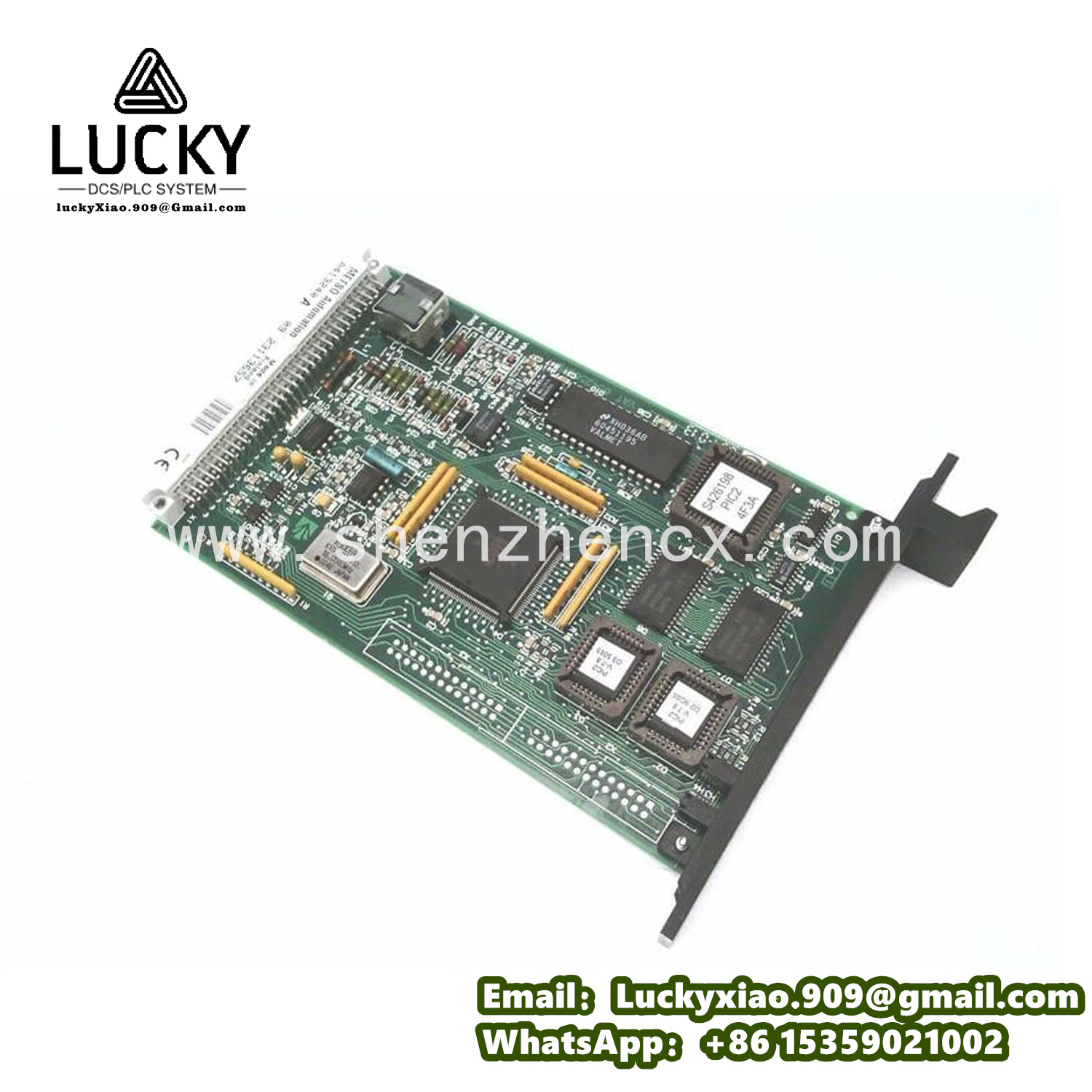

The METSO A413135 is an intelligent industrial signal input module specifically engineered for process automation systems, primarily tailored for heavy industrial sectors including mineral processing, metallurgy, and mining. As a key component of METSO’s automation control product series, it serves as a critical interface for collecting and conditioning various analog signals from field sensors (such as temperature, pressure, and level sensors) and transmitting precise data to upper-level control systems like DCS or PLC. Featuring a rugged industrial-grade housing, the module is optimized to withstand harsh operating conditions common in industrial sites, such as vibration, dust, high humidity, and extreme temperature fluctuations. It enables seamless integration with METSO’s MAX DNA distributed control system and MLCP series local control panels, ensuring stable and reliable data acquisition.
A413135 Technical Specifications
-
Product Model: A413135
-
Product Type: Industrial Intelligent Signal Input Module
-
Core Functions: Multi-type analog signal acquisition, signal filtering and conditioning, high-precision data conversion, system status monitoring, fault diagnosis and alarm, seamless integration with control systems
-
Power Supply: 24 VDC wide voltage input (18 VDC – 30 VDC); Built-in voltage stabilization and reverse polarity protection; Power consumption: ≤ 8 VA
-
Input Channels: 8-channel configurable input; Supports 4-20 mA current signals, 0-10 VDC voltage signals, RTD temperature signals, and thermocouple signals
-
Conversion Accuracy: Analog signal conversion accuracy class ≤ 0.1%; Ensures high-precision data acquisition for critical process parameters
-
Isolation Performance: Photoelectric isolation between channels, power supply and communication interface; Isolation voltage: ≥ 2500 VAC (1 minute); Complies with IEC 61000-6-2/4 EMC standards
-
Communication Protocols: Supports PROFINET and Ethernet/IP; Seamless integration with METSO DP-100 distributed processing units
-
Protection Features: Built-in overcurrent, overvoltage and short-circuit protection for each channel; Burn-out protection for sensor connection; Dust and moisture resistant housing
-
Environmental Ratings: Operating temperature: -25°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5% – 95% (non-condensing); Protection class: IP67
-
Mechanical & Installation: Compact modular design (approx. L×W×H: 120 mm × 85 mm × 45 mm); Weight: approx. 0.21 kg; DIN rail/panel-mounted; Supports hot-swapping; Compatible with M12 connectors
-
Certifications: CE, UL certified; RoHS compliant
Recommended METSO Same-Series Models
-
METSO A413140 (BIU 8): 8-channel intelligent input module with professional signal conditioning, suitable for high-precision sensor data acquisition
-
METSO A413162: Process control module, facilitating integration of I/O systems into mineral processing control loops
-
METSO A413240: 8-channel configurable input module, supporting multi-type signal acquisition for diverse monitoring scenarios
-
METSO A413241: 16-channel enhanced input module, adapting to complex multi-type signal acquisition requirements
-
METSO D200533: 8-channel digital I/O module, enabling flexible signal interaction between field devices and controllers
-
METSO D200535: 16-channel configurable digital I/O module, supporting bidirectional signal transmission for large-scale control systems
-
METSO D201189L: 16-channel high-speed digital input module, ideal for large-scale industrial process monitoring
-
METSO D201466: 8-channel configurable digital I/O module with IO-Link support, realizing intelligent device diagnosis
-
METSO DP-100: Distributed processing unit, serving as the core engine of METSO MAX DNA distributed control system
-
METSO MLCP-SIE-S: Local control panel, integrating I/O modules for mill control in standard ambient environments
-
METSO MLCP-SIE-E: Local control panel, designed for mill control in extreme harsh ambient conditions
-
METSO A413136: 16-channel enhanced signal input module, suitable for complex multi-sensor data acquisition scenarios
