Introduction to ABB 1TGE120010R1300

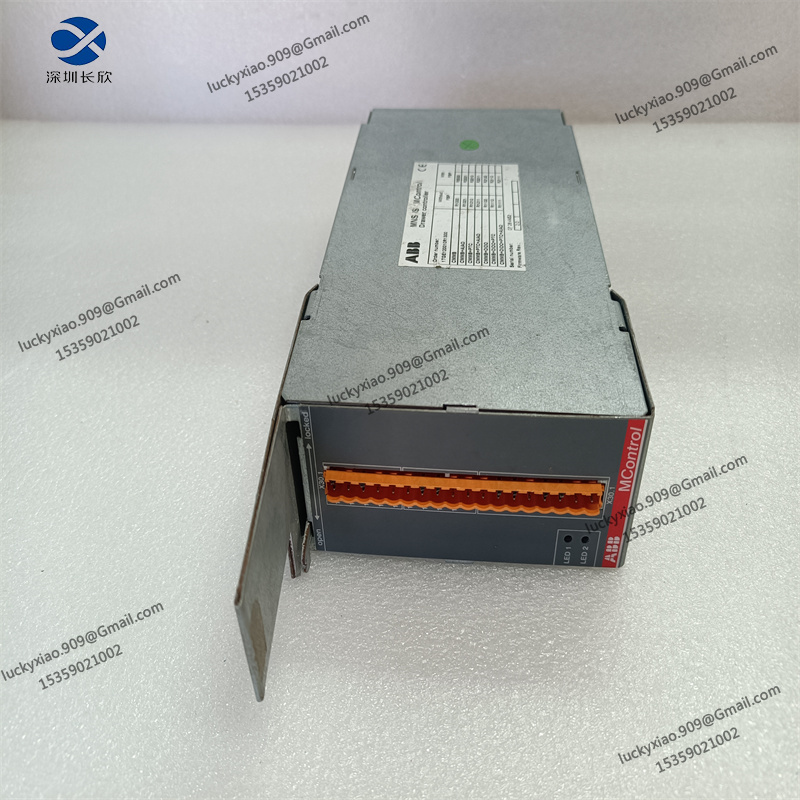

1TGE120010R1300 Product Overview
The ABB 1TGE120010R1300 is an industrial-grade human-machine interface (HMI) operating unit, specifically designed for on-site control and status monitoring of low-voltage electrical systems in manufacturing, power distribution, and building automation scenarios. Serving as a direct interaction bridge between operators and control systems, it integrates a 4.3-inch monochrome display and customizable function keys, enabling intuitive parameter setting, real-time data viewing, and quick execution of control commands—such as starting/stopping motors, switching between operating modes, and acknowledging alarms. Its standout feature is the dual protection rating design: IP65 when installed in the forward direction (suitable for dusty or wet on-site environments) and IP20 for other installation orientations, ensuring adaptability to diverse working conditions.
1TGE120010R1300 Technical Specifications
-
Product Model: 1TGE120010R1300
-
Product Type: Industrial HMI Operating Unit
-
Series Affiliation: ABB 1TGE Operating Unit Series
-
Core Functions: On-site parameter setting, real-time status display, control command execution, alarm handling
-
Display Specifications: 4.3-inch monochrome LCD; Resolution 320×240; Anti-glare coating; LED backlight (service life ≥50,000h)
-
Operation Interface: 12 customizable function keys; Tactile feedback; Backlit keys for low-light environments
-
Communication Interface: RS485; Supports Modbus RTU protocol; Data transmission rate up to 19.2kbps
-
Power Supply: DC 24V (18V-40V); Current consumption ≤0.3A
-
Protection Features: Overvoltage protection (42V), reverse polarity protection, electrostatic discharge (ESD) protection (±8kV contact)
-
Protection Rating: IP65 (forward installation); IP20 (other installation directions) [Complies with IEC 529, EN 60529]
-
Operating Environment: Temperature -10°C to +55°C; Humidity 10-90% (non-condensing); Vibration resistance 10g (10-2000Hz)
-
Mechanical Features: Panel mount; Dimensions 160mm×235mm×60mm (L×W×D); Weight ~1.3kg
-
Compatibility: ABB AC 800M controllers, SPC2.0 intelligent power distribution systems, ACS series frequency converters
-
Certifications: CE, UL certified; Complies with IEC 61010-1, IEC 61326 industrial standards
Recommended ABB Products
-
ABB PM5100: Programmable logic controller that receives control commands from 1TGE120010R1300 for system regulation.
-
ABB ACS880-01-04A6-2: Frequency converter whose operating parameters are set and monitored via 1TGE120010R1300.
-
ABB CT-MPN 1SFA616001R1001: Contactor module triggered by 1TGE120010R1300 to realize load switching in power distribution circuits.
-
ABB DI830 3BSE008519R1: Digital input module that sends on-site status data to 1TGE120010R1300 for display.
-
ABB PU515A 3BSE032401R1: Redundant power supply that ensures stable 24V DC input for 1TGE120010R1300.
-
ABB TVOC-2-240 1SFA664001R1001: Time relay module whose timing parameters are configured via 1TGE120010R1300’s interface.
-
ABB REF615 1MRK504153-BEN: Protection relay that sends fault signals to 1TGE120010R1300 for alarm notification.
-
ABB M2BAX 100LA4: Low-voltage motor that is controlled and monitored by 1TGE120010R1300 in industrial production lines.
-
ABB CI854A 3BSE022363R1: Communication module that expands 1TGE120010R1300’s connectivity to Profibus DP networks. View more …..
