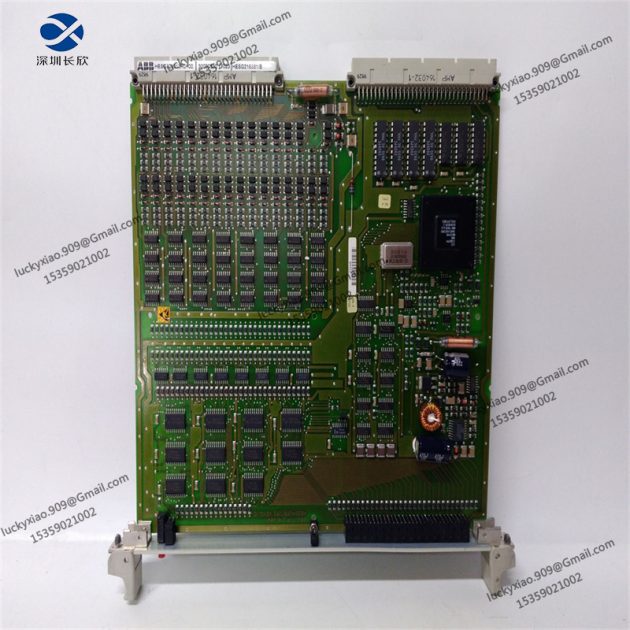

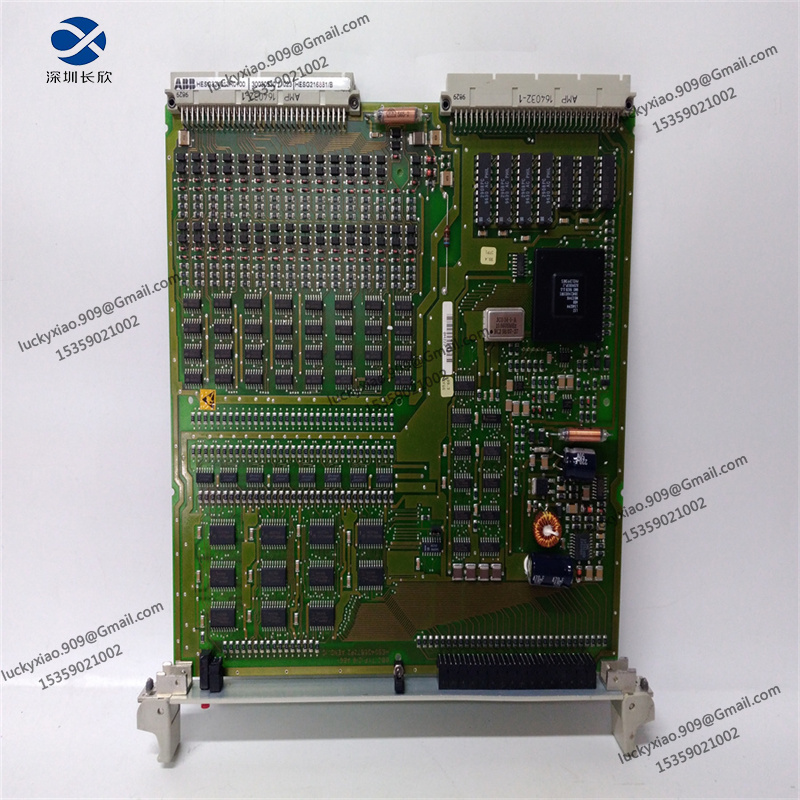

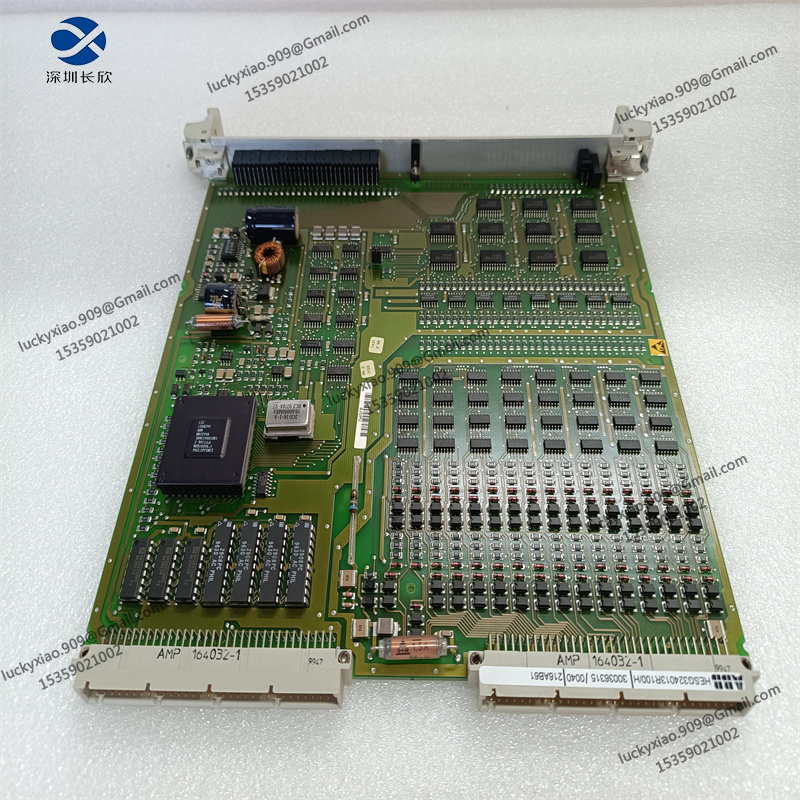

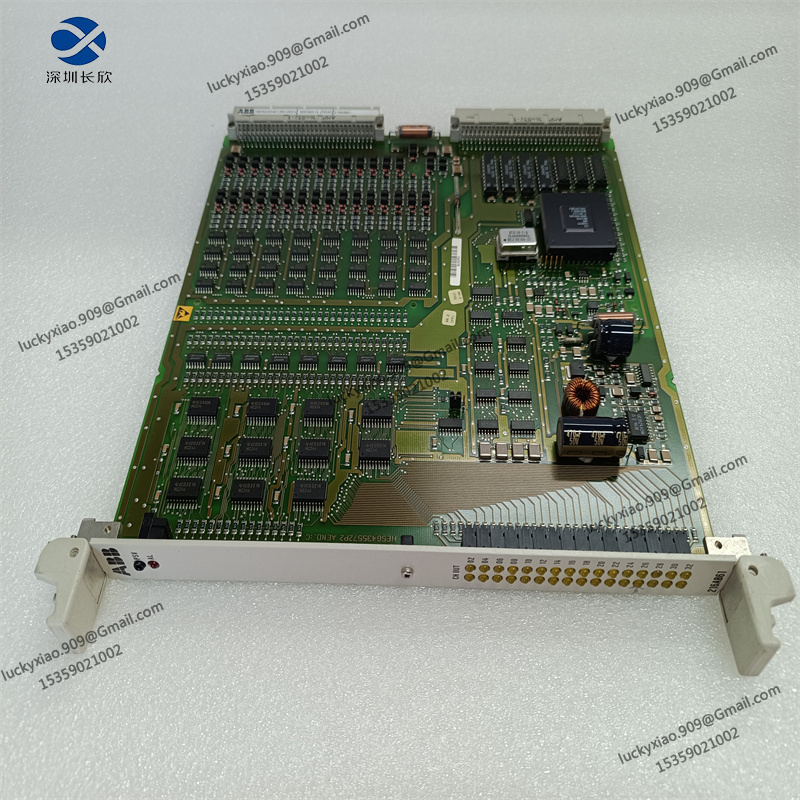

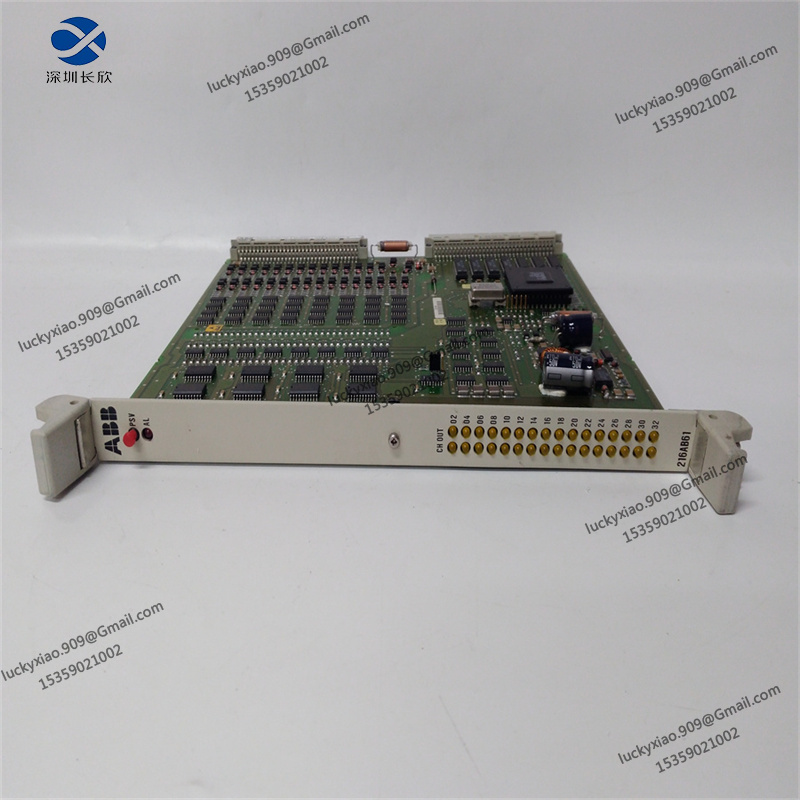

216AB61 HESG324013R100 Product Overview
The ABB 216AB61 HESG324013R100 is a high-reliability protective relay module, belonging to ABB’s REG 216 series. Specifically designed for power system protection, it is mainly used for the protection of generators, block transformers, and feeders, replacing multiple relays in traditional protection schemes to achieve integrated and efficient protection. The module integrates fully numerical signal processing, selectable protection functions, and continuous hardware self-monitoring, ensuring accurate identification of faults such as overcurrent, undercurrent, and earth faults, and triggering timely trip protection. Featuring modular hardware and software design, it supports flexible configuration to adapt to different primary system sizes and protection requirements. With standard communication interfaces, it realizes seamless data exchange with upper-level process control systems, enabling one-way reporting of digital states, events, and measured values.
216AB61 HESG324013R100 Technical Specifications
-
Product Model: 216AB61 HESG324013R100
-
Product Type: Protective Relay Module (REG 216 Series, for Generator/Transformer Protection)
-
Core Functions: Generator/transformer differential protection, phase/earth fault overcurrent/undercurrent protection, restricted earth fault protection, voltage-controlled overcurrent protection, inverse time overcurrent protection, disturbance recording, event display & printout, continuous hardware self-monitoring, cyclical testing routines
-
Power Supply: 24 V DC input (input voltage range: 20-30 V DC); Built-in voltage stabilization and surge protection; Low power consumption design for long-term stable operation
-
Input/Output Specifications: Supports analog current/voltage signals; Compatible with 4-20 mA standard signals; Digital input/output for fault status transmission and control; Galvanic isolation: 500 V from the system
-
Communication Protocols: Supports standard industrial communication protocols; Standard interfaces compatible with different process control systems; Enables data exchange with upper-level control systems
-
Response Performance: Fully numerical signal processing; Instantaneous or definite time delay operation; Fast fault identification and trip response to minimize equipment damage
-
Environmental Ratings: Operating temperature: -20°C to +55°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Strong anti-interference capability for power system environments
-
Mechanical & Installation: Modular hardware design; Compact structure; Panel-mounted installation; Easy to assemble and maintain; Supports menu-assisted setting with PC
-
Compatibility: Fully compatible with ABB REG 216 series protection systems; Matches ABB process control systems for seamless integration
-
Certifications & Protection: Complies with power system protection safety standards; Equipped with overcurrent, overvoltage, and short-circuit protection; High reliability verified by strict testing
