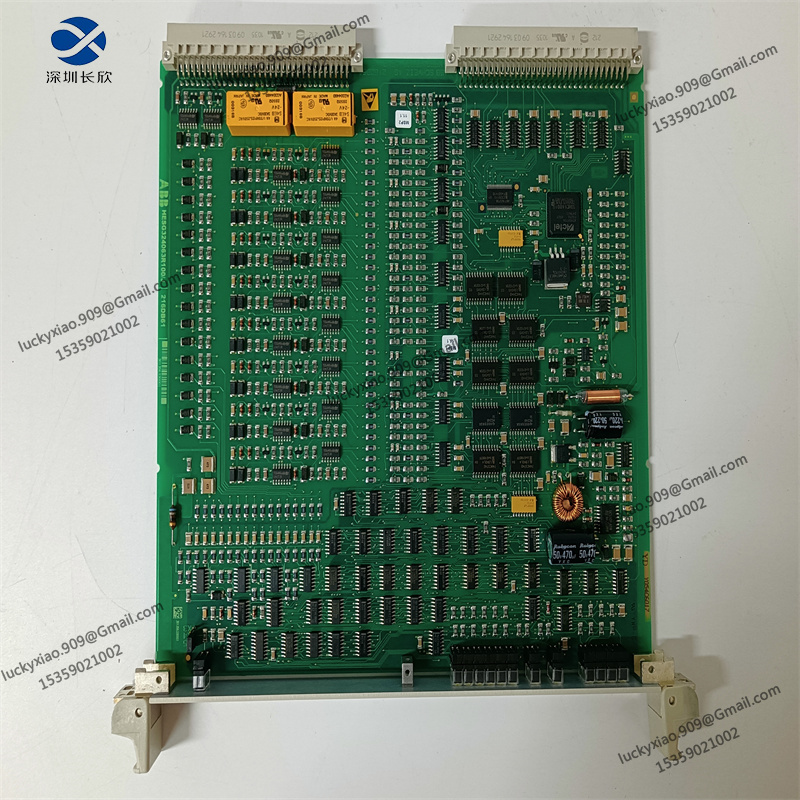

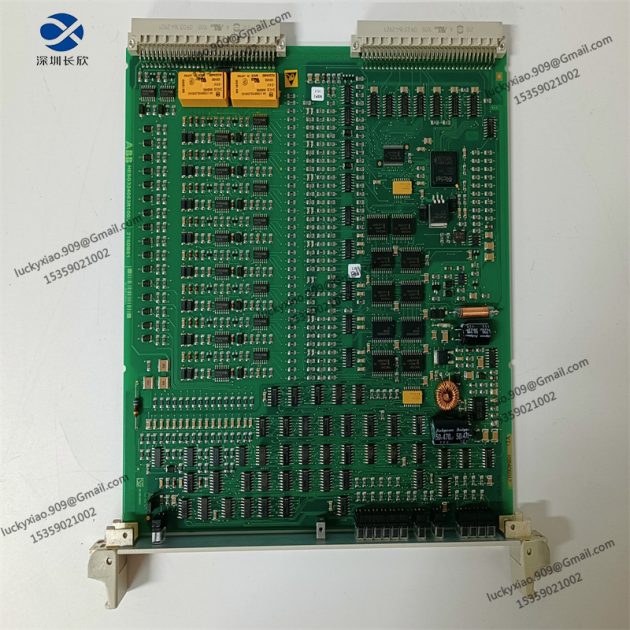

HESG324063R100 Introduction to ABB 216DB61 HESG324063R100

Product Overview

HESG324063R100 Technical Specifications

• Product Model: 216DB61 HESG324063R100
• Product Type: Industrial Control Module (Compatible with DCS/AC800F Series)
• Core Functions: Analog/digital signal acquisition & conversion, data processing & transmission, logic control, fault diagnosis & alarm, signal conditioning (filtering, amplification), trip protection for abnormal conditions
• Power Supply: 24 V DC input (input voltage range: 20-30 V DC); Rated power: 100 W; Power consumption: <15 W; Built-in voltage stabilization and surge protection
• Input/Output Specifications: 16 digital I/O channels; Supports analog signals (0-10 V DC, 0-20 mA, 4-20 mA); Analog channel resolution: 10-bit (value range: 0~1000); Maximum output current: 10 A; Output voltage range: 115-230 V AC
• Communication Protocols: Supports PROFIBUS, Modbus; Communication interfaces: RS232, RS422, RS485, Ethernet; Maximum shielded cable length: 10 m
• Response Performance: Fast signal response speed, suitable for real-time control demands; High data acquisition accuracy for precise process regulation
• Environmental Ratings: Operating temperature: -20°C to +55°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Protection class: IP65; Strong anti-interference capability
• Mechanical & Installation: Modular design; Dimensions: 150 mm × 100 mm × 50 mm; Weight: approx. 2 kg; DIN rail or panel-mounted; Easy to assemble and maintain
• Compatibility: Fully compatible with ABB DCS and AC800F series control systems; Matches ABB controllers and I/O modules for seamless system integration
• Certifications & Protection: Complies with industrial automation safety standards; Equipped with overcurrent, overvoltage, and short-circuit protection; High reliability verified by strict testing

Recommended ABB Same-Series Models

1. ABB 216DC61 HESG324064R100: Digital input module, specialized in high-speed acquisition of on-site switch and sensor signals for DCS
2. ABB 216DA61 HESG324065R100: Analog output module, providing stable 4-20 mA/0-10 V signals for industrial process control
3. ABB AC800F PM861K01: High-performance controller module, supporting complex control algorithms for large-scale DCS
4. ABB CI854A 3BSE030150R1: PROFIBUS communication module, enabling data exchange between DCS and field devices
5. ABB AI835 3BSE013230R1: High-precision analog input module, with 16-bit resolution for sensitive signal acquisition
6. ABB AO835 3BSE013231R1: Analog output module, supporting multi-range signal output for diverse actuator control
7. ABB DI830 3BSE013226R1: Digital input module, expanding digital signal collection capability for industrial automation systems
8. ABB DO830 3BSE013227R1: Digital output module, driving industrial actuators for on-site equipment control
9. ABB AC800F CM801K01: Communication module, supporting Ethernet/IP for DCS connection to upper-level management systems
10. ABB 216DB62 HESG324066R100: Enhanced industrial control module, with extended I/O channels for large-scale process monitoring
11. ABB PM564-TP-ETH: Compact controller module, integrating 6DI/6DO/2AI/1AO for small-scale automation
12. ABB AI830 3BSE013228R1: Economical analog input module, adapting to cost-sensitive industrial application scenarios
13. ABB DO820 3BSE013225R1: Digital output module, with high load capacity for driving heavy-duty industrial equipment
14. ABB AC800F PM860K01: Mid-range controller module, balancing performance and cost for medium-scale DCS
15. ABB CI867K01: Industrial Ethernet module, supporting PROFINET for seamless DCS system integration
