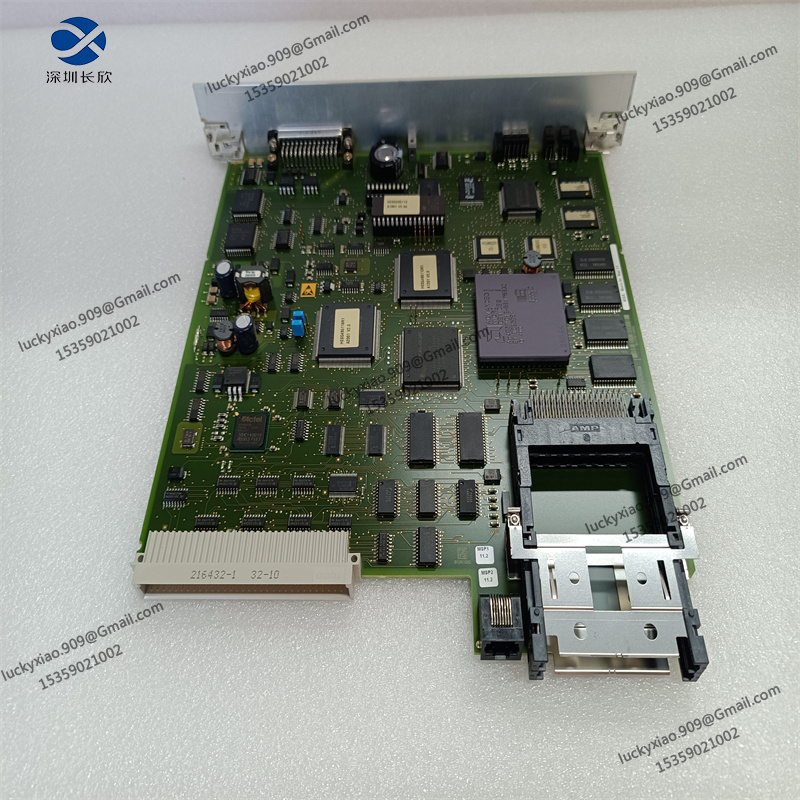

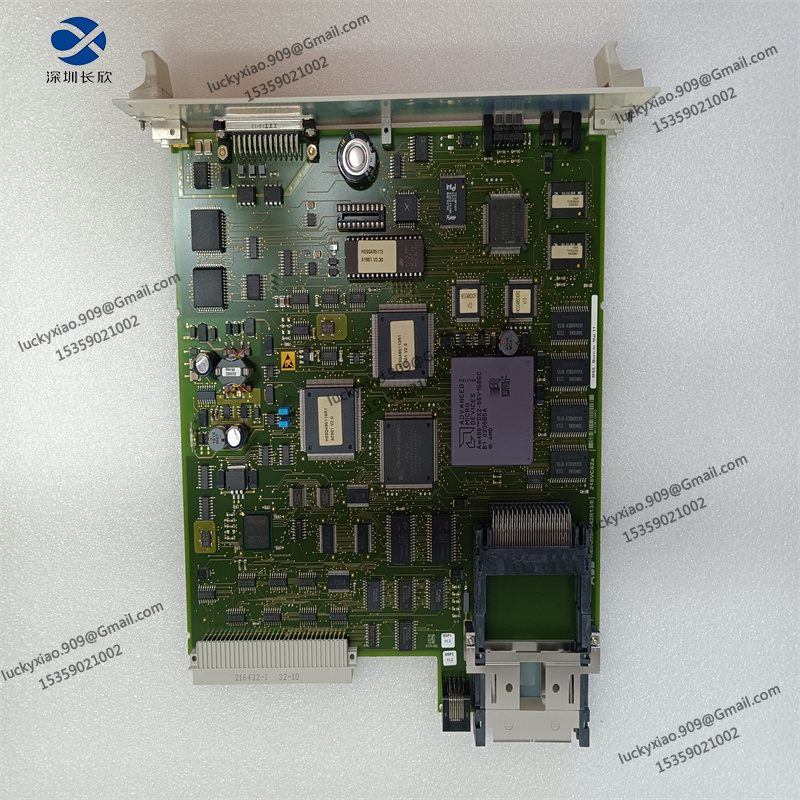

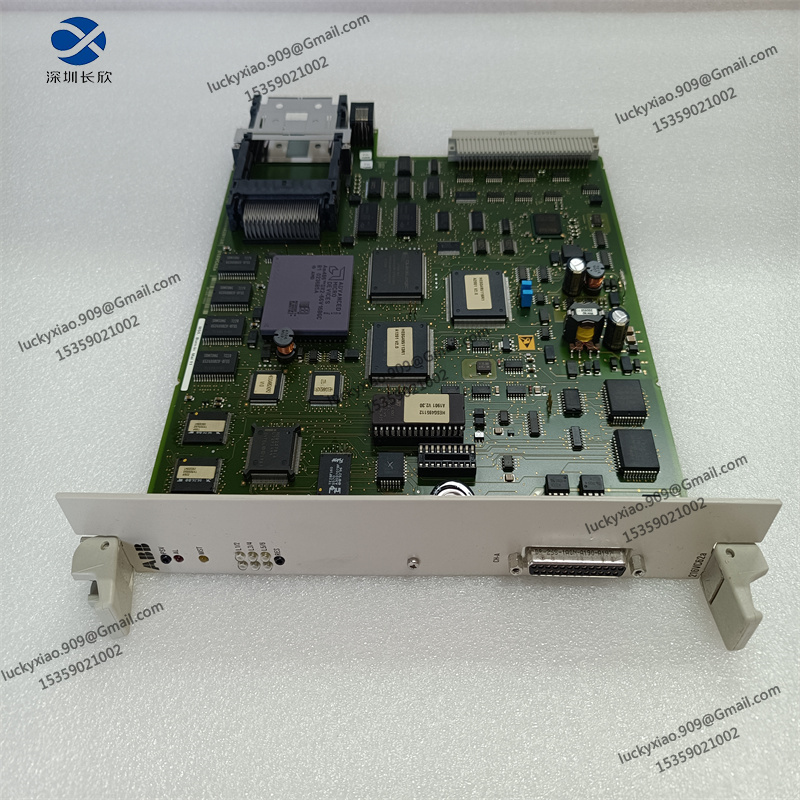

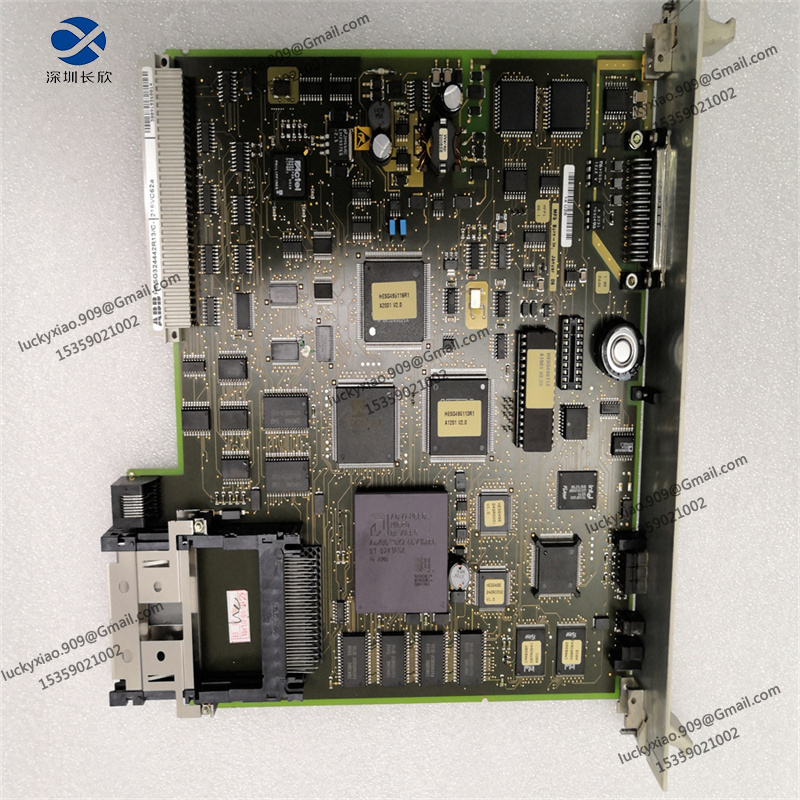

Introduction to ABB 216VC62A HESG324442R0013
HESG324442R0013 Product Overview
The ABB 216VC62A (order code: HESG324442R0013) is a high-precision analog input module belonging to ABB’s REG 216 digital control system series, specifically engineered for industrial automation and power system protection. It specializes in converting continuous analog signals (such as 4-20mA current signals from pressure, temperature, and level sensors) into high-resolution digital data, with 8 independent single-ended channels supporting parallel acquisition for real-time monitoring. Widely deployed in power plants, substations, refineries, and manufacturing lines, it provides accurate signal feedback for generator protection, process control, and equipment status monitoring. Equipped with分组隔离 (group isolation) and PTC protection resistors, it effectively resists electromagnetic interference and prevents damage from input overvoltage. Compatible with HART communication protocol (via adapter) and ABB’s proprietary parallel bus, it seamlessly integrates with REG 216 main controllers and upper-level DCS systems, serving as a reliable data acquisition component in harsh industrial environments.
HESG324442R0013 Technical Specifications
-
Product Model: 216VC62A (Order Code: HESG324442R0013)
-
Product Type: High-precision analog input module
-
Series Affiliation: ABB REG 216 Digital Control System Series
-
Core Functions: Analog signal acquisition, high-precision A/D conversion, anti-interference protection, data preprocessing
-
Input Configuration: 8 single-ended unipolar channels; Supports 0-20mA DC, 4-20mA DC signals
-
Measurement Performance: 12-bit resolution; Sampling update period 1ms; Anti-50/60Hz noise capability >40dB
-
Isolation & Protection: Group-to-ground isolation; Input overvoltage protection (30V DC); PTC protection resistors
-
Input Characteristics: Input impedance 230-275kΩ; Maximum field cable length 600m
-
Communication Interface: Supports HART protocol (with adapter); ABB parallel bus B 448 C
-
Power Supply: Powered by module bus (+5V, +24V); Power consumption ≤1.1W
-
Operating Environment: Temperature -40°C to +85°C; Humidity 10-90% (non-condensing); IP20 protection rating
-
Mechanical Features: Plug-in design for 19-inch 6U rack; Weight ~760g; LED status indicators per channel
-
Certifications: CE, UL certified; Compliant with IEC 61131-2 industrial control standards
-
Filtering Performance: 180ms rise time (0-90% of signal); Effective suppression of industrial noise
Recommended ABB Products
-
ABB 216EA61b HESG324443R0001: An analog input module with 4 differential channels, complementing the 216VC62A for high-precision measurement scenarios.
-
ABB 216DB61 HESG324441R0002: A digital I/O module that works with the 216VC62A to build mixed-signal control systems in REG 216 platforms.
-
ABB REG216 Main Controller: The core control unit that processes the analog data collected by the 216VC62A for protection and control decisions.
-
ABB 216NG63 HESG324445R0001: An auxiliary power module that provides stable power for the 216VC62A and other REG 216 modules.
-
ABB REF615 1MRK504153-BEN: A protection relay that uses the 216VC62A’s signal data to trigger over-limit safety actions in power systems.
-
ABB PM864AK01 3BSE018161R1: An AC 800M CPU module that integrates the 216VC62A’s data into large-scale DCS networks.
-
ABB CI854A 3BSE022363R1: A communication module that extends the 216VC62A’s connectivity to Profibus DP networks.
-
ABB XVC724BE101 3BHE009017R0101: A high-precision analog input module that expands the 216VC62A’s signal acquisition capacity in 800xA systems.
-

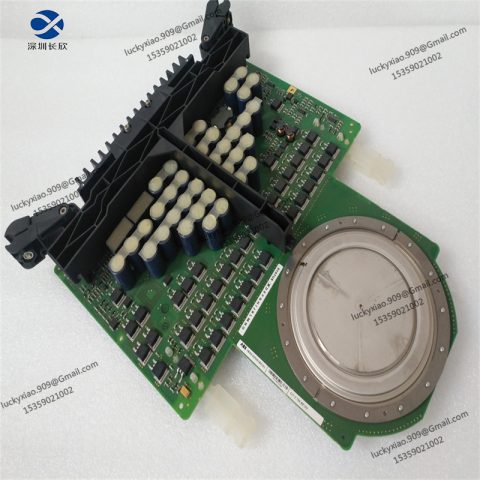

ABB 5SHY3545L0010 3BHB013088R0001: An IGCT module that coordinates with the 216VC62A in power conversion systems for status monitoring.
-
