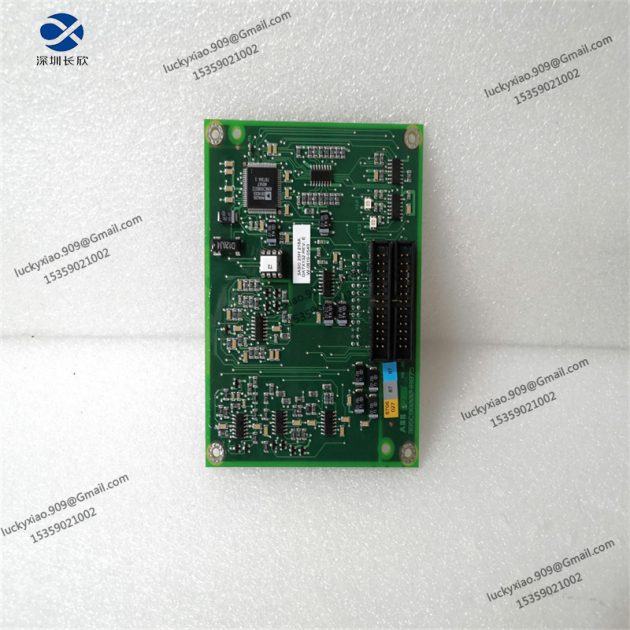

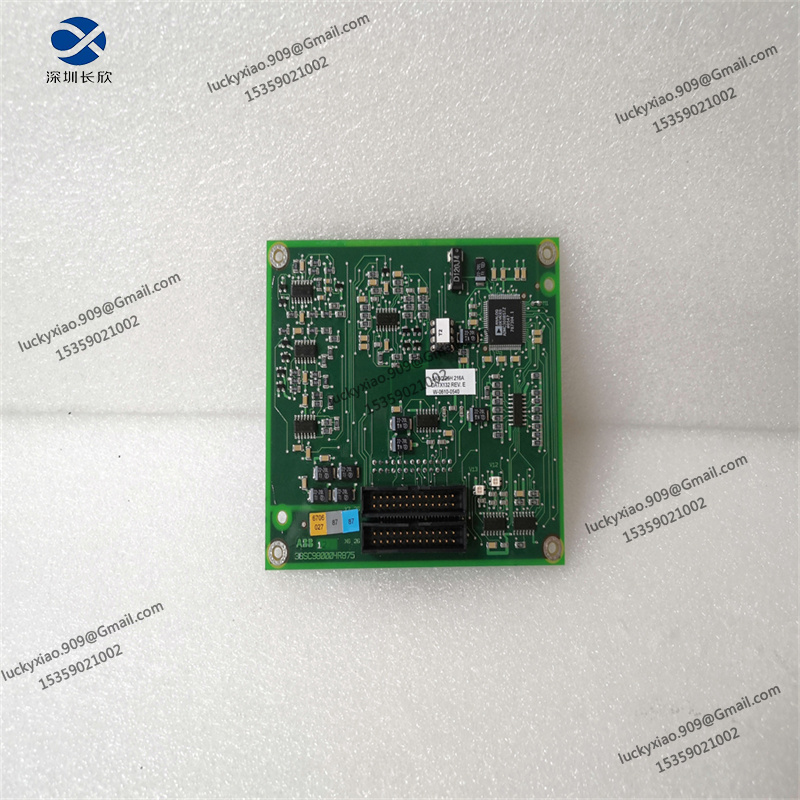

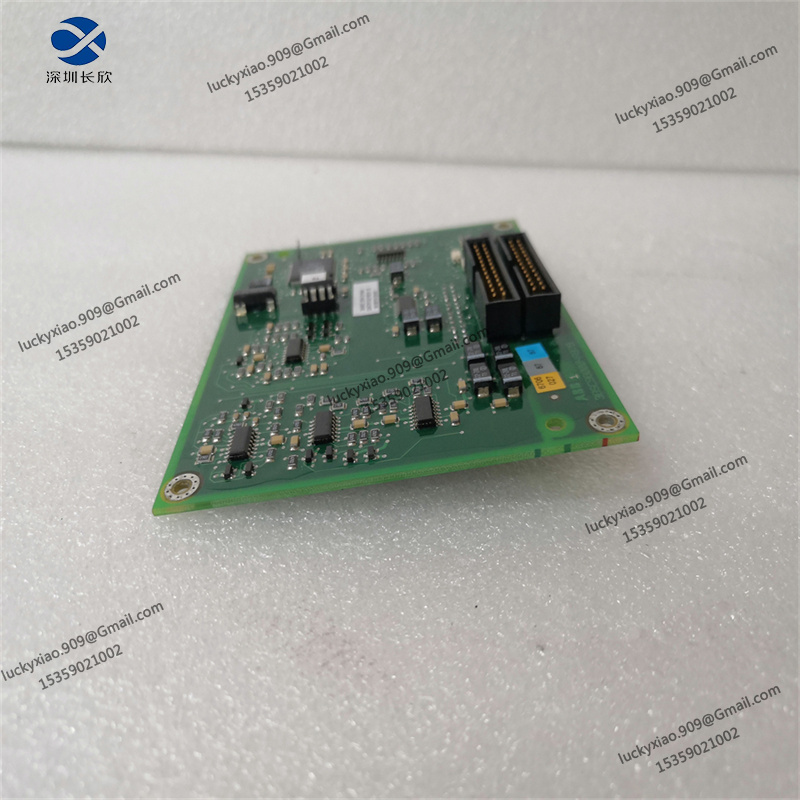

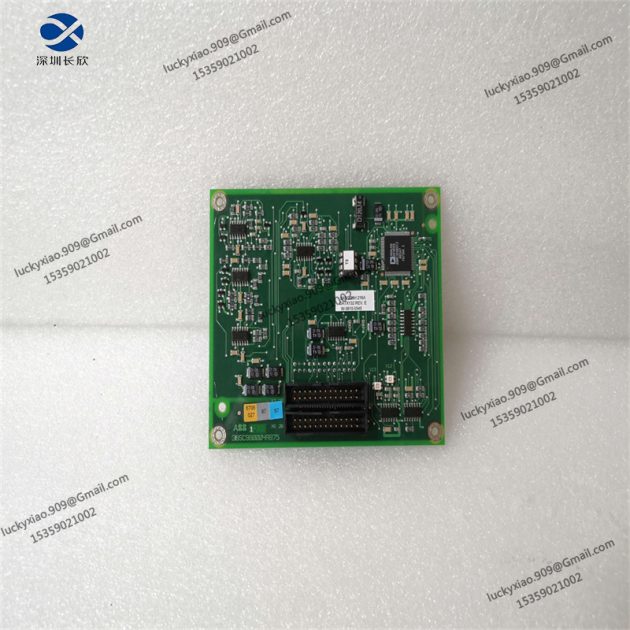

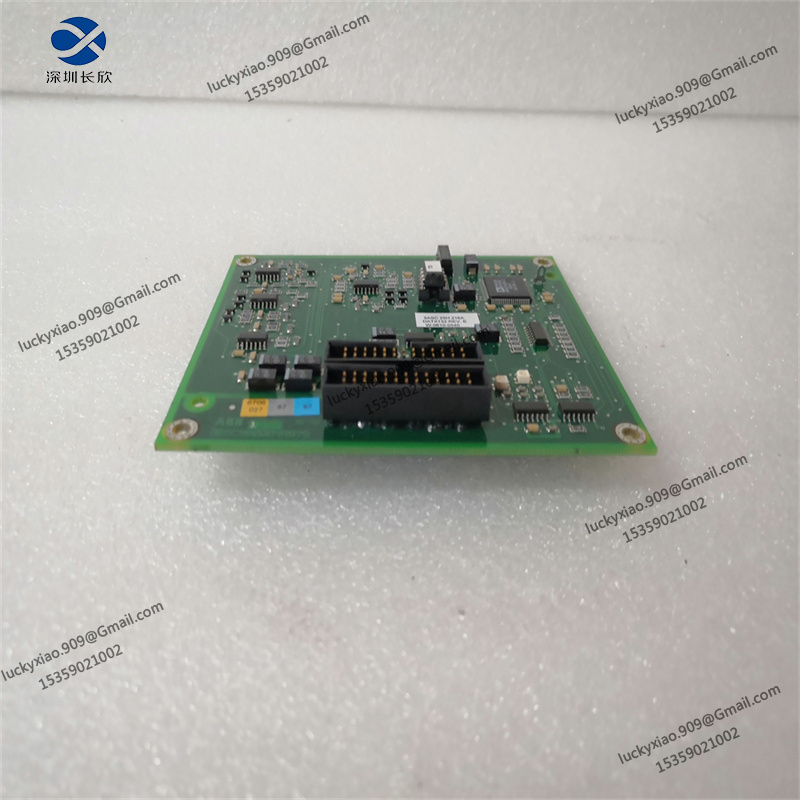

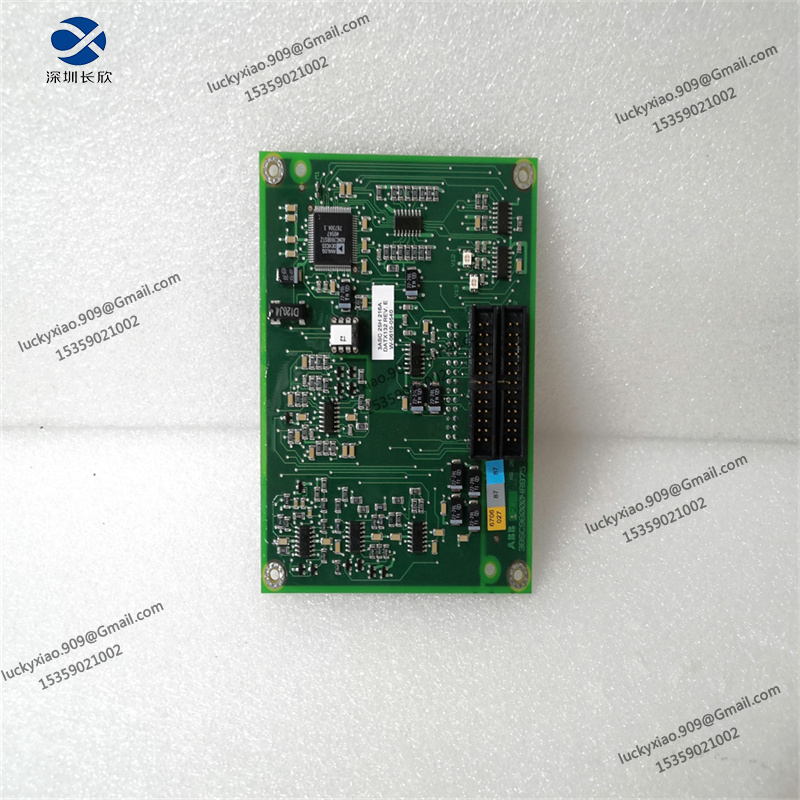

Introduction to ABB 3ASC25H216A DATX132

3ASC25H216A DATX132 Product Overview

3ASC25H216A DATX132 Technical Parameters

• Product Model: 3ASC25H216A DATX132
• Product Type: High-Precision Signal Processing and Conversion Module (DATX Series)
• Core Functions: High-accuracy analog-to-digital (A/D) conversion, digital-to-analog (D/A) conversion, signal isolation, advanced data filtering, real-time data transmission, fault self-diagnosis and alarm
• Power Supply: 24V DC input (19.2V-28.8V DC range); Power consumption: ≤6W; Overcurrent and reverse polarity protection
• Signal Specifications: Analog input: 4-20mA, 0-10V DC (12 channels); Analog output: 4-20mA, 0-10V DC (8 channels); Digital input/output: 24 channels (configurable); Conversion accuracy: ≤±0.05% of full scale; Sampling frequency: 2kHz per channel
• Interface Type: Backplane interface for ABB controller connection; RS485 communication port (supports Modbus RTU protocol); 100Mbps Ethernet port (supports Modbus TCP/IP); Plug-in spring terminals for field wiring
• Environmental Ratings: Operating temperature: -25°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Vibration resistance: 2G (10-150Hz); Shock resistance: 15G
• Mechanical & Installation: DIN rail-mounted (35mm); Dimensions (approx.): 110mm × 95mm × 45mm; Net weight: approx. 0.38kg; LED indicators for power, signal status, and fault alarms; Flame-retardant housing (UL94 V-0)
• Protection Features: Signal isolation (2500V AC/DC); Enhanced anti-EMI design (complies with EN 55011); Overvoltage, overcurrent and short-circuit protection for input/output terminals; Fault data recording
• Compatibility: ABB AC800M controllers, ABB System 800xA DCS, other DATX series modules, standard industrial sensors and actuators
• Certifications: CE certified; Complies with IEC 61131-2 and IEC 61000-6-2 standards; Passes EMC and industrial safety testing
• Applications: Thermal power plants, petrochemical refineries, metallurgical workshops, high-precision manufacturing lines, water treatment facilities; Industrial automation control systems, field signal acquisition and transmission, high-accuracy control scenarios
