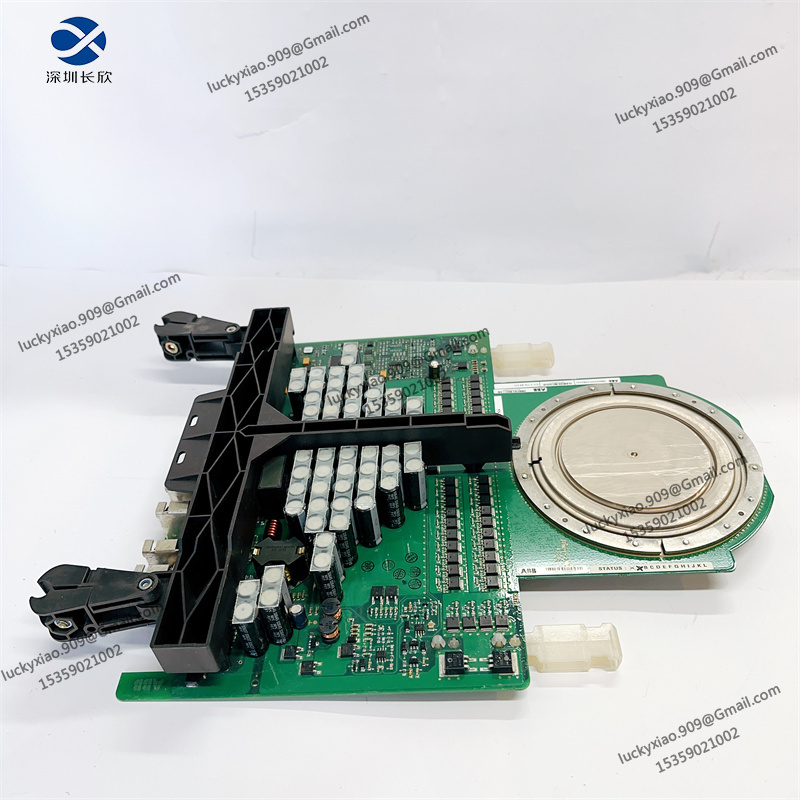

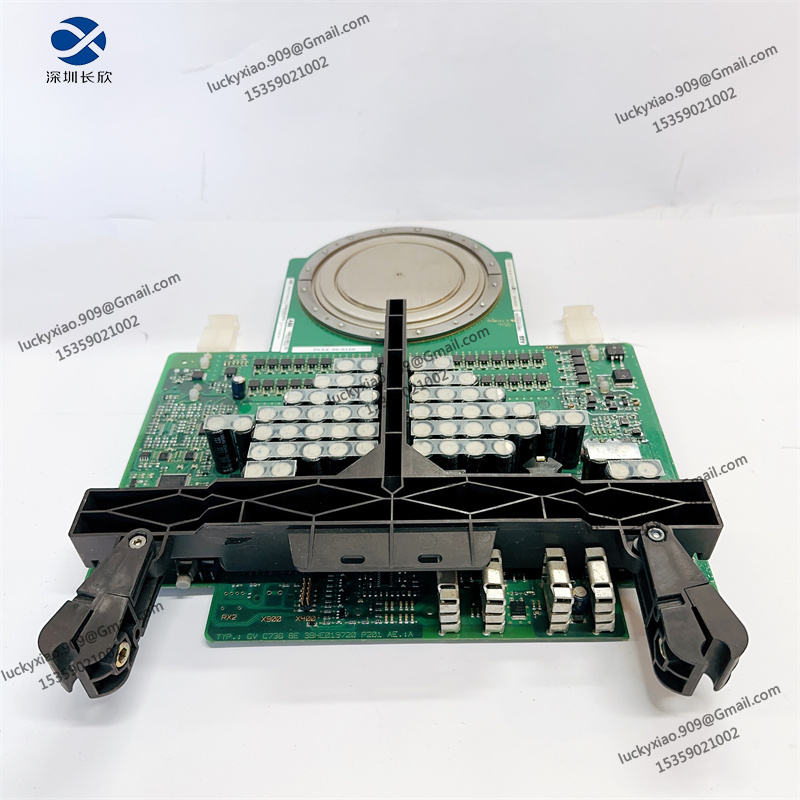

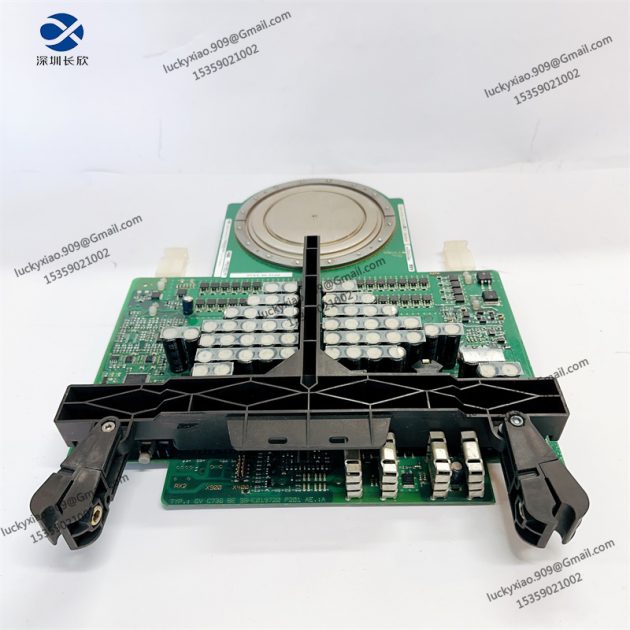

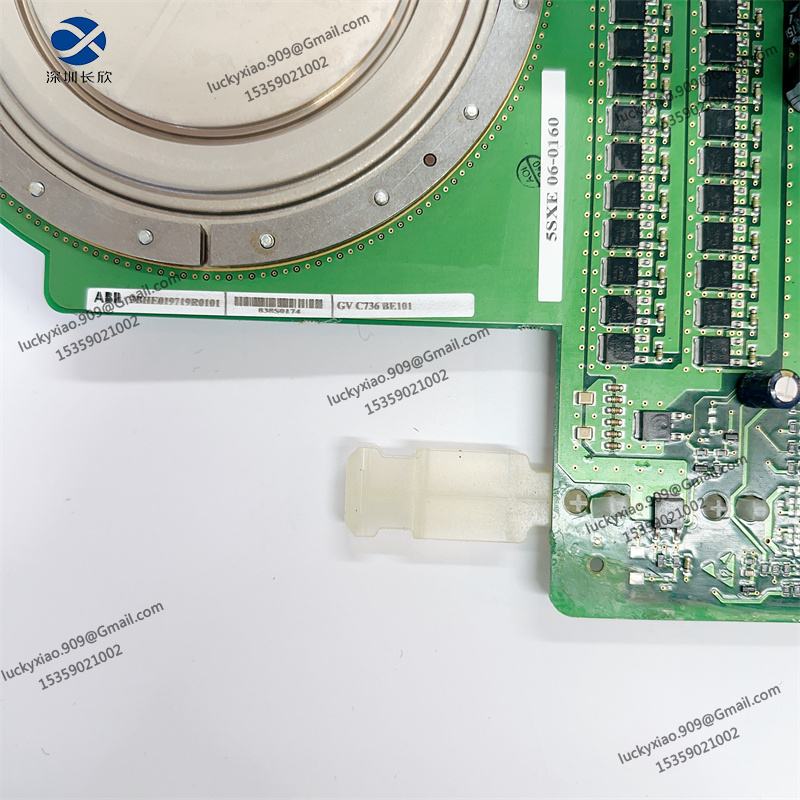

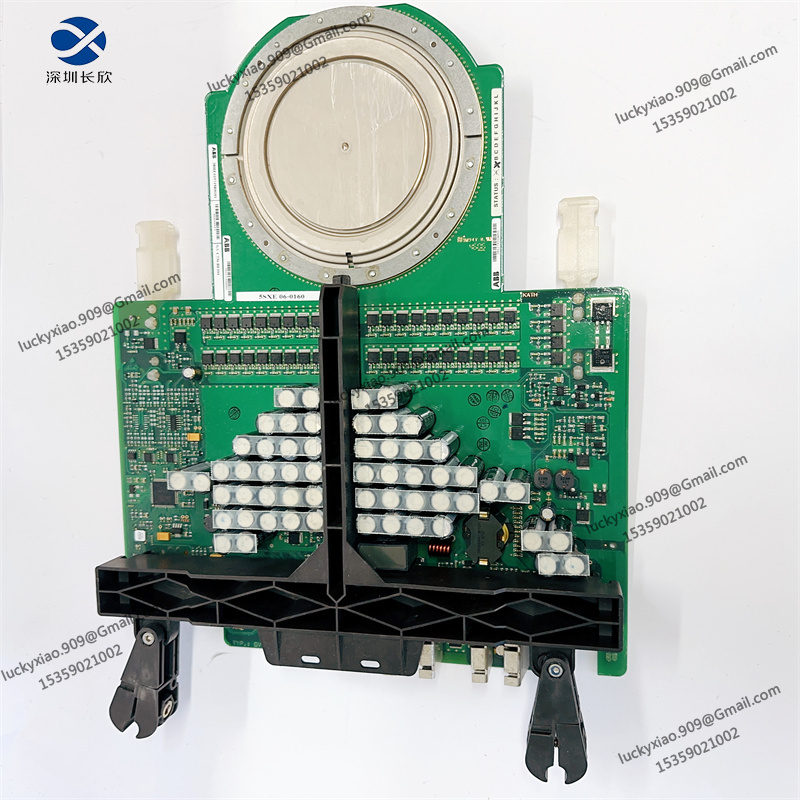

Introduction to ABB GVC736BE101 3BHE019719R0101
The ABB GVC736BE101 (material number: 3BHE019719R0101) is a high-precision gate driver module, recognized as the “control nerve center” for high-power IGCT (Integrated Gate-Commutated Thyristor) modules in industrial power electronic systems. As a dedicated matching component for ABB’s 5SHY series IGCT products, it integrates advanced active gate control technology and multi-layer protection mechanisms, specializing in providing precise, fast, and stable drive signals for high-voltage power semiconductors. This module plays a critical role in ensuring the safe and efficient operation of IGCTs in scenarios such as medium-voltage frequency converters, wind power converters, and HVDC transmission systems. Its compact design supports seamless integration with ABB ACS800/ACS880 drive platforms and third-party control systems, while industrial-grade EMC protection (compliant with IEC standards) enables stable performance in harsh environments with strong electromagnetic interference.
3BHE019719R0101 Key Technical Specifications
-
Device Type: Dedicated gate driver module for high-voltage IGCT power modules
-
Core Function: Provides precise drive signals; integrates active gate control and fault protection
-
Compatible Power Modules: ABB 5SHY series IGCTs (e.g., 5SHY4045L0003, 5SHY5055L0002)
-
Drive Electrical Parameters: Gate drive voltage ±15V DC; maximum output current ±20A
-
Response Performance: Switching signal delay ≤ 500ns; short-circuit protection response time < 1.5μs
-
Power Supply: 24V DC (nominal); input range 18-36V DC; typical power consumption ≤ 15W
-
Communication Interface: Supports SPI and CANopen; provides real-time fault feedback signals
-
Isolation Performance: 2500Vrms galvanic isolation between control circuit and power circuit
-
Operating Environment: Temperature -40°C to +85°C; humidity 5-95% (non-condensing)
-
Physical Specifications: 110mm × 85mm × 30mm; weight ~0.18kg; panel-mounted (compatible with IGCT module brackets)
-
Protection Features: Overcurrent, overvoltage, undervoltage lockout (UVLO), overtemperature protection; DESAT detection
-
Certifications: CE, UL compliant; RoHS certified; meets IEC 60947-4-1 and GB 14048.4 standards
Recommended ABB Related Models
-
ABB GVC736CE101 3BHE039203R0101: Enhanced contactor kit with integrated drive function, ideal for high-reliability industrial drive systems
-
ABB AGDR-61C: High-voltage IGBT driver, alternative for IGBT-based medium-voltage converter applications
-
ABB 5SHY4045L0003: 4.5kV/1200A IGCT module, core power component perfectly matched with GVC736BE101
-
ABB SKFH110/04DT: Intelligent gate drive core, suitable for high-frequency switching scenarios like photovoltaic inverters
-
ABB ACS880-07: Medium-voltage frequency converter, system platform integrating GVC736BE101 and IGCT modules
-
ABB VM600 CPU: Rack-mounted controller, coordinates with GVC736BE101 for integrated power control
-
ABB 5SXE10-0181: IGBT gate drive board, complementary to GVC736BE101 in hybrid power conversion systems
-
ABB SKHI 11A: Compact gate driver, cost-effective option for low-to-medium power IGCT applications
-
ABB REF620: Digital relay protector, safeguards GVC736BE101-driven systems from grid fluctuations
-
ABB 5SHY5055L0002 3BHE019719R0101: 1500A IGCT module, high-current matching variant for GVC736BE101
-
ABB PM866 3BSE050200R1: AC 800M CPU, processes real-time fault data from GVC736BE101 in petrochemical drive systems
-
ABB CI858K01 3BSE018135R1: Multi-protocol module, transmits GVC736BE101’s operating status to remote SCADA
-
ABB NAMC-11C: Control board, provides centralized monitoring for GVC736BE101-based drive systems
-
ABB AC10272001R0101: Power conversion kit, includes IGBT module and drive board for comparison with IGCT-based solutions
