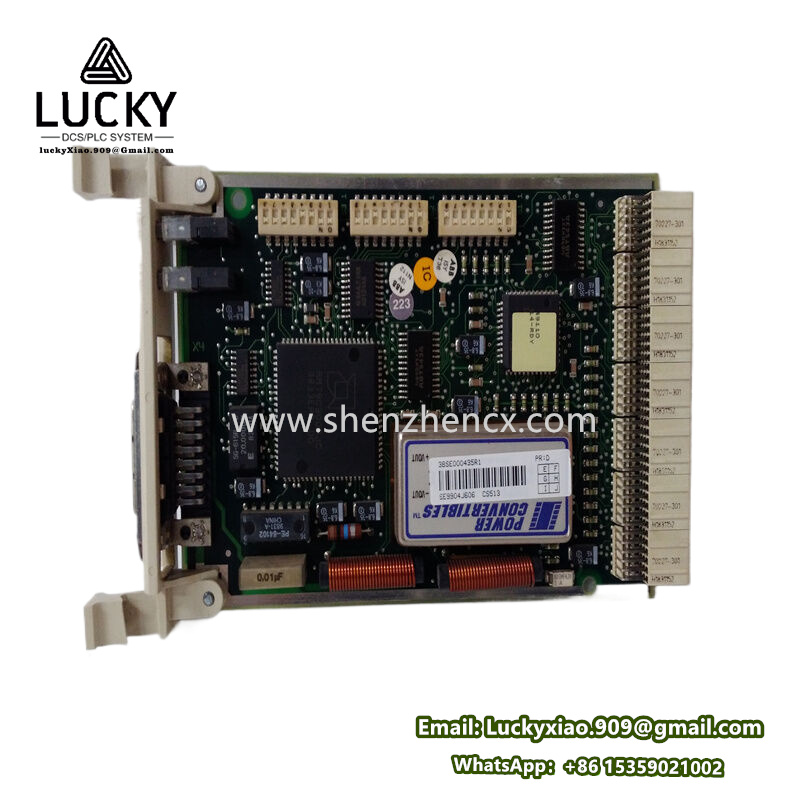

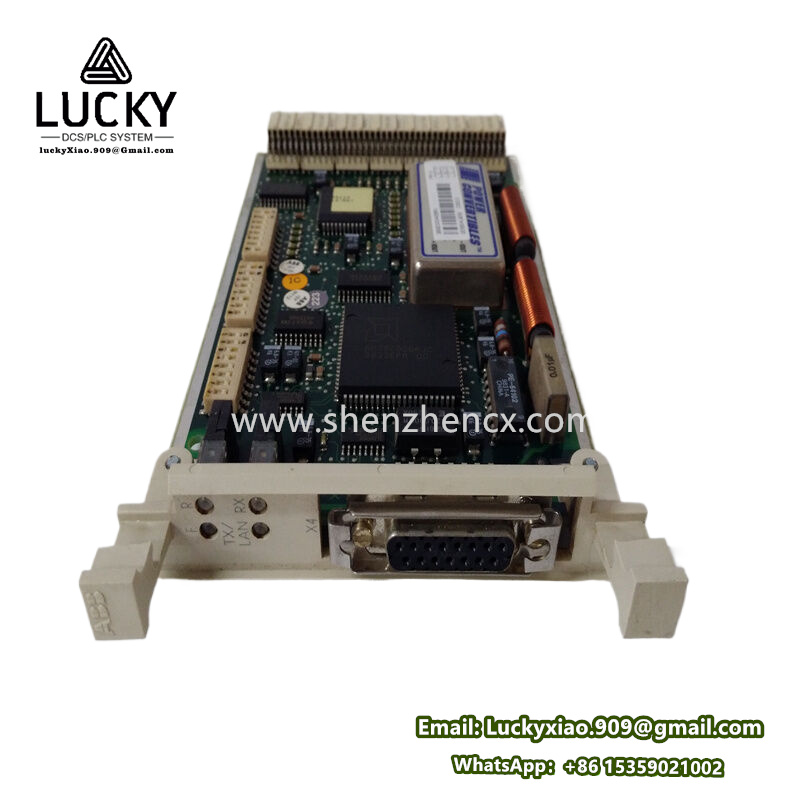

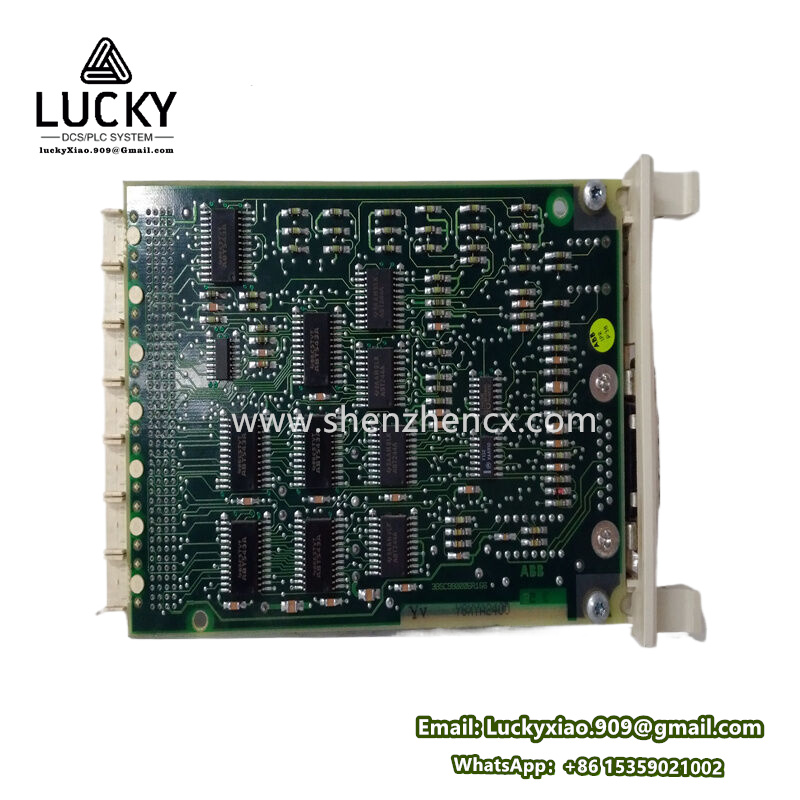

ABB CS513 3BSE000435R1 communication interface module

ABB CS513 3BSE000435R1 Technical Parameters and Functions

The ABB CS513 (3BSE000435R1) is a high-performance communication interface module designed for use in ABB’s AC 800M controller family, a key component in industrial automation and process control systems. It facilitates seamless integration between controllers and field devices, supporting advanced communication protocols and robust data exchange. Below is a detailed breakdown of its technical specifications and functionalities:

1. Key Technical Parameters

General Specifications

• Product Code: 3BSE000435R1
• Module Type: Communication Interface Module (CIM)
• Compatibility: Designed for ABB AC 800M controllers (e.g., PM851, PM861).
• Mounting: Fits into the AC 800M rack via a dedicated slot.

Power Requirements

• Supply Voltage: 24 V DC (±20%).
• Power Consumption: Typically 1.5 W (dependent on configuration).

Communication Interfaces

• Primary Protocol: Profibus DP (RS-485-based fieldbus).
  • Data Rate: Configurable up to 12 Mbps.
  • Max Nodes: Supports up to 125 Profibus DP slaves per segment.
• Redundancy: Optional redundancy support for critical applications.
• Isolation: Galvanic isolation between controller and fieldbus (1,500 V AC).

Performance

• Cycle Time: Synchronized with AC 800M controller cycle (configurable down to milliseconds).
• Data Capacity:
  • Input/Output Data: Up to 244 bytes of input and 244 bytes of output data per cycle.
  • Diagnostic Data: Real-time status and error reporting.

Environmental Ratings

• Operating Temperature: -25°C to +60°C.
• Storage Temperature: -40°C to +85°C.
• Humidity: 5–95% non-condensing.
• Protection Class: IP20 (installed in a control cabinet).
• Certifications: CE, UL, ATEX (for hazardous environments, dependent on configuration).

Mechanical Specifications

• Dimensions: 155 x 125 x 40 mm (W x H x D).
• Weight: Approx. 0.3 kg.

2. Core Functions and Features

Communication and Integration

• Profibus DP Master/Slave Support: Acts as a DP Master to interface with Profibus DP-compliant sensors, actuators, and I/O devices (e.g., drives, valves, transmitters).
• Hot Swappable: Modules can be replaced without shutting down the system (in redundant configurations).
• Diagnostics: Real-time monitoring of bus health, node status, and communication errors via LED indicators and software tools.

Data Handling

• Process Data Exchange: Bidirectional transfer of I/O data between AC 800M controllers and field devices.
• Parameterization: Configures Profibus DP slaves directly from the engineering tool (Control Builder M).
• Time Stamping: Synchronizes data with controller logic for precise process control.

Redundancy and Reliability

• Redundant Bus Support: Dual Profibus DP interfaces for high-availability systems.
• Fault Tolerance: Automatic switchover in case of communication failure.
• Watchdog Timer: Detects communication faults and triggers alarms.

Configuration and Diagnostics Tools

• Engineering Software: Configured via ABB’s Control Builder M engineering suite.
• Diagnostic Features:
  • Detailed error logs (e.g., node failures, cable breaks).
  • Online monitoring of bus load and signal quality.
• LED Indicators: Status LEDs for power, communication activity, and errors.

Safety and Compliance

• EMC Immunity: Complies with IEC 61326 (industrial electromagnetic compatibility).
• Hazardous Area Support: Optional ATEX certification for use in explosive atmospheres.

3. Applications

• Process Automation: Oil and gas refining, chemical plants, power generation.
• Manufacturing: Production lines, robotics, material handling.
• Infrastructure: Water treatment, HVAC systems, building automation.

4. Advantages

• High-Speed Communication: Enables real-time control of distributed I/O systems.
• Scalability: Integrates with large-scale Profibus DP networks.
• Interoperability: Compatible with third-party Profibus DP devices.
• Robust Design: Built for harsh industrial environments with high reliability.

5. Integration with ABB Ecosystem

• AC 800M Controllers: Seamless integration with PM851, PM861, and other AC 800M processors.
• System 800xA: Supports integration with ABB’s extended automation platform for centralized control and monitoring.
• Field Devices: Connects to ABB drives (e.g., ACS800), instrumentation, and remote I/O stations.

For installation guidelines, wiring diagrams, or firmware updates, consult the ABB CS513 Hardware Manual or contact ABB technical support. This module is critical for ensuring reliable communication in complex automation architectures.
