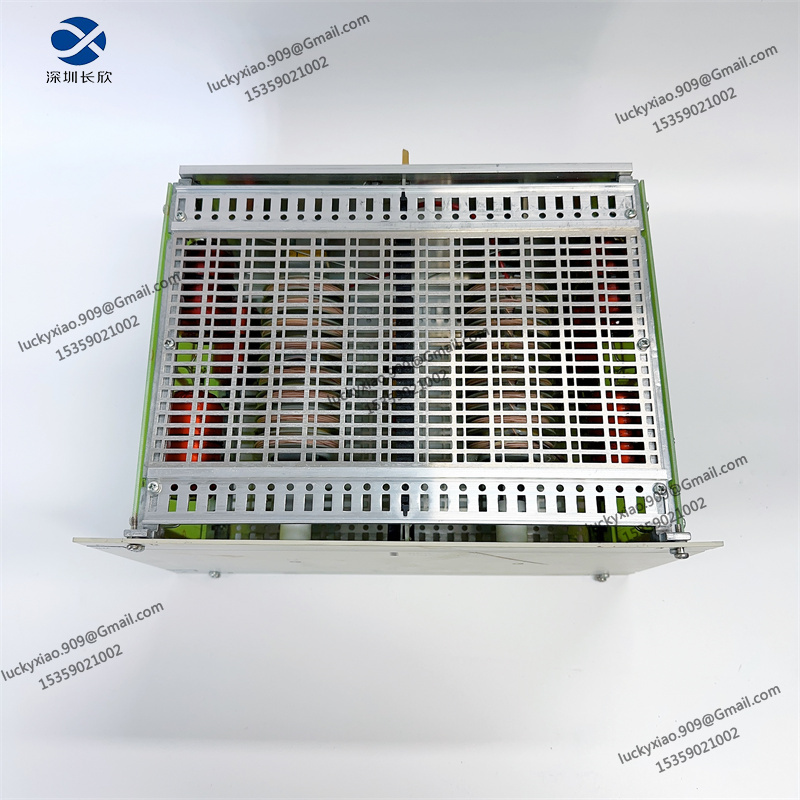

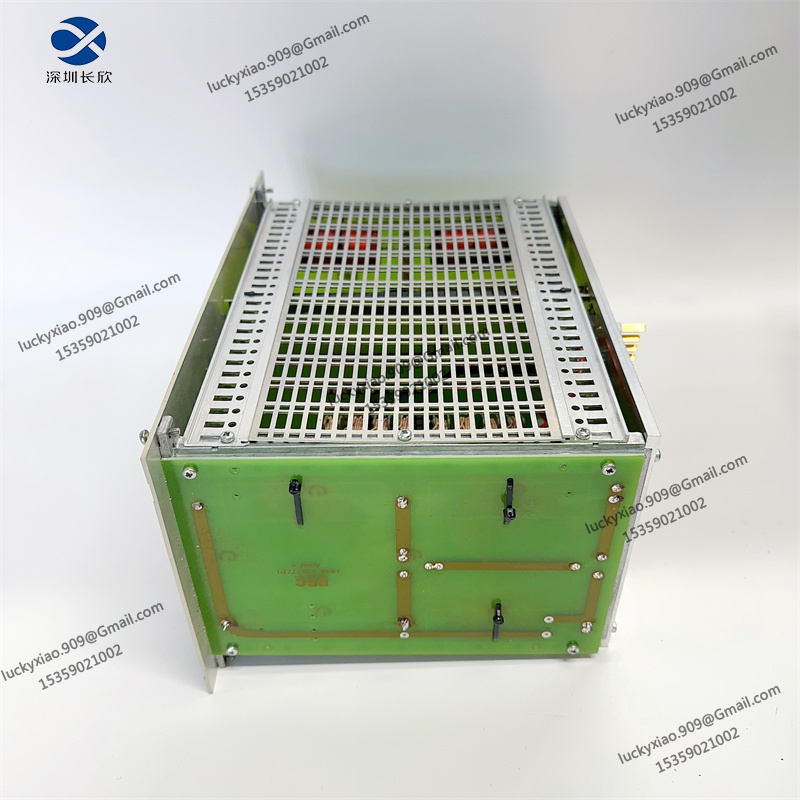

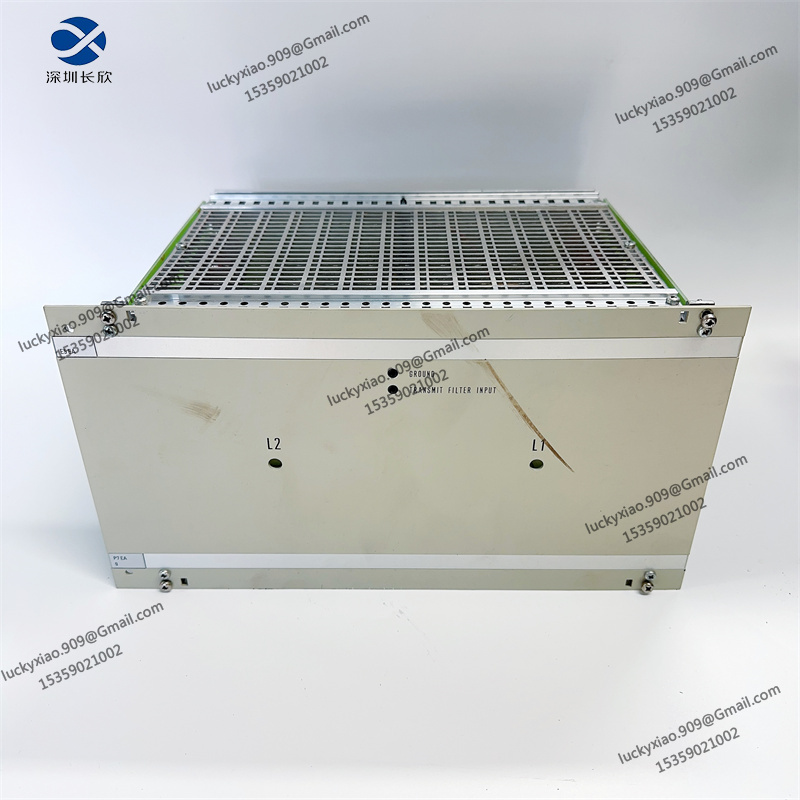

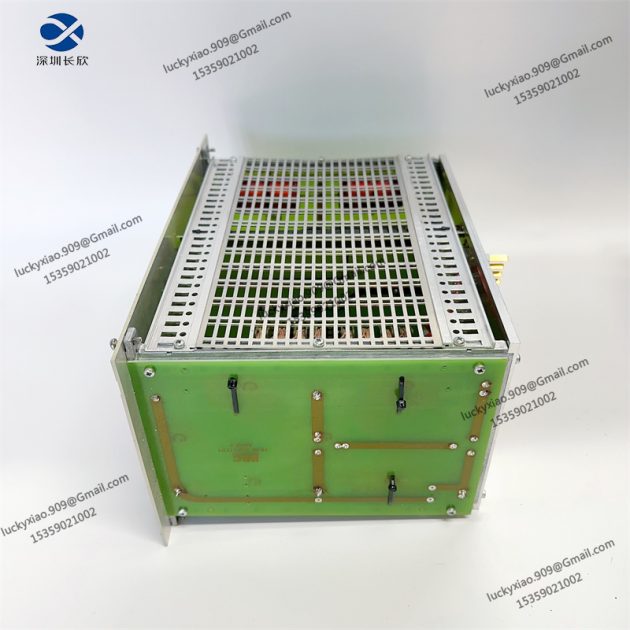

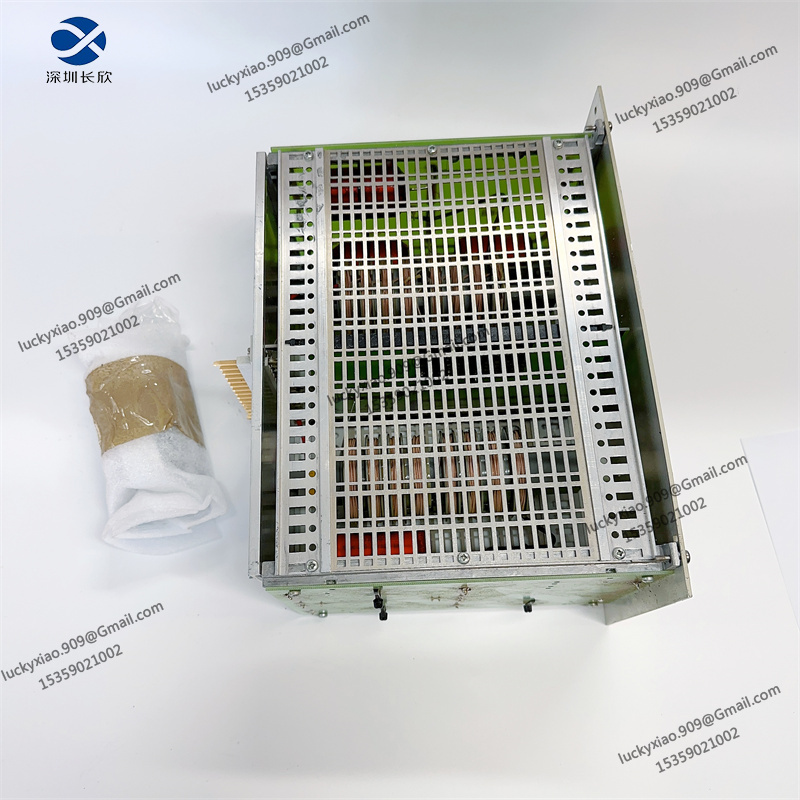

Introduction to ABB E5EAA HENF105240R1
HENF105240R1 Product Overview
The ABB E5EAA HENF105240R1 is a high-performance industrial control module under ABB’s E5EAA product series, specifically designed for logic control and signal processing in industrial automation systems. It serves as a key component in connecting field executive devices and upper-level management systems, capable of executing pre-programmed logic commands, processing digital and analog signals, and realizing precise control of industrial processes. Equipped with robust industrial-grade hardware and advanced anti-interference technology, the module maintains stable operation in harsh environments with electromagnetic interference, voltage fluctuations, and extreme temperatures, which is essential for ensuring continuous production in manufacturing, power generation, and petrochemical industries. Featuring a compact and modular design, it supports flexible system expansion and easy DIN rail installation, simplifying cabinet layout and reducing maintenance costs.
HENF105240R1 Technical Specifications
-
Product Model: E5EAA HENF105240R1
-
Product Type: Industrial Control Module
-
Core Functions: Logic control execution, digital & analog signal processing, process parameter regulation, fault self-diagnosis, system communication
-
I/O Configuration: 16 digital input channels, 16 digital output channels; 4 analog input channels (4-20mA/0-10V), 2 analog output channels (4-20mA/0-10V)
-
Communication Capability: Supports Modbus, PROFINET industrial protocols; Equipped with Ethernet and RS-485 interfaces; Seamless integration with ABB PLC/DCS
-
Power Supply: 24V DC ±10%; Power consumption ≤12W
-
Isolation Performance: Input-output isolation voltage ≥1000V AC; Channel-channel isolation voltage ≥500V AC
-
Operating Environment: Temperature range: -25°C to +65°C; Humidity: 5-95% (non-condensing); Anti-electromagnetic interference compliant with IEC 61000-6-2/4
-
Mechanical Dimensions: 35mm × 110mm × 125mm; Weight: Approximately 0.22kg
-
Safety Features: Overvoltage protection, short-circuit protection, reverse polarity protection, overheat protection
-
Installation Method: 35mm DIN rail mounting; Tool-free wiring terminals
-
Certifications: CE, UL, IEC 61131-2 compliant; Suitable for global industrial applications
