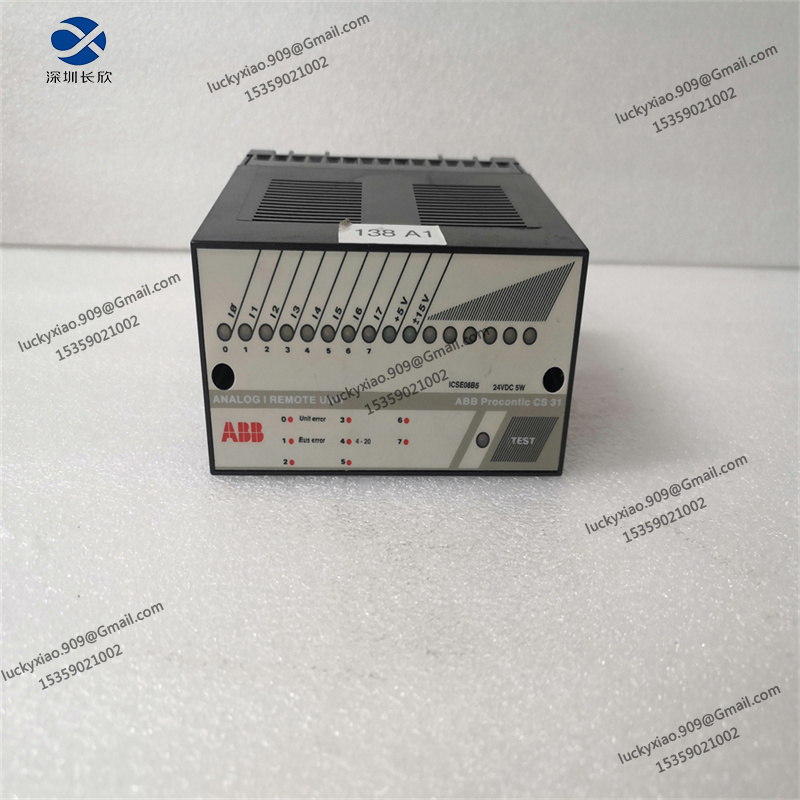

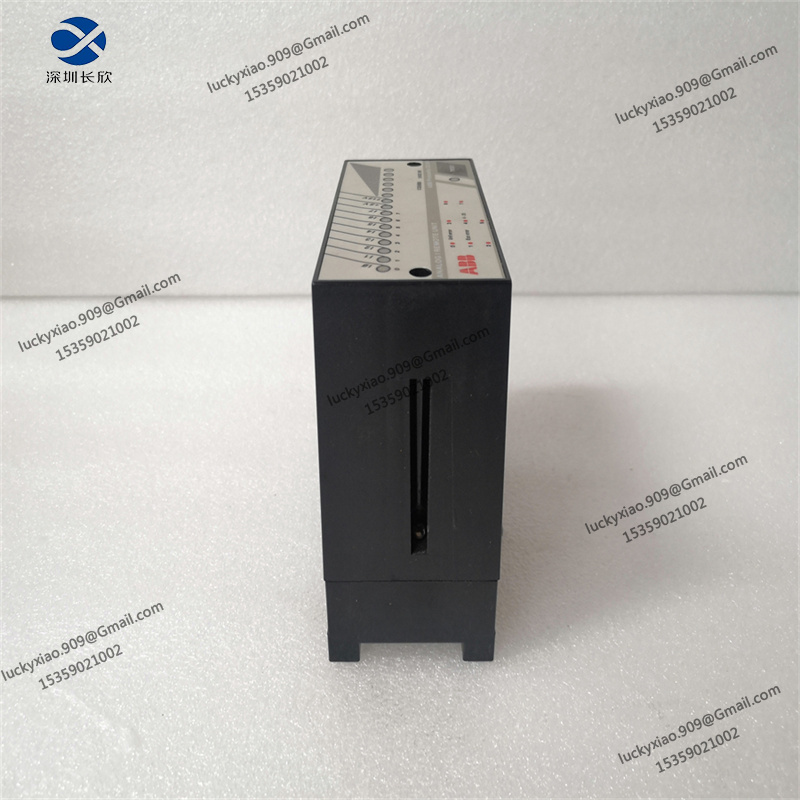

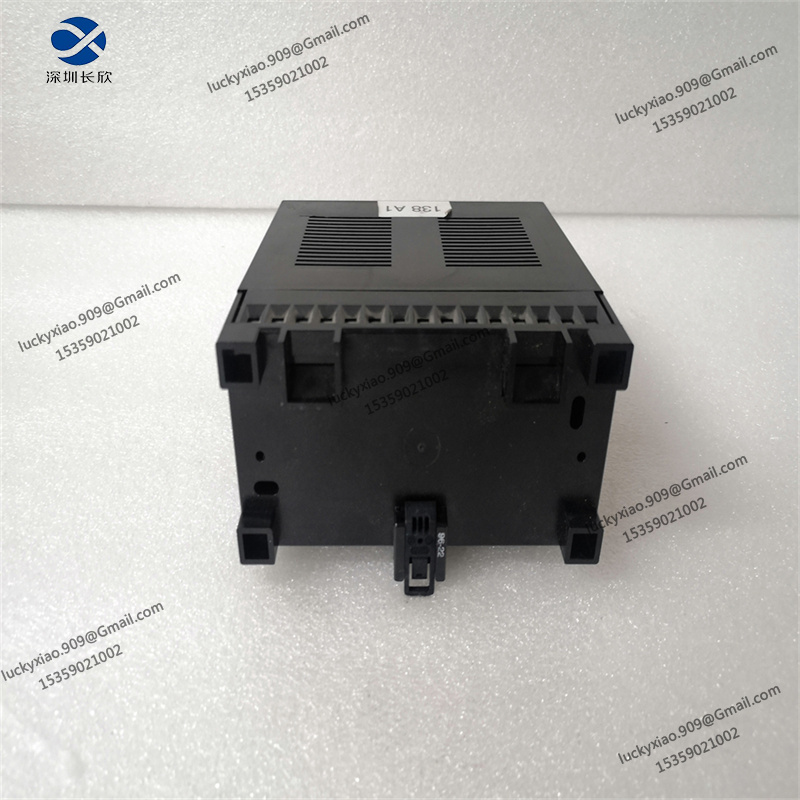

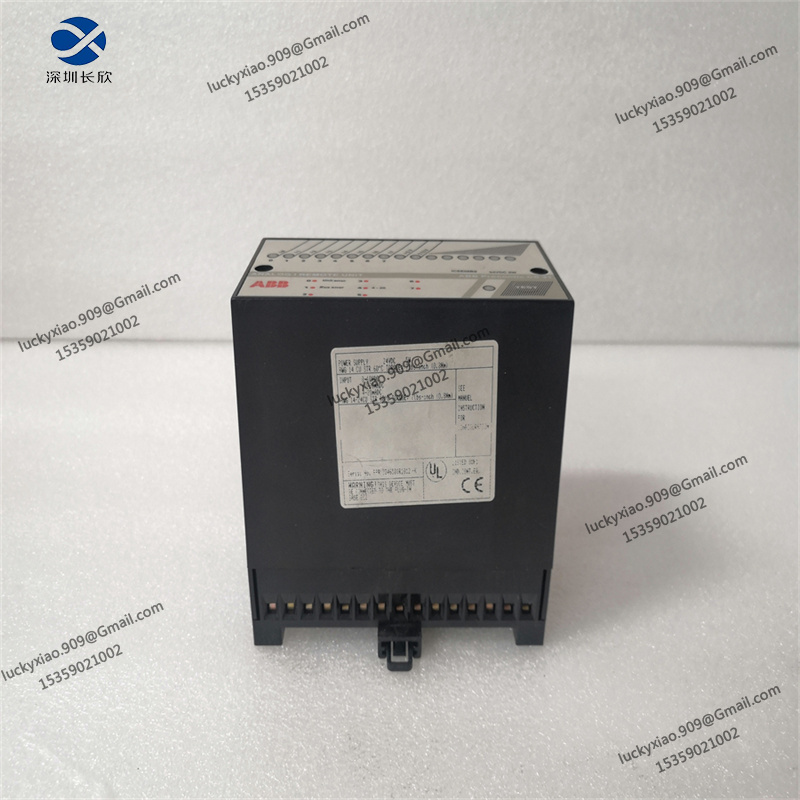

Introduction to ABB ICSE08B5 FPR3346501R1012

ICSE08B5 FPR3346501R1012 Product Overview

ICSE08B5 FPR3346501R1012 Technical Parameters

• Product Model: ICSE08B5 FPR3346501R1012
• Product Type: Safety Monitoring Module (ICSE Series)
• Core Functions: Real-time safety status monitoring, abnormal condition detection, safety signal processing, fault diagnosis and alarm, safety interlock control, emergency stop signal handling
• Power Supply: 24V DC input (19.2V-28.8V DC range); Power consumption: ≤12W; Overcurrent and reverse polarity protection
• Input/Output Specifications: Digital input channels: 8 channels; Input type: Dry contact/NPN/PNP (configurable); Digital output channels: 4 channels; Output type: Relay output (NO/NC configurable); Signal response time: ≤1ms
• Safety Performance: Safety integrity level: SIL 3 (per IEC 61508); Safety category: Cat. 4 (per EN 954-1); Mean time between failures (MTBF): ≥1,000,000 hours
• Environmental Ratings: Operating temperature: -25°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Vibration resistance: 2G (10-150Hz); Shock resistance: 15G
• Mechanical & Installation: Rack-mounted (compatible with ABB standard racks); Dimensions (approx.): 90mm × 210mm × 75mm; Net weight: approx. 0.5kg; Flame-retardant housing (UL94 V-0)
• Communication Interface: RS485 communication port (supports Modbus RTU protocol); Backplane interface for ABB safety controller connection; Status indicator LEDs (power, operation, fault, channel status)
• Compatibility: ABB safety controllers (e.g., AC500-S), ABB System 800xA DCS, various industrial sensors and actuators, emergency stop devices
• Certifications: CE certified; Complies with IEC 61508, EN 954-1, EN ISO 13849-1 standards; Passes EMC and industrial safety testing
• Applications: Thermal power plants, petrochemical refineries, metallurgical workshops, manufacturing production lines, hazardous area monitoring; Industrial safety control systems, equipment safety supervision, emergency stop control, process safety interlock

Recommended ABB Same-Series Models

1. ABB ICSE04B5 FPR3346502R1012: 4-channel digital input, compact for small-scale safety systems
2. ABB ICSE16B5 FPR3346503R1012: 16-channel digital input, high-density for large-scale monitoring
3. ABB ICSE08B6 FPR3346504R1012: 8-channel analog input, for safety-related process parameter monitoring
4. ABB ICSE08C5 FPR3346505R1012: 8-channel digital output, high-current relay for heavy-duty safety devices
5. ABB ICSE04C6 FPR3346506R1012: 4-channel analog output, for safety-related control signal output
6. ABB ICSE12B5 FPR3346507R1012: 12-channel digital input, cost-effective for medium-scale safety applications
7. ABB ICSE08D5 FPR3346508R1012: 8-channel digital input/output (configurable), flexible for diverse safety scenarios
8. ABB ICSE06B5 FPR3346509R1012: 6-channel digital input, ultra-compact for space-constrained installations
9. ABB ICSE24B5 FPR3346510R1012: 24-channel digital input, high-capacity for comprehensive safety monitoring
10. ABB ICSE08E5 FPR3346511R1012: 8-channel digital input, explosion-proof design for hazardous areas
11. ABB ICSE04E6 FPR3346512R1012: 4-channel analog input/output, explosion-proof for hazardous environment process control
12. ABB ICSE16C5 FPR3346513R1012: 16-channel digital output, redundant design for high-availability safety systems
13. ABB ICSE08F5 FPR3346514R1012: 8-channel digital input, marine-grade anti-corrosion for offshore safety applications
14. ABB ICSE12C6 FPR3346515R1012: 12-channel analog output, high-precision for safety-related control loops
15. ABB ICSE08G5 FPR3346516R1012: 8-channel digital input/output, wireless communication support for remote safety monitoring
