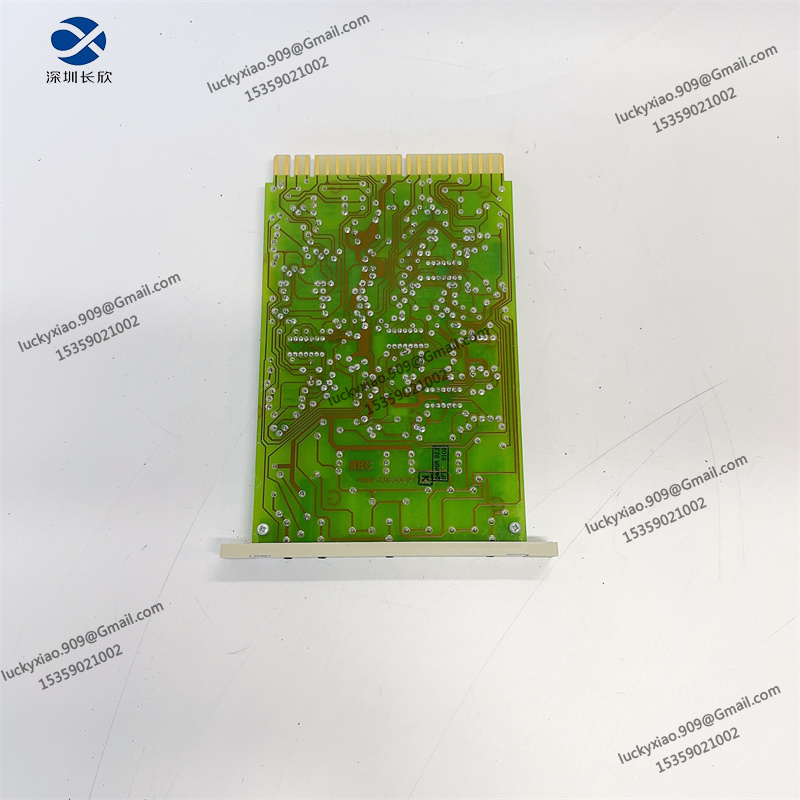

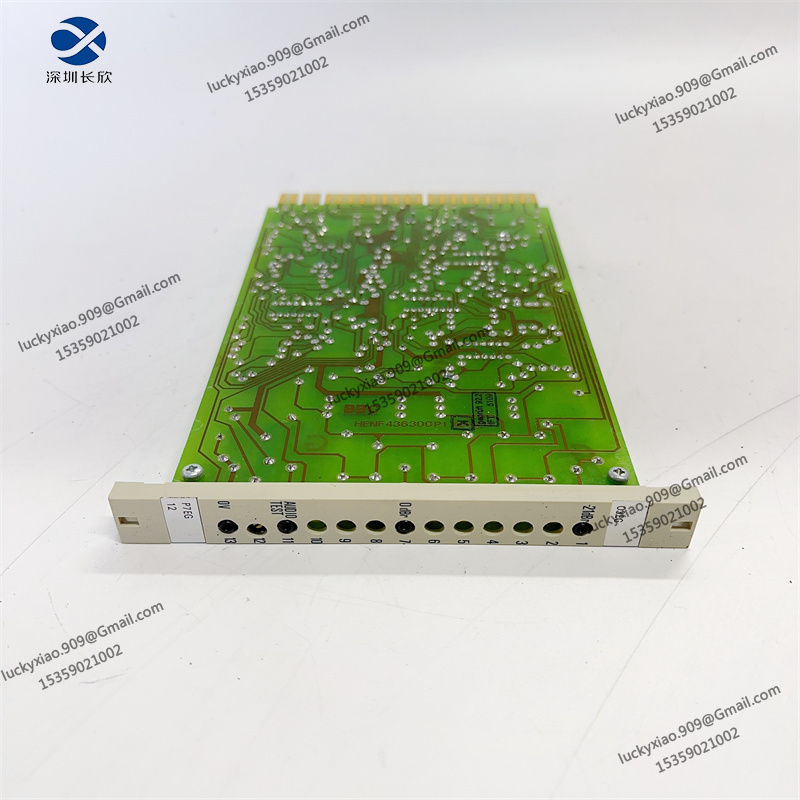

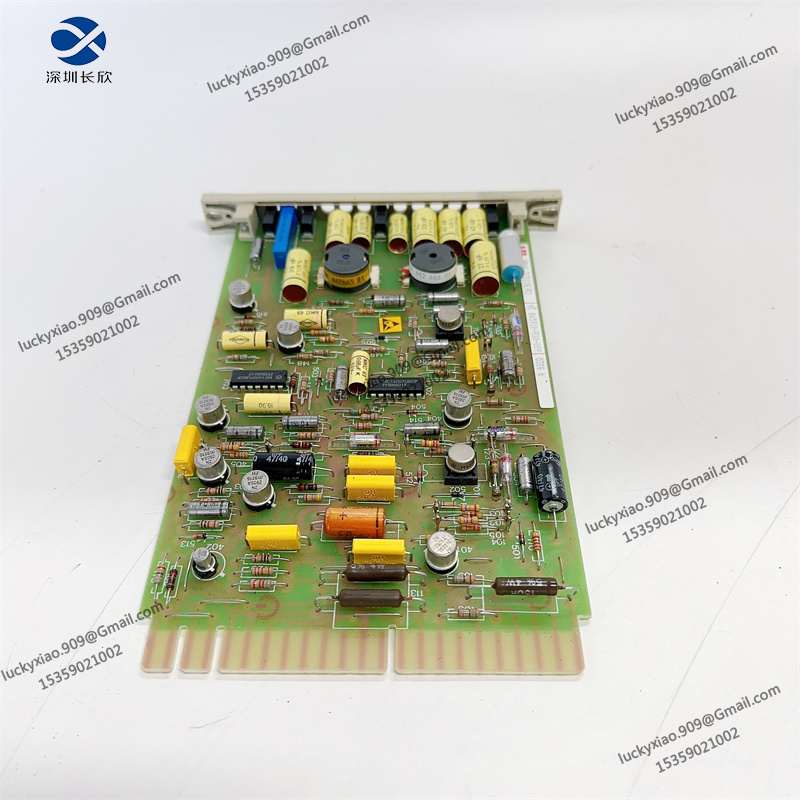

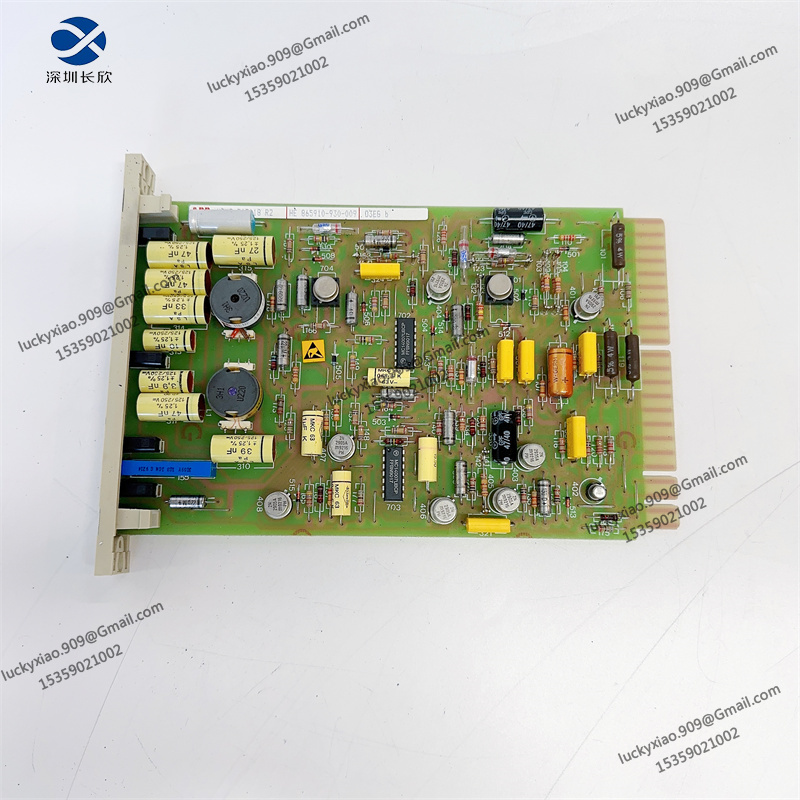

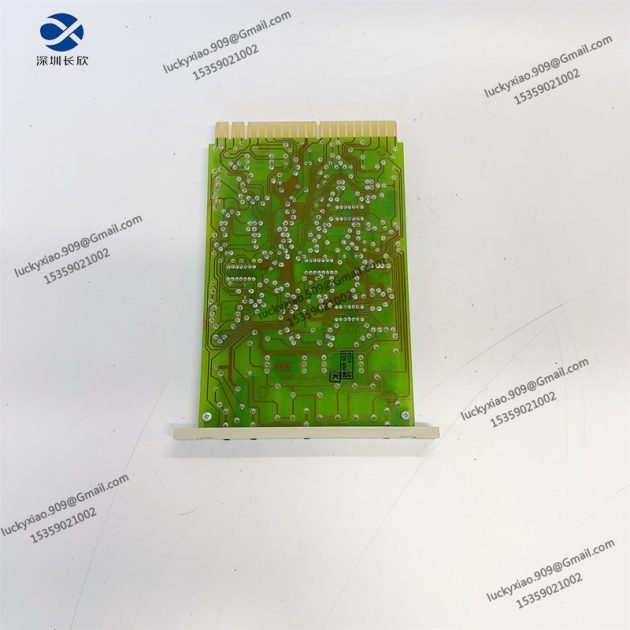

Introduction to ABB O3EGb HENF315118R2
HENF315118R2 Product Overview
The ABB O3EGb HENF315118R2 is a high-reliability multi-protocol industrial control module, specifically designed for distributed control systems (DCS) and industrial automation applications. As a key product in ABB’s O3 series, it integrates flexible communication adaptation, precise signal processing, and rugged hardware design, serving as a core bridge for data exchange between field devices and upper-level control systems. The module supports multiple mainstream industrial communication protocols, enabling seamless integration with diverse automation devices and control platforms. Featuring excellent anti-interference performance and modular design, it operates stably in harsh industrial environments such as petrochemical, power generation, and manufacturing industries, supporting hot-swapping for easy maintenance. Widely applied in process control, equipment monitoring, and system integration scenarios, the O3EGb HENF315118R2 enhances the connectivity and stability of industrial automation systems, supporting users in achieving refined production management.
HENF315118R2 Technical Specifications
-
Product Model: O3EGb HENF315118R2
-
Product Type: Multi-protocol Industrial Control Module
-
Core Functions: Multi-protocol communication adaptation, industrial signal processing & conversion, real-time data transmission, fault diagnosis & alarm, field device integration, hot-swapping support, channel isolation protection
-
Power Supply: 24 V DC ± 10% input; Built-in voltage stabilization and surge protection; Typical power consumption: ≤ 7 VA
-
Input/Output Specifications: Supports 4-20 mA analog input/output, digital I/O (configurable); 8-channel configurable I/O ports; Channel isolation: ≥ 2500 VAC
-
Communication Protocols: Supports Modbus TCP/IP, PROFIBUS DP, Ethernet/IP, HART; Dual Ethernet ports for redundant communication
-
Response Performance: Signal response time ≤ 8 ms; Conversion accuracy: ±0.1% FS
-
Environmental Ratings: Operating temperature: -20°C to +60°C; Storage temperature: -40°C to +85°C; Protection class: IP30; Relative humidity: 5%-95% (non-condensing)
-
Mechanical & Installation: Compact modular design (approx. 95×85×40 mm); Weight: approx. 0.28 kg; DIN rail/panel-mounted; LED status indicators for real-time monitoring
-
Compatibility: Fully compatible with ABB DCS/PLC systems; Seamless integration with ABB O3 series modules and field devices
-
Certifications & Protection: CE, UL certified; Overcurrent, overvoltage and short-circuit protection; Anti-interference compliant with IEC 61000-6-2/4
Recommended ABB Same-Series Models
-
ABB O3EHa HENF315087R2: Analog input control module with HART support, specialized in high-precision signal acquisition
-
ABB O3EC HENF442581R1: Configurable I/O industrial control module, supporting dual Ethernet communication
-
ABB O3EId HENF452777R3: DCS PLC module with multi-protocol support, ideal for IoT integration in smart factories
-
ABB E3EP HENF315276R1: Programmable logic controller (PLC) with expandable I/O, for industrial process control
-
ABB E3ED: Industrial process control module with built-in PLC functions, suitable for precise parameter regulation
-
ABB P5EAa HENF206350R2: Digital control module with PID function, for precise process control scenarios
-
ABB E3EFa HENF452750R1: Controller module with multi-type I/O, supporting cloud-based real-time collaboration
-
ABB G3FCb HENF458568R1: Terminal board controller module, for signal收发 and actuator control in industrial automation
-
ABB B5EEd HENF105082R4: Control card module with multiple control algorithms, ensuring high control precision
-
ABB G3FK HENF452878R1: Embedded control card with analog I/O conversion, suitable for sensor data processing
-
ABB O3EC HENF442582R1: Industrial control module with extended I/O channels, for large-scale process control
-
ABB INPM01: Process monitoring module, enabling real-time collection and analysis of industrial parameters
-
ABB AC500-eCo V3: Compact PLC module with Ethernet ports, supporting IoT protocols for smart factories
-
ABB E5EAA HENF105240: Industrial control module with high-speed data processing, adaptable to complex automation needs
