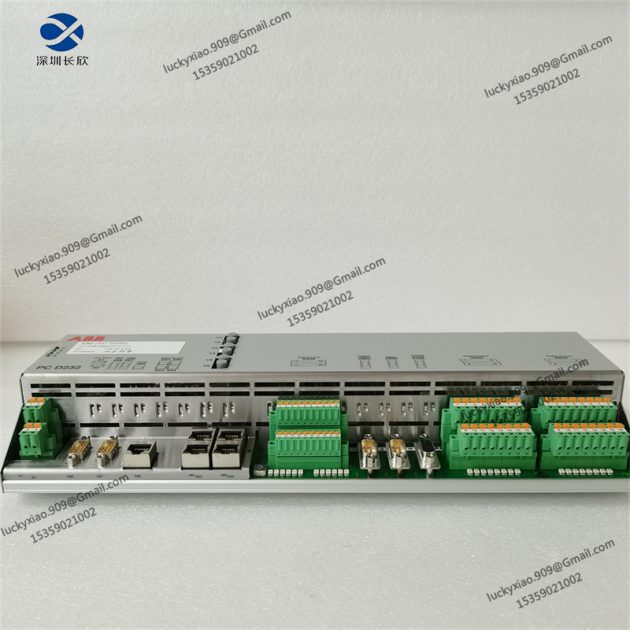

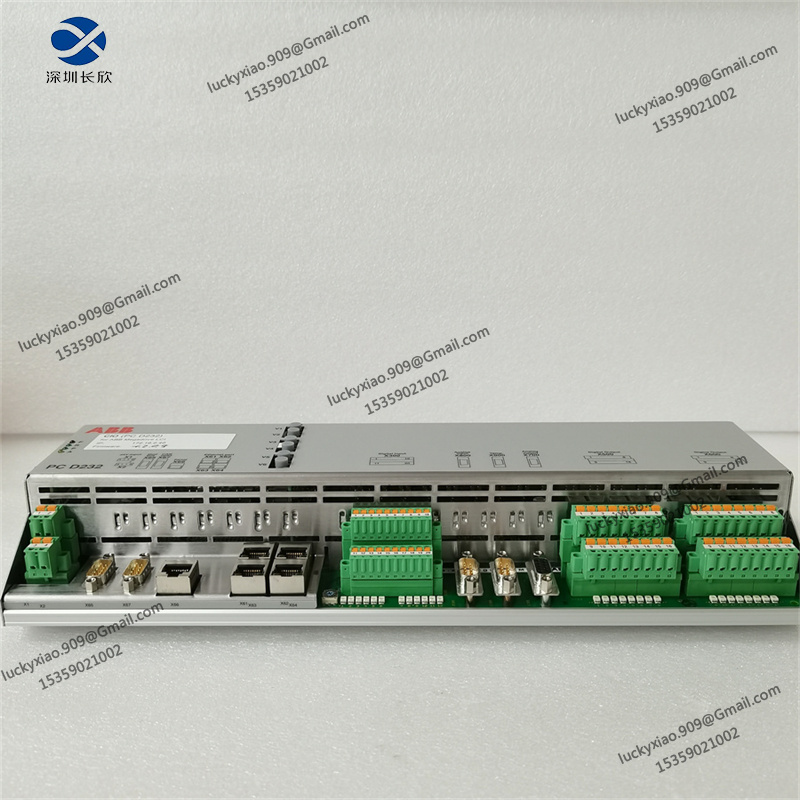

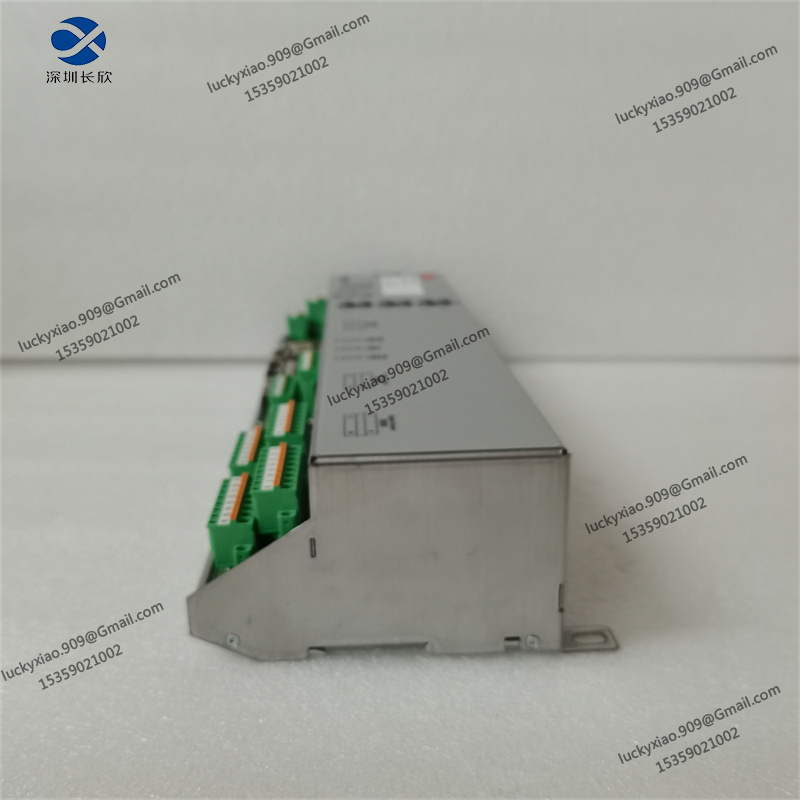

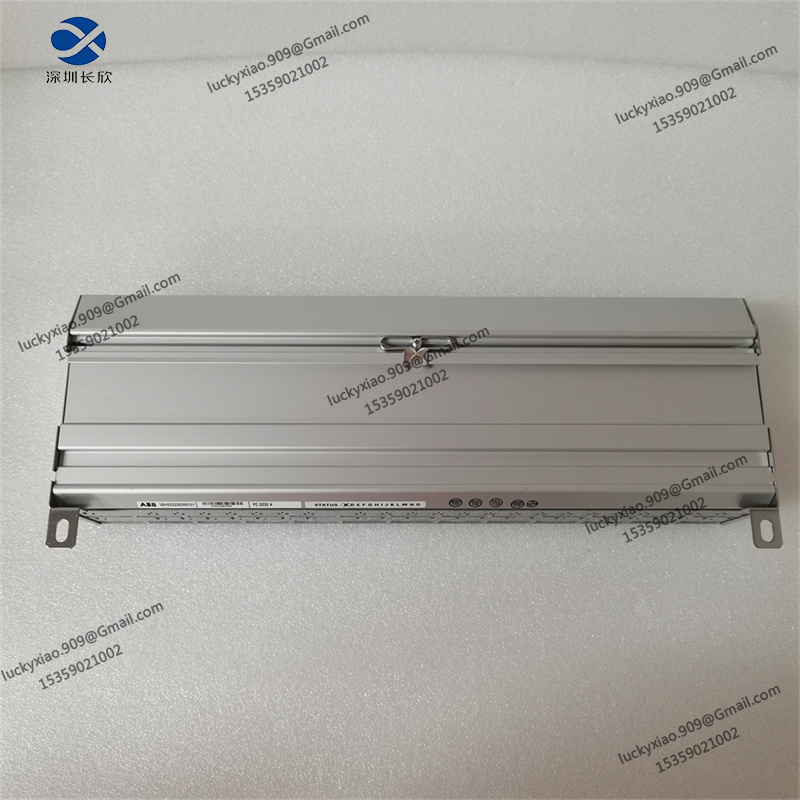

Introduction to ABB PCD232A 3BHE022293R0101

3BHE022293R0101 PCD232A Product Overview

3BHE022293R0101 PCD232A Technical Specifications

• Product Model: PCD232A 3BHE022293R0101
• Product Type: Communication I/O Module
• Core Functions: Data exchange between controllers and field devices, real-time status monitoring, control signal transmission, fault detection and diagnosis, multi-protocol communication support
• Electrical Parameters: 8 analog input channels (4-20 mA / 0-10 V DC); 4 analog output channels (4-20 mA / 0-10 V DC); 8 digital inputs & 4 digital outputs (expandable)
• Power Supply: 24 V DC input (19.2-28.8 V DC range); Power consumption ≤ 8 W; Built-in overcurrent, overvoltage and reverse polarity protection
• Communication Interfaces: 1×RS-485 (supports Modbus RTU); 1×Ethernet (supports TCP/IP, Modbus TCP); Compatible with ABB System 800xA communication bus
• Performance Indicators: 16-bit analog input resolution; ±0.1% FS conversion accuracy; Signal response time < 1 ms; Supports online parameter adjustment and debugging
• Environmental Ratings: Operating temperature: -25°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Vibration resistance: 2 G; Shock resistance: 15 G
• Mechanical & Installation: DIN rail-mounted; Dimensions (approx.): 73.5 mm × 120 mm × 60 mm; Net weight: approx. 1.53 kg; Plug-in terminals for easy wiring; LED indicators for power, operation, communication and fault status
• Compatibility: ABB System 800xA DCS; ABB AC800M controllers; Standard industrial sensors and actuators
• Certifications & Compliance: CE certified; IEC 61131-2 compliant; Passes EMC testing
• Application Adaptability: Suitable for petrochemical, power generation, water treatment, machinery manufacturing and textile industries; Ideal for process monitoring, equipment control and distributed system connectivity

Recommended ABB Same-Series & Related Models

1. ABB PCD230A: PCD series basic communication module, supports core data exchange for simple automation systems
2. ABB PCD231A 3BHE022292R0101: 4-channel analog input module, cost-effective for basic process monitoring
3. ABB PCD233A 3BHE022294R0101: 16-channel analog input module, designed for complex multi-point monitoring systems
4. ABB PCD235A101 3BHE032025R0101: Excitation control module, specialized for synchronous generator excitation systems
5. ABB PCD215 3BHE013266R0101: 16 DI/16 DO digital I/O module, for discrete control task execution
6. ABB PCD225 3BHE013267R0101: 8-channel analog output module, enables multi-actuator coordinated control
7. ABB PCD240 3BHE022296R0101: PROFIBUS-DP communication extension module, expands fieldbus connectivity
8. ABB PCD250 3BHE022297R0101: Dual-channel redundant control module, for safety-critical application scenarios
9. ABB PCD237: Advanced communication I/O module, integrates enhanced data processing capabilities
10. ABB AC800M PM861K01 3BSE018105R1: Standard CPU module, matches PCD series for distributed control
11. ABB CI854A 3BSE030221R1: PROFIBUS communication module, enhances fieldbus integration performance
12. ABB AI810 3BSE020510R1: Analog input extension module, supplements data acquisition capabilities
13. ABB AO810 3BSE020512R1: Analog output extension module, expands control signal coverage
14. ABB PS865 3BSE025266R1: Stable power supply module, supports PCD series operation
15. ABB PP835A 3BSE042234R2: Local process panel, enables on-site operation and monitoring
