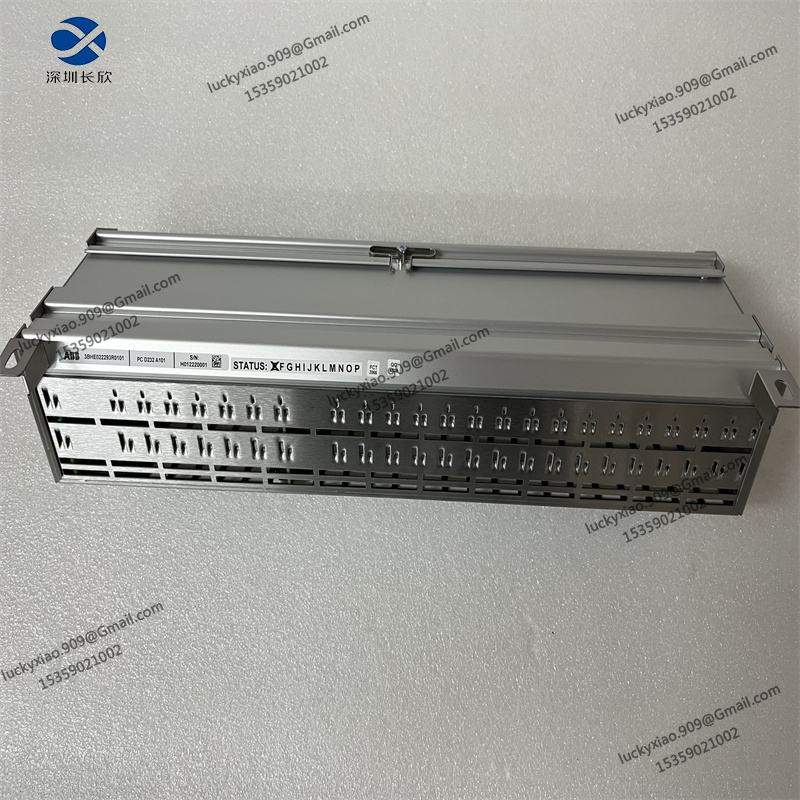

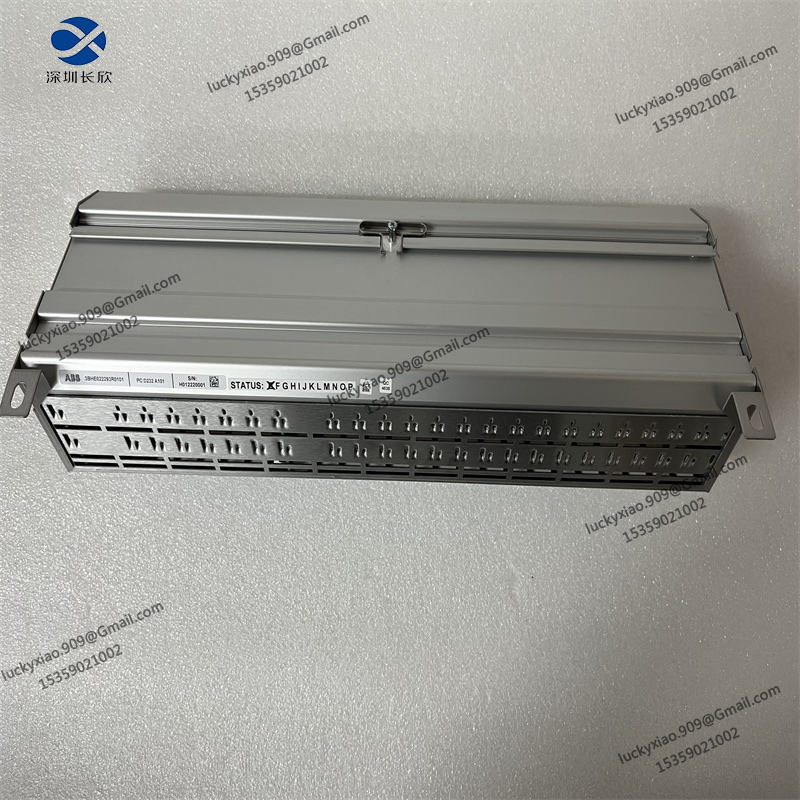

Introduction to ABB PCD232A101 3BHE022293R0101
PCD232A101 3BHE022293R0101 Product Overview
The ABB PCD232A101 3BHE022293R0101 is a high-reliability digital input/output (I/O) module belonging to the PCD200 series, specifically designed for industrial automation control systems. It serves as a key interface component between field devices and upper-level controllers, enabling efficient acquisition of digital signals from sensors, switches, and other devices, as well as reliable control of actuators, relays, and other executive components. The module features a fully isolated design, which effectively prevents electromagnetic interference in industrial environments and ensures the stability and accuracy of signal transmission. With a compact modular structure and flexible installation methods, it is well-suited for harsh industrial scenarios such as power plants, petrochemical facilities, and manufacturing workshops. Its high compatibility allows seamless integration with ABB AC800 series controllers and DCS systems, providing solid I/O interface support for the stable operation of industrial automation systems.
PCD232A101 3BHE022293R0101 Technical Specifications
-
Product Model: PCD232A101 3BHE022293R0101
-
Product Type: Digital Input/Output (I/O) Module (PCD200 Series)
-
Core Functions: Digital signal acquisition, digital signal output, anti-electromagnetic interference, fault self-diagnosis, signal status monitoring, fully isolated signal transmission
-
I/O Configuration: 16 digital input channels, 16 digital output channels; Input type: Dry contact/PNP/NPN (selectable); Output type: Relay output; Output contact capacity: AC 250V/2A, DC 30V/2A
-
Power Supply: 24 V DC ±20% input; Power consumption: ≤ 15 W (full load); Built-in overcurrent protection and voltage stabilization circuit
-
Communication Interfaces: Supports connection to ABB controller backplanes; Compatible with PROFIBUS DP and Modbus RTU communication protocols; Supports real-time data transmission with upper-level controllers
-
Environmental Ratings: Operating temperature: -20°C to +60°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Protection class: IP20 (for cabinet installation)
-
Mechanical & Installation: DIN rail-mounted design; Dimensions (approx.): 120 mm × 80 mm × 60 mm; Weight: approx. 0.5 kg; Pluggable terminals for easy maintenance; LED status indicators (power, channel operation, fault)
-
Performance Indicators: Input response time: < 1 ms; Output response time: < 5 ms; MTBF (Mean Time Between Failures): ≥ 100,000 hours; Anti-interference capability: Complies with IEC 61000-4 standards
-
Compatibility: Fully compatible with ABB AC800 series controllers and DCS systems; Seamless integration with PCD200 series other modules; Supports hot-swap with compatible accessories
-
Certifications & Compliance: CE, UL certified; Complies with IEC 61131-2 industrial control standards; Passes strict EMC (Electromagnetic Compatibility) testing
-
Application Adaptability: Suitable for digital signal acquisition and control in industrial automation systems such as power plant auxiliary equipment control, petrochemical process monitoring, and manufacturing production line control; Ideal for connecting digital sensors, switches, relays, and solenoid valves
Recommended ABB Same-Series & Related Models
-
ABB PCD231A101 3BHE022292R0101: PCD200 series digital input module, 32-channel digital input for large-scale signal acquisition scenarios
-
ABB PCD233A101 3BHE022294R0101: PCD200 series digital output module, 32-channel relay output for multi-executive component control
-
ABB PCD241A101 3BHE022295R0101: PCD200 series analog input module, 8-channel 4-20mA signal acquisition with high precision
-
ABB PCD242A101 3BHE022296R0101: PCD200 series analog output module, 8-channel 4-20mA signal output for actuator control
-
ABB PCD262A101 3BHE022297R0101: PCD200 series mixed I/O module, integrating 8 digital inputs and 8 analog outputs
-
ABB PCD231B101: PCD200 series high-speed digital input module, 16-channel with 0.1ms response time
-
ABB PCD233B101: PCD200 series high-power digital output module, output contact capacity up to AC 250V/5A
-
ABB PCD241B101: PCD200 series high-precision analog input module, 16-bit resolution for sensitive signal acquisition
-
ABB PCD242B101: PCD200 series dual-range analog output module, supporting 0-10V and 4-20mA signal output
-
ABB PCD251A101: PCD200 series communication module, enabling PCD200 modules to connect with Ethernet networks
-
ABB PCD271A101: PCD200 series temperature input module, supporting PT100/K-type thermocouple signal acquisition
-
ABB PCD232B101: PCD200 series enhanced digital I/O module, 16DI/16DO with fault alarm function
-
ABB PCD261A101: PCD200 series mixed I/O module, integrating 16 digital inputs and 4 analog inputs
-
ABB PCD281A101: PCD200 series counter module, 4-channel high-frequency counter for speed and flow measurement
-
ABB PCD291A101: PCD200 series power supply module, providing stable 24V DC power for PCD200 series modules
