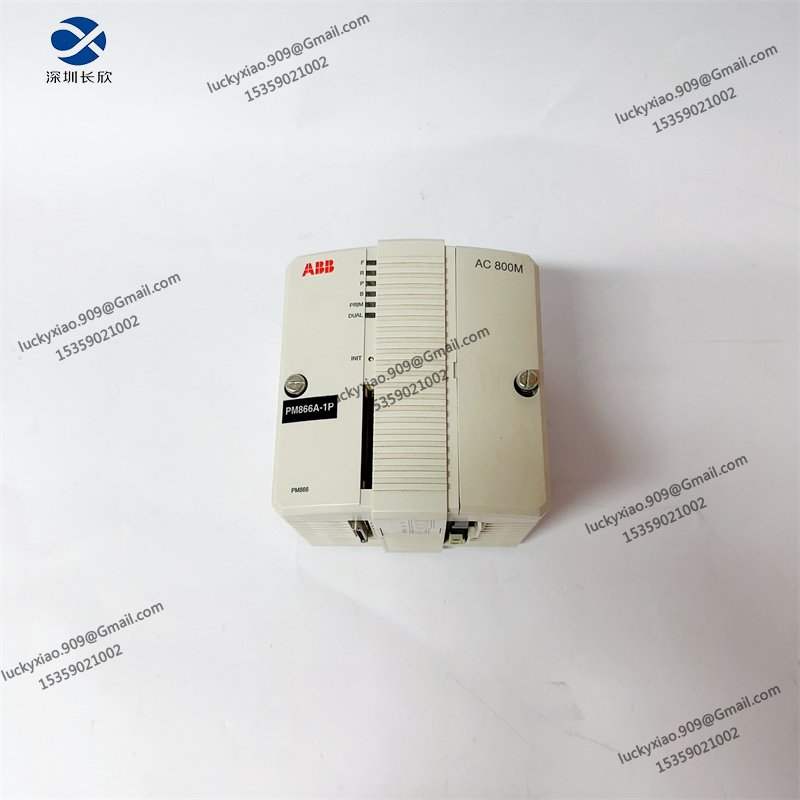

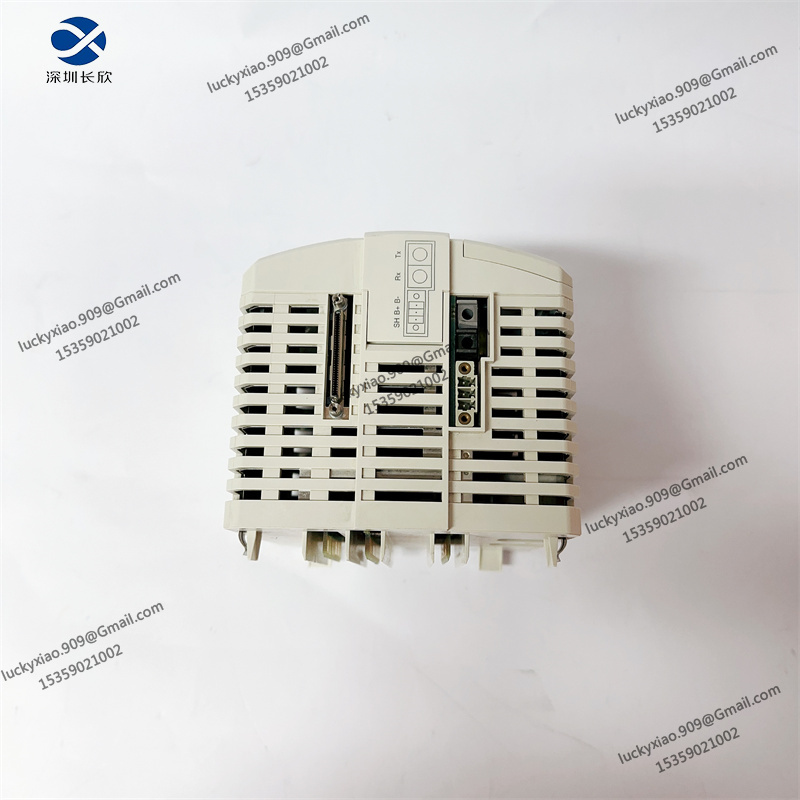

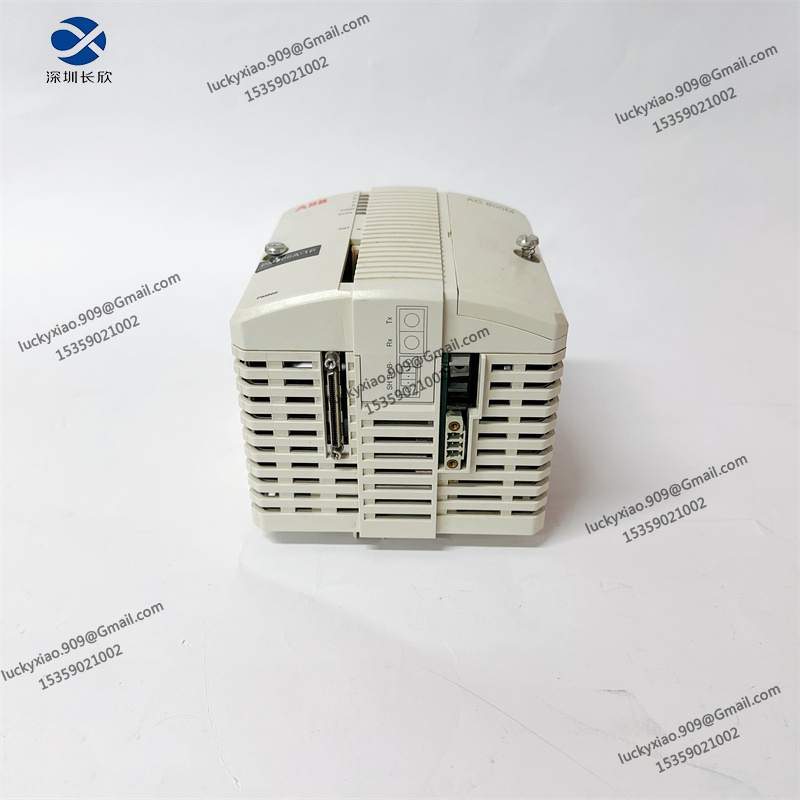

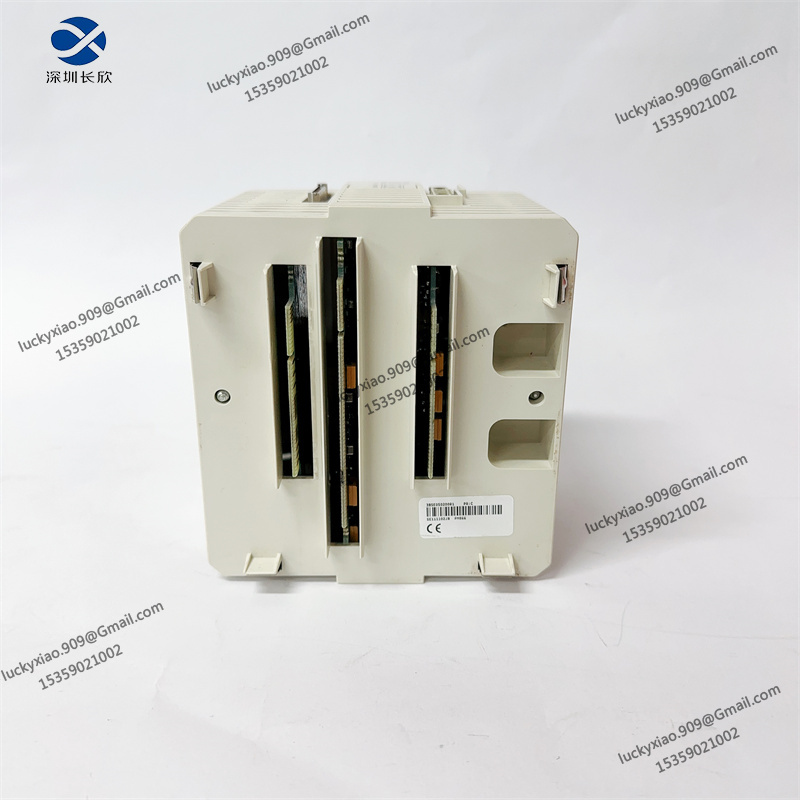

Introduction to ABB PM866 3BSE050200R1
The ABB PM866 (order number: 3BSE050200R1) is a high-end central processing unit (CPU) module, renowned as the “intelligent core” of ABB AC 800M distributed control systems (DCS) for large-scale industrial automation. As a flagship processor in the AC 800M series, it adopts a 32-bit RISC processor with 2.13 GHz operating frequency, delivering powerful computing capability to handle complex control logic, massive real-time data processing, and multi-protocol communication management. This module is widely applied in critical industries including petrochemicals, thermal power generation, metallurgy, and large-scale manufacturing, serving as the core control unit for continuous production lines, reactor systems, and integrated energy management platforms. Its robust design supports CPU redundancy configuration with seamless switchover, ensuring 99.99% system availability, while the built-in error detection and correction (EDAC) technology enhances data reliability in harsh industrial environments.
3BSE050200R1 Key Technical Specifications
-
Device Type: High-performance CPU module for ABB AC 800M distributed control systems
-
Processor Architecture: 32-bit RISC processor; operating frequency 2.13 GHz
-
Memory Configuration: 64 MB RAM (with EDAC); 64 MB Flash; supports external storage expansion
-
Control Performance: Minimum task cycle ≤ 1 ms; SOE (Sequence of Events) resolution < 1 ms
-
Expansion Capability: 8 PCIe Gen2 x1 expansion slots; supports up to 32 S800 I/O modules
-
Power Supply: 24V DC (nominal); input range 18-36V DC; typical power consumption 8W
-
Communication Interface: 2 redundant Ethernet ports (10/100/1000 Mbps); RS-232/485; supports PROFINET, Modbus TCP
-
Redundancy Feature: CPU, communication, and power redundancy support; automatic switchover time < 10 ms
-
Operating Environment: Temperature -40°C to +70°C; humidity 5-95% (non-condensing); storage temp -40°C to +85°C
-
Physical Specifications: 75mm × 130mm × 120mm; weight ~1.1kg; DIN rail or rack mounting
-
Protection Features: Overcurrent, overvoltage protection; watchdog timer; EMC compliant with industrial standards
-
Certifications: CE, UL compliant; RoHS certified; meets IEC 61131-3 industrial control standards
Recommended ABB Related Models
-
ABB PM866K01 3BSE050198R1: Redundant version of PM866, ideal for critical petrochemical DCS systems requiring 24/7 operation
-
ABB PM864AK01 3BSE018161R1: Mid-range AC 800M CPU, cost-effective complement for PM866 in distributed control scenarios
-
ABB CI858K01 3BSE018135R1: Multi-protocol communication module, connects PM866 to remote SCADA systems
-
ABB AI810 3BSE032456R1: 8-channel analog input module, expands PM866’s sensor signal collection capability
-
ABB DO810 3BSE032452R1: 16-channel digital output module, executes control actions based on PM866’s commands
-
ABB TP854 3BSE025349R1: 7-inch HMI, visualizes PM866’s operating status and process parameters
-
ABB CI871AK01 3BSE092693R1: High-speed PROFIBUS module, ensures real-time data interaction with PM866
-
ABB AC500 PLC: Compact controller, pairs with PM866 for small-scale auxiliary control systems
-
ABB ACS880-07: Medium-voltage frequency converter, receives control signals from PM866
-
ABB REF620: Digital relay protector, safeguards PM866 and associated power equipment
-
ABB UFC762AE101 3BHE006412R0101: High-precision analog input module, collects power parameters for PM866
-
ABB CI830 3BSE013262R1: PROFINET communication module, enhances PM866’s connectivity with Siemens devices
-
ABB TB807: Module bus terminator, ensures stable signal transmission for PM866-based systems
-
ABB PM803 3BSE008572R1: Entry-level AC 800M CPU, cost-effective option for PM866-based system expansion
-
ABB 3BHB013085R0001 5SHY3545L0009: High-power IGCT module, collaborates with PM866 in large-scale drive systems
-
ABB SYN5202-0277 3BHB006715R0277: Grid-connection synchronization module, transmits data to PM866 for generator control View more …..
