Introduction to ABB PU512V2 3BUR001401R1

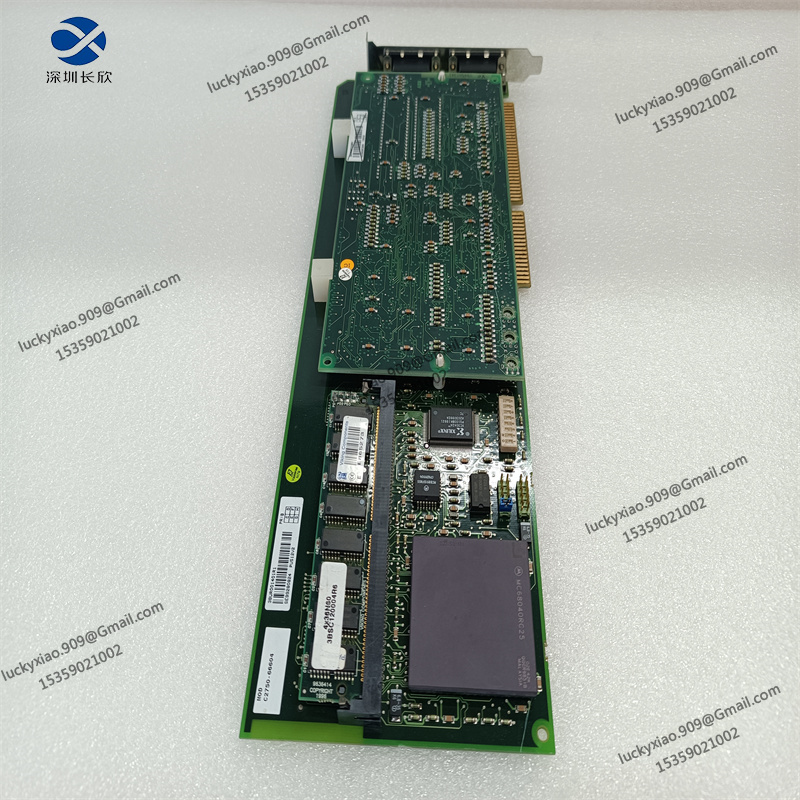

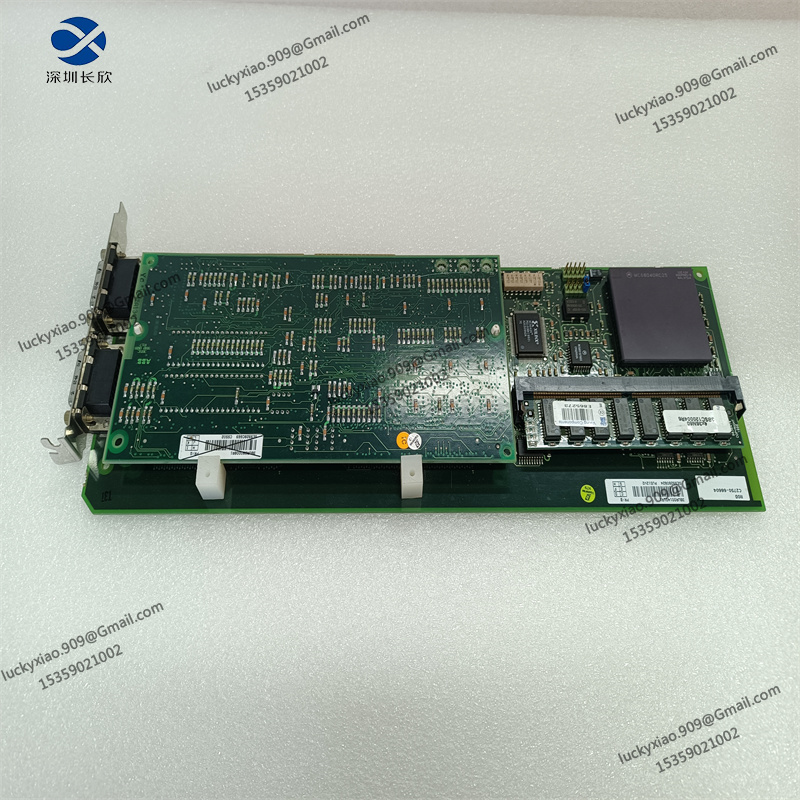

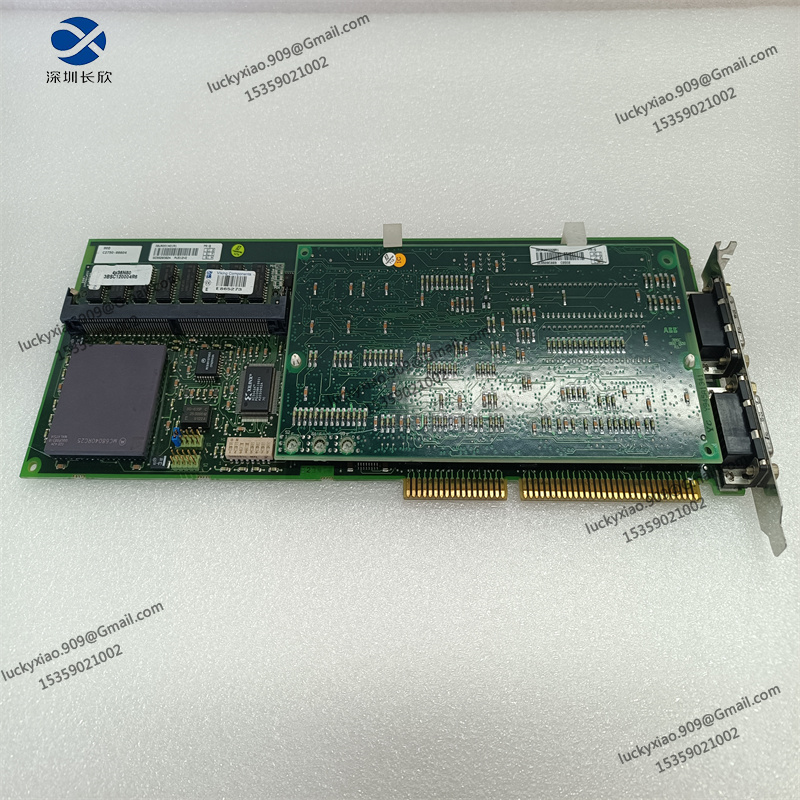

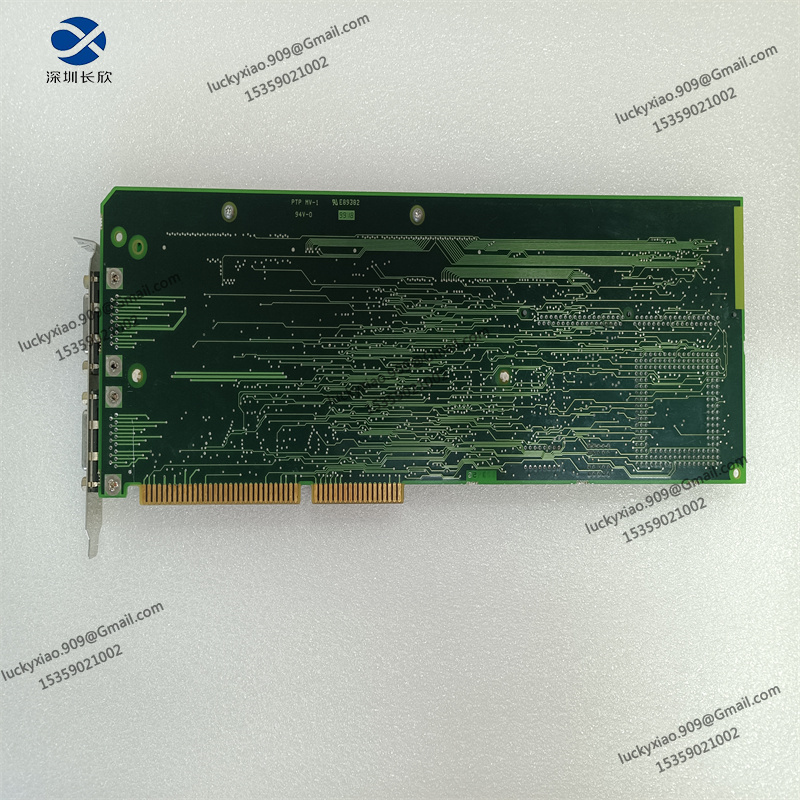

3BUR001401R1 PU512V2 Product Overview
The ABB PU512V2 3BUR001401R1 is a high-performance real-time accelerator module, belonging to the Power Unit series of ABB Freelance distributed control systems (DCS). Specifically designed for industrial automation scenarios requiring high real-time performance, it integrates a high-speed processor, efficient data processing capabilities, and seamless system integration functions, serving as a core component to enhance the computing efficiency of Freelance controllers. The module accelerates the execution cycle of control logic, enabling faster response to process changes and improving control precision. With a rugged modular design, it supports plug-and-play installation and exhibits strong resistance to extreme temperatures, vibration, and electromagnetic interference, ensuring stable operation in harsh industrial environments such as chemical, power generation, and manufacturing industries. Widely applied in high-speed motion control, precision process regulation, and large-scale automation systems, the PU512V2 3BUR001401R1 effectively boosts the overall performance of DCS, protecting user investment without large-scale system upgrades.
3BUR001401R1 PU512V2 Technical Specifications
-
Product Model: PU512V2 3BUR001401R1
-
Product Type: Real-Time Accelerator Module (Freelance Power Unit Series)
-
Core Functions: Accelerate control logic execution, enhance real-time system response, high-speed data processing, seamless integration with Freelance controllers, support complex control algorithms, plug-and-play installation, overcurrent and undervoltage protection
-
Power Supply: 24 V DC input; Power consumption: 55 mA; Built-in voltage stabilization and surge protection
-
Processor & Memory: 32-bit RISC processor; Main clock frequency: 100 MHz; RAM: 128 MB; Flash: 256 MB
-
Communication Interface: High-speed internal bus interface (for communication with controllers); RS-232/485, Ethernet; Supports Modbus, PROFIBUS protocols
-
Input/Output Specifications: Supports analog/digital input/output signals; Compatible with mainstream industrial sensors and actuators
-
Environmental Ratings: Operating temperature: -25°C to +60°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Resistant to vibration and electromagnetic interference
-
Mechanical & Installation: Plug-in modular design; Dimensions: 250 mm (depth) × 140 mm (height) × 20 mm (width); Weight: approx. 0.9 kg; DIN rail or panel-mounted
-
Compatibility: Fully compatible with ABB Freelance DCS; Matches Freelance controllers (e.g., AC 500 PM5xx series) and I/O modules
-
Certifications & Protection: Complies with industrial automation safety standards; Equipped with overcurrent and undervoltage protection to ensure system safety
