Introduction to ABB PU515A 3BSE032401R1
PU515A 3BSE032401R1 Product Overview

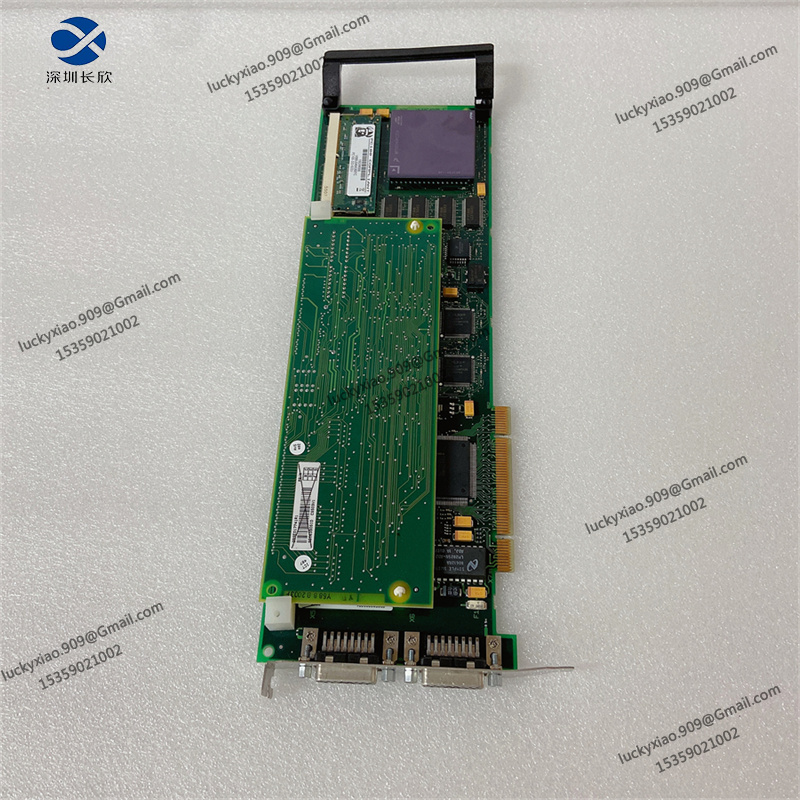

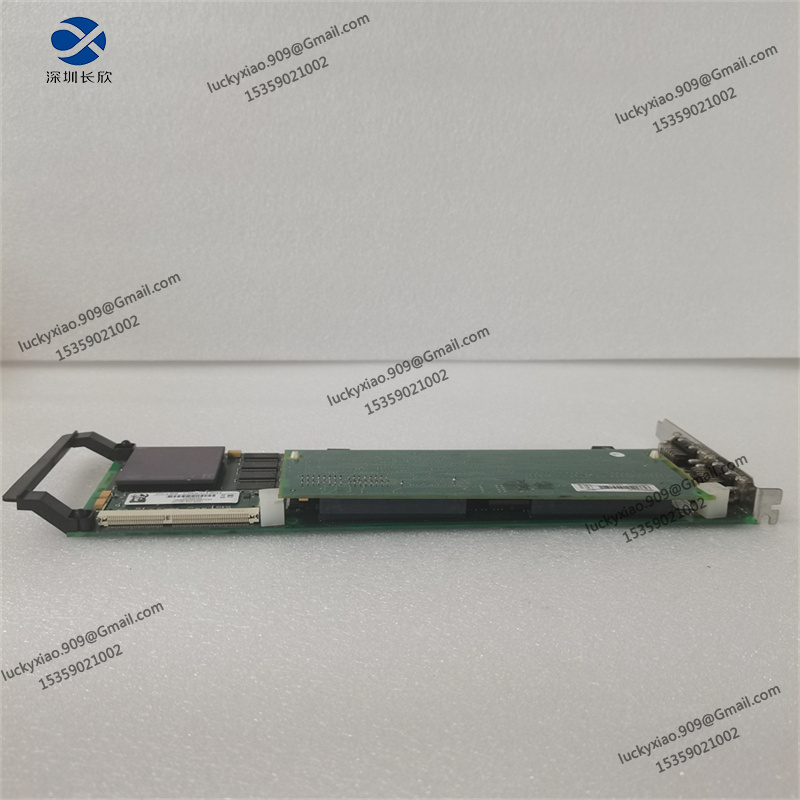

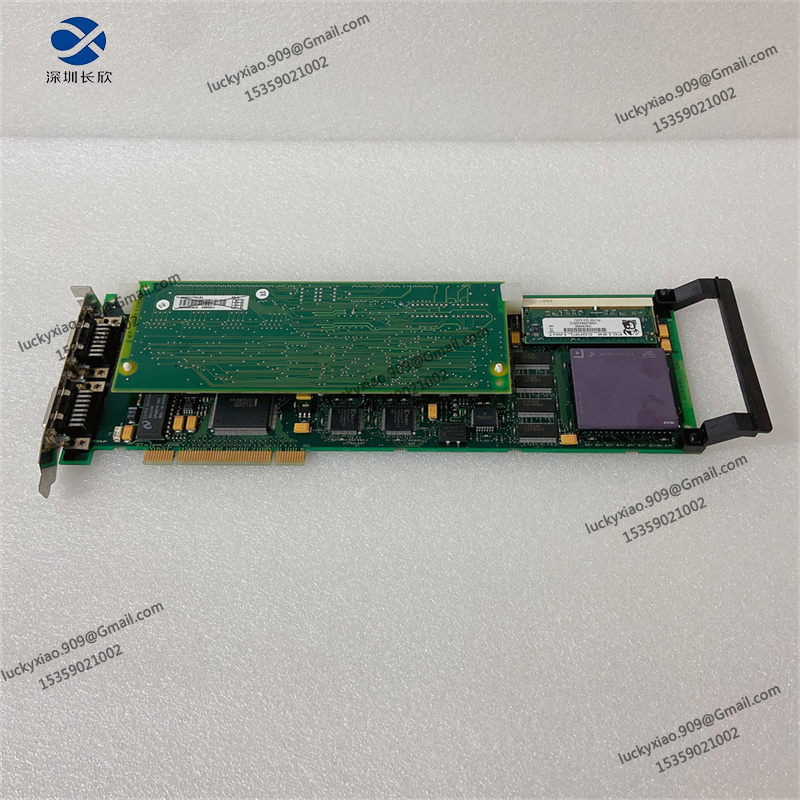

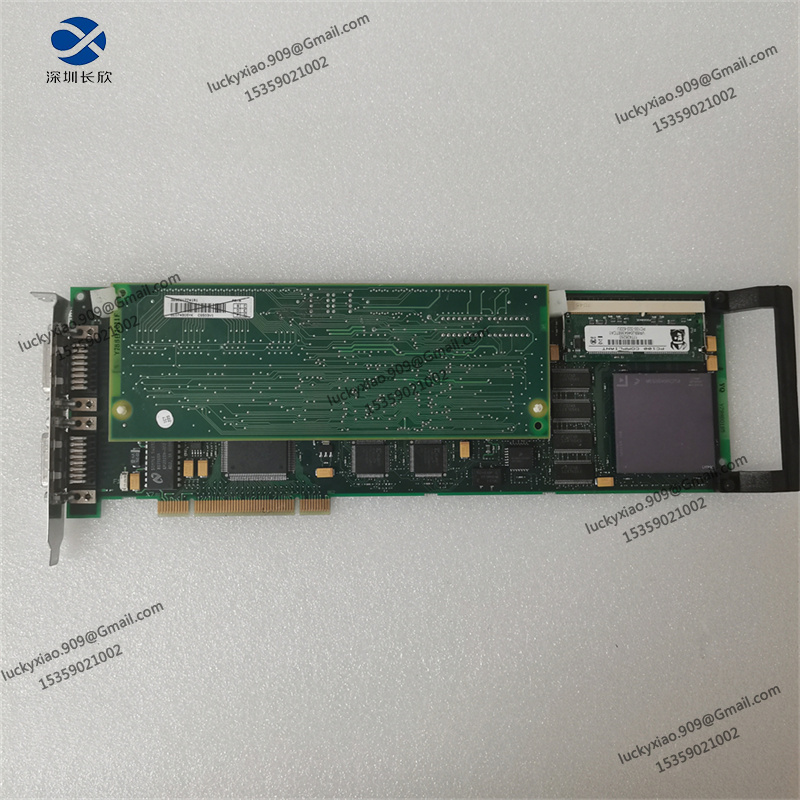

The ABB PU515A 3BSE032401R1 is a high-performance Real-Time Accelerator (RTA) board designed to boost processing efficiency and communication capabilities in ABB automation systems like Master and MOD 300. As a key performance-enhancing component, it takes over complex computational tasks from the main CPU, greatly improving the system’s real-time responsiveness and operational speed. Featuring a PCI-based design, it fits flexibly into various PCI and PCI-X slots, enabling easy integration into existing system architectures. With robust construction and strong anti-electromagnetic interference performance, it maintains stable operation in harsh industrial environments such as power plants, petrochemical facilities, and process manufacturing workshops. Its high compatibility allows seamless collaboration with ABB AC800M controllers and other system components, delivering reliable real-time data processing and communication support for demanding industrial automation needs.
PU515A 3BSE032401R1 Technical Specifications
-
Product Model: PU515A 3BSE032401R1
-
Product Type: Real-Time Accelerator (RTA) Board
-
Core Functions: Offloads main CPU’s complex computations, enhances real-time application execution, dual-channel MB300 protocol communication, high-speed data transmission, system performance optimization
-
Processor & Memory: 25 MHz single processor; 16 MB RAM (program & data storage); integrated CS503V1 dual-channel MB300 communication module
-
Power Supply: 3.3 VDC & 5 VDC input support; built-in protection circuits for stable power supply
-
Communication Interfaces: 2 channels (MB300 protocol); 10,000 kbit/s communication speed; 2 x 15-pin female D-Sub connectors
-
Performance Indicators: High-speed real-time data processing; seamless data exchange with subsystems; supports stable operation of OS500 applications in UNIX workstations
-
Environmental Ratings: Operating temp: -20°C to +70°C; Storage temp: -25°C to +85°C; Relative humidity: 5%-95% (non-condensing); Industrial-grade vibration resistance
-
Mechanical & Installation: PCI bus card form factor; compatible with 32-bit 33 MHz PCI, 100/133 MHz PCI-X (33 MHz operation), 64-bit slots; Dimensions (approx.): 127 mm × 51 mm × 330 mm; Weight: approx. 0.4 kg; Plug-in installation for easy maintenance
-
Compatibility: ABB Master & MOD 300 systems; ABB AC800M controllers; 800xA system 3.1 & 5.0 versions
-
Certifications & Compliance: CE certified; Complies with industrial automation standards; Passes EMC testing
-
Application Adaptability: Suitable for power generation, oil & gas, petrochemical, process manufacturing; Ideal for critical process control, large-scale data acquisition, high-speed system communication
Recommended ABB Same-Series & Related Models
-
ABB PU512V1 3BSE004736R1: Basic RTA module for small-scale automation system performance enhancement
-
ABB PU512V2 3BUR001401R1: Enhanced RTA module with improved compatibility for newer system versions
-
ABB PU514A 3BSE032400R1: PCI-based RTA board with single-channel communication for specific configurations
-
ABB PU515 3BSE013063R1: Legacy RTA module compatible with older ABB automation systems
-
ABB PU516A 3BSE032402R1: High-performance RTA module for complex algorithm execution
-
ABB PU518 3BSE018680R1: Advanced RTA board with multi-protocol support for large-scale integration
-
ABB PU519 3BSE018681R1: Redundant RTA module with dual-module design for safety-critical systems
-
ABB CM575K 3BSE040610R1: Communication expansion module extending Profibus/CANopen interfaces
-
ABB AI523 3BSE026001R1: Analog input module for temperature & pressure signal collection
-
ABB PS501U 3BSE026410R1: Power supply module providing stable 24VDC for system components
-
ABB AC800M PM861K01 3BSE018105R1: Standard CPU module for large-scale distributed control collaboration
-
ABB CI854A 3BSE030221R1: PROFIBUS communication module enhancing fieldbus capability
-
ABB DSMB124 57360001-U/3: Memory module expanding storage for real-time data processing
-
ABB CP571 3BFE000000058: HMI device enabling local operation & monitoring
-
ABB 3BSE032401R2: Revised PU515A RTA board with improved compatibility & reliability
