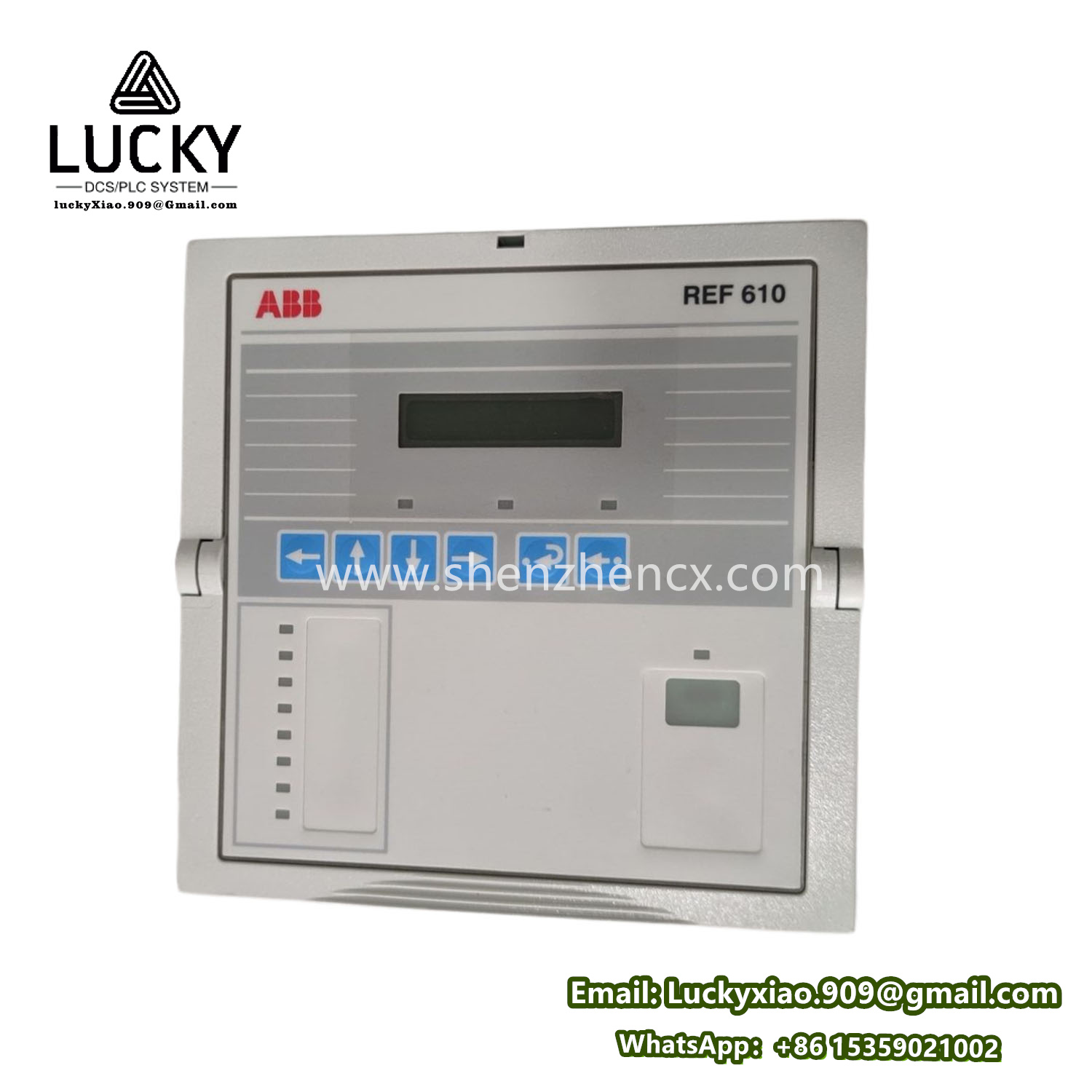

ABB REF610C11HCNN01 Feeder protection relay

ABB REF610C11HCNN01 is a feeder protection relay designed for medium- and low-voltage electrical distribution systems. Part of ABB’s Relion® 610 series, this relay provides comprehensive protection, control, and monitoring for feeders, ensuring safe and reliable operation of power networks in industrial, commercial, and utility applications. Its compact design, advanced functionality, and robust performance make it ideal for safeguarding electrical infrastructure against faults and operational anomalies.

Key Features:

1. Comprehensive Protection Functions:
   • Overcurrent Protection: Phase and earth fault protection with definite or inverse time-delay characteristics.
   • Short-Circuit Protection: Instantaneous tripping for critical faults.
   • Thermal Overload Protection: Monitors load current to prevent equipment damage.
   • Directional Power Protection: Detects reverse power flow in generation or grid-tied systems.
   • Voltage Protection: Under/overvoltage monitoring for system stability.
2. Advanced Communication Capabilities:
   • Supports IEC 61850 (for substation automation) and Modbus RTU/TCP protocols for seamless integration with SCADA, DCS, or control systems.
   • Optional IRIG-B time synchronization for precise event logging.
3. User-Friendly Interface:
   • Intuitive LCD display with multilingual menu navigation for configuration and diagnostics.
   • Front-panel LED indicators for real-time status and fault alerts.
4. Robust Hardware Design:
   • Operates in harsh environments with a wide temperature range (-25°C to +70°C).
   • High immunity to electromagnetic interference (EMI) and vibrations.
5. Flexible Configuration:
   • Programmable logic (PLC-like functionality) for custom automation sequences.
   • Configurable I/O modules for digital inputs, outputs, and analog signals.
6. Event Recording and Diagnostics:
   • Stores fault records, waveforms, and event logs for post-incident analysis.
   • Self-diagnostics for hardware health monitoring.

Technical Specifications:

• Model: REF610C11HCNN01
• Rated Voltage: Up to 690 V AC (phase-to-phase).
• Current Inputs: 1 A or 5 A CT secondary.
• Communication Ports:
  • RS-485 (Modbus RTU).
  • Ethernet (Modbus TCP or IEC 61850, depending on variant).
• Power Supply: 24–250 V DC or 48–265 V AC (wide-range compatibility).
• Protection Certifications: Complies with IEC 60255, UL 508, and CE standards.
• Enclosure Rating: IP40 (front panel) for dust and moisture resistance.

Applications:

The REF610C11HCNN01 is widely used in:

• Industrial Plants: Protecting motors, transformers, and distribution feeders.
• Renewable Energy Systems: Solar/wind farm grid connections and inverter protection.
• Commercial Buildings: Ensuring continuity of power for critical infrastructure.
• Utility Networks: Substation feeder protection and rural grid management.
• Mining and Oil & Gas: Harsh-environment power distribution systems.

Benefits:

• Enhanced Safety: Prevents electrical fires and equipment damage by isolating faults rapidly.
• Reduced Downtime: Quick fault detection and precise tripping minimize outage durations.
• Energy Efficiency: Monitors load profiles to optimize power usage.
• Scalability: Integrates with ABB’s System 800xA or third-party automation platforms.

Configuration Notes:

• Configured via ABB’s PCM600 software for parameter settings, logic customization, and firmware updates.
• IEC 61850 configuration requires SCL (System Configuration Language) files.
• Relay settings must align with network characteristics (e.g., CT ratios, fault levels).

The ABB REF610C11HCNN01 exemplifies ABB’s commitment to delivering smart, adaptive protection solutions that enhance grid resilience and operational efficiency. Its blend of advanced features and rugged reliability makes it a cornerstone of modern electrical protection systems.
