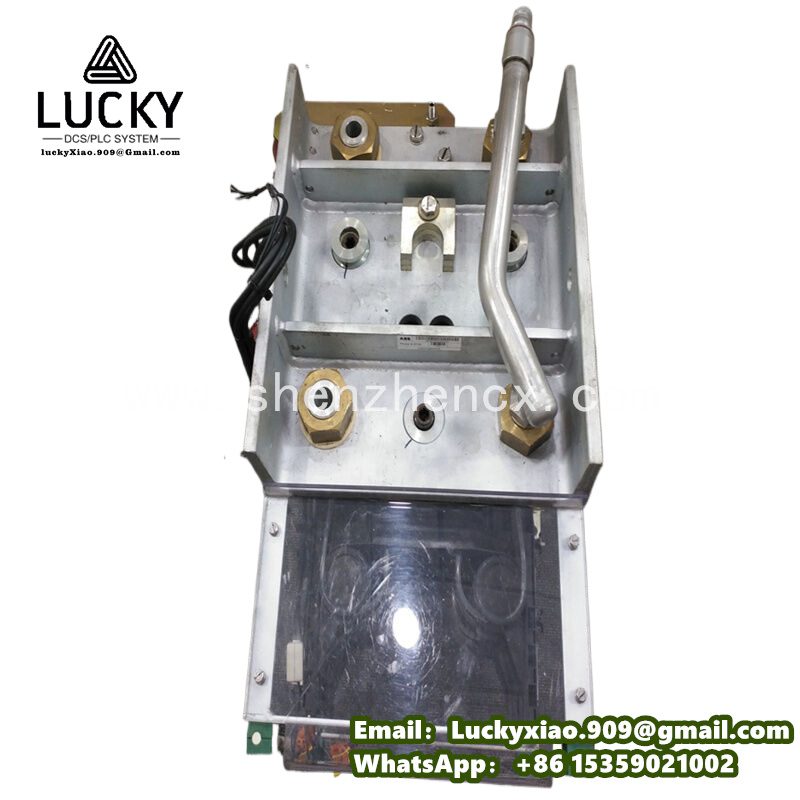

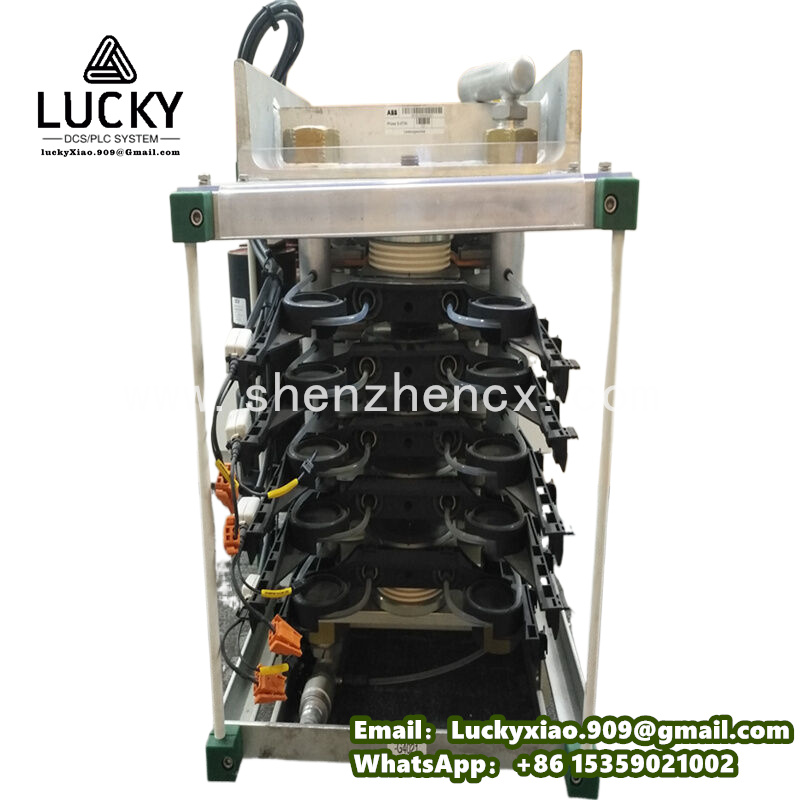

Technical Documentation: ABB S-076N 3BHB009884R0021

1. Product Description

The ABB S-076N 3BHB009884R0021 is a high-performance, medium-voltage (MV) power unit module engineered exclusively for ABB’s ACS 800 series variable frequency drives (VFDs)—a leading platform for heavy-duty industrial applications, including mining, oil & gas, metal processing, and large-scale power generation. As a cornerstone of ABB’s modular MV drive architecture, this module specializes in bidirectional power conversion: it converts AC grid power to stable DC power (rectification) and inverts DC back to variable-frequency AC power, enabling precise speed, torque, and power control of large electric motors (1.2MW+), such as those used in mine hoists, steel rolling mills, and offshore compressors.

Distinguishing itself from standard power modules, the S-076N 3BHB009884R0021 features a high-power IGBT design, adaptive thermal management, and seamless integration with ABB’s drive ecosystem. It utilizes 1700V insulated gate bipolar transistors (IGBTs) with advanced gate driver technology, delivering higher power density, lower switching losses, and enhanced durability in harsh industrial conditions—including voltage transients, high vibration, and extreme temperature fluctuations. Its modular design supports parallel connection of multiple units, allowing flexible scaling to match the power demands of ultra-large motors (5MW+), making it ideal for applications where unplanned downtime risks significant production losses (e.g., continuous steel casting, pipeline pumping stations).

Key Differentiators

Typical Applications

2. Technical Specifications

Specifications are organized by functional category, with clear industrial relevance highlighted to link parameters to real-world heavy-industry requirements.

2.1 Electrical Performance

Parameter	Details	Industrial Relevance
Rated Input Voltage	3.3 kV AC (line-line); compatible with 3.0-3.6 kV AC input range	Aligns with global MV motor standards, eliminating the need for costly step-down transformers in most industrial facilities.
Rated Output Current	180 A (continuous); 225 A (1-minute overload, 125% of rated)	Supports motors up to ~1.1 MW (at 3.3 kV), with overload capacity to handle startup surges (common in mine hoists and rolling mills).
Power Rating	1100 kVA (continuous); 1375 kVA (1-minute overload)	Delivers sufficient power for high-demand applications (e.g., 2MW motors when 2 modules are paralleled), with headroom for dynamic loads (e.g., sudden increases in conveyor weight).
Semiconductor Technology	1700 V IGBT modules (6-pack configuration); advanced soft-switching gate drivers	Reduces switching losses by 25% compared to 1200V IGBT designs, lowering energy consumption and heat generation in 24/7 operations.
Switching Frequency	Configurable: 1-8 kHz (optimized for efficiency and motor noise)	Lower frequencies (1-3 kHz) minimize energy losses for high-power pumps; higher frequencies (6-8 kHz) reduce motor acoustic noise in indoor facilities (e.g., steel mill control rooms).
Input Power Factor	≥ 0.96 (at rated load)	Minimizes reactive power draw from the grid, avoiding utility penalties and improving overall plant power quality—critical for facilities with multiple large motors.

2.2 Thermal & Mechanical Design

Parameter	Details	Industrial Relevance
Cooling System	Forced-air cooling (standard): Dual high-efficiency fans (50,000-hour lifespan); optional liquid cooling (water-glycol, 25-55°C inlet)	Forced-air suits indoor facilities (e.g., steel mills); liquid cooling is ideal for high-ambient environments (e.g., underground mines, 45°C+ ambient) and space-constrained areas (e.g., offshore platforms).
Thermal Resistance	0.12 °C/W (junction-to-heatsink); max IGBT junction temperature: 150°C	Ensures IGBTs operate below maximum temperature even at 125% overload, preventing thermal degradation and extending module lifespan (target: 12+ years).
Physical Dimensions	480 mm (H) × 350 mm (W) × 300 mm (D); weight: 35 kg	Compact design fits in standard ABB ACS 800 MV drive cabinets (600mm width), enabling parallel connection of up to 4 modules for 4.4 MVA total power output.
Protection Ratings	IP21 (front panel); IP00 (internal components, when installed in drive cabinet)	Protects against dust and dripping water (common in industrial facilities) while maintaining airflow for cooling.

2.3 Environmental & Reliability Ratings

Parameter	Details	Industrial Relevance
Operating Temperature	-15°C to +45°C (ambient); derating required above +45°C (1.5% per °C up to +55°C)	Withstands temperature extremes in outdoor oil & gas fields (winter -15°C) and indoor factories (summer +45°C) without additional climate control.
Humidity Resistance	5% to 95% RH (non-condensing), per IEC 60068-2-30	Operates reliably in humid environments (e.g., coastal power plants, tropical mines) without risk of corrosion or electrical shorts.
Vibration Resistance	5-200 Hz, 0.8 g (random, IEC 60068-2-6); 15 g (shock, 11 ms, IEC 60068-2-27)	Tolerates high vibration from nearby motors or heavy machinery (e.g., mine crushers), preventing loose connections or component damage.
EMC Compliance	EN 61800-3 (adjustable speed drives); EN 55011 (industrial equipment)	Reduces electromagnetic interference (EMI) with adjacent control systems (e.g., PLCs, sensors), ensuring stable operation of interconnected plant equipment.
Mean Time Between Failures (MTBF)	≥ 90,000 hours (per ABB reliability data, at 25°C ambient)	Minimizes unplanned downtime—critical for 24/7 operations (e.g., oil pipelines, where shutdowns cost $150k+/hour).

2.4 Control & Monitoring

Parameter	Details	Industrial Relevance
Control Interface	ABB proprietary fiber-optic link (to ACS 800 drive controller); latency <80 µs	Enables ultra-fast communication for dynamic loads (e.g., mine hoist speed changes), ensuring precise torque control and preventing motor overloading.
Monitoring Parameters	IGBT junction temperature, input/output current/voltage, DC bus voltage, fan speed, liquid cooling flow rate (if optional)	Provides real-time health data via ABB DriveWindow software, enabling predictive maintenance (e.g., replacing fans at 45,000 hours, before failure).
Fault Protection	DC bus overvoltage, output overcurrent, IGBT short-circuit, heatsink overtemperature, fan/liquid pump failure	Triggers protective actions within microseconds (e.g., shutting down IGBTs during a short-circuit), preventing damage to expensive components.
Diagnostics	200-event fault log (time-stamped); remote diagnostics via ABB ServicePort	Simplifies troubleshooting—technicians can access fault history remotely (e.g., for offshore platforms) to identify root causes (e.g., “overtemperature due to clogged air filter”).

3. System Overview

The ABB S-076N 3BHB009884R0021 operates as a core component of ABB’s ACS 800 MV drive system, following a four-layer modular architecture—power conversion, thermal management, control communication, and fault resilience—to deliver reliable, high-performance motor control:

3.1 Layer 1: Power Conversion

This layer handles bidirectional power flow, converting grid power to motor-compatible AC while ensuring stability:

3.2 Layer 2: Thermal Management

This layer maintains optimal IGBT temperatures, a key factor in reliability:

3.3 Layer 3: Control Communication

This layer enables real-time data exchange between the module and the ACS 800 controller:

3.4 Layer 4: Fault Resilience

This layer protects the module and connected equipment from electrical faults:

Example: Mine Hoist Control

In a coal mine, two S-076N 3BHB009884R0021 modules are paralleled to power a 2MW mine hoist:

4. Related Models in the ABB MV Drive Power Unit Series

ABB offers a range of power unit modules tailored to different voltage, power, and environmental needs. Below are key alternatives and complements to the S-076N 3BHB009884R0021:

Model	Key Differences from S-076N 3BHB009884R0021	Ideal Application
ABB S-076N 3BHB009884R0022 (Liquid-Cooled)	– Same electrical specs as base model- Integrated liquid-cooled heat sink (no fans)- IP54 rating (dust/water jet resistant)	High-ambient, harsh environments (e.g., underground mines, offshore platforms) where forced-air cooling is impractical.
ABB S-096N 3BHB009885R0021	– Higher rated voltage: 6.6 kV AC input- Rated current: 110 A (continuous), 137.5 A (overload)- Power rating: 1265 kVA	High-voltage applications (e.g., 6.6 kV motors for large pipeline pumps in oil & gas, 6.6 kV fans in power plants).
ABB S-056N 3BHB009883R0021	– Lower rated voltage: 2.3 kV AC input- Rated current: 280 A (continuous), 350 A (overload)- Power rating: 1100 kVA	Low-to-medium voltage applications (e.g., 2.3 kV conveyor motors in mining, 2.3 kV compressors in chemical plants).
