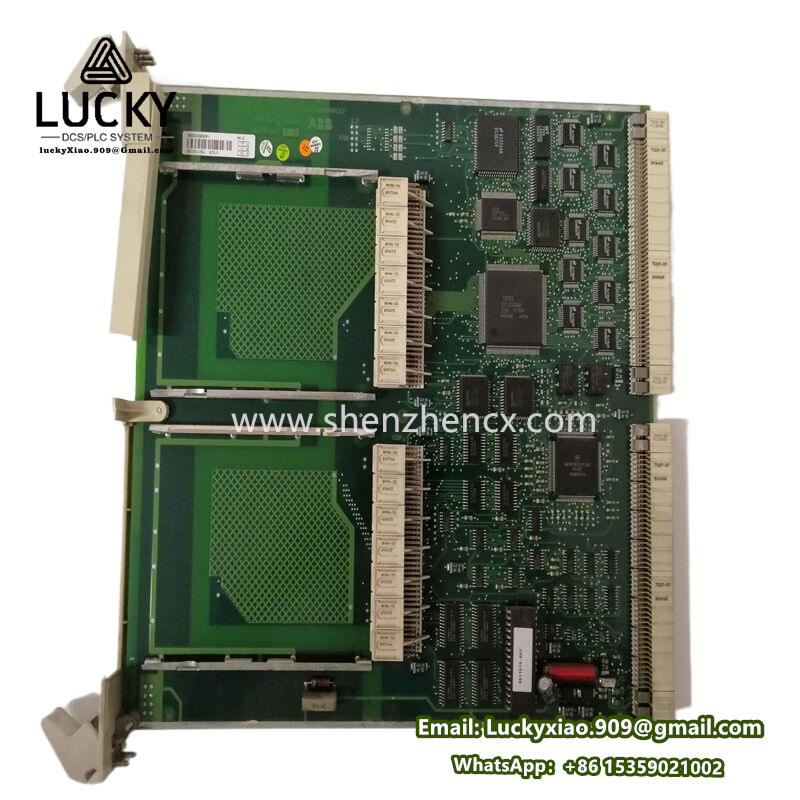

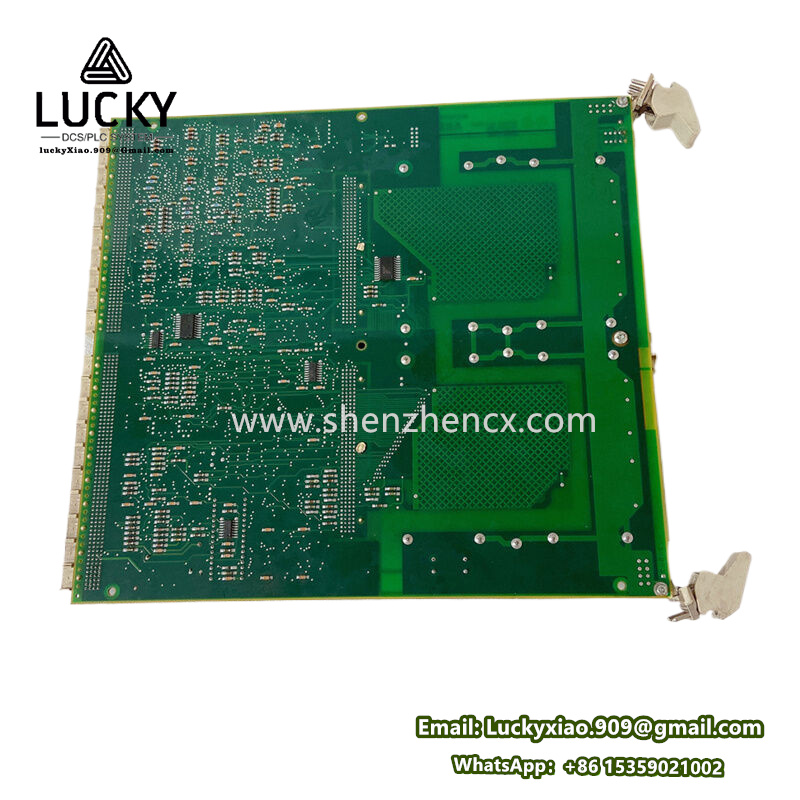

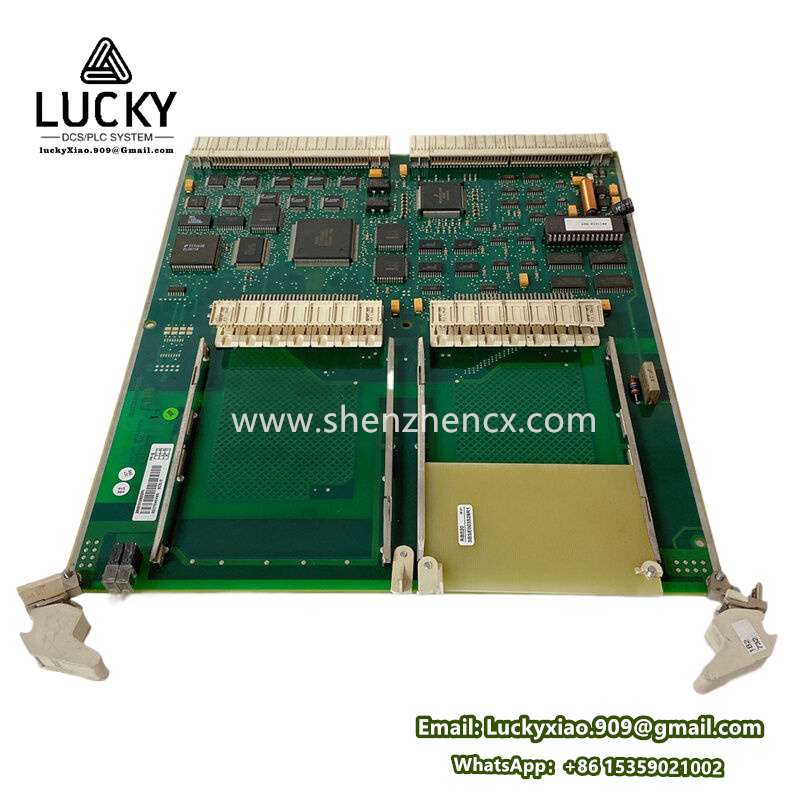

ABB SC510 3BSE003832R1 communication interface module

ABB SC510 (3BSE003832R1) Technical Parameters and Functions

The ABB SC510 (Order Code: 3BSE003832R1) is a communication interface module designed for integration into ABB’s AC 800M and System 800xA automation platforms. It facilitates reliable data exchange between controllers, field devices, and supervisory systems, supporting industrial automation in process control, power generation, and manufacturing. Below is a detailed breakdown of its technical specifications and functionalities:

1. Key Technical Parameters

General Specifications

• Module Type: Communication Interface Module (CIM).
• Compatibility:
  • Controllers: ABB AC 800M (PM851, PM861, etc.).
  • Systems: ABB System 800xA, Advant OCS.
• Mounting: Installed in S800 I/O racks (supports redundant configurations).

Electrical Specifications

• Power Supply:
  • Voltage: 24 V DC (±10%).
  • Power Consumption: Typically 3 W (dependent on communication load).
• Isolation:
  • Field-to-System: 1500 V AC (galvanic isolation).

Communication Interfaces

• Primary Protocol: PROFIBUS DP (RS-485).
  • Data Rate: Configurable up to 12 Mbps.
  • Max Nodes: Supports up to 125 nodes per segment.
• Redundancy: Optional dual-channel redundancy for high-availability systems.
• Terminal Connections: Spring-clamp terminals for field wiring.

Environmental and Mechanical

• Operating Temperature: -25°C to +70°C.
• Storage Temperature: -40°C to +85°C.
• Humidity: 5–95% non-condensing.
• Protection Class: IP20 (panel-mounted in enclosures).
• Dimensions: 155 x 125 x 40 mm (W x H x D).
• Weight: Approx. 0.5 kg.
• Certifications: CE, UL, IEC 61326 (EMC).

2. Core Functions and Features

Communication and Integration

• PROFIBUS DP Master/Slave Support: Enables seamless connectivity with field devices (e.g., drives, sensors, remote I/O).
• Real-Time Data Exchange: Synchronizes I/O data with AC 800M controllers for precise process control.
• Hot-Swappable Design: Modules can be replaced without system downtime in redundant setups.

Diagnostics and Monitoring

• LED Status Indicators:
  • Power: Green (operational).
  • Communication Activity: Flashing green (data traffic).
  • Fault: Red (bus errors or module failure).
• Diagnostic Tools:
  • Real-time monitoring of bus load and node status via System 800xA.
  • Detailed error logging (e.g., node disconnection, signal loss).

Flexibility and Scalability

• Configurable Bus Parameters: Adjustable node addresses, baud rates, and retry mechanisms.
• System 800xA Integration: Centralized control, visualization, and data historization.
• Redundancy Support: Dual PROFIBUS DP interfaces for mission-critical applications.

Safety and Reliability

• Fail-Safe Operation: Automatic switchover in redundant configurations.
• Noise Immunity: Shielded communication lines and EMC compliance for harsh environments.

3. Applications

• Process Industries: Integration of PLCs, valves, and pumps in oil refineries, chemical plants.
• Power Generation: Grid synchronization, turbine control, and substation automation.
• Manufacturing: Robotics, conveyor systems, and quality control in automotive plants.
• Water/Wastewater: SCADA systems for pump stations and treatment facilities.

4. Advantages

• High-Speed Communication: Ensures real-time data exchange for responsive control.
• Modular Design: Scalable with additional S800 I/O modules (analog, digital, or communication).
• Robust Construction: Built for industrial environments (vibration, temperature extremes, EMI).
• Compliance: Meets global safety and electromagnetic compatibility standards.
