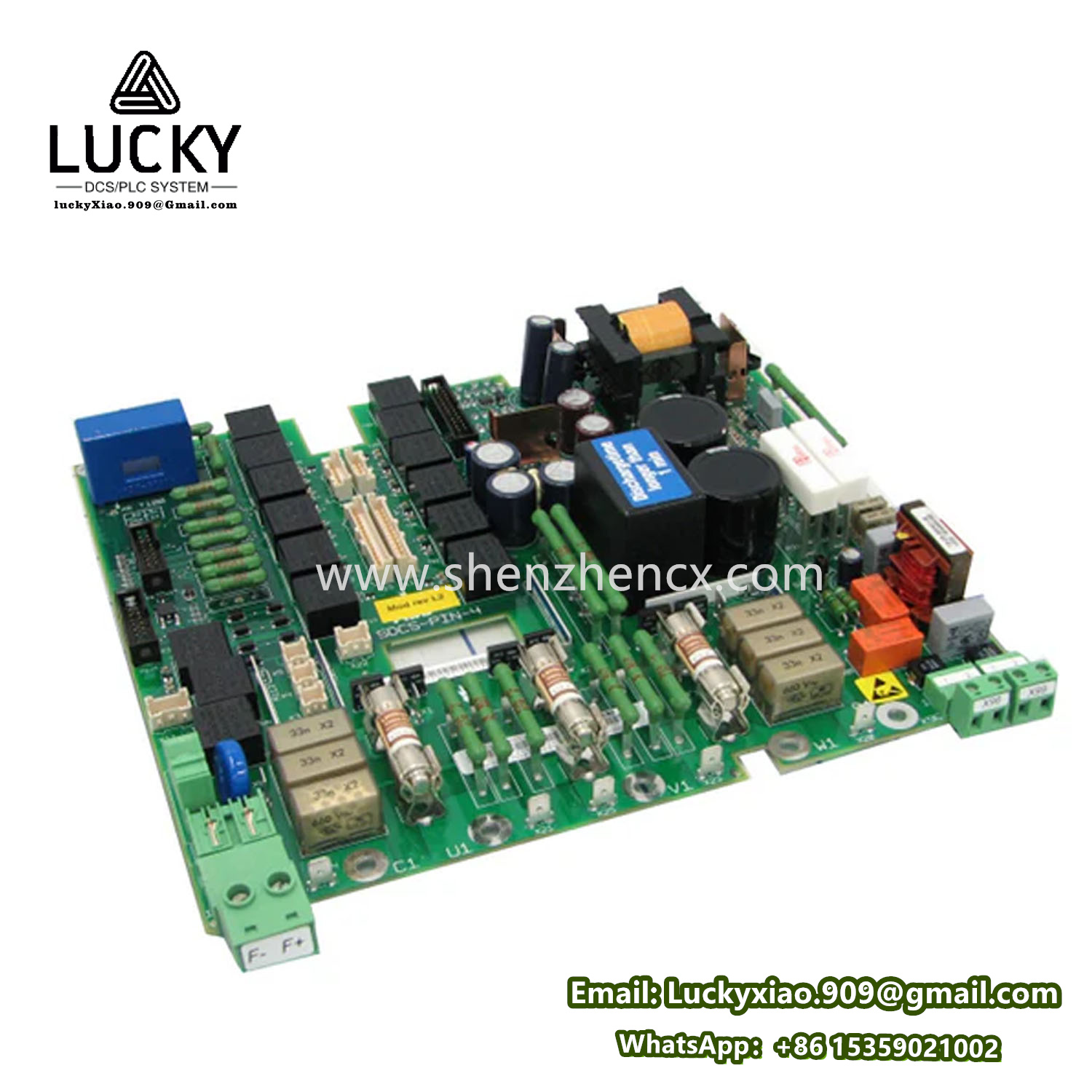

ABB SDCS-PIN-4B Signal distribution and power interface module

ABB SDCS-PIN-4B

The ABB SDCS-PIN-4B is a signal distribution and power interface module designed for use within ABB’s industrial drive and control systems. It serves as a critical hardware component for integrating power electronics, such as frequency converters or motor drives (e.g., ACS series), with external control systems, sensors, and automation networks. This module ensures reliable signal conditioning, isolation, and power distribution, enabling seamless communication and stable operation in demanding industrial environments.

Key Features:

1. Signal Conditioning and Isolation:
   • Provides electrical isolation between high-power drive components and low-voltage control systems to prevent noise interference and protect sensitive electronics.
   • Supports analog/digital I/O signals for speed control, feedback, and system monitoring.
2. Power Distribution:
   • Distributes auxiliary power (e.g., 24V DC) to peripheral devices, sensors, or safety circuits connected to the drive system.
3. Compact and Modular Design:
   • Easily mounts within ABB drive cabinets or control panels as part of a modular system.
   • Plug-and-play connectivity reduces installation time and complexity.
4. Compatibility:
   • Designed for integration with ABB’s ACS drive systems (e.g., ACS880, ACS800) and other automation components.
   • Interfaces with PLCs, DCS, or SCADA systems via standard industrial protocols.
5. Robust Construction:
   • Built for industrial environments with high resistance to vibrations, temperature fluctuations, and electromagnetic interference (EMI).
   • Complies with IEC and UL standards for safety and performance.
6. Diagnostic Support:
   • Status LEDs for real-time monitoring of power and signal integrity.
   • Simplifies troubleshooting and maintenance processes.

Technical Specifications:

• Model: SDCS-PIN-4B
• Power Supply: Typically 24V DC (compatible with industrial control voltages).
• Signal Types:
  • Analog inputs/outputs (e.g., 0-10V, 4-20mA).
  • Digital I/O for start/stop, fault signals, or interlock controls.
• Isolation Voltage: Up to 500V AC/DC between control and power circuits.
• Mounting: DIN rail or panel-mounted within drive cabinets.
• Operating Temperature: -25°C to +55°C.
• Certifications: CE, UL, RoHS compliant.

Applications:

The SDCS-PIN-4B is widely used in industrial automation scenarios requiring precise motor control and system integration:

• Motor Drives: Speed control for pumps, fans, conveyors, and compressors.
• Manufacturing Lines: Coordination of robotics, CNC machines, and material handling systems.
• Energy Management: Integration with renewable energy systems (e.g., wind turbine pitch control).
• Process Industries: Chemical plants, water treatment facilities, and oil & gas refineries.

Benefits:

• Enhanced System Reliability: Minimizes signal interference and voltage spikes, extending equipment lifespan.
• Simplified Integration: Streamlines connectivity between drives, PLCs, and field devices.
• Cost Efficiency: Reduces wiring complexity and maintenance downtime.
• Scalability: Supports expansion with additional modules for growing automation needs.

Configuration Notes:

• Configured via ABB’s Drive Composer software or other drive-specific tools for parameter settings and signal mapping.
• Requires proper grounding and shielding to optimize noise immunity.
• Ensure compatibility with the drive model (e.g., ACS880) and control system architecture.

The ABB SDCS-PIN-4B exemplifies ABB’s commitment to delivering robust, interoperable solutions for industrial automation. Its combination of signal integrity, power distribution, and modularity makes it indispensable for modern drive systems requiring precision, safety, and adaptability.
