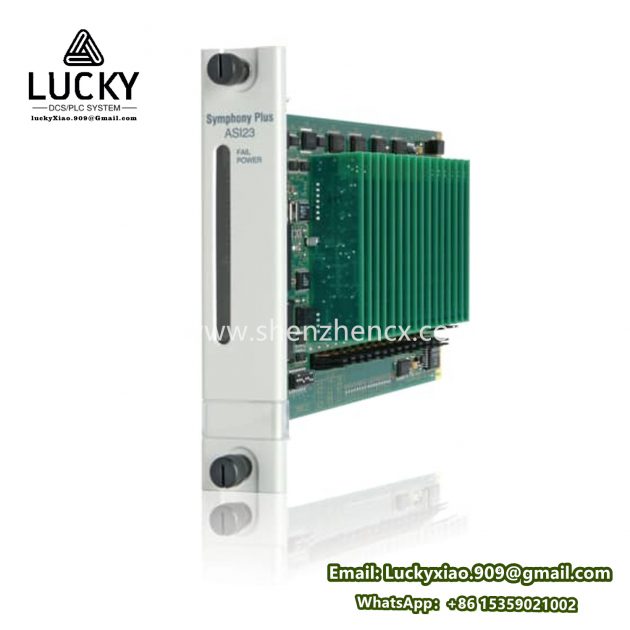

ABB SPASI23 Product Overview
The ABB SPASI23 is a high-performance protective relay or automation module designed for industrial and utility applications. Part of ABB’s renowned SPA (System Protection and Automation) series, it integrates advanced protection, control, and monitoring functionalities to ensure the reliability and safety of electrical systems.
Key Features
- Multi-Function Protection
- Provides protection against overcurrent, short-circuit, earth faults, and other electrical anomalies.
- Configurable logic for customized protection schemes.
- Precision & Reliability
- High-accuracy measurement of voltage, current, and power parameters.
- Robust design for harsh environments (e.g., wide temperature ranges, EMI resistance).
- Communication Capabilities
- Supports industry-standard protocols like Modbus, IEC 60870-5-103, or IEC 61850 for seamless integration into SCADA/DCS systems.
- Front-end communication ports (RS485, Ethernet) for real-time data exchange.
- User-Friendly Interface
- Intuitive LCD display and navigation keys for local configuration.
- Compatible with ABB’s PCM600 or similar software for advanced settings and diagnostics.
- Compact & Modular Design
- Space-saving form factor suitable for panel or DIN-rail mounting.
- Optional add-on modules for expanded I/O capabilities.
Applications
- Industrial Power Systems: Protection of motors, transformers, generators, and feeders.
- Utility Grids: Distribution network protection and automation.
- Renewable Energy: Integration into solar/wind farms for fault detection and grid compliance.
Technical Specifications (Typical)
- Input Ratings:
- Voltage: 100-480V AC (phase-to-phase).
- Current: 1A or 5A via CT inputs.
- Operating Range: -25°C to +70°C.
- Standards Compliance: IEC 60255, IEC 60947, CE, UL.
- Power Supply: 24-250V DC/AC.
