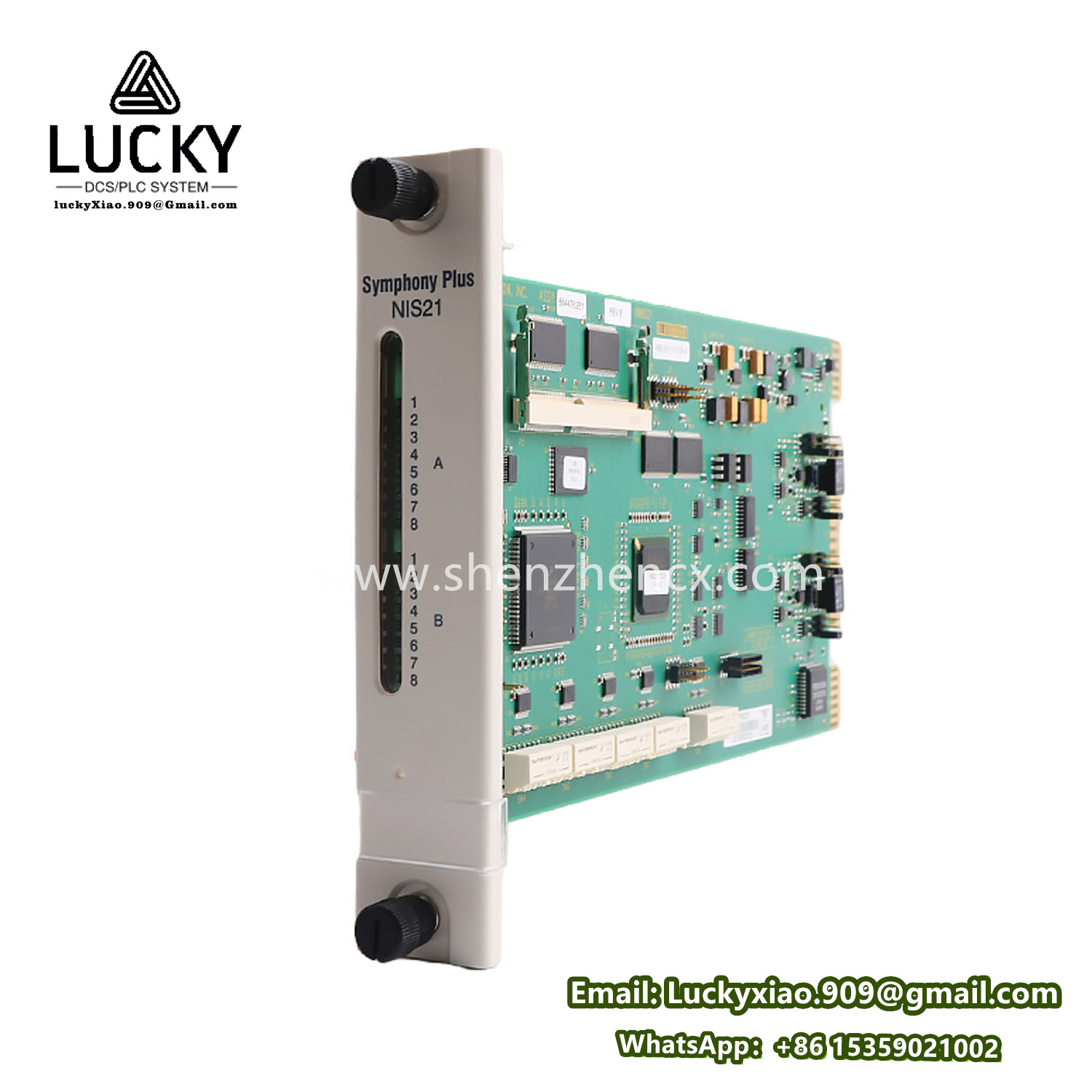

ABB SPNIS21 Signal conditioning module

Product Overview

The ABB SPNIS21 is a specialized Signal Conditioning Module designed for industrial automation and process control systems. It serves as a critical interface between field devices (e.g., sensors, transmitters) and higher-level control systems, ensuring accurate signal conversion, isolation, and transmission in demanding environments.

Part of ABB’s S800 I/O family, the SPNIS21 is optimized for integration with ABB’s AC 800M controllers and 800xA Distributed Control Systems (DCS), providing seamless compatibility and reliability for critical industrial applications.

Key Features

1. Signal Isolation and Conditioning
   • Converts and isolates analog signals (e.g., 4–20 mA, 0–10 V) to prevent ground loops, noise interference, and voltage spikes.
   • Supports HART communication for smart device integration and diagnostics.
2. High Precision
   • Ensures accurate signal transmission with minimal drift, even in extreme temperatures or electromagnetic environments.
3. Modular Design
   • Hot-swappable design allows replacement without shutting down the system.
   • Compact form factor for easy installation in S800 I/O racks.
4. Robust Protection
   • Built-in surge protection and galvanic isolation (up to 1500 V AC/DC) for enhanced safety.
   • Rated for harsh industrial conditions (wide temperature range, humidity, vibration).
5. Diagnostics and Configuration
   • LED indicators for real-time status monitoring (power, communication, faults).
   • Configurable via ABB’s Control Builder software for parameter adjustments and calibration.

Applications

The SPNIS21 is widely used in industries requiring precise signal handling and noise immunity:

• Power Generation: Turbine control, grid stability, and substation automation.
• Oil & Gas: Pipeline monitoring, pressure/flow measurement, and safety systems.
• Chemical Processing: pH/conductivity sensors, temperature control loops.
• Water/Wastewater: Level sensing, pump control, and quality monitoring.

Technical Specifications

• Input/Output Channels: Typically 1 or 2 channels (configurable).
• Signal Types: Analog (4–20 mA, 0–10 V), HART-enabled.
• Isolation Voltage: 1500 V AC/DC between field and system sides.
• Power Supply: 24 V DC (standard for S800 I/O modules).
• Operating Temperature: -25°C to +70°C (-13°F to +158°F).
• Certifications: Complies with IEC 61131, CE, UL, and ATEX (for hazardous areas).
• Enclosure Rating: IP20 (requires installation in a control cabinet).

Integration and Compatibility

• System Compatibility: Fully integrates with ABB’s AC 800M controllers, 800xA DCS, and Symphony Plus systems.
• Mounting: Designed for ABB’s S800 I/O racks (e.g., S800L, S800M).
• Software Tools: Configured via ABB’s Control Builder M3 or 800xA Engineering Studio.

Advantages

• Enhanced System Integrity: Reduces signal degradation and improves measurement accuracy.
• Scalability: Expandable with additional S800 I/O modules for growing automation needs.
• Maintenance-Friendly: Hot-swappable design minimizes downtime during replacements.
• Global Support: Backed by ABB’s technical expertise and worldwide service network.
