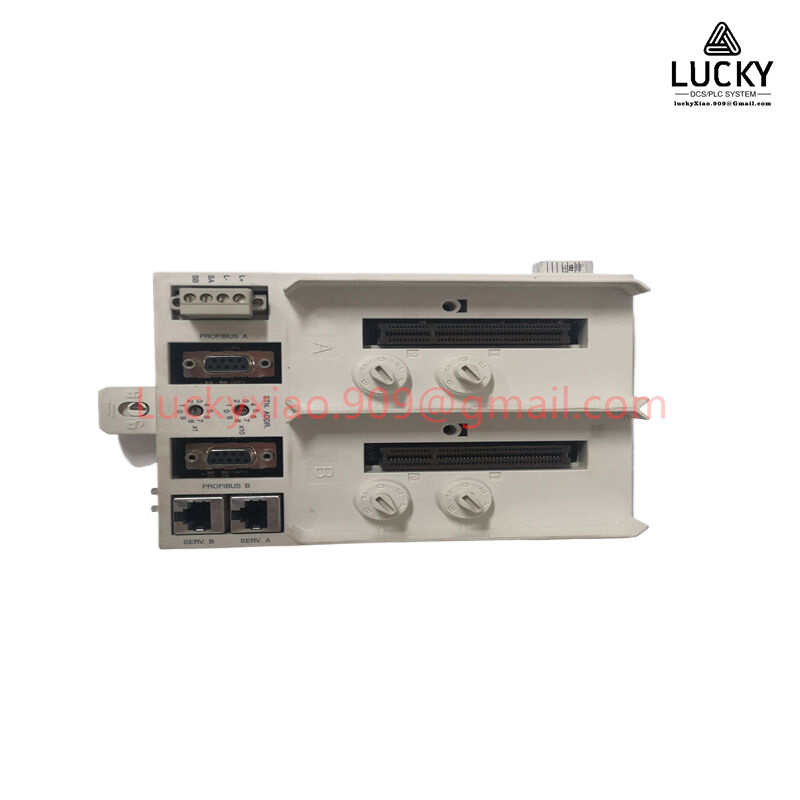

Introduction to ABB TU810V1 3BSE013230R1

TU810V1 3BSE013230R1 Product Overview

TU810V1 3BSE013230R1 Technical Parameters

• Product Model: TU810V1 3BSE013230R1
• Product Type: Terminal Unit Module (TU Series)
• Core Functions: Standardized terminal connection, signal transmission interface, power distribution, wiring management, short-circuit protection for terminals
• Power Supply: 24V DC input (19.2V-28.8V DC range); Power distribution capacity: Up to 10A total; Overcurrent protection
• Terminal Specifications: 32 terminal points; Terminal type: Screw-type terminals; Wire cross-section: 0.5-2.5mm²; Rated voltage: Up to 250V AC/DC; Rated current: 10A per terminal
• Interface Type: Backplane connection to ABB controller/I/O modules; Front-facing terminals for field wiring
• Environmental Ratings: Operating temperature: -25°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Vibration resistance: 2G (10-150Hz); Shock resistance: 15G
• Mechanical & Installation: DIN rail-mounted; Dimensions (approx.): 120mm × 100mm × 45mm; Net weight: approx. 0.5kg; Plug-in backplane connection; LED indicators for power status
• Protection Features: Terminal short-circuit protection; Overcurrent protection for power distribution; Anti-EMI design; Flame-retardant housing
• Compatibility: ABB System 800xA DCS, ABB AC800M controllers, ABB I/O modules (AI/AO/DI/DO series), other TU series terminal units
• Certifications: CE certified; Complies with IEC 61131-2 industrial control standards; Passes strict EMC testing
• Applications: Petrochemical plants, metallurgical facilities, thermal power plants, water treatment systems, manufacturing production lines; Industrial automation wiring systems, DCS terminal connection, field device signal interface scenarios

Recommended ABB Same-Series Models

1. ABB TU820 3BSE013231R1: TU series terminal unit with 64 terminal points for large-scale wiring scenarios
2. ABB TU811 3BSE013232R1: TU series compact terminal unit, 16 terminal points for space-constrained installations
3. ABB TU830 3BSE013233R1: TU series terminal unit with built-in surge protection for outdoor field device connections
4. ABB TU840 3BSE013234R1: TU series terminal unit with signal filtering function for high-interference environments
5. ABB TU850 3BSE013235R1: TU series redundant terminal unit, dual-channel design for safety-critical systems
6. ABB TU812 3BSE013236R1: TU series terminal unit with fuse protection for each terminal
7. ABB TU821 3BSE013237R1: TU series mixed terminal unit, combines signal and power terminals in one module
8. ABB TU831 3BSE013238R1: TU series high-current terminal unit, 20A per terminal for heavy-duty power distribution
9. ABB TU841 3BSE013239R1: TU series terminal unit with spring-loaded terminals for quick wiring
10. ABB TU851 3BSE013240R1: TU series terminal unit with identification tags for easy wiring management
11. ABB TU860 3BSE013241R1: TU series terminal unit with backplane extension function for system expansion
12. ABB TU813 3BSE013242R1: TU series isolated terminal unit, enhanced signal isolation for analog signal transmission
13. ABB TU822 3BSE013243R1: TU series terminal unit with test points for convenient maintenance and debugging
14. ABB TU832 3BSE013244R1: TU series low-voltage terminal unit, specialized for 12V DC signal and power connections
15. ABB TU842 3BSE013245R1: TU series terminal unit with waterproof design for harsh outdoor environments
