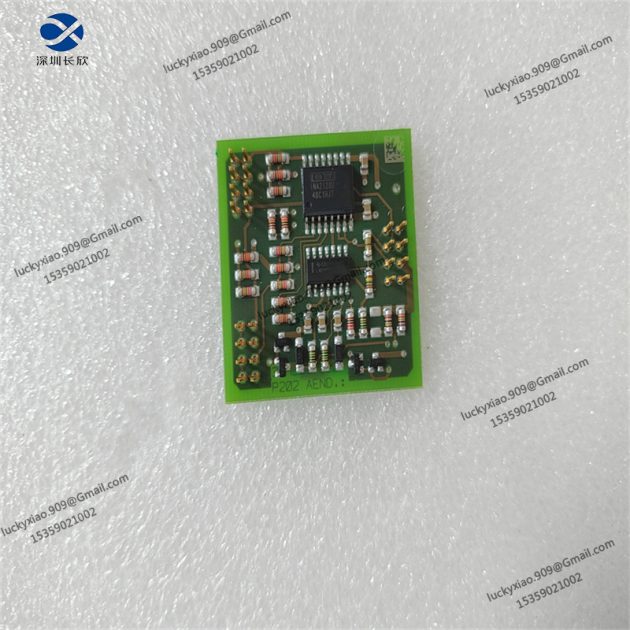

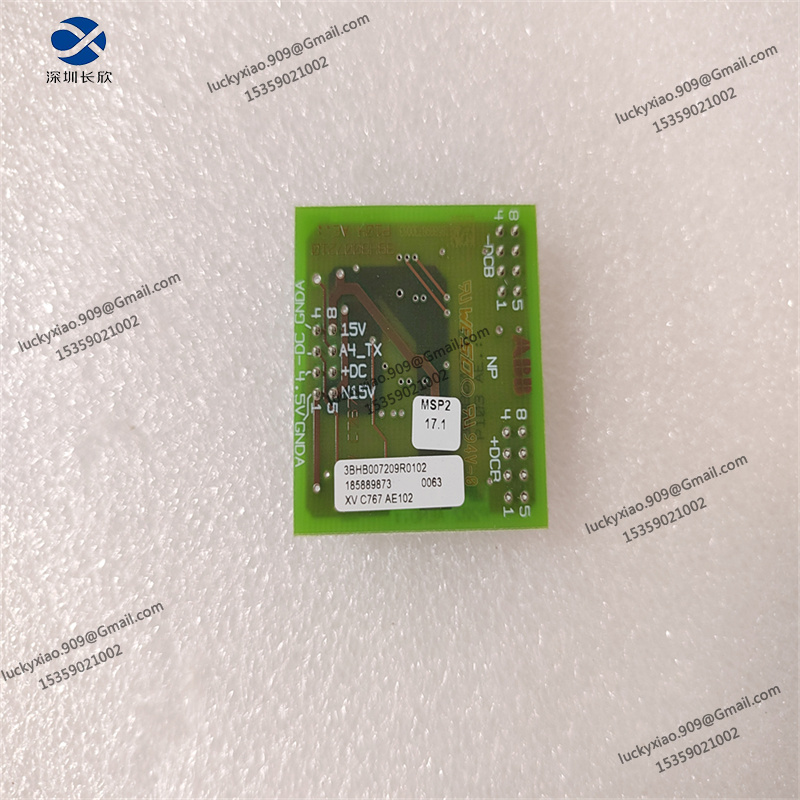

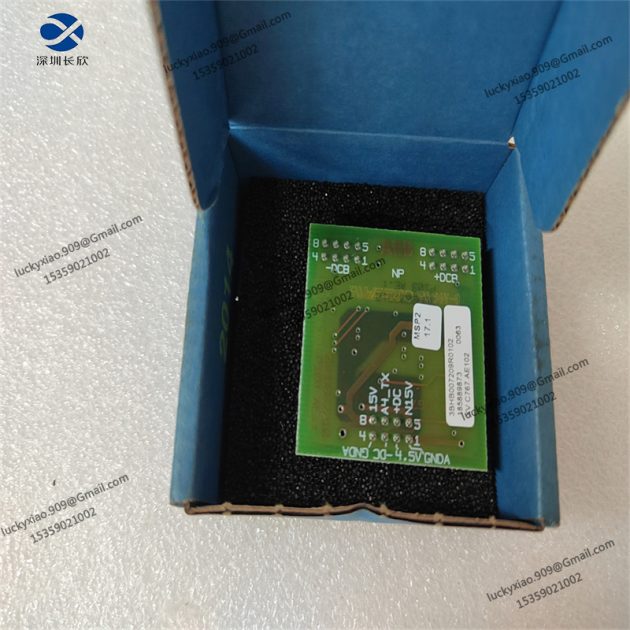

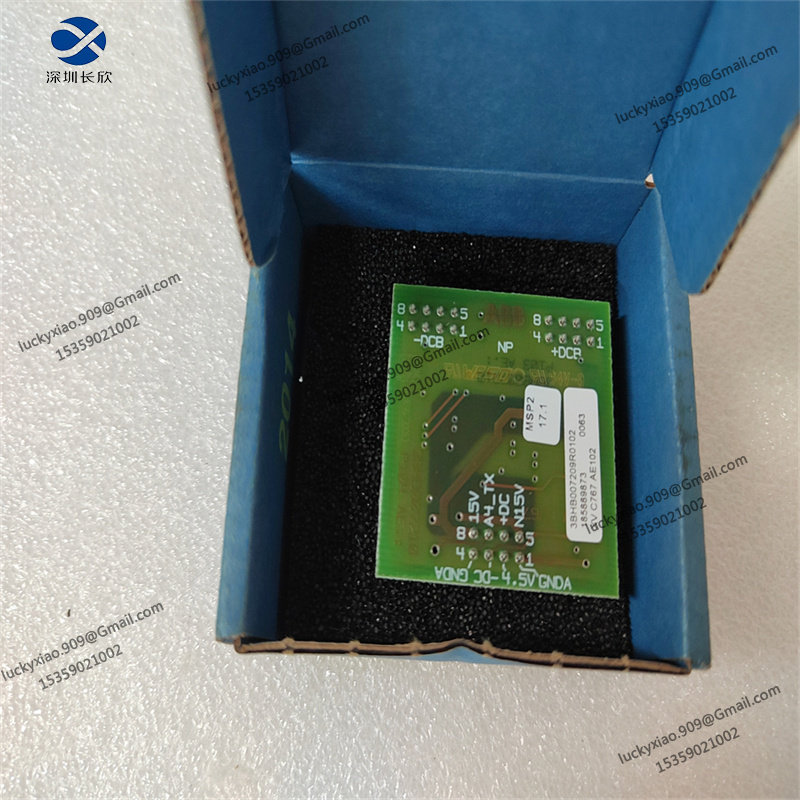

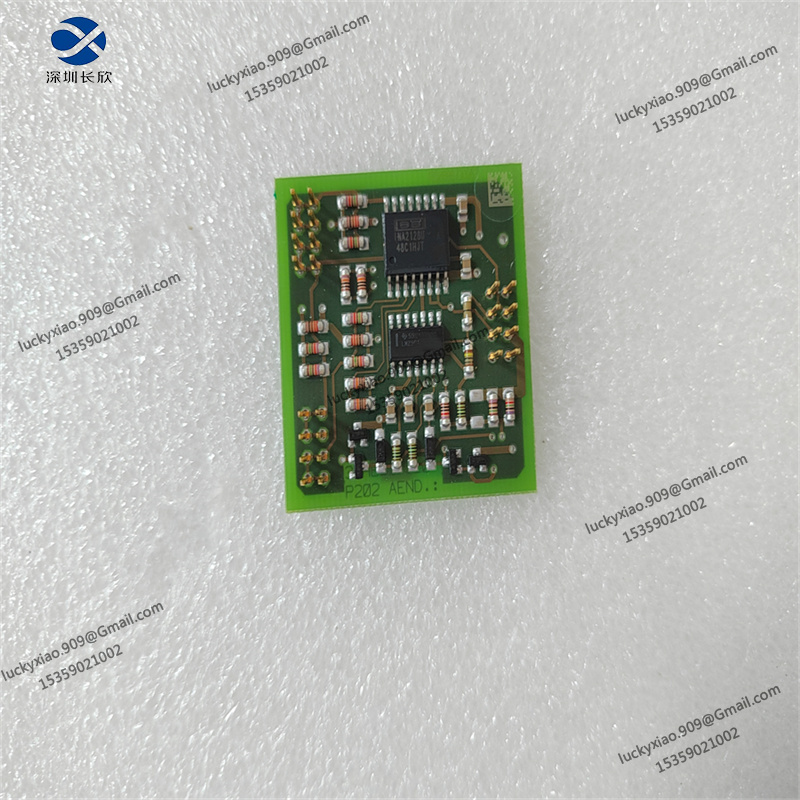

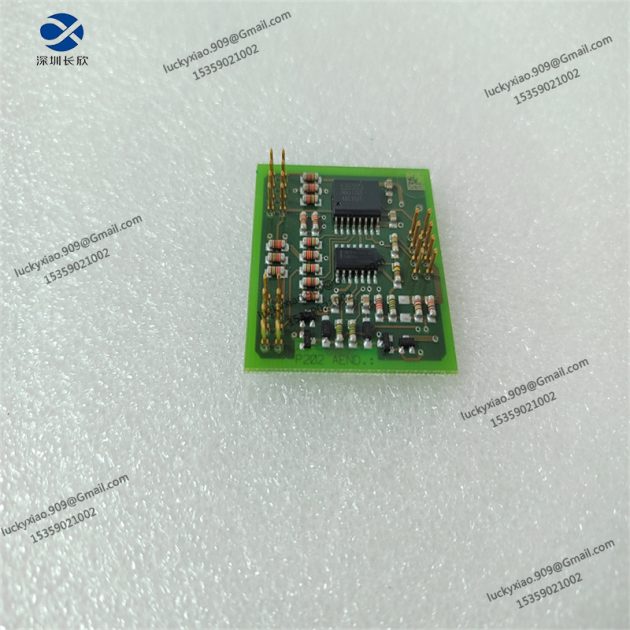

Introduction to ABB XVC767AE102 3BHB007209R0102
The ABB XVC767AE102 (order number: 3BHB007209R0102) is a high-integration control and interface module, recognized as the “control bridge” for ABB medium-voltage frequency converters and industrial automation systems. As a key product in ABB’s XVC series, it integrates core functions including signal processing, protocol conversion, and fault diagnosis, specializing in connecting upper-level controllers with field execution components to achieve precise and reliable control of motor speed and load. This module is widely applied in scenarios such as industrial fans, water pumps, conveyor systems, and high-power compressor drives, perfectly matching ABB ACS880 and ACS6000 series frequency converters. Its robust industrial-grade design features 2000Vrms galvanic isolation, effectively resisting electromagnetic interference from high-voltage equipment, while the wide operating temperature range (-25°C to +70°C) ensures stable performance in harsh industrial environments.
3BHB007209R0102 Key Technical Specifications
-
Device Type: High-integration control & interface module for medium-voltage frequency converters
-
Core Functions: Signal processing, protocol conversion, fault diagnosis, control signal amplification
-
Compatible Converters: ABB ACS880-07/04 series, ACS6000 medium-voltage frequency converters
-
I/O Configuration: 12 analog input channels (4-20mA/0-10V); 8 analog output channels (4-20mA); 16 digital I/O points
-
Control Performance: Signal processing delay ≤ 500μs; analog signal accuracy ±0.1% FS
-
Power Supply: 24V DC (nominal); input range 18-36V DC; typical power consumption ≤ 18W
-
Communication Protocols: EtherCAT, PROFIBUS DP, Modbus RTU; dual Ethernet ports for redundancy
-
Isolation Performance: 2000Vrms between control circuit and power circuit; 1500Vrms between I/O channels
-
Operating Environment: Temperature -25°C to +70°C; humidity 5-95% (non-condensing)
-
Physical Specifications: 140mm × 90mm × 45mm; weight ~0.5kg; 35mm DIN rail mounting
-
Protection Features: Overcurrent, overvoltage, undervoltage protection; overtemperature alarm; short-circuit protection
-
Certifications: CE, UL, RoHS compliant; meets IEC 61131-2 and IEC 61800-5-1 standards
Recommended ABB Related Models
-
ABB XVC768115 3BHB7211R115: 16-channel digital I/O module, pairs with XVC767AE102 for hybrid signal control in water treatment
-
ABB XVC768AE101 3BHB007211R101: Compact control module, ideal for small-scale ACS880 inverter systems in food processing
-
ABB ACS880-07: Medium-voltage frequency converter, core drive platform integrating XVC767AE102
-
ABB PM866 3BSE050200R1: AC 800M CPU controller, processes real-time control data from XVC767AE102
-
ABB CI858K01 3BSE018135R1: Multi-protocol communication module, transmits XVC767AE102’s data to remote SCADA
-
ABB TP854 3BSE025349R1: 7-inch HMI, visualizes XVC767AE102’s operating status and fault information
-
ABB AI810 3BSE032456R1: 8-channel analog input module, expands XVC767AE102’s sensor signal collection
-
ABB DO810 3BSE032452R1: 16-channel digital output module, executes control actions based on XVC767AE102’s commands
-
ABB CI871AK01 3BSE092693R1: High-speed PROFIBUS module, ensures 2ms real-time interaction with XVC767AE102
-
ABB GVC736BE101 3BHE019719R0101: Gate driver module, complements XVC767AE102 in high-power conversion systems
-
ABB PCD235B1101 3BHE032025R1101: Excitation control module, pairs with XVC767AE102 in generator drive systems
-
ABB AC500 PLC: Compact controller, works with XVC767AE102 for small-scale automation in packaging lines
-
ABB REF620: Digital relay protector, safeguards XVC767AE102 and frequency converter systems
-
ABB ACS 580: Low-voltage frequency converter, auxiliary drive paired with XVC767AE102 in hybrid control systems
