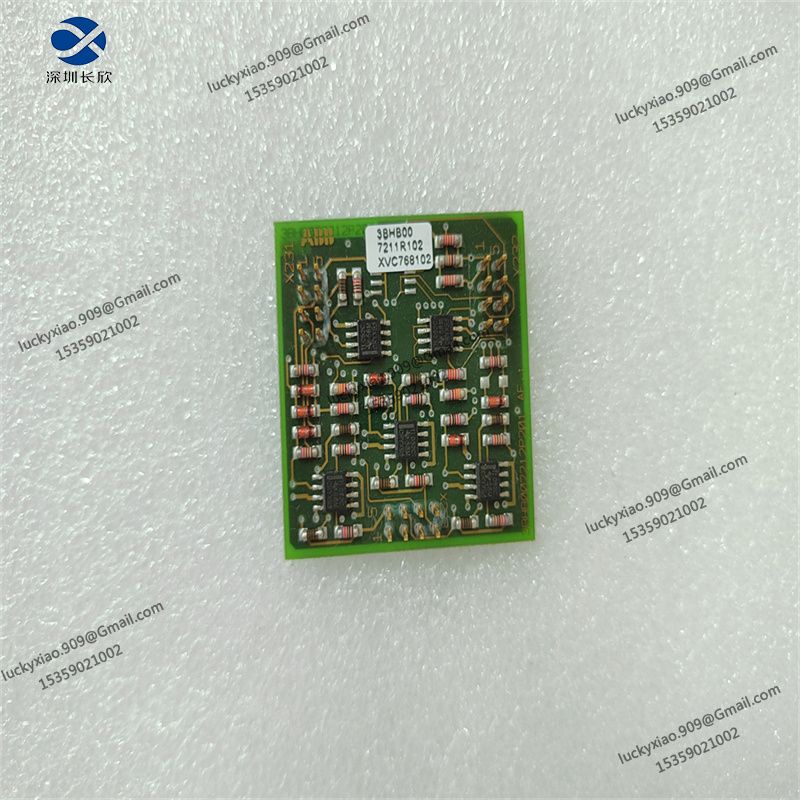

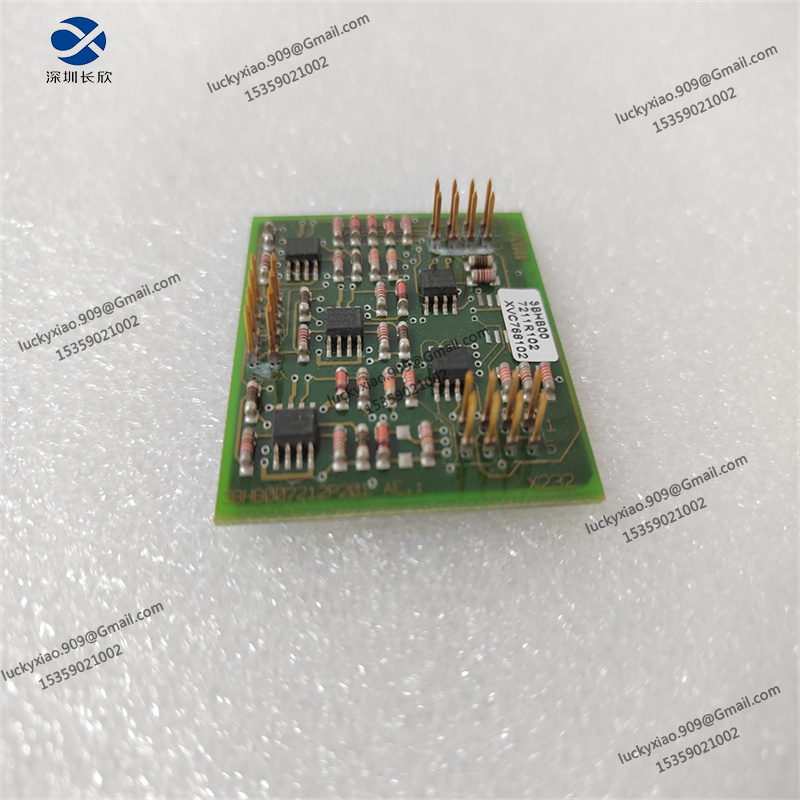

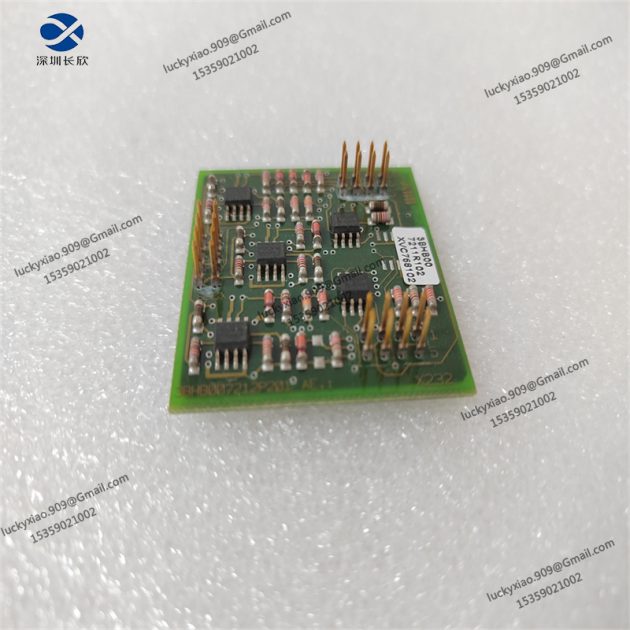

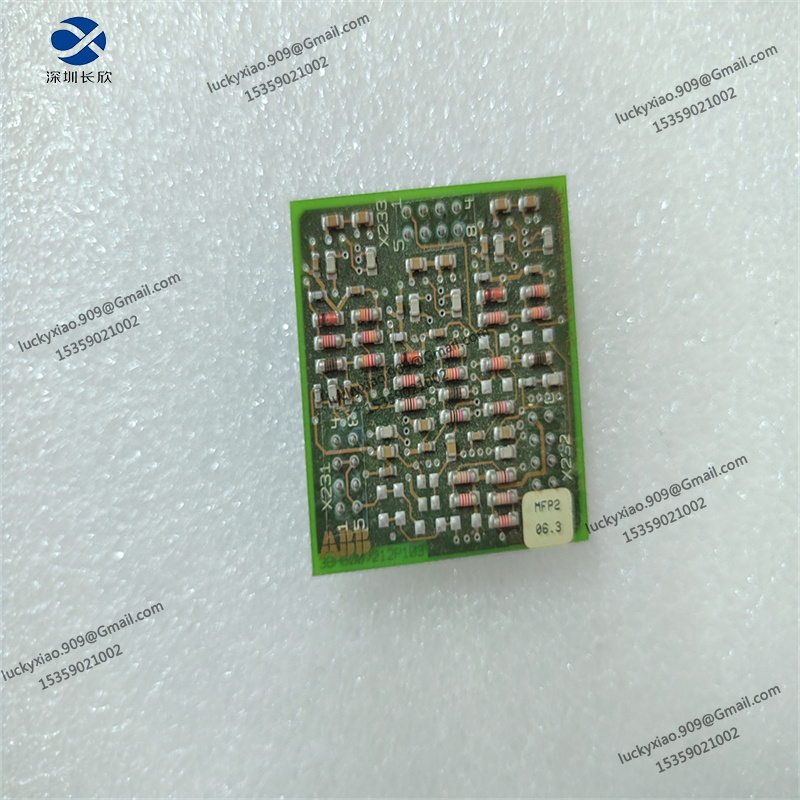

Introduction to ABB XVC768102 3BHB007211R102
The ABB XVC768102 (order number: 3BHB007211R102) is a high-reliability programmable control and pulse counting module, renowned as the “precision control core” for industrial automation systems and ABB frequency converter platforms. As a key product in ABB’s XVC series, it integrates multi-functional capabilities including high-speed pulse counting, real-time data processing, and secure communication, specializing in capturing field sensor signals (such as encoder pulses and switch states) and executing precise control commands for industrial processes and machinery. This module is widely applied in scenarios like conveyor speed monitoring, packaging line counting control, and motor position tracking, perfectly matching ABB ACS880 series frequency converters and Symphony®Plus DCS systems. Its robust industrial-grade design features isolated communication interfaces and wide voltage adaptability, effectively resisting electromagnetic interference from industrial environments, while the built-in self-diagnostic function and LED status indicators enable quick on-site fault localization.
3BHB007211R102 Key Technical Specifications
-
Device Type: Programmable control & high-speed pulse counting module
-
Core Functions: Pulse counting, real-time data processing, sequence control, remote diagnostics
-
Compatible Systems: ABB ACS880 frequency converters, Symphony®Plus DCS, AC 800M controller platforms
-
I/O Configuration: 24 digital I/O points; supports high-speed pulse input (up to 100Hz output frequency)
-
Control Performance: Data processing speed ≤ 550μs; pulse counting accuracy ±1 pulse
-
Power Supply: 220V AC (nominal); supports wide voltage input range for industrial stability
-
Communication Interface: Dual RJ45 Ethernet ports (CN1/CN2); isolated RJ45 serial port (COM4) for configuration; supports RS-485 and CEX-Bus
-
Memory Specifications: Program capacity 300; data capacity 200; integrated RAM and real-time clock
-
Operating Environment: Temperature 0°C to +60°C; humidity 5-95% (non-condensing); storage temperature -40°C to +85°C
-
Physical Specifications: Compact design; compatible with 35mm DIN rail or rack mounting; weight ~1kg
-
Protection Features: Overcurrent/overvoltage protection; electromagnetic interference resistance; CPU redundancy support
-
Certifications: CE, UL compliant; meets IEC 61131-2 industrial control standards and RoHS requirements
Recommended ABB Related Models
-
ABB XVC768AE102 3BHB007211R0102: 16-channel AC digital input module, pairs with XVC768102 for high-speed switch status collection in power systems
-
ABB XVC767AE102 3BHB007209R0102: High-integration control module, complements XVC768102 in ACS880 converter control systems
-
ABB ACS880-07: Medium-voltage frequency converter, core drive platform integrating XVC768102 for counting & control
-
ABB PM866 3BSE050200R1: AC 800M CPU controller, processes real-time counting data from XVC768102 in integrated DCS
-
ABB CI858K01 3BSE018135R1: Multi-protocol communication module, transmits XVC768102’s data to remote SCADA systems
-
ABB TP854 3BSE025349R1: 7-inch HMI, visualizes XVC768102’s pulse counting results and fault status on-site
-
ABB AI810 3BSE032456R1: 8-channel analog input module, expands XVC768102’s sensor signal collection capability
-
ABB DO810 3BSE032452R1: 16-channel digital output module, executes control actions based on XVC768102’s counting signals
-
ABB BC810: CEX-Bus interconnection unit, enhances XVC768102’s communication bus availability by segmenting CEX-Bus
-
ABB GVC736BE101 3BHE019719R0101: Gate driver module, collaborates with XVC768102 in high-power conversion systems
-
ABB PCD235B1101 3BHE032025R1101: Excitation control module, pairs with XVC768102 in generator speed monitoring systems
-
ABB AC500 PLC: Compact controller, works with XVC768102 for small-scale packaging line counting control
-
ABB REF620: Digital relay protector, safeguards XVC768102 and associated control systems from voltage fluctuations
-
ABB ACS 580: Low-voltage frequency converter, auxiliary drive paired with XVC768102 in hybrid industrial control systems
-
ABB XVC768115 3BHB7211R115: 16-channel digital I/O module, expands XVC768102’s I/O capacity for water treatment applications
