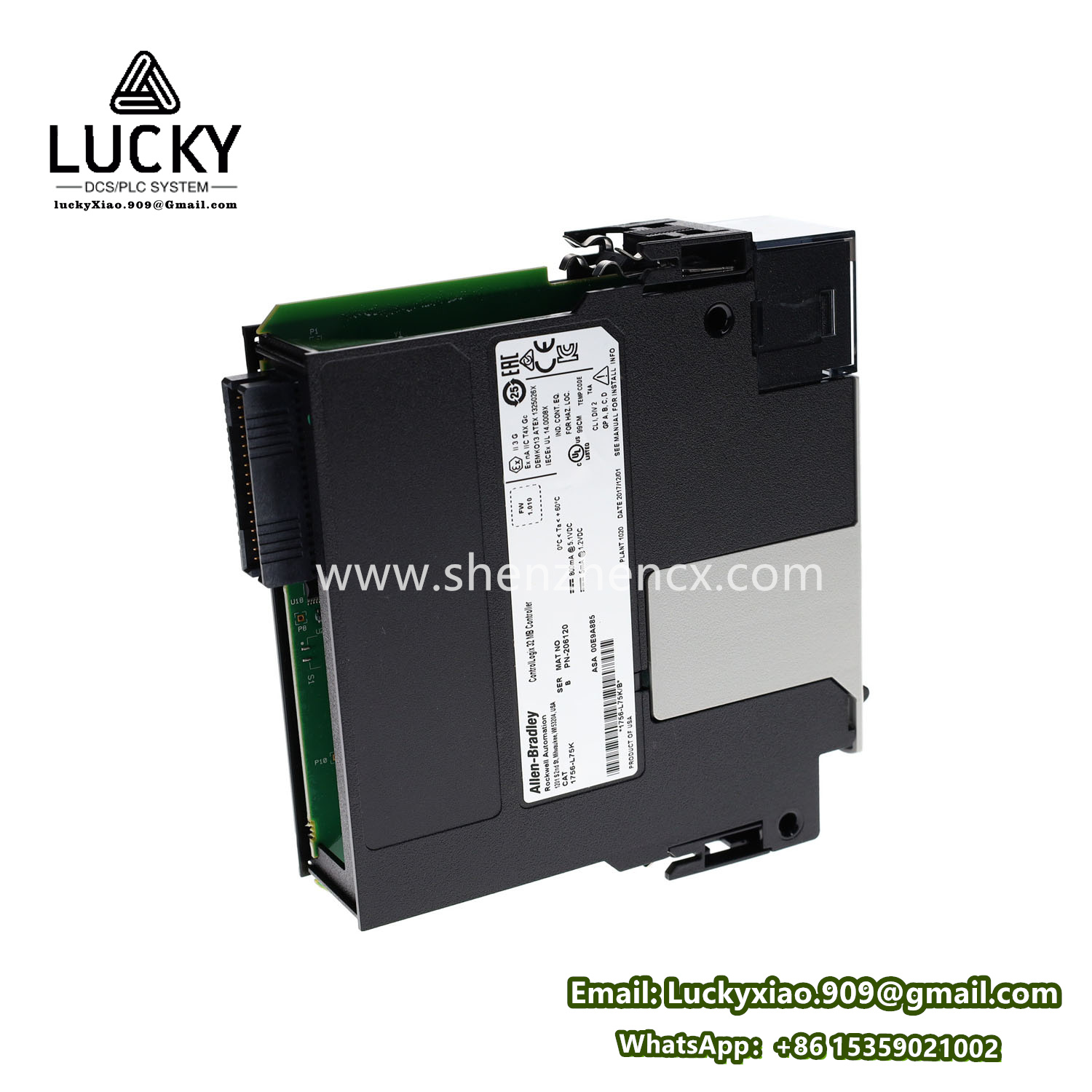

Allen-Bradley 1756-L75K I/O module

Here’s a detailed overview of the Allen-Bradley 1756-L75K ControlLogix Controller, including its technical specifications and functional capabilities:

Technical Specifications of Allen-Bradley 1756-L75K ControlLogix Controller

1. Processor & Memory

• Processor Type: 32/64-bit RISC-based processor (part of the ControlLogix 5570 series).
• Memory Capacity:
  • User Memory: 3.8 MB for logic, data, and I/O configuration.
  • Non-Volatile Memory: Flash memory for firmware and program retention.
• Execution Speed: Up to 0.08 ms per 1,000 Boolean instructions (high-speed deterministic performance).

2. I/O Capacity & Communications

• Maximum I/O Modules: Supports up to 128 I/O modules (depending on rack configuration and communication load).
• Communication Protocols:
  • EtherNet/IP: Real-time industrial Ethernet for I/O control and data exchange.
  • ControlNet, DeviceNet: Legacy network compatibility.
  • DH+, RS-232/485 Serial (via communication modules).
• Backplane Bandwidth: Up to 256 KB per slot (high-speed data transfer within the ControlLogix chassis).

3. Programming & Software

• Programming Software: Compatible with Rockwell Studio 5000 Logix Designer (v30+ firmware).
• Languages Supported:
  • Ladder Logic (LD)
  • Structured Text (ST)
  • Function Block Diagram (FBD)
  • Sequential Function Chart (SFC)
• Tags & Data Handling: Supports atomic, alias, and user-defined data types (UDTs).

4. Motion Control

• Integrated Motion Control: Supports up to 32 axes of coordinated motion (using Kinetix drives).
• Motion Instructions: Includes pre-defined functions for gear, cam, and position-based control.

5. Security & Diagnostics

• Security Features:
  • User-access control with role-based permissions.
  • Password protection for code and configuration.
• Diagnostics: Built-in fault logging, trend monitoring, and CIP Sync for time synchronization.

6. Physical & Environmental

• Operating Temperature: 0°C to 60°C (32°F to 140°F).
• Humidity: 5–95% non-condensing.
• Vibration/Shock Resistance: Meets IEC 60068-2 standards for industrial environments.
• Power Supply: Requires 1756-Pxxxx series power supply (e.g., 5A, 10A).

Key Functional Capabilities

1. Scalability & Flexibility

• Modular Design: Integrates with the ControlLogix chassis, supporting up to 16 slots per rack.
• Multi-Disciplinary Control: Combines discrete, process, motion, and safety control in a single platform.

2. Real-Time Performance

• Deterministic Execution: Ensures predictable scan times for critical applications like robotics or high-speed assembly lines.
• High-Speed Data Sharing: Uses Producer-Consumer (CIP) model for efficient data exchange across networks.

3. Safety Integration

• Safety Partner: Works with 1756 GuardLogix safety controllers for SIL 2/SIL 3 safety applications.
• Dual Redundancy: Optional redundancy modules for fail-safe operation.

4. Connectivity & Interoperability

• Industry 4.0 Ready: Supports OPC UA, MQTT, and cloud connectivity via FactoryTalk® platforms.
• Third-Party Integration: Compatible with FDT/DTM and EDS files for device configuration.

5. Application Use Cases

• Complex Manufacturing: Automotive, semiconductor, and food/beverage production.
• Process Industries: Oil & gas refining, chemical processing, and water treatment.
• Infrastructure: Material handling, conveyors, and energy management systems.

Additional Notes

• The 1756-L75K is part of Rockwell Automation’s legacy ControlLogix 5570 series, optimized for mid-to-large-scale automation systems.
• Ensure firmware compatibility with I/O modules and communication adapters.
• For safety-critical applications, pair with 1756 safety I/O modules and validate via Studio 5000’s safety toolkit.
