Introduction to BRAD COMMUNICATIONS APP-ETH-PCU-C
APP-ETH-PCU-C Product Introduction

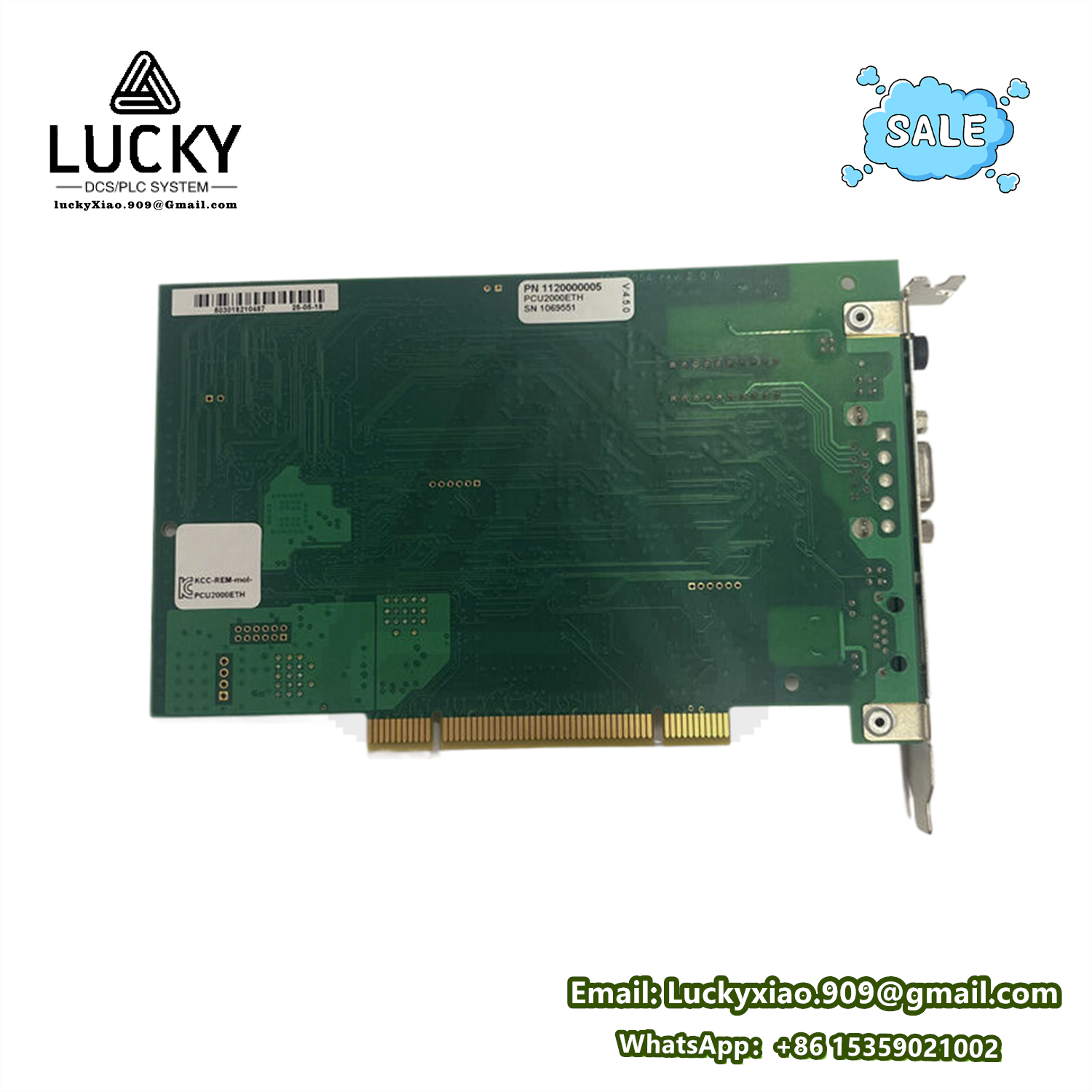

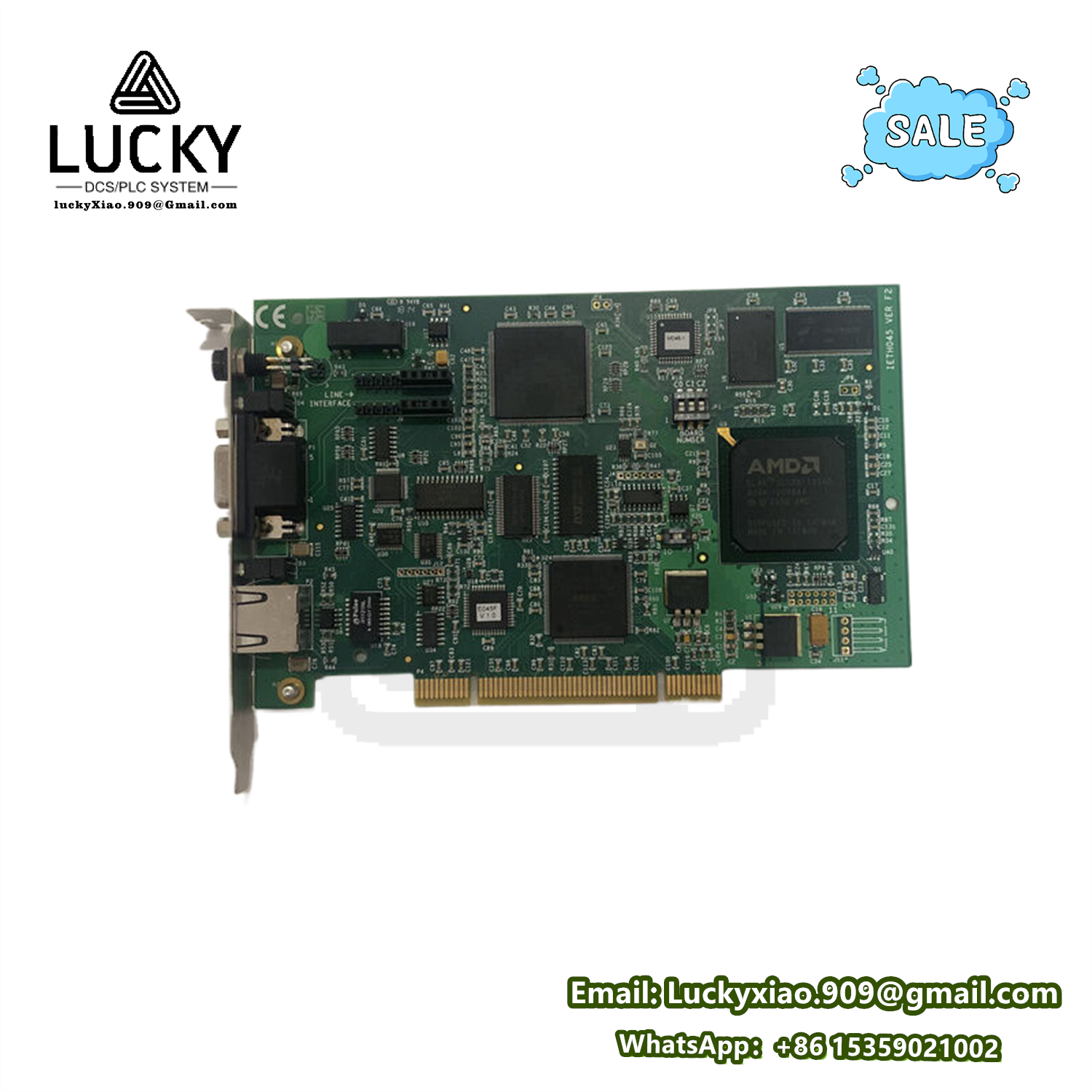

BRAD COMMUNICATIONS APP-ETH-PCU-C is a high-reliability industrial Ethernet communication module, belonging to the brand’s Applicom PCU series industrial network interface product lineup. It is specifically designed for data exchange and integration in industrial automation systems, serving as a key link between field control devices and upper monitoring platforms. The module supports stable Ethernet communication and is compatible with multiple industrial protocols, enabling seamless connection with PLCs, HMIs, sensors and actuators. Adopting a PCI universal bus design (compatible with 3.3V/5V power supply), it features plug-and-play functionality for easy installation and maintenance. With industrial-grade galvanic insulation and anti-electromagnetic interference capabilities, it can operate stably in harsh industrial environments with temperature fluctuations and electrical noise, widely applied in factory automation, process control and intelligent manufacturing fields.
APP-ETH-PCU-C Technical Specifications
-
Product Model: APP-ETH-PCU-C
-
Product Type: Industrial Ethernet Communication Module (BRAD COMMUNICATIONS Applicom PCU Series)
-
Core Functions: Stable Ethernet data transmission; Multi-industrial protocol compatibility; Plug-and-play installation; Galvanic insulation protection; Real-time device connection and monitoring; Built-in diagnostic functions.
-
Connection & Installation: PCI universal bus interface (3.3V/5V compatible, PCI-X compatible); Standard desktop/server chassis installation; Easy wiring with standard connectors.
-
Electrical Parameters: Communication Protocol: Ethernet (TCP/IP), compatible with mainstream industrial protocols; Power Consumption: Approximately 5.5W; Isolation Voltage: 500V (galvanic insulation for interfaces); Operating Voltage: 3.3V/5V (via PCI slot).
-
Environmental Parameters: Operating Temperature: 0°C to 60°C; Storage Temperature: -40°C to 85°C; Relative Humidity: 5%~95% (non-condensing); Anti-electromagnetic interference (EMI) capabilities.
-
Mechanical & Software Parameters: Housing Material: Industrial-grade high-strength metal; Dimensions: Conforming to PCI standard (168mm x 107mm approx.); Supported OS: Windows 32-bit/64-bit (XP, 7, 8, Server 2003/2008/2012); Compatible with OPC DA v3.0/v2.05.
Recommended BRAD COMMUNICATIONS Same-Series Models
-
APP-ETH-PCU: Basic version industrial Ethernet module, suitable for standard data transmission scenarios.
-
APP-ETH-PCIE: PCI Express interface model, optimized for high-speed Ethernet communication.
-
APP-ESR-PCU: Serial-Ethernet integrated module, supporting both serial and Ethernet communication.
-
APP-ESR-PCIE: PCI Express bus module, integrating serial and Ethernet communication functions.
-
APP-EPB-PCU: Ethernet-PROFIBUS DP conversion module, enabling protocol conversion between two networks.
-
APP-PFB-PCU: PROFIBUS-focused communication module, compatible with PCI universal bus.
-
APP-PFB-PCIE: PCI Express interface PROFIBUS module, supporting high-speed protocol transmission.
-
APP-ETH-PCU-2: Dual-channel Ethernet module, supporting simultaneous multi-path data transmission.
-
APP-ESR-PCU-2: Enhanced serial-Ethernet module, with improved anti-interference performance.
-
APP-EPB-PCIE: PCI Express bus Ethernet-PROFIBUS converter, ideal for high-speed industrial networks.
-
APP-ETH-104: PC/104 form factor module, space-saving for embedded control systems.
-
APP-ESR-104: Embedded serial-Ethernet module, compatible with PC/104 embedded platforms.
-
APP-PFB-104: Compact PROFIBUS-Ethernet module, suitable for small-scale embedded systems.
-
APP-ETH-CNF-U: USB configuration module, facilitating on-site parameter setting and debugging.
-
APP-ETH-OPC: OPC-certified server module, enabling data interaction with upper monitoring systems.
