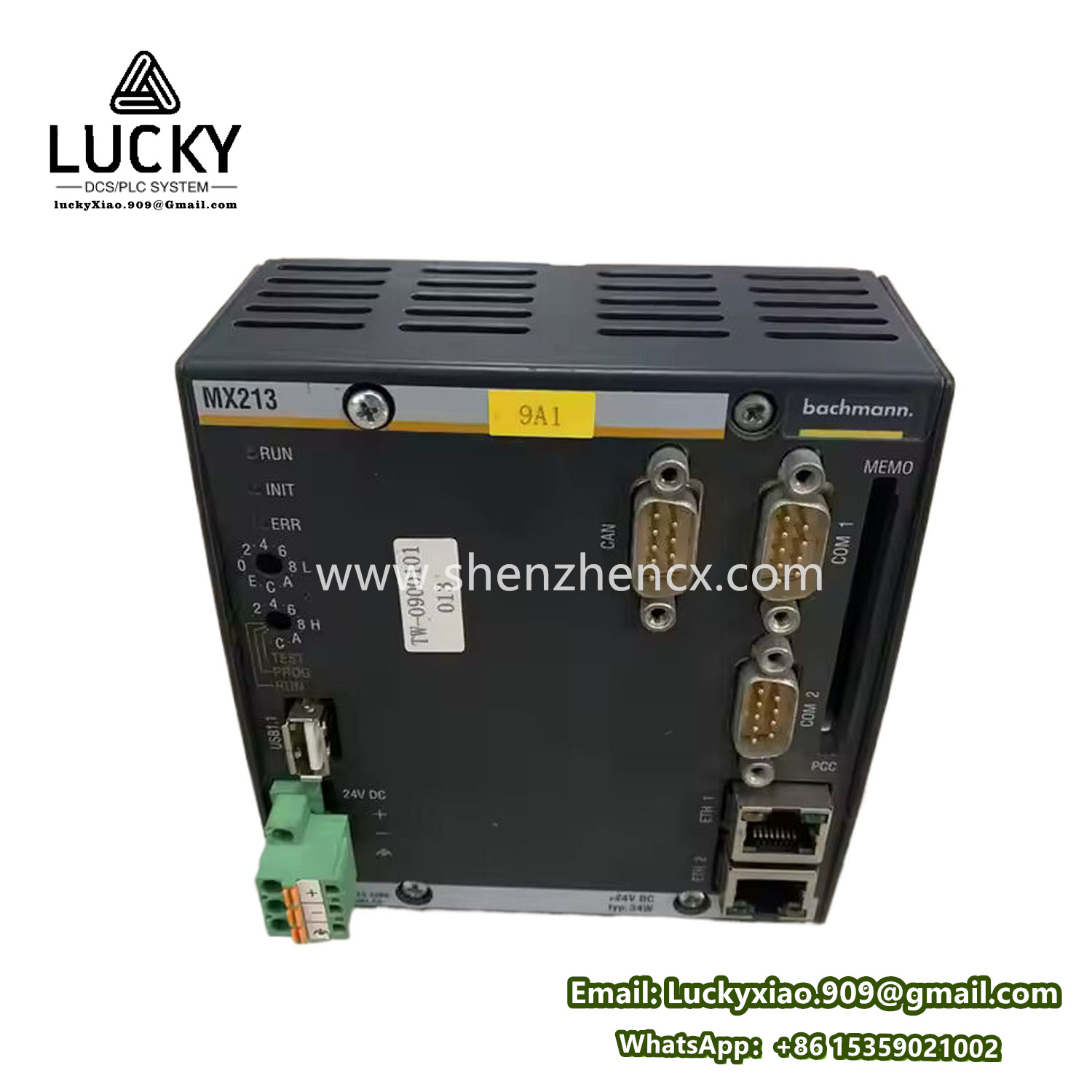

BACHMANN MX213: A High – Performance Processor Module for Industrial Automation
Product Description
The BACHMANN MX213 is a processor module renowned for its versatility and high – performance capabilities in the realm of industrial automation. It serves as the central processing unit for a wide range of industrial control systems, enabling seamless operation and precise control over various processes. With its advanced features and robust design, the MX213 is engineered to meet the demanding requirements of industrial environments, ensuring reliable and efficient performance.
Product Parameters and Specifications
Processor
- Architecture: The MX213 is based on the x86/AMD LX processor architecture, providing a solid foundation for its computing power.
- CPU: It is equipped with an industrial – grade low – voltage CPU. The clock frequency of the CPU is 266 MHz, and it has 1 processor core. While it does not support hyper – threading, it does support multitasking, allowing for the concurrent execution of multiple tasks. Real – time SMP/core reservation is not available in this model.
Memory
- Main Memory: The module comes with 256 MB of main memory, which is partitionable to suit different application needs. It also features a ramdisk for enhanced data access speed.
- Retentive Memory: There is 512 kb of NVRAM (Non – Volatile Random – Access Memory) for storing critical data that needs to be retained even during power outages.
- Mass Storage: It has 64 MB of integrated mass storage. Additionally, it offers expandable storage options such as a compact flash slot (accessible via the side cover) and a PC – card slot on the front side with capacities of 16/32/64 MB.
Indication & Operation
- Status Indicators: There are 3 LEDs dedicated to indicating the CPU status, showing run, init, and error states. Each Ethernet port has 2 LEDs to display the status and link speed.
- Operating Elements: The module is equipped with 2x 16 – position rotary switches (hex – switches). These switches are used for various operations, including setting the operation mode, programming, boot mode, and address setting.
Power Consumption
- Rated Power Consumption (without I/O): When operating without connected I/O modules, the power consumption is 9.5 W, with a breakdown of +5 V / 1700 mA, +15 V / 30 mA, -15 V / 30 mA.
- Rated Power Consumption (with I/O): When I/O modules are connected, the power consumption increases to 33.6 W.
Dimensions
- Number of Slots / Module Units: It occupies 2 module units.
- Width: The width of the MX213 is 110 mm.
- Height: It has a height of 119 mm.
- Depth: The depth measures 61 mm, and the weight is approximately 675 g.
Series
The MX213 belongs to the MX200 series by BACHMANN. The MX200 series is well – known for integrating outstanding environmental robustness with extremely compact dimensions. Processor modules in this series are designed to operate reliably in harsh industrial conditions, making them suitable for a wide range of applications where space may be limited, but high – performance computing is essential.
Features
Robust Design
The generous thermal design and special coating processes of the MX213 enable fan – free operation in extreme operating conditions, with an operating temperature range from – 30 °C to + 60 °C. This makes it highly resistant to temperature variations and suitable for use in environments where traditional cooling methods may not be practical.
Integrated Power Supply and Communication Interfaces
Thanks to its integrated power supply unit, the MX213 can provide power not only to itself but also to the I/O modules. It also comes with a comprehensive set of integrated communication interfaces, including 2x 10/100 Base – TX (RJ45) Ethernet ports, 1x RS232 serial port, 1x RS232/RS422/RS485 serial port, 1x USB 2.0 port, and 1x CAN/CANopen/J1939 (isolated) port. These interfaces allow for seamless connectivity with other devices in the industrial control network.
Versatile Programming Options
The MX213 supports a wide range of programming languages, including IEC 61131 – 3, C/C++, and MATLAB®/Simulink®. It also has a generic build target, which means it can be programmed across all model families within the BACHMANN product range. Functional modules such as motion control, camming, CNC, and adaptive temperature control can be easily implemented, providing flexibility for different industrial applications.
Function
The primary function of the BACHMANN MX213 is to act as the brain of an industrial control system. It processes input data from sensors, actuators, and other connected devices, executes programmed instructions, and sends out control signals to manage industrial processes. It can handle tasks such as machine control, motion control, communication between different components in the network, and condition monitoring of industrial equipment.
Use
In industrial settings, the MX213 is used to control and automate manufacturing processes. For example, in a production line, it can manage the movement of conveyor belts, control the operation of robotic arms for pick – and – place tasks, and monitor the quality of products through sensors. In a power plant, it can be used to control the operation of generators, monitor the status of electrical equipment, and manage the distribution of power.
Application Fields
Manufacturing Industry
In manufacturing plants, the MX213 is extensively used in machine control. It can be integrated into CNC machines to precisely control the movement of cutting tools, ensuring high – quality machining of parts. It is also used in automated assembly lines, where it coordinates the operation of various components to achieve efficient and accurate product assembly.
Process Automation
In industries such as chemical, pharmaceutical, and food and beverage, the MX213 plays a crucial role in process automation. It can control the flow of materials, regulate temperature and pressure in reactors, and monitor the quality of products during the production process.
Transportation and Logistics
In transportation and logistics, the MX213 can be used in automated warehouses. It controls the operation of automated storage and retrieval systems, conveyor belts, and sorting machines, optimizing the movement of goods and improving the overall efficiency of the warehouse.
In conclusion, the BACHMANN MX213 is a powerful and versatile processor module that offers reliable performance in a wide range of industrial applications. Its advanced features, compact design, and robust construction make it an ideal choice for industrial automation projects.
