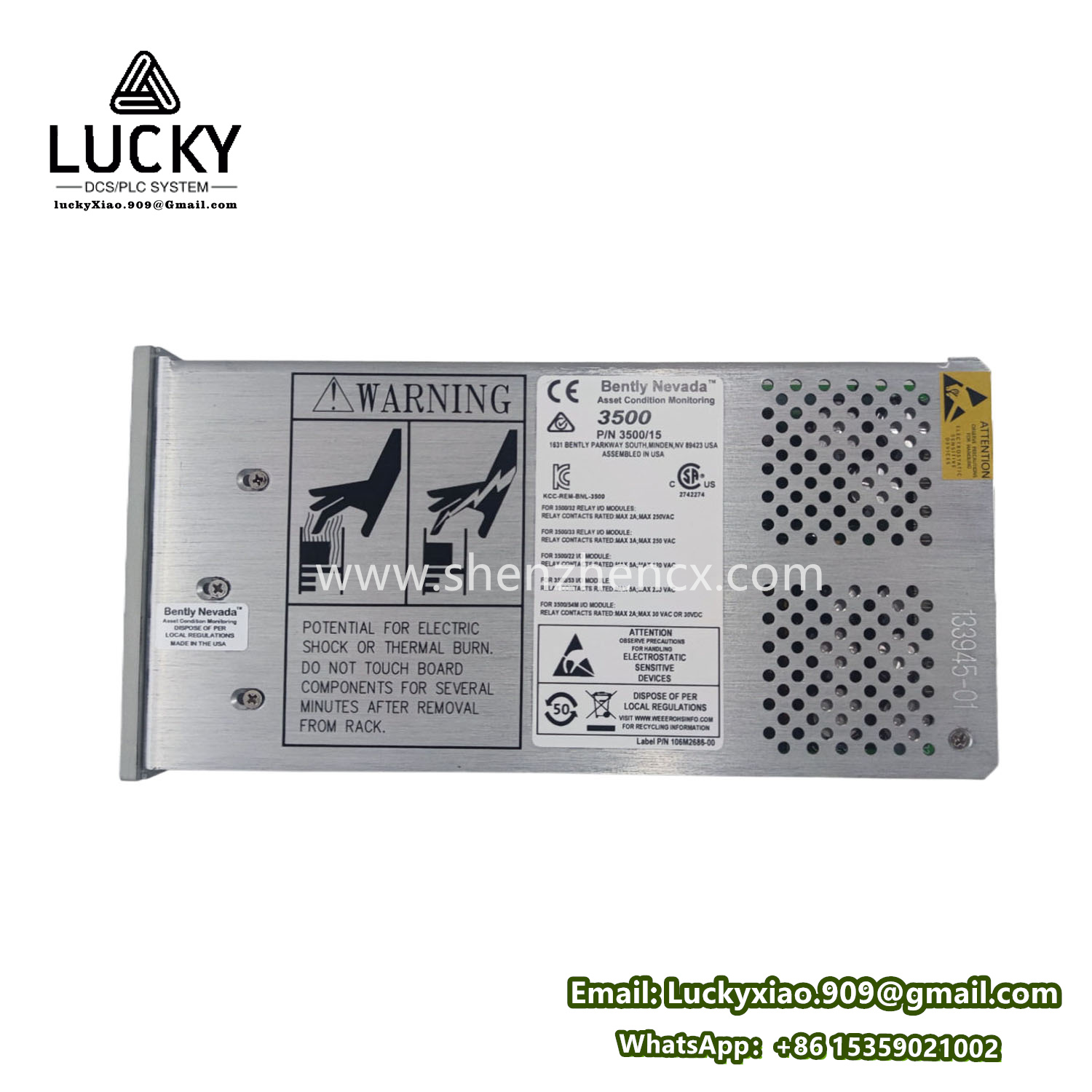

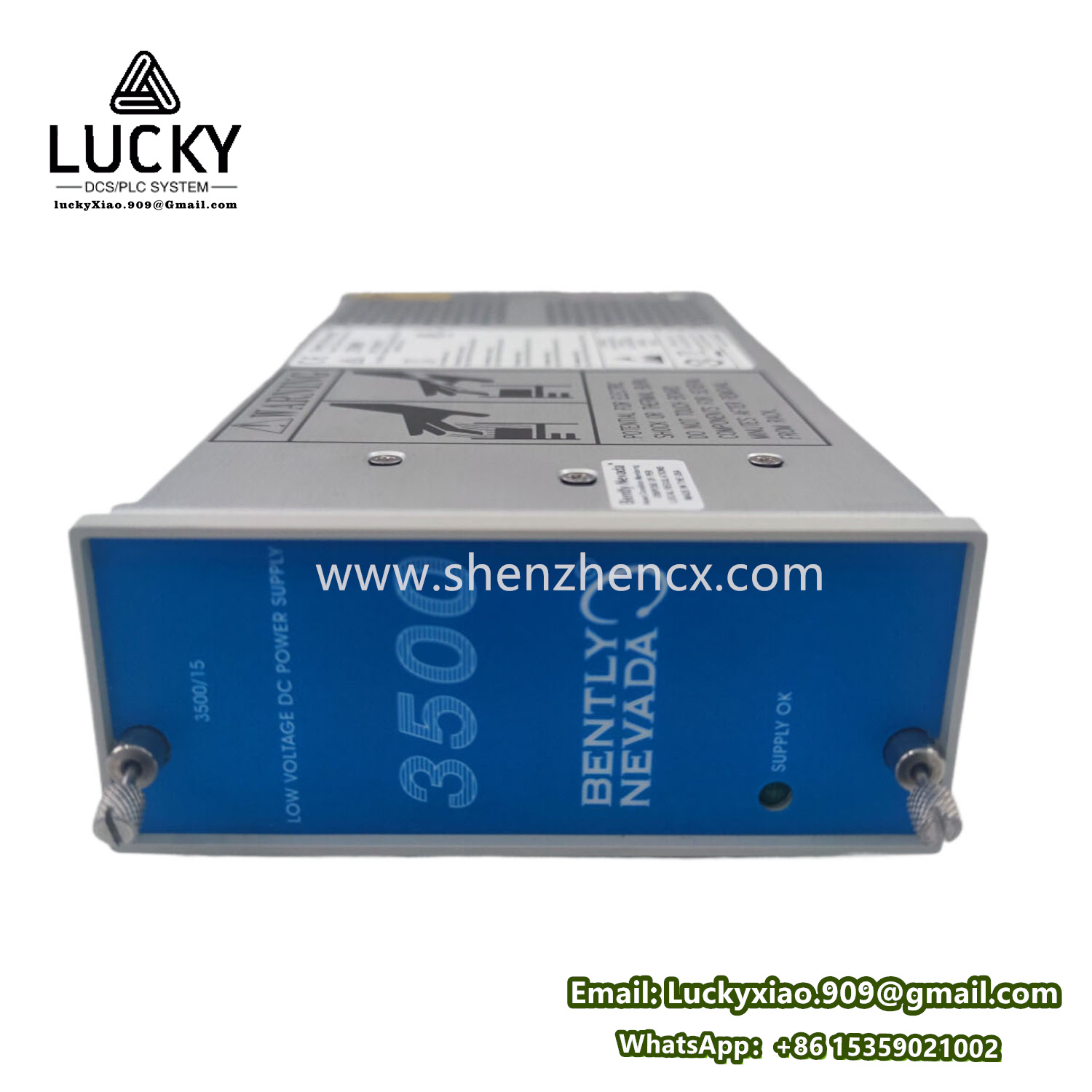

Bently Nevada 3500/15 133292-01: Flexible Input/Output Module for 3500 Monitoring System

Product Description

The Bently Nevada 3500/15 133292-01 is a high-performance input/output (I/O) module, a key component of the Bently Nevada 3500 Machinery Protection and Condition Monitoring System. Designed to expand the system’s connectivity with external devices, this module provides a versatile mix of analog and digital I/O channels, enabling seamless integration with sensors, actuators, and control systems. It serves as a critical interface for incorporating non-vibration parameters into the 3500 system, supporting comprehensive machinery health monitoring and automated control responses. With rugged industrial design and precise signal handling, it ensures reliable operation in harsh industrial environments, making it essential for customized monitoring solutions.

Product Parameters

Parameter	Specification
Analog Input Channels	8 channels, supporting 4–20 mA, 0–10 VDC, and RTD (PT100) inputs
Analog Output Channels	4 channels, configurable as 4–20 mA or 0–10 VDC outputs
Digital Inputs	8 channels, dry contact (24 VDC)
Digital Outputs	4 channels, Form C relays (250 VAC/3 A, 30 VDC/5 A)
Input Accuracy	±0.1% of full scale (analog); ±1 ms (digital)
Output Accuracy	±0.2% of full scale (analog)
Isolation	2500 VAC channel-to-channel and channel-to-ground isolation
Sampling Rate	10 kHz per analog input channel

Product Specifications

Series

The 3500/15 133292-01 is an integral part of the Bently Nevada 3500 series, a comprehensive suite of machinery protection and condition monitoring solutions. The 3500 series features modular components, including vibration monitors, communication gateways, power supplies, and I/O modules, all engineered for seamless integration. Renowned for scalability, reliability, and compliance with global standards, the series is trusted worldwide to protect critical rotating machinery in industries such as power generation, oil & gas, and chemical processing. The 3500/15 enhances the series by providing flexible I/O capabilities, enabling customization of monitoring systems to address specific application requirements.

Features

Multi-Type I/O Configuration

8 analog inputs, 4 analog outputs, 8 digital inputs, and 4 digital outputs support diverse sensor types (e.g., pressure transducers, thermocouples, limit switches) and control devices, enabling integration of non-vibration parameters into the 3500 system.

High Accuracy and Isolation

±0.1% input accuracy and 2500 VAC isolation ensure precise measurement and protection against electrical noise, critical for reliable data in electrically noisy industrial environments.

Rugged Industrial Design

Robust construction resists vibration, electromagnetic interference (EMI), and temperature fluctuations, ensuring consistent performance in harsh settings such as refineries and power plants.

Flexible Relay Outputs

4 Form C relays with high switching capacity support alarm activation, equipment shutdowns, or control signals, providing versatile automated response options for critical faults.

Seamless System Integration

Connects to the 3500 system backplane to share data with monitoring modules and communication gateways, enabling centralized control and integration with SCADA/DCS systems.

Function

The primary function of the 3500/15 133292-01 is to expand the I/O capabilities of the Bently Nevada 3500 system. It collects analog and digital signals from external sensors (e.g., pressure, temperature, flow, limit switches), converts them to digital data for processing by the 3500 system controller, and transmits control signals via analog outputs and relays to actuators, valves, or alarms. It enables the integration of non-vibration parameters into machinery protection logic, supporting comprehensive condition monitoring and automated safety responses. By bridging monitoring modules and external systems, it enhances the 3500 system’s ability to provide holistic insights into industrial processes.

Use

In industrial settings, the module is installed in the 3500 system rack, where it connects to external sensors and control devices. It interfaces with pressure transducers on pipelines, temperature probes on bearings, and limit switches on machinery, feeding data to the 3500 system for analysis. Its analog outputs and relays control valves, dampers, or alarms, enabling automated adjustments based on machinery health data. Operators use its integrated data to correlate process parameters with machinery condition, optimizing performance and preventing process-related faults.

Application Fields

Power Generation

Integrates pressure, temperature, and level data from steam turbines and boilers into the 3500 system, enabling correlation of process conditions with machinery vibration for comprehensive power plant asset protection.

Oil and Gas

Monitors pipeline pressure, fluid flow, and valve positions in compressors and pumps, supporting automated control of production rates to prevent machinery overload and process inefficiencies.

Chemical Processing

Interfaces with reactor pressure sensors, temperature probes, and agitator speed sensors, integrating process data with machinery vibration monitoring to ensure safe operation of batch and continuous chemical processes.

Pulp and Paper

Monitors paper machine roller pressure, web tension, and motor current, enabling adjustment of production parameters based on machinery health to maintain product quality and reduce waste.

Mining and Metals

Tracks hydraulic pressure in crushers, conveyor load sensors, and bearing temperatures, providing critical data to prevent equipment damage from overloading and optimize material handling efficiency.

In summary, the Bently Nevada 3500/15 133292-01 is a versatile I/O module that enhances the 3500 system’s capability to integrate process and machinery data. Its flexible configuration, high accuracy, and rugged design make it essential for industries seeking comprehensive, customized monitoring solutions to optimize performance and protect critical assets.
