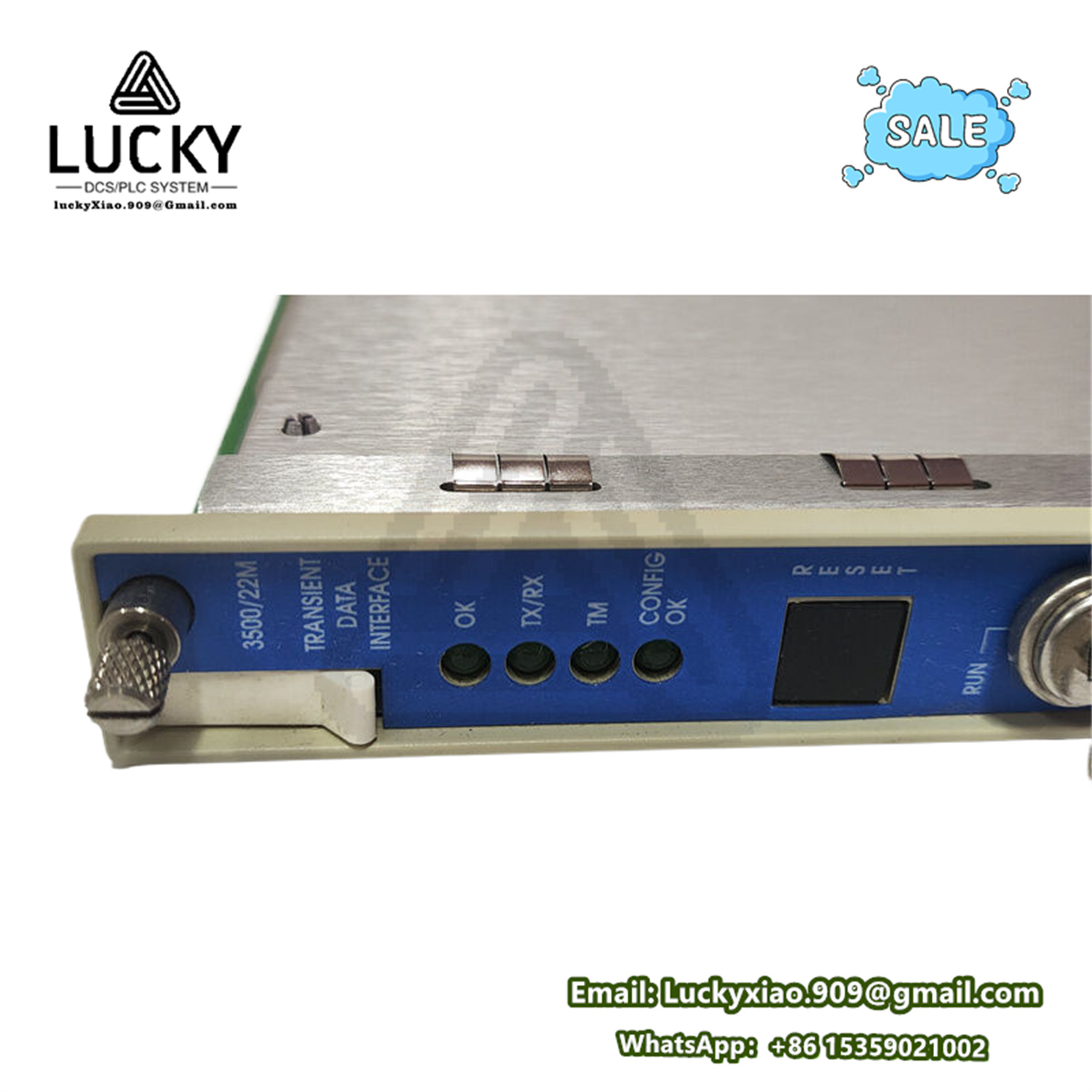

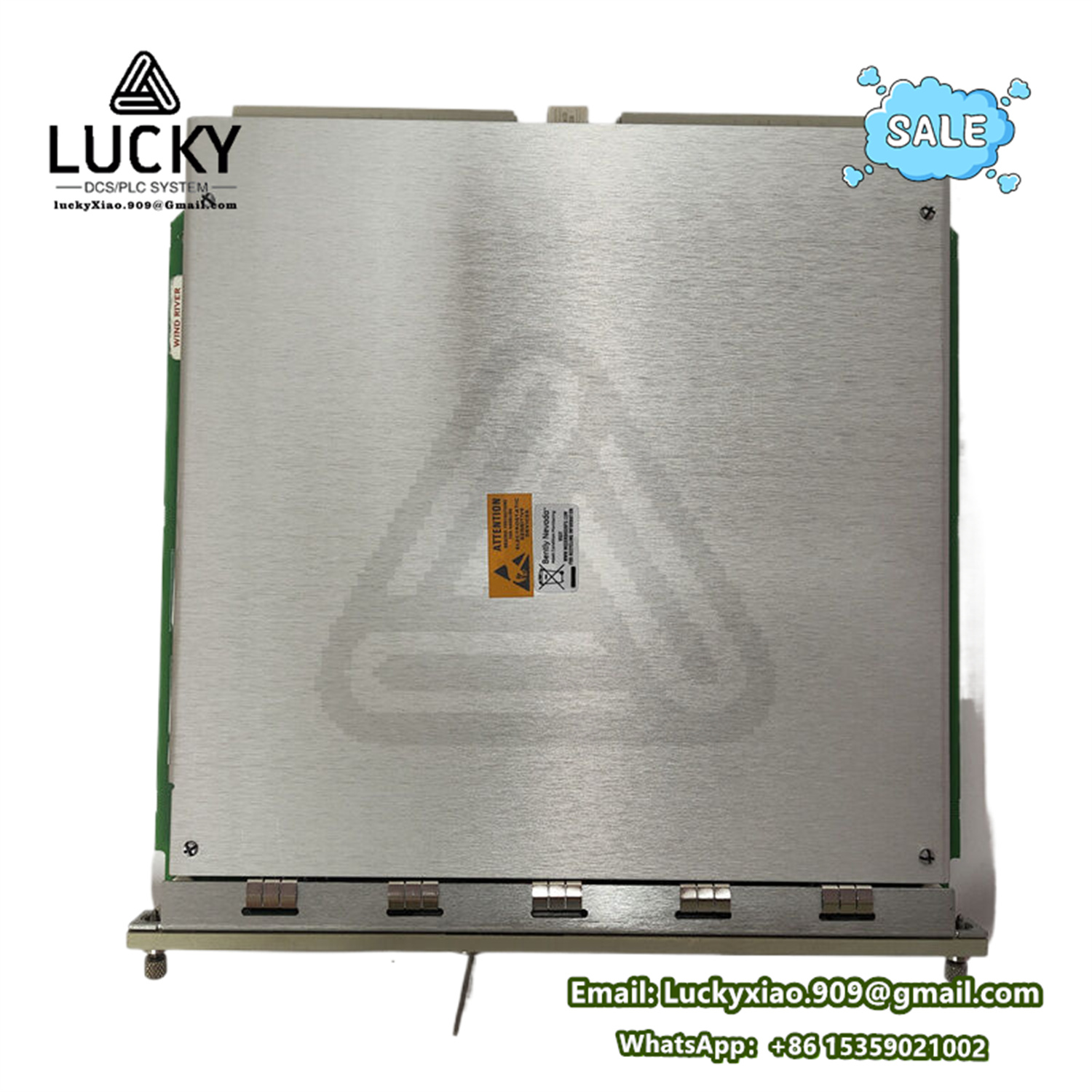

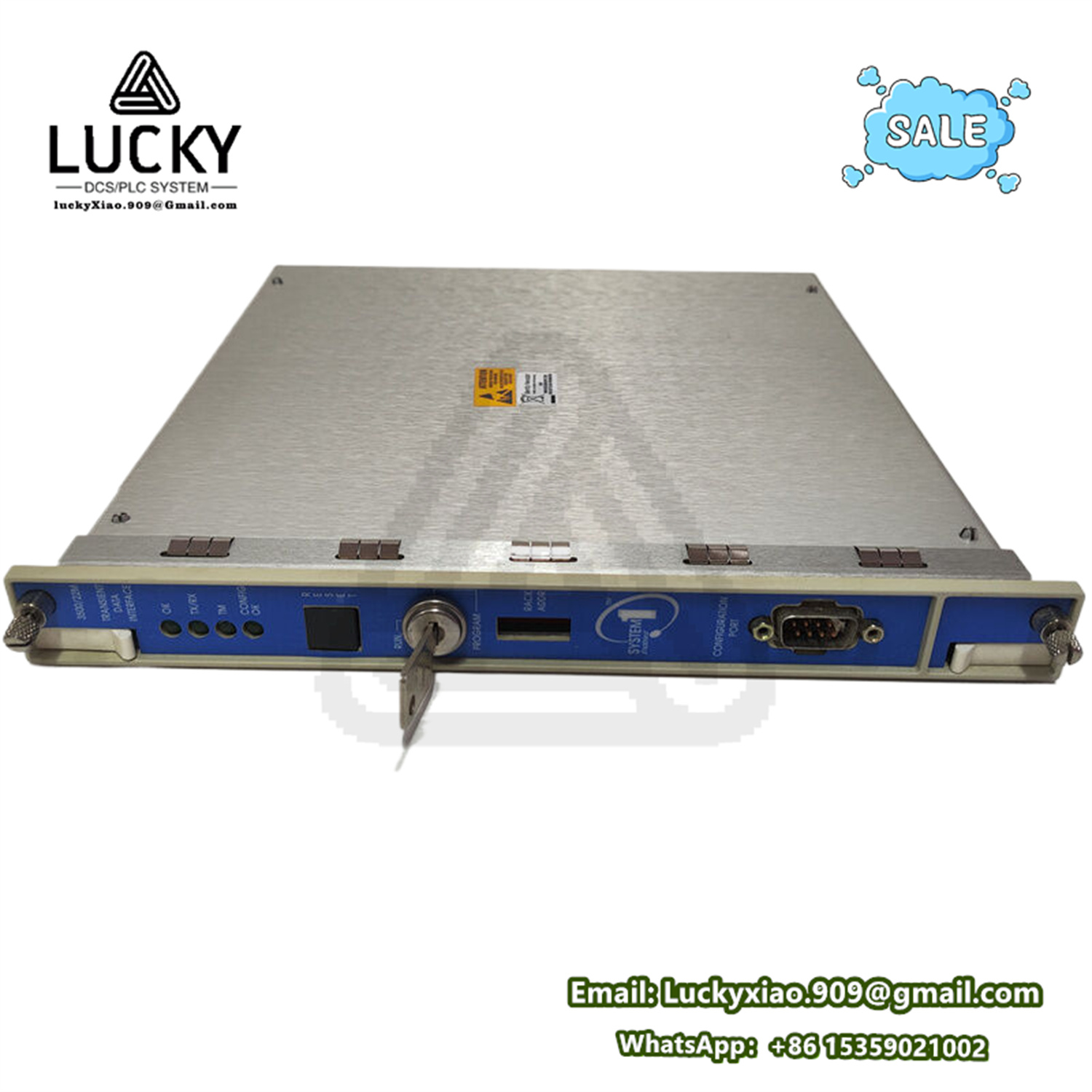

Bently Nevada 3500/22-01-01-05 138607-01: Advanced Vibration Monitoring Module for Machinery Protection
Product Description
The Bently Nevada 3500/22-01-01-05 138607-01 is a high-performance vibration monitoring module, a core component of the Bently Nevada 3500 Machinery Protection and Condition Monitoring System. Engineered to continuously track vibration levels in critical rotating machinery, it processes raw sensor data to detect early signs of faults such as unbalance, misalignment, or bearing wear. With robust hardware and advanced signal processing, this module ensures reliable operation in harsh industrial environments, enabling proactive maintenance and preventing unplanned downtime. It serves as a vital link between sensors and control systems, providing actionable insights into machinery health for industries reliant on rotating equipment.
Product Parameters
- Input Channels: 4 independent vibration input channels, supporting simultaneous monitoring of multiple measurement points on machinery.
- Vibration Measurement Range: ±500 mV peak, compatible with standard vibration transducers (e.g., 60M series) to capture a wide range of vibration amplitudes.
- Frequency Response: 0.1 Hz to 10 kHz, enabling detection of low-frequency vibrations (e.g., rotor unbalance) and high-frequency vibrations (e.g., bearing defects).
- Sampling Rate: 51.2 kHz per channel, ensuring high-resolution data capture for detailed spectral analysis.
- Accuracy: ±0.5% of full scale, guaranteeing precise measurement for reliable condition assessment.
- Alarm Configuration: Configurable alarm and danger thresholds for each channel, with user-defined delay settings to prevent false alarms.
Product Specifications
- Power Supply: 24 VDC ± 20% with a maximum current consumption of 300 mA, compatible with standard industrial power systems.
- Operating Temperature: 0°C to 60°C, suitable for operation in factory floors, power plants, and other industrial environments.
- Storage Temperature: -40°C to 85°C, ensuring durability during transportation and long-term storage.
- Humidity Resistance: 5% to 95% non-condensing, maintaining performance in humid conditions without corrosion or signal degradation.
- Communication Interface: Integrates with the 3500 system backplane for high-speed data transmission to the system controller and other modules.
- Dimensions: 160 mm (width) × 100 mm (height) × 200 mm (depth), designed to fit into the 3500 system rack with standard mounting.
- Weight: Approximately 1.6 kg, lightweight for easy installation within the system framework.
- Relay Outputs: 4 Form C relays (changeover contacts) with a switching capacity of 250 VAC / 2 A or 30 VDC / 2 A, enabling alarm activation or equipment shutdown.
Series
This module belongs to the Bently Nevada 3500 series, a comprehensive lineup of machinery protection and condition monitoring solutions. The 3500 series includes a wide range of modules, such as vibration monitors, position monitors, temperature monitors, communication gateways, and power supplies, all designed for seamless integration. Renowned for its scalability and reliability, the series is widely adopted in industries worldwide to protect critical assets like turbines, compressors, and pumps. The modular design allows users to customize systems based on specific needs, while compliance with global standards (e.g., API 670) ensures compatibility and safety.
Features
Multi-Channel Monitoring
With 4 independent channels, the module monitors vibration from multiple points on a single machine or across different machines, providing a holistic view of equipment health. This eliminates the need for multiple single-channel modules, reducing system complexity.
Advanced Signal Processing
High-speed sampling (51.2 kHz) and digital filtering enable precise analysis of vibration signals, including time-domain waveforms and frequency spectra. This allows for early detection of subtle fault patterns that may indicate impending machinery failure.
Flexible Alarm Management
Users can configure alarm thresholds, delays, and logic for each channel via software, tailoring the system to specific machinery requirements. Relays trigger alerts or safety actions (e.g., shutdowns) when thresholds are exceeded, ensuring timely intervention.
Seamless System Integration
Through the 3500 system backplane, the module communicates with the system controller (e.g., 3500/70M) and other modules, enabling centralized data management, remote monitoring, and integration with SCADA/DCS systems.
Rugged Industrial Design
The module’s robust construction resists vibration, electromagnetic interference (EMI), and temperature fluctuations, ensuring reliable performance in harsh environments such as oil refineries and power plants.
Function
The primary function of the 3500/22-01-01-05 138607-01 is to process vibration data from connected transducers, analyze it in real time, and generate alarms when abnormal conditions are detected. It converts analog sensor signals into digital data, performs spectral analysis, and compares measurements against predefined thresholds. By continuously monitoring vibration patterns, it provides early warning of machinery degradation, allowing maintenance teams to address issues before they escalate into failures. The module also stores historical data for trend analysis, supporting predictive maintenance strategies.
Use
In industrial settings, the module is installed in the 3500 system rack, where it connects to vibration transducers mounted on rotating machinery (e.g., turbines, pumps, motors). It processes signals from these transducers, displays real-time vibration levels on local HMIs, and transmits data to centralized control systems. Operators use this data to assess machinery condition, schedule maintenance, and ensure safe operation. The module’s alarm outputs can trigger visual/audio alerts or automatically shut down equipment to prevent damage in critical scenarios.
Application Fields
Power Generation
In coal, gas, and nuclear power plants, the module monitors vibration in steam turbines, generators, and feedwater pumps. It detects rotor instability or bearing wear, ensuring reliable electricity production and reducing the risk of costly outages.
Oil and Gas
For upstream drilling rigs, midstream pipelines, and downstream refineries, it monitors compressors, centrifugal pumps, and gas turbines. Its rugged design withstands harsh conditions, including high temperatures and corrosive environments.
Chemical Processing
In chemical plants, the module tracks vibration in mixers, agitators, and reactor pumps. Early fault detection prevents leaks or equipment failures, safeguarding personnel and ensuring regulatory compliance.
Pulp and Paper
Mills use the module to monitor vibration in paper machine rollers, motors, and fans. It identifies misalignment or bearing degradation, minimizing production disruptions and maintaining product quality.
Mining and Metals
In mining operations, it monitors crushers, conveyor motors, and slurry pumps. By detecting vibration anomalies, it reduces downtime in rugged environments where equipment reliability is critical for productivity.
In summary, the Bently Nevada 3500/22-01-01-05 138607-01 is an essential component of machinery protection systems, offering precise vibration monitoring, flexible integration, and rugged reliability. Its role in early fault detection makes it indispensable for industries relying on rotating equipment to maintain operational efficiency and safety.
