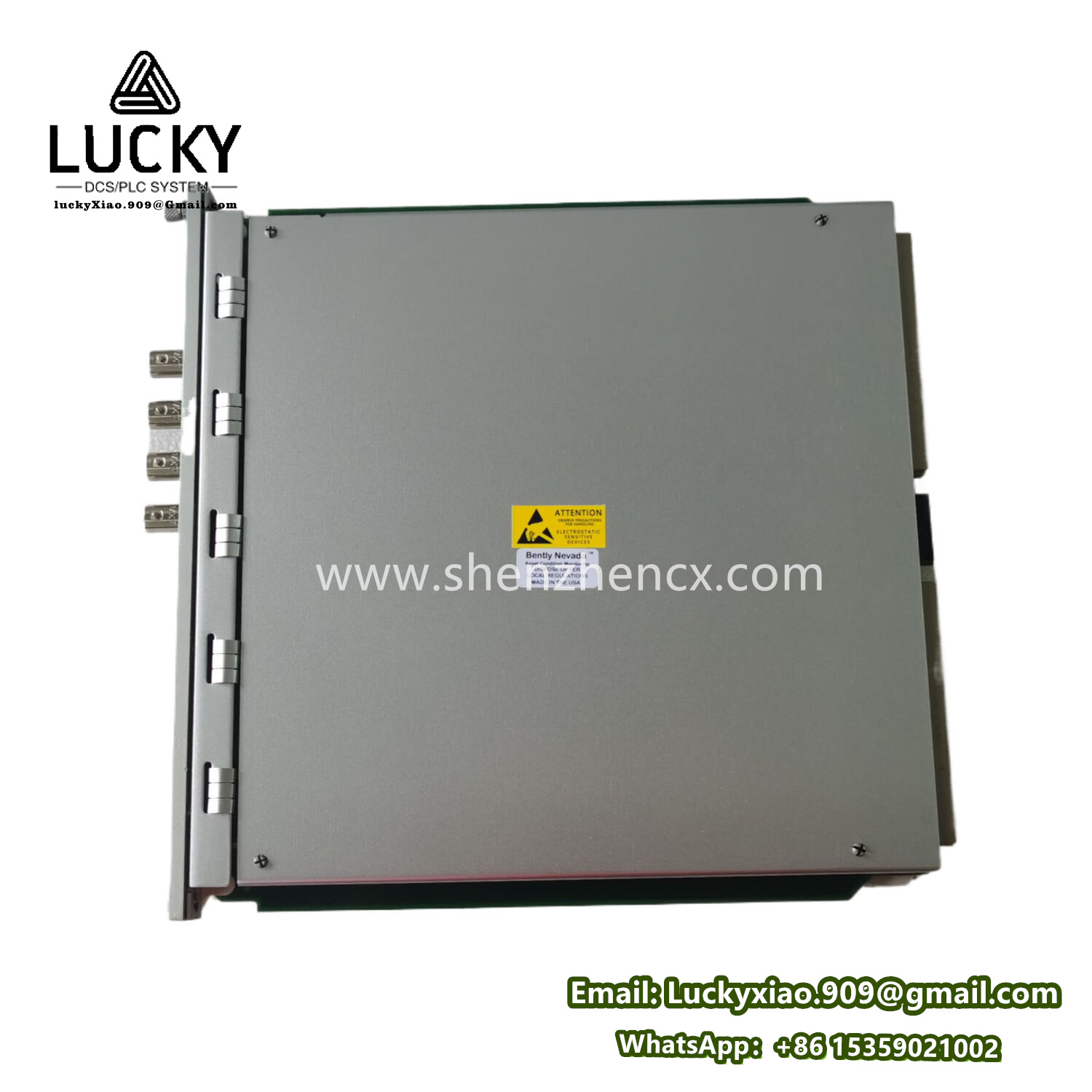

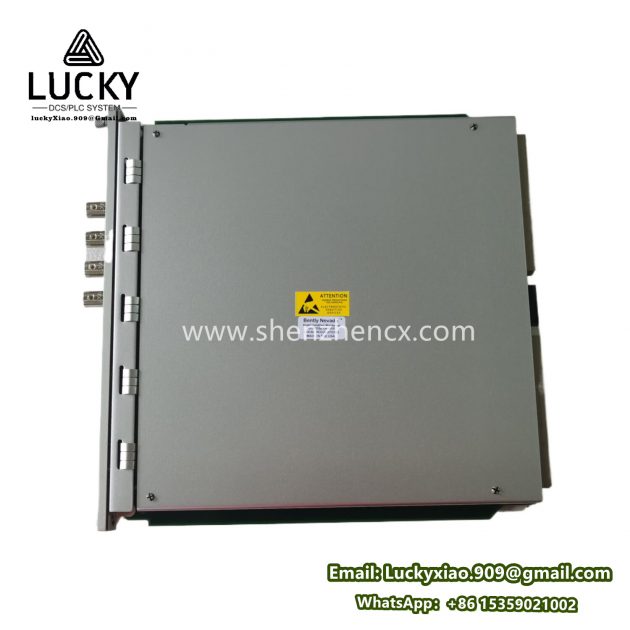

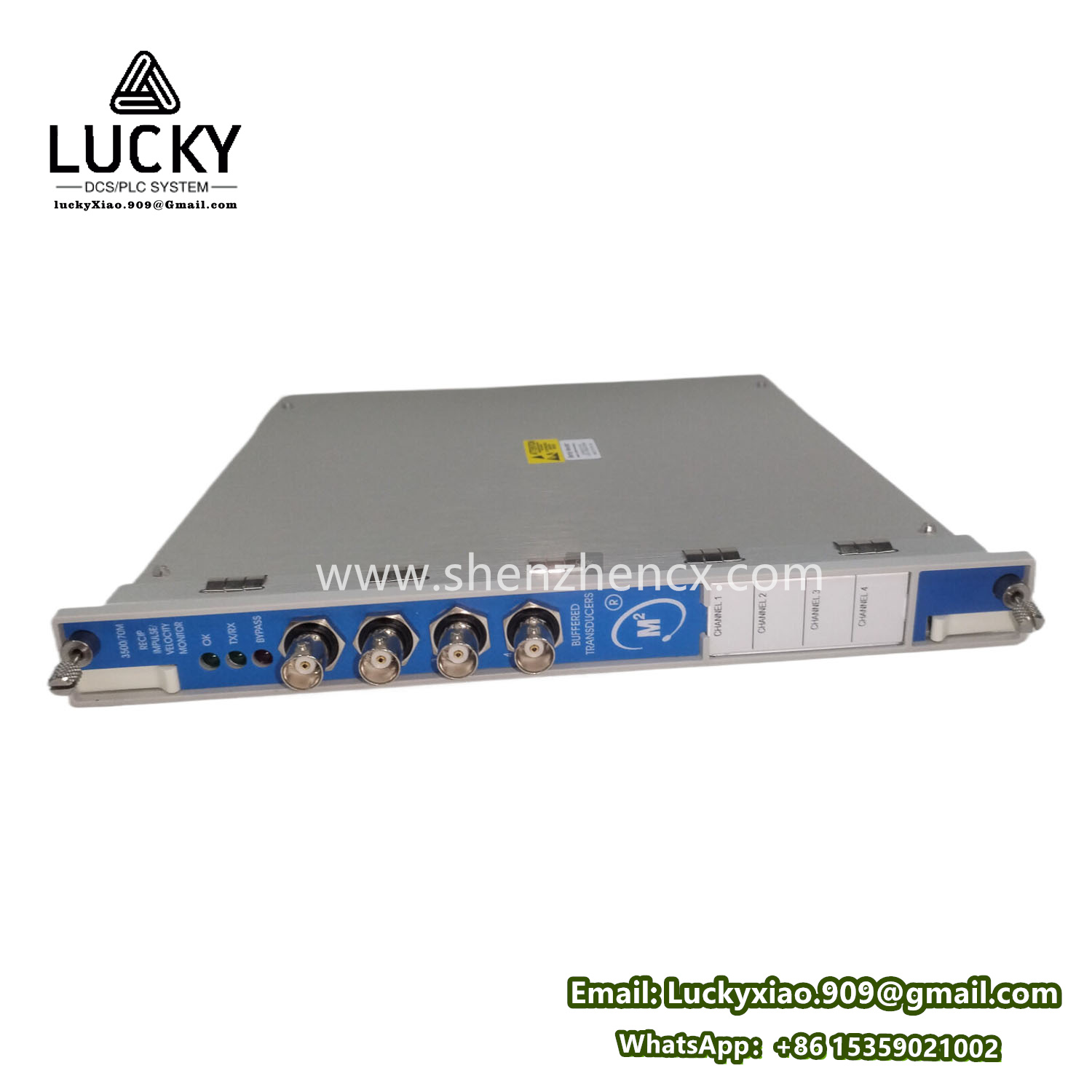

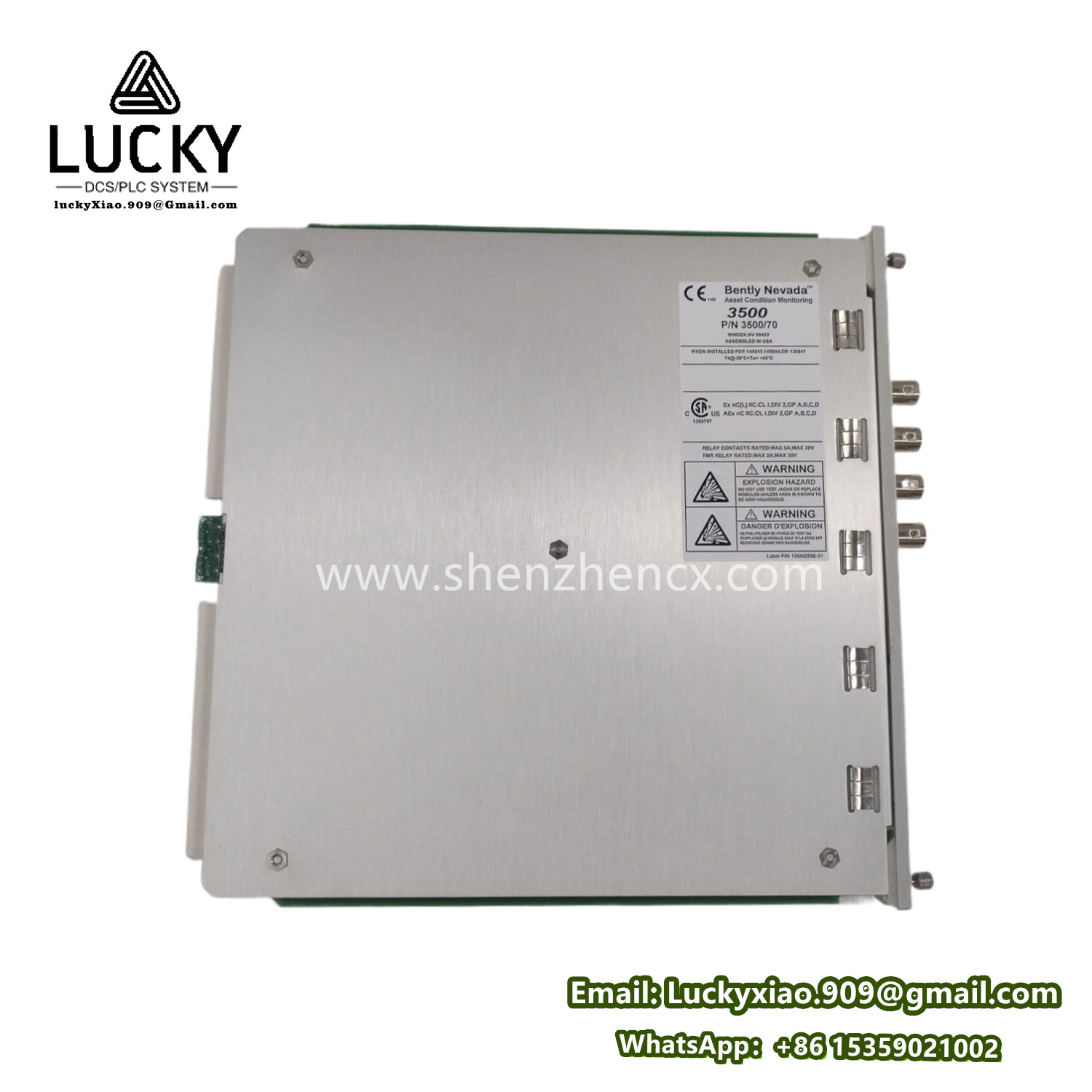

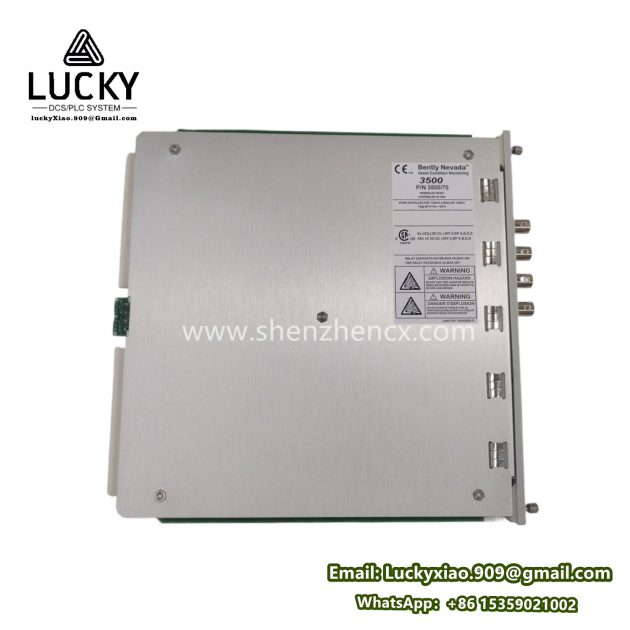

Bently Nevada 3500/70M 176449-09: Advanced Machinery Protection System Controller
Product Description
The Bently Nevada 3500/70M 176449-09 is a high-performance system controller module, serving as the central processing unit of the Bently Nevada 3500 Machinery Protection and Condition Monitoring System. It is specifically designed to coordinate and manage data from various monitoring modules, process critical machinery parameters, and enable seamless communication with external systems. This controller plays a pivotal role in ensuring the safe and reliable operation of critical rotating equipment by providing real-time data analysis, alarm management, and system configuration capabilities.
Product Parameters
- Data Processing Capacity: Capable of handling data from up to 16 monitoring modules simultaneously, ensuring comprehensive oversight of multiple machinery parameters.
- Alarm Handling: Supports up to 256 configurable alarms and events, with priority – based alarm processing to ensure critical issues are addressed promptly.
- Communication Protocols: Integrates with industry – standard protocols such as Modbus RTU, Ethernet/IP, and OPC UA, facilitating data exchange with SCADA systems, DCS, and asset management software.
- Memory Capacity: Equipped with 1 GB of RAM for real – time data processing and 8 GB of non – volatile storage for alarm logs, configuration files, and historical data.
- Update Rate: System status and data updates at a rate of 10 ms, ensuring real – time monitoring and rapid response to changes in machinery conditions.
Product Specifications
- Power Supply: Operates on a 24 VDC power supply with a current consumption of ≤ 500 mA.
- Operating Temperature: 0°C to 60°C, suitable for deployment in typical industrial environments.
- Storage Temperature: -40°C to 85°C, ensuring durability during transportation and long – term storage.
- Humidity: 5% to 95% non – condensing, allowing reliable operation in humid industrial settings.
- Dimensions: 160 mm (width) × 100 mm (height) × 200 mm (depth), designed to fit into the 3500 system rack.
- Weight: Approximately 2.0 kg, lightweight for easy installation within the system framework.
- Backplane Interface: High – speed serial backplane connection for communication with other 3500 series modules.
Series
The 3500/70M 176449-09 is an integral part of the Bently Nevada 3500 series. The 3500 series is a comprehensive suite of machinery protection and condition monitoring products, encompassing a wide range of modules including vibration monitors, position monitors, temperature monitors, communication gateways, and system controllers. Renowned for its reliability, scalability, and advanced functionality, the 3500 series is widely adopted in industries worldwide to protect critical rotating machinery. The modular architecture of the series allows for flexible system configuration, enabling users to build customized monitoring solutions tailored to their specific application requirements.
Features
Centralized Data Management
As the system controller, it collects, processes, and stores data from all connected monitoring modules, providing a centralized platform for machinery health information. This centralized approach simplifies data access, analysis, and reporting, enhancing operational efficiency.
Advanced Alarm Management
With support for 256 configurable alarms and priority – based processing, the controller ensures that critical alarms are immediately highlighted to operators. It provides detailed alarm information, including timestamp, severity, and associated machinery parameter, facilitating rapid troubleshooting.
Flexible Communication
The integration of multiple industry – standard communication protocols enables seamless connectivity with external systems. This allows for remote monitoring, data integration into plant – wide control systems, and integration with predictive maintenance software, supporting data – driven decision – making.
User – Friendly Configuration
Equipped with intuitive configuration software, the controller allows users to easily set up monitoring parameters, alarm thresholds, and communication settings. The software provides a graphical user interface (GUI) for simplified system configuration and management, reducing setup time and complexity.
Redundancy Support
The 3500/70M 176449-09 offers optional redundancy capabilities, ensuring continuous operation in the event of a controller failure. Redundant controllers automatically switch over without data loss, maximizing system availability and minimizing downtime.
Function
The primary function of the Bently Nevada 3500/70M 176449-09 is to serve as the central controller of the 3500 Machinery Protection and Condition Monitoring System. It coordinates data collection from various monitoring modules, processes the data to identify abnormal machinery conditions, manages alarm generation and notification, and enables data communication with external systems. Additionally, it provides system configuration and diagnostics capabilities, allowing users to set up the monitoring system according to their needs and troubleshoot any issues that may arise.
Use
In industrial applications, the 3500/70M 176449-09 is used to control and manage the 3500 Machinery Protection and Condition Monitoring System. It is installed in the 3500 system rack, where it connects to vibration monitors, position monitors, and other modules via the system backplane. The controller processes data from these modules, generates alarms when predefined thresholds are exceeded, and transmits data to external systems for further analysis and reporting. It is essential for operators and maintenance teams to access real – time machinery health data, enabling proactive maintenance and ensuring the safe operation of critical equipment.
Application Fields
Power Generation
In power plants, the controller manages the monitoring system for steam turbines, gas turbines, generators, and pumps. It provides real – time data on vibration, temperature, and position parameters, enabling early detection of faults and ensuring the reliable operation of power generation equipment. This helps to minimize unplanned outages and maximize power plant efficiency.
Oil and Gas
In the oil and gas industry, it is used to control monitoring systems for compressors, pumps, and turbines in upstream, midstream, and downstream operations. The controller processes data from harsh environment monitoring modules, providing critical insights into machinery health and supporting safe and efficient oil and gas production.
Chemical Processing
Chemical plants utilize the controller to manage monitoring systems for mixers, agitators, and rotating pumps. It helps to detect potential equipment failures before they lead to process disruptions, ensuring the safety of personnel and the environment and maintaining product quality.
Pulp and Paper
In pulp and paper mills, the controller oversees the monitoring of motors, rollers, and pumps. By providing real – time data on machinery conditions, it enables timely maintenance, reduces downtime, and ensures the smooth operation of production lines.
Water and Wastewater
Water and wastewater treatment facilities rely on the controller to manage monitoring systems for pumps, blowers, and other rotating equipment. It helps to ensure the reliable operation of these critical assets, minimizing service interruptions and supporting efficient water and wastewater treatment processes.
In conclusion, the Bently Nevada 3500/70M 176449-09 is a key component of the 3500 Machinery Protection and Condition Monitoring System, providing centralized control, advanced alarm management, and flexible communication capabilities. Its robust design and advanced features make it an essential tool for ensuring the safe and reliable operation of critical rotating machinery across a wide range of industrial applications.
