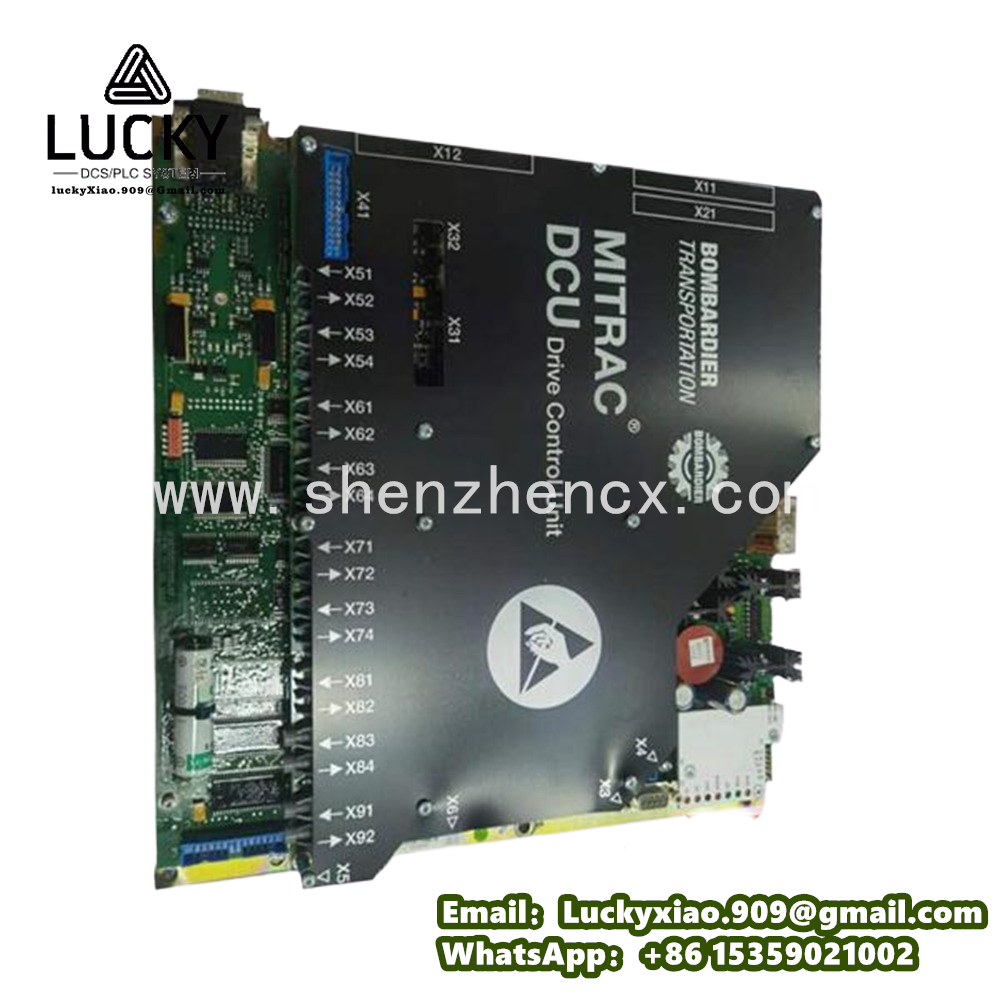

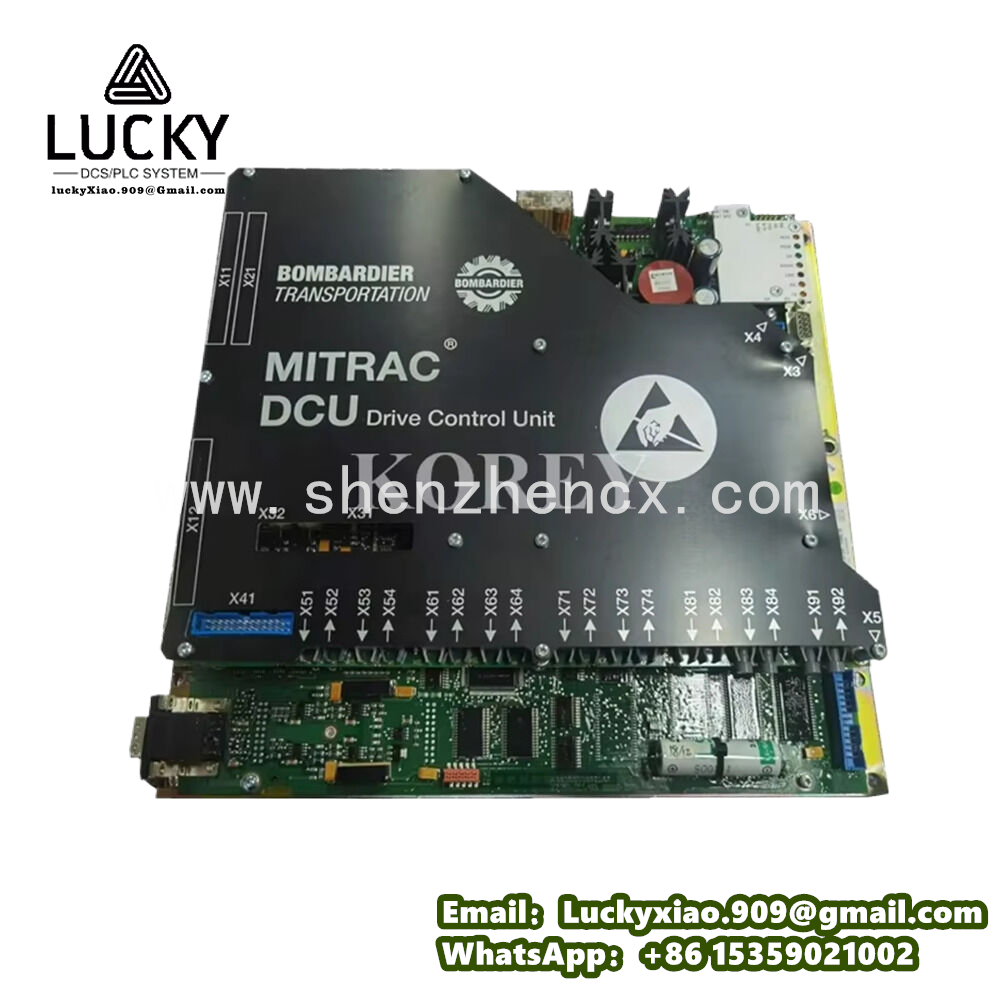

Brief Introduction to Bombardier DCC2223A 3EST125-977
Product Description
The Bombardier DCC2223A 3EST125-977 is a key component designed for rail transportation systems, specifically tailored to meet the rigorous demands of modern train operations. It plays a vital role in ensuring the smooth and safe functioning of critical on-board systems, contributing to the overall reliability and efficiency of the train.
This component is engineered to integrate seamlessly with Bombardier’s advanced rail technology, providing stable performance in various operating conditions. Whether in high-speed trains or urban transit systems, it helps maintain consistent operation, supporting the comfort and safety of passengers and crew alike.
Technical Parameters
- Operating Voltage: Typically operates within a range of 24V DC to 110V DC, ensuring compatibility with common train electrical systems.
- Operating Temperature: Functions reliably in temperatures ranging from -40°C to +70°C, adapting to extreme weather conditions.
- Protection Rating: IP65-rated, offering effective resistance against dust and water ingress, suitable for harsh on-board environments.
- Dimensions: Compact design with approximate dimensions of 150mm x 100mm x 50mm, facilitating easy installation in limited spaces.
- Weight: Around 500g, lightweight to minimize impact on the train’s overall weight.
- Output Signals: Provides standard digital output signals (e.g., 0-5V, 4-20mA) for seamless communication with other on-board systems.
- MTBF (Mean Time Between Failures): Greater than 100,000 hours, ensuring long-term reliability and reducing maintenance needs.
Usage Method
- Installation: Mount the component in a dry, well-ventilated location on the train using the provided mounting brackets. Ensure secure fixation to prevent vibration-related issues. Connect the power supply and signal cables according to the wiring diagram, double-checking polarities to avoid damage.
- Startup: After installation, power on the system. The component will undergo a self-check, indicated by a green LED light if functioning normally. If a red LED flashes, check connections or refer to the troubleshooting guide.
- Operation: The component operates automatically once connected, monitoring and transmitting relevant data to the main control system. No manual intervention is required during normal operation.
- Maintenance: Conduct regular visual inspections to check for loose connections or physical damage. Clean the surface gently with a dry cloth if dusty. Avoid using water or chemical cleaners.
System Introduction
The Bombardier DCC2223A 3EST125-977 is part of the train’s on-board control and monitoring system, working in conjunction with other components like the main controller, sensors, and communication modules.
- System Integration: It acts as a bridge between various subsystems, collecting data from sensors (e.g., temperature, pressure) and transmitting it to the main controller for processing. This enables real-time monitoring and quick response to potential issues.
- Functionality: The system ensures stable power distribution and signal transmission, supporting critical operations such as braking, door control, and climate regulation. It enhances the train’s operational efficiency by minimizing downtime through early fault detection.
- Advantages: The integrated system offers high reliability, adaptability to harsh environments, and easy scalability. It simplifies maintenance procedures and reduces operational costs, making it a valuable asset in modern rail transportation.
