Introduction to Honeywell CC-PCNT02 51454551-275

Name: CC-PCNT02 51454551-275 | HONEYWELL | controller module
SKU: 16947
Price: 199.00 USD
Availability: InStock

CC-PCNT02 51454551-275 Product Introduction

Honeywell CC-PCNT02 51454551-275 is a high-performance controller module belonging to the Honeywell Experion PKS distributed control system (DCS) C300 series. As the core “brain” of the DCS, it is specifically engineered to execute complex control logic, process real-time data, and manage industrial production processes with exceptional reliability. This module is capable of performing various control tasks such as PID control, sequential control, and logical operations, while efficiently collecting and preprocessing analog and digital signals from field devices like sensors and transmitters. Equipped with a redundant design and hot-swappable functionality, it allows for module replacement without system shutdown, ensuring uninterrupted operation of critical industrial processes. Its rugged industrial-grade construction enables it to adapt to harsh industrial environments with extreme temperatures, humidity, dust, and electromagnetic interference.

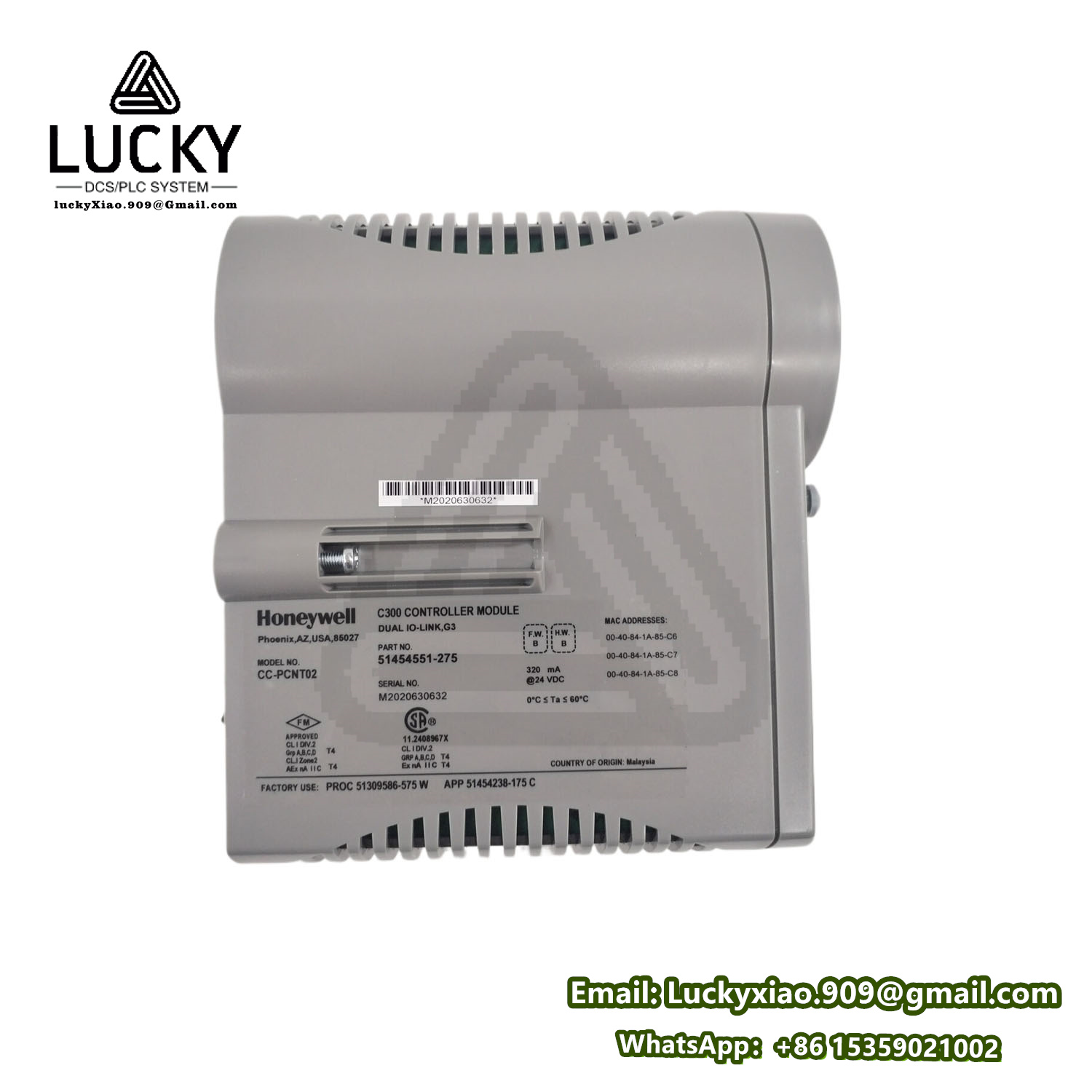

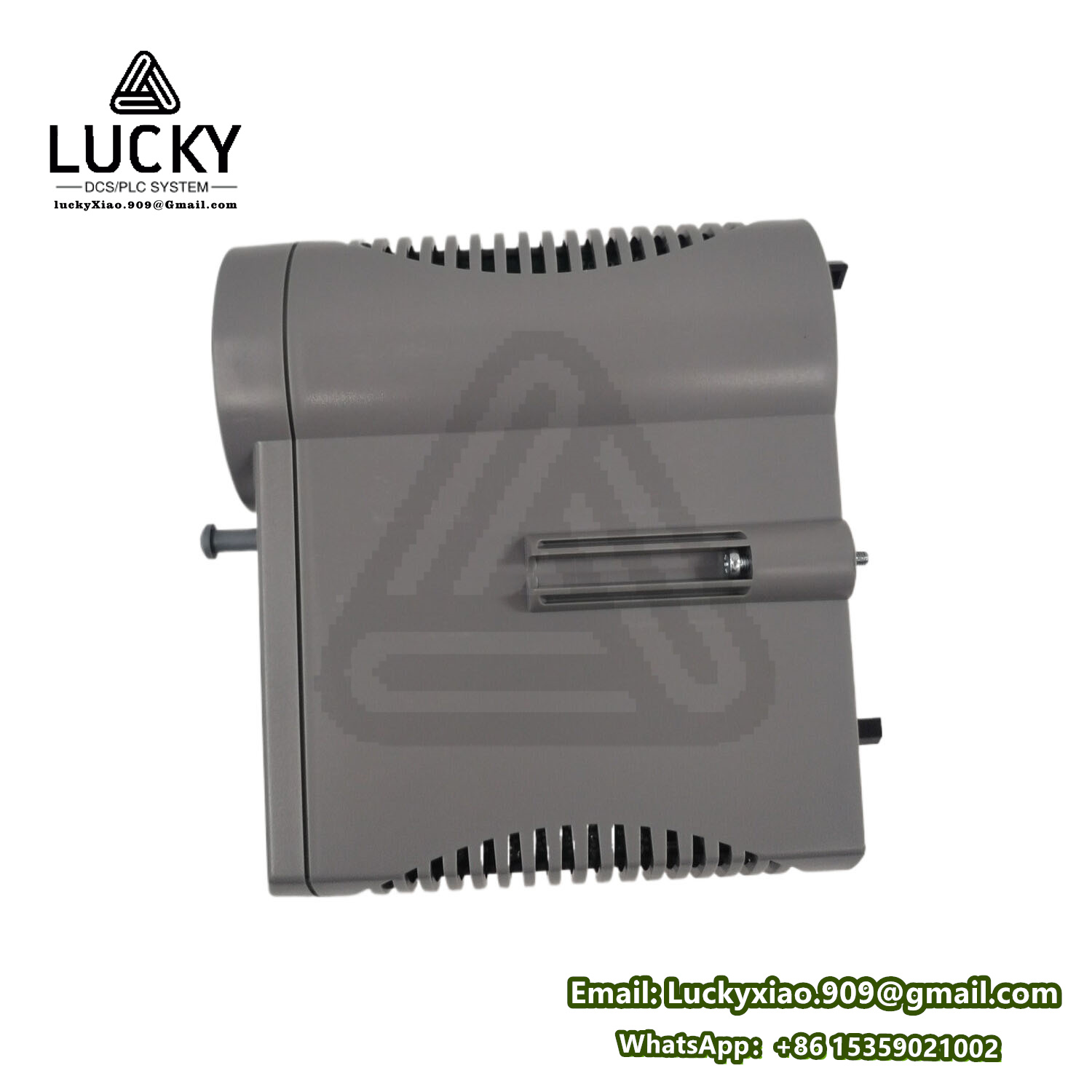

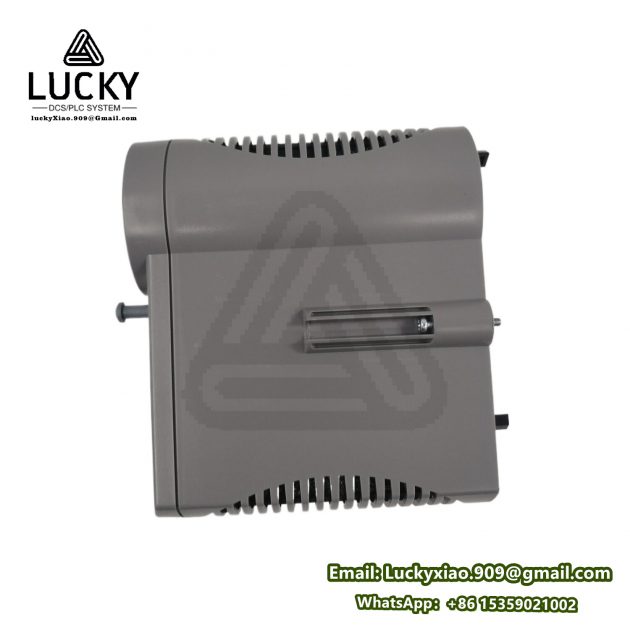

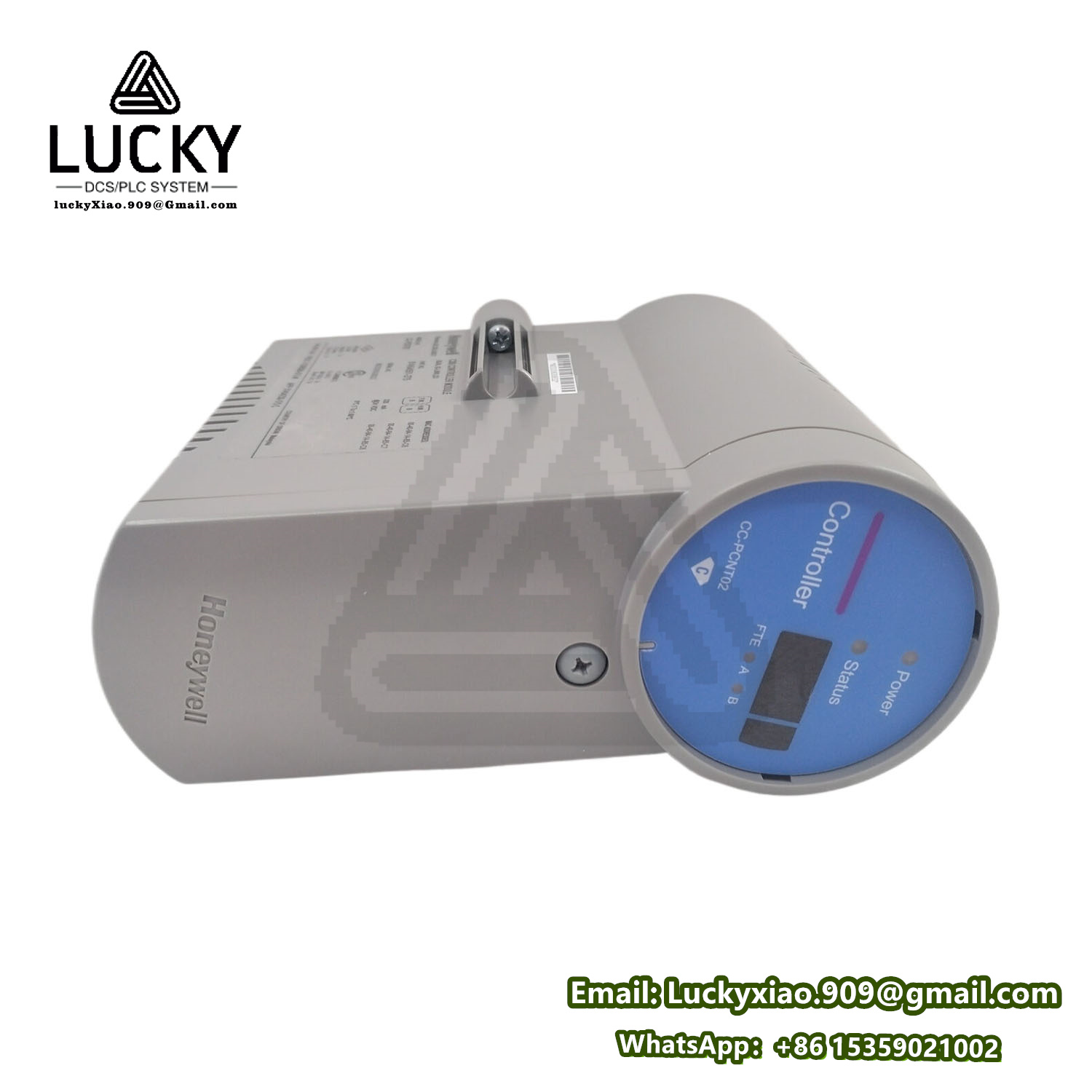

CC-PCNT02 51454551-275

CC-PCNT02 51454551-275 Technical Specifications

Product Model: CC-PCNT02 51454551-275
Product Type: Controller Module (Honeywell Experion PKS C300 Series)
Core Functions: Complex control logic execution (PID, sequential control, logical operations); Real-time field data acquisition and preprocessing; Redundant operation support; Hot-swappable maintenance; Fault diagnosis and alarm management; Multi-protocol communication support
Connection & Installation: Compatible with Honeywell Experion PKS DCS; FTE (Fault Tolerant Ethernet) interface with dual-network redundancy; IOLINK interface for connecting I/O cards; Modular plug-in design; Rack-mounted installation via C300 controller IOTA (Input/Output Terminating Assembly)
Electrical Specifications: Power Supply: 24Vdc/120Vac; Processor: High-performance 32-bit RISC CPU (1GHz主频); Memory: 64 MB RAM + 256 MB Flash; I/O Points: 64 digital I/O points, 16 analog I/O points; Communication Protocols: Modbus, HART, RS-232, RS-485, Ethernet; Certifications: CE, UL compliant
Environmental Ratings: Operating Temperature: -40°C to 85°C; Storage Temperature: -40°C to 70°C; Relative Humidity: 5% – 95% (non-condensing); Protection Rating: IP54 (dust and water resistant)
Mechanical Details: Housing Material: Industrial-grade high-strength metal; Dimensions: 132mm × 107mm × 25mm; Weight: Approximately 0.45kg

Recommended Honeywell Same-Series Models

CC-PCNT01: Predecessor model of CC-PCNT02, basic C300 controller module for standard control scenarios
CC-PCNT03: Enhanced C300 series controller module with extended processing capacity
8C-PCNT02: Pulse counting card module for high-precision pulse signal processing and monitoring
CC-PDIL01: 32-channel 24VDC digital input module with stable signal acquisition
CC-PDOB01: 32-channel 24VDC bussed digital output module
CC-PAIH01: 16-channel analog input module supporting HART protocol
CC-PAOX01: Analog output module without HART protocol support for precise control signal transmission
CC-PCF901: C300 system control firewall module for network security protection
CC-TCNT01: C300 controller IOTA (Input/Output Terminating Assembly) baseplate
CC-PWRB01: Redundant 20A DC power supply module for C300 system
CC-SCMB02: C300 memory backup battery module with built-in battery
CC-PAIM01: 64-channel low-level analog input module for thermistor and thermocouple signals
CC-PDIS01: 32-channel digital input module with SOE (Sequence of Events) function
CC-IP0101: C300 gateway module for system interconnection and data exchange
CC-TCF901: C300 control firewall IOTA baseplate with 8 ports and 1 uplink
CIOM-A16: Rack-mounted I/O module compatible with Honeywell Experion PKS system
