Introduction to CCC FAN-10-2
Product Description

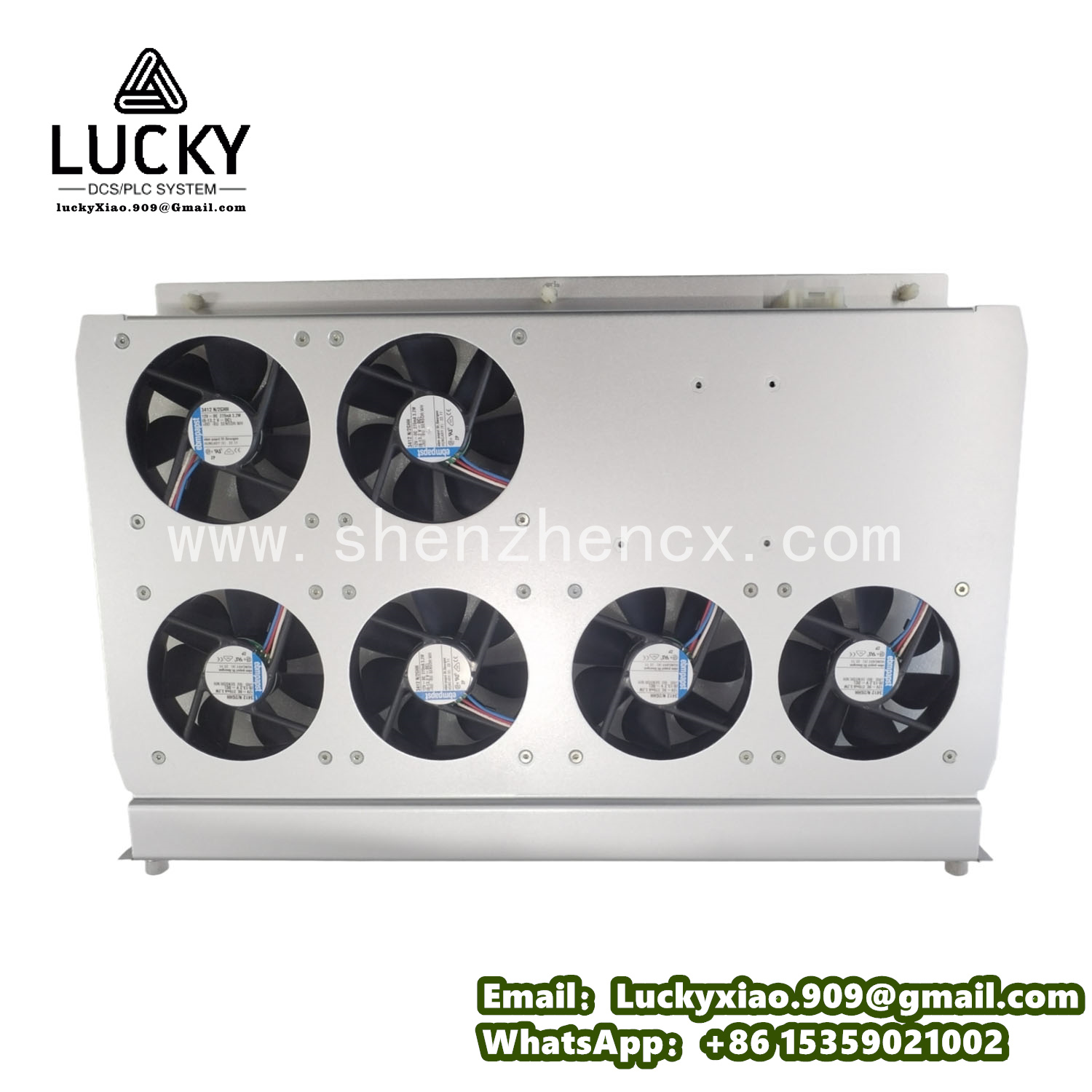

The CCC FAN-10-2 is a high-performance industrial cooling fan designed for thermal management in control cabinets, electrical enclosures, and machinery compartments. Engineered to dissipate heat efficiently in industrial environments, it prevents overheating of sensitive equipment such as PLCs, drives, and power supplies, ensuring reliable operation and extending service life.
This fan features a robust construction with a corrosion-resistant metal frame and high-quality impeller, making it suitable for harsh conditions involving dust, vibration, and temperature variations. Its dual-fan design provides redundancy, ensuring continuous cooling even if one fan unit fails—a critical feature for mission-critical systems in manufacturing, power distribution, and automation industries. With easy installation and low maintenance requirements, the FAN-10-2 integrates seamlessly into existing cooling systems.
Technical Parameters
- Airflow Capacity: 1200 m³/h (combined for dual fans)
- Static Pressure: 250 Pa (max)
- Fan Type: Axial fan, dual independent units
- Motor Type: AC induction motor with thermal protection
- Power Supply: 230V AC (50/60Hz); optional 110V AC version available
- Power Consumption: 80W (max, both fans operating)
- Speed: 2800 RPM (±5%)
- Noise Level: ≤65 dB(A) at 1 meter
- Operating Temperature Range: -20°C to +60°C
- Protection Rating: IP54 (against dust and water splashes)
- Dimensions: 300mm × 300mm × 100mm (L × W × H)
- Weight: Approx. 4.5 kg
- Mounting: Flange mounting with 4 M6 screw holes
- Cable Length: 1.5m, with open ends for wiring
Usage Methods
- Installation:
-
- Position the fan on the cabinet/enclosure panel, ensuring the airflow direction (indicated by arrow on the frame) is correct—typically exhausting hot air from the enclosure.
-
- Secure the fan using M6 screws (torque 2.5-3 N·m) to prevent vibration. Ensure a tight seal between the fan flange and panel to avoid air leakage.
-
- Maintain a minimum clearance of 200mm behind the fan to allow unobstructed airflow.
- Wiring:
-
- Connect the fan to a 230V AC power supply via a dedicated circuit breaker (1A recommended).
-
- For optional speed control or interlocking with temperature sensors, wire the control signal (0-10V or 4-20mA) to the designated terminals.
-
- Use appropriate cable glands to seal the wiring entry point, maintaining the enclosure’s protection rating.
- Operation:
-
- Power on the fan and verify both fan units are operating (audible check and visual inspection of rotating impellers).
-
- Monitor airflow and noise levels to ensure optimal performance. Adjust fan speed via external controls if needed (for versions with speed regulation).
- Maintenance:
-
- Inspect the fan quarterly for dust accumulation; clean the impellers and grille with compressed air or a soft brush.
-
- Check for loose screws, unusual noises, or excessive vibration annually. Replace worn bearings or damaged impellers promptly.
-
- Ensure the motor’s thermal protection is functional by performing a thermal overload test every 2 years.
System Introduction
The CCC FAN-10-2 operates as a key component in industrial thermal management systems, integrating with three primary elements:
- Heat Source Layer: Absorbs heat generated by enclosed equipment (e.g., PLC modules, transformers) to prevent temperature buildup beyond safe limits.
- Airflow Management Layer: Extracts hot air from the enclosure, creating negative pressure that draws in cooler ambient air through vents or filters, establishing a continuous airflow cycle.
- Redundancy Layer: The dual-fan design ensures that if one unit fails, the second continues operating, reducing downtime risk in critical applications.
In a typical setup, such as a PLC control cabinet, the FAN-10-2 works alongside temperature sensors (e.g., CCC TMPU-1002) and a controller. When the sensor detects temperatures exceeding 40°C, the controller activates the fan to exhaust hot air, maintaining internal temperatures within the 15-35°C optimal range for electronic components.
Related Models in the Series
- FAN-10-1: Single-fan version with 600 m³/h airflow, suitable for smaller enclosures or non-critical applications.
- FAN-15-2: High-capacity dual fan with 1800 m³/h airflow, designed for large enclosures or high-heat environments (e.g., inverter cabinets).
- FAN-10-2-EX: Explosion-proof model (ATEX II 3G) for hazardous areas, such as chemical plants or oil refineries.
- FAN-10-2-EC: EC motor version with variable speed (0-100%) and energy efficiency (up to 80%), compatible with smart building management systems.
- FAN-10-2-W: Weatherproof variant (IP65) for outdoor enclosures, resistant to rain and extreme temperatures.
- FAN-CTRL-01: Fan control module that integrates with FAN-10-2, enabling temperature-based speed regulation and remote monitoring via Modbus.
