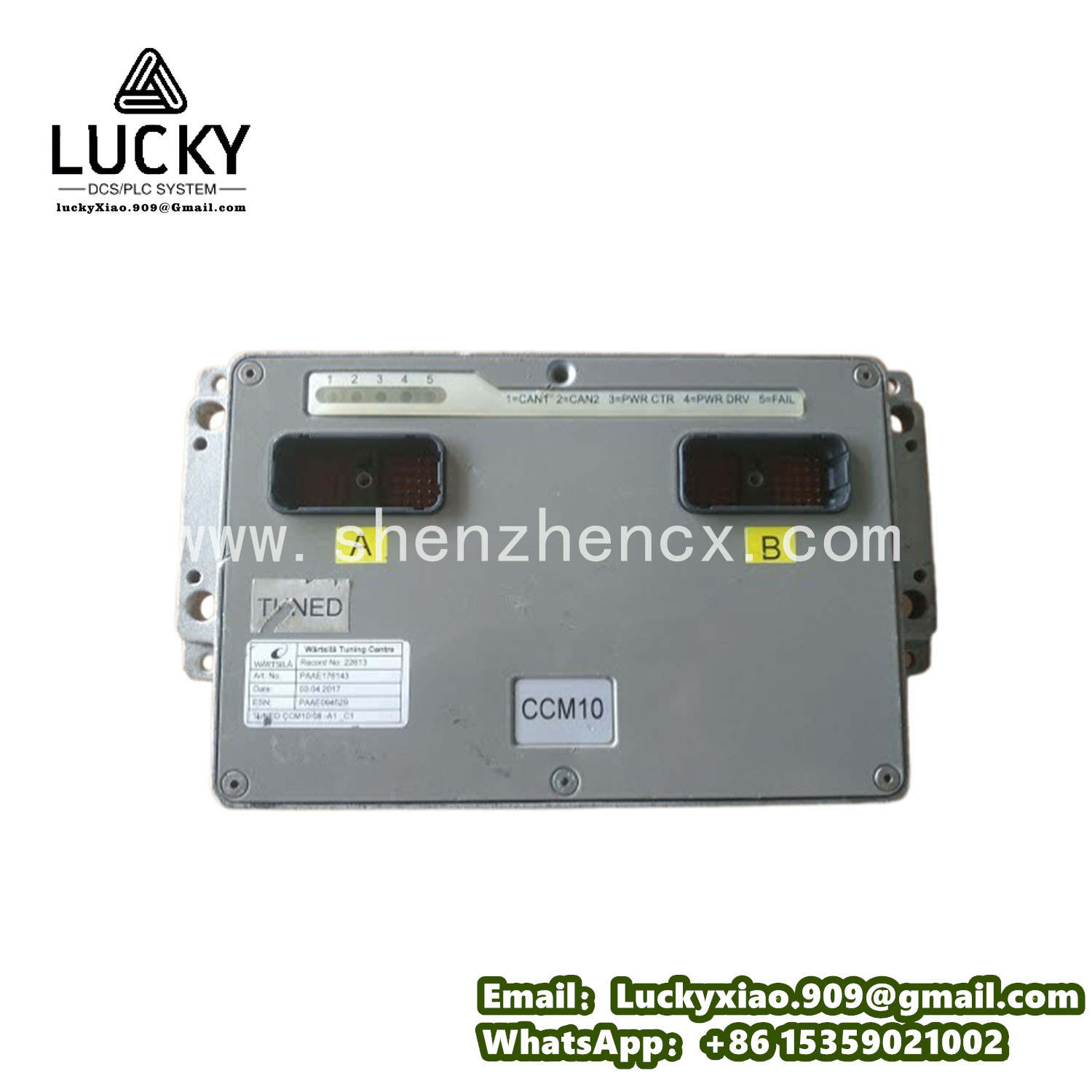

Introduction to WARTSILA CCM 10
CCM 10 Product Overview
The WARTSILA CCM 10 is a high-performance Central Control Module, specifically developed for integrating and coordinating marine propulsion systems, engine control units, and auxiliary equipment—core applications across large merchant vessels, offshore platforms, and LNG carriers. As the “neural hub” of Wärtsilä’s integrated automation ecosystem, it processes real-time data from propulsion controllers (e.g., ProTouch systems), engine sensors, and navigation equipment to optimize power distribution, ensuring seamless collaboration between main engines, thrusters, and auxiliary generators. A standout feature is its integration with Wärtsilä’s EcoControl technology, which automatically adjusts engine speed and propeller pitch to maintain the optimal power-efficiency balance, reducing fuel consumption by up to 8% compared to traditional control systems . Equipped with triple modular redundancy (TMR) for critical control circuits, it meets marine safety standards for emergency scenarios, while its compatibility with both new-build vessels and retrofit projects (supporting legacy Wärtsilä 20/26 series engines) enhances its versatility .
CCM 10 Technical Specifications
-
Product Model: CCM 10
-
Product Type: Marine Central Control Module (Propulsion & Engine Coordination)
-
Core Functions: Propulsion system coordination, engine load distribution, EcoControl efficiency regulation, multi-system data integration, fault diagnosis
-
Compatible Systems: WARTSILA ProTouch Propulsion Control System; WARTSILA UNIC Engine Control System; WARTSILA PCS (Propulsion Control System); Legacy Wärtsilä 20/26/32 Series Engines
-
Control Performance: Load adjustment response time ≤50ms; Speed control accuracy ±0.2% of rated RPM; Supports up to 4 main engines + 6 thrusters coordination
-
Input Specifications: 32× analog inputs (4-20mA) for pressure/temperature sensors; 64× digital inputs for status signals; 8× high-speed inputs for engine speed monitoring
-
Output Specifications: 16× analog outputs (4-20mA) for actuator control; 32× relay outputs (10A/250V AC) for auxiliary equipment; 4× CANopen outputs for propulsion communication
-
Communication Capability: Supports PROFINET, Modbus TCP, and Wärtsilä proprietary CAN bus; Data throughput up to 500Mbps; Integrates with ship-wide SCADA systems
-
Power Supply: Redundant 24V DC input (18-30V DC); Power consumption ≤40W; Backup battery support (10-minute runtime during power loss)
-
Protection Features: IEC 61131-2 compliant ESD protection (±25kV contact); Overvoltage/overcurrent protection; Fire-resistant enclosure (UL 94 V-0 rating)
-
Local Operation: 7-inch color touchscreen; Physical emergency stop button; LED status indicators for power, communication, and system health
-
Operating Environment: Temperature -25°C to +70°C; Humidity 5-95% (non-condensing); Vibration resistance 15g (10-2000Hz); Protection rating IP54
-
Mechanical Dimensions: 300mm (W) × 200mm (H) × 150mm (D); Rack mount (19-inch standard); Weight ~4.5kg
-
Certifications: DNV GL, ABS, LR, BV marine certifications; IEC 60945, CE compliant
Recommended WARTSILA Products
-
WARTSILA ProTouch: Propulsion remote control system that transmits navigation commands to CCM 10 for precise thruster and propeller control .
-
WARTSILA UNIC: Unified engine control system, working with CCM 10 to manage fuel injection and combustion for Wärtsilä 32 DF dual-fuel engines .
-
WARTSILA MCM700B: Main engine control module that feeds real-time performance data to CCM 10 for load balancing .
-
WARTSILA EcoControl: Efficiency optimization software integrated with CCM 10, automatically adjusting power parameters to reduce emissions .
-
WARTSILA CCS System: Onboard carbon capture module, whose operation is synchronized with CCM 10 to align with engine load fluctuations .
-
WARTSILA 14RT-flex96C B: High-power marine engine, whose speed and load are dynamically regulated by CCM 10 for large tanker applications .
-
WARTSILA LDU-200: Local display unit, showing CCM 10’s real-time control data in the engine control room.
-
WARTSILA ESD-200: Emergency shutdown system that triggers CCM 10 to cut power to non-essential systems during critical faults.
