Introduction to METSO D200535

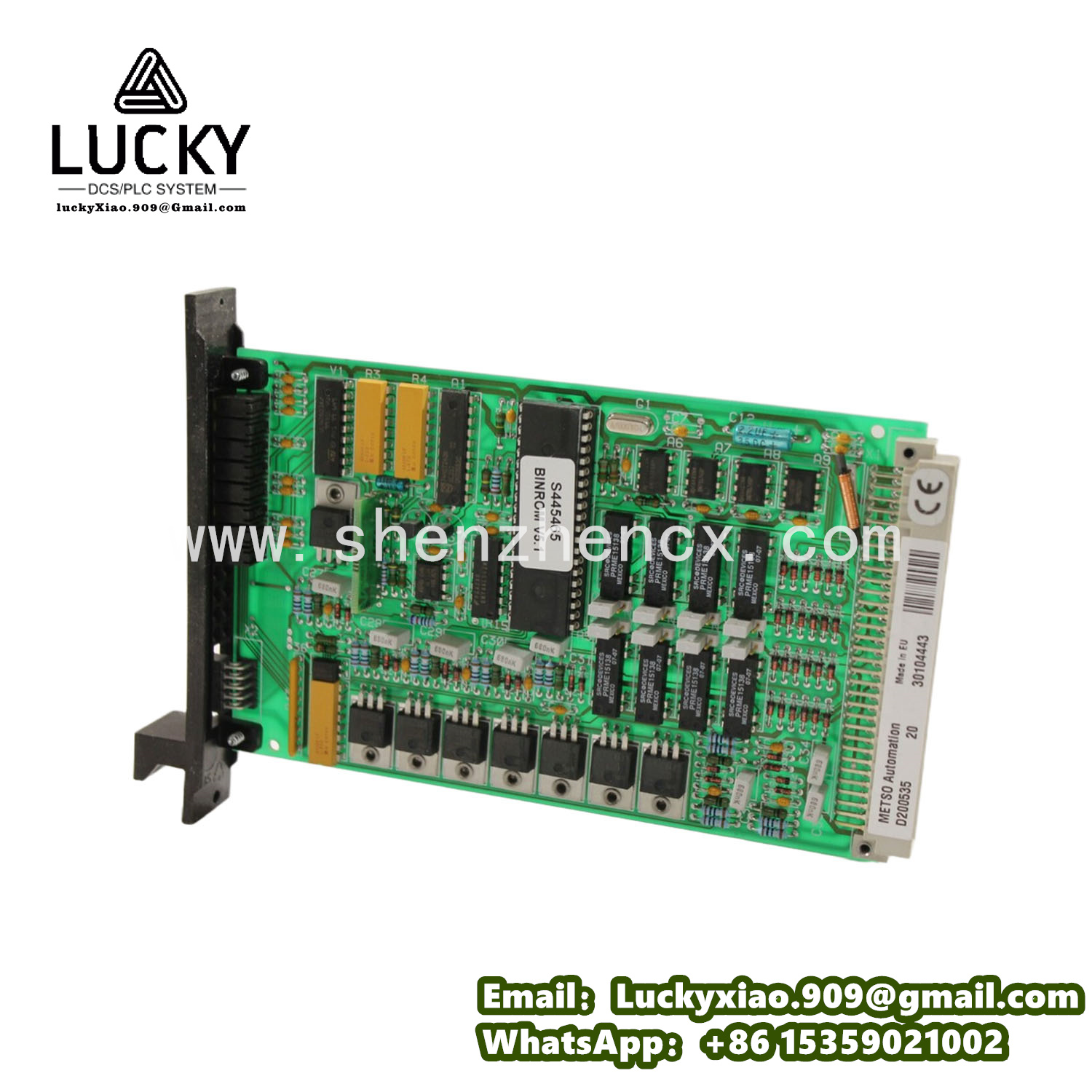

D200535 Product Overview
The METSO D200535 is a reliable industrial digital I/O module designed for distributed process automation systems, specifically tailored for heavy industrial sectors such as mineral processing, metallurgy, and mining. As a key component of METSO’s automation I/O product series, it serves as a critical interface for bidirectional signal transmission between field devices (including sensors, switches, and actuators) and upper-level control systems like DCS or PLC. Featuring a rugged industrial-grade housing, the module is optimized to resist harsh operating conditions common in industrial sites, such as vibration, dust, high humidity, and extreme temperature fluctuations. It enables seamless integration with METSO’s MAX DNA distributed control system and MLCP series local control panels, ensuring stable data exchange and efficient process control. Widely applied in mill equipment monitoring, conveyor belt safety control, and flotation process regulation, the D200535 effectively enhances the reliability and operational efficiency of industrial automation systems.
D200535 Technical Specifications
-
Product Model: D200535
-
Product Type: Industrial Digital I/O Module
-
Core Functions: Bidirectional digital signal input/output, signal filtering and conditioning, real-time data transmission, system status monitoring, fault diagnosis and alarm
-
Power Supply: 24 VDC wide voltage input (18 VDC – 30 VDC); Built-in voltage stabilization and reverse polarity protection; Power consumption: ≤ 10 VA
-
I/O Channels: 16-channel configurable (digital input/output); Supports dry contact, NPN/PNP transistor input signals; Relay/transistor output for driving field actuators
-
Response Performance: Digital signal response time ≤ 10 ms, ensuring real-time data acquisition and control execution
-
Isolation Performance: Photoelectric isolation between channels, power supply and communication interface; Isolation voltage: ≥ 2500 VAC (1 minute); Complies with IEC 61000-6-2/4 EMC standards
-
Communication Protocols: Supports PROFINET and Ethernet/IP; Seamless integration with METSO DP-100 distributed processing units
-
Protection Features: Built-in overcurrent, overvoltage and short-circuit protection for each channel; Dust and moisture resistant housing
-
Environmental Ratings: Operating temperature: -25°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5% – 95% (non-condensing); Protection class: IP67
-
Mechanical & Installation: Compact modular design (approx. L×W×H: 125 mm × 85 mm × 48 mm); Weight: approx. 0.23 kg; DIN rail/panel-mounted; Supports hot-swapping; Compatible with M12 connectors
-
Certifications: CE, UL certified; RoHS compliant
Recommended METSO Same-Series Models
-
METSO D200533: 8-channel digital I/O module, enabling flexible signal interaction between field devices and controllers
-
METSO D201189L: 16-channel high-speed digital input module, ideal for large-scale industrial process monitoring
-
METSO D201191L: 16-channel digital output module, specialized in driving relays, contactors and solenoid valves
-
METSO D201466: 8-channel configurable digital I/O module with IO-Link support, realizing intelligent device diagnosis
-
METSO A413140 (BIU 8): 8-channel intelligent input module with professional signal conditioning, suitable for high-precision sensor data acquisition
-
METSO A413162: Process control module, facilitating integration of I/O systems into mineral processing control loops
-
METSO A413240: 8-channel configurable input module, supporting multi-type signal acquisition for diverse monitoring scenarios
-
METSO A413241: 16-channel enhanced input module, adapting to complex multi-type signal acquisition requirements
-
METSO DP-100: Distributed processing unit, serving as the core engine of METSO MAX DNA distributed control system
-
METSO MLCP-SIE-S: Local control panel, integrating I/O modules for mill control in standard ambient environments
-
METSO MLCP-SIE-E: Local control panel, designed for mill control in extreme harsh ambient conditions
-
METSO D201467: 16-channel enhanced digital I/O module, suitable for large-scale distributed automation systems
