Detailed Introduction to BASLER DECS-200-1L Digital Excitation Control System
1. Product Description
The BASLER DECS-200-1L is a compact, microprocessor-based digital excitation control system engineered specifically for small-to-mid-sized synchronous generators. As a flagship model in the DECS-200 series, it integrates precision voltage regulation, adaptive control algorithms, and multi-layer protection functions into a single rugged enclosure, serving as the “neural center” for generator excitation systems in industries such as distributed power generation, marine propulsion, and industrial backup power.
Unlike traditional analog excitation regulators, the DECS-200-1L leverages digital signal processing (DSP) technology to deliver real-time adjustments to field current, ensuring stable terminal voltage even under fluctuating loads. Its core capabilities include automatic voltage regulation (AVR), power factor (PF) control, and VAR sharing for parallel generator operation—critical for maintaining grid stability in distributed energy systems. The device also features a modular hardware design and compliance with global standards (UL, CSA, CE), making it compatible with most generator brands (e.g., Cummins, Caterpillar) and suitable for both indoor and outdoor installations with optional weatherproof enclosures.
A key differentiator is its seamless integration with BASLER’s BestCOMS configuration software, which simplifies parameter tuning, real-time monitoring, and troubleshooting via an intuitive graphical interface. In backup power applications, the DECS-200-1L’s fast response time (<100ms) ensures generators reach rated voltage within 2 seconds of startup, minimizing downtime for critical loads like data centers and hospitals.
2. Product Technical Specifications
|
Specification Category
|
Details
|
|
Electrical Inputs
|
– Control Power Input: 80-300 VAC, 50/60 Hz (single-phase) or 80-300 VDC- Voltage Sensing Input: 10-300 VAC (line-to-line or line-to-neutral, true RMS sensing)- Current Sensing Input: 0-5 A AC (via current transformer for stator current limiting)- Auxiliary Analog Inputs: 3 channels, 13-bit resolution, ±10 VDC (for external setpoints)
|
|
Excitation Output
|
– Output Voltage: 0-125 VDC (adjustable via AVR/PF control)- Continuous Output Current: 10 A DC- Peak Output Current: 20 A DC (for 10 seconds, during fault recovery)- Power Stage: Pulse-Width Modulated (PWM) rectifier bridge with six SCRs
|
|
Performance Metrics
|
– Voltage Regulation Accuracy: ±0.25% of setpoint (steady-state)- Response Time: <100 ms to 90% of setpoint after load change- PID Control: Proportional (P), Integral (I), Derivative (D) parameters configurable via BestCOMS- Frequency Compensation: 45-65 Hz (automatic voltage adjustment for frequency variations)
|
|
Physical & Environmental
|
– Dimensions: 146 mm (W) × 241 mm (H) × 254 mm (D) (19-inch rack-mountable)- Weight: 3.6 kg- Operating Temperature: -40°C to +70°C- Storage Temperature: -55°C to +85°C- Relative Humidity: 5-95% (non-condensing)- Enclosure Rating: IP30 (standard); IP65 (optional weatherproof kit)- Grounding Requirement: 12 AWG minimum copper wire to earth ground (≤1 Ω resistance)
|
|
Communications & I/O
|
– Serial Interfaces: Front-panel RS-232 (for local PC connection), side-panel RS-485 (Modbus RTU, up to 1 km range)- Digital I/O: 12 digital inputs (12-24 VDC, for start/stop, mode select) + 6 digital outputs (5-24 VDC, 100 mA, for alarms/relays) – Analog Outputs: 2 channels, 13-bit resolution, 4-20 mA (for metering voltage/current)
|
|
Protection & Certification
|
– Protection Functions: Over-Excitation Limiter (OEL), Under-Excitation Limiter (UEL), Stator Current Limiter (SCL), Short-Circuit Protection, Rotating Diode Monitoring (EDM) – Alarms: Visual LED indicators (front panel) + relay outputs for fault alerts- Certifications: UL 61010-1, CSA C22.2 No. 61010-1, IEC 61010-1, CE (EMC compliance)
|
3. Usage Instructions
3.1 Installation
- Pre-Installation Checks
-
- Verify control power input matches the generator’s auxiliary power output (e.g., 230 VAC).
-
- Inspect the device for shipping damage (pay special attention to SCR modules and terminal blocks).
-
- Ensure the 19-inch rack or mounting surface can support 3.6 kg and provides 100 mm clearance for ventilation.
- Mechanical & Electrical Installation
-
- Mounting: Secure the DECS-200-1L to the rack using M5 screws (torque: 1.2 N·m). For wall mounting, use the optional bracket kit.
-

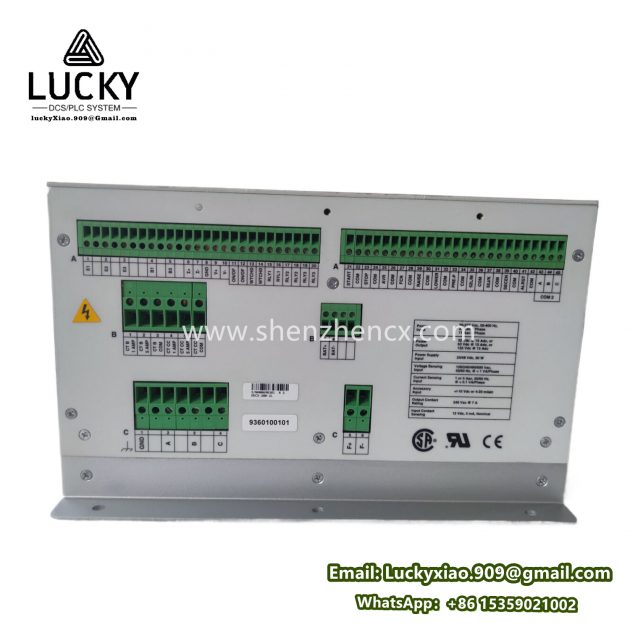

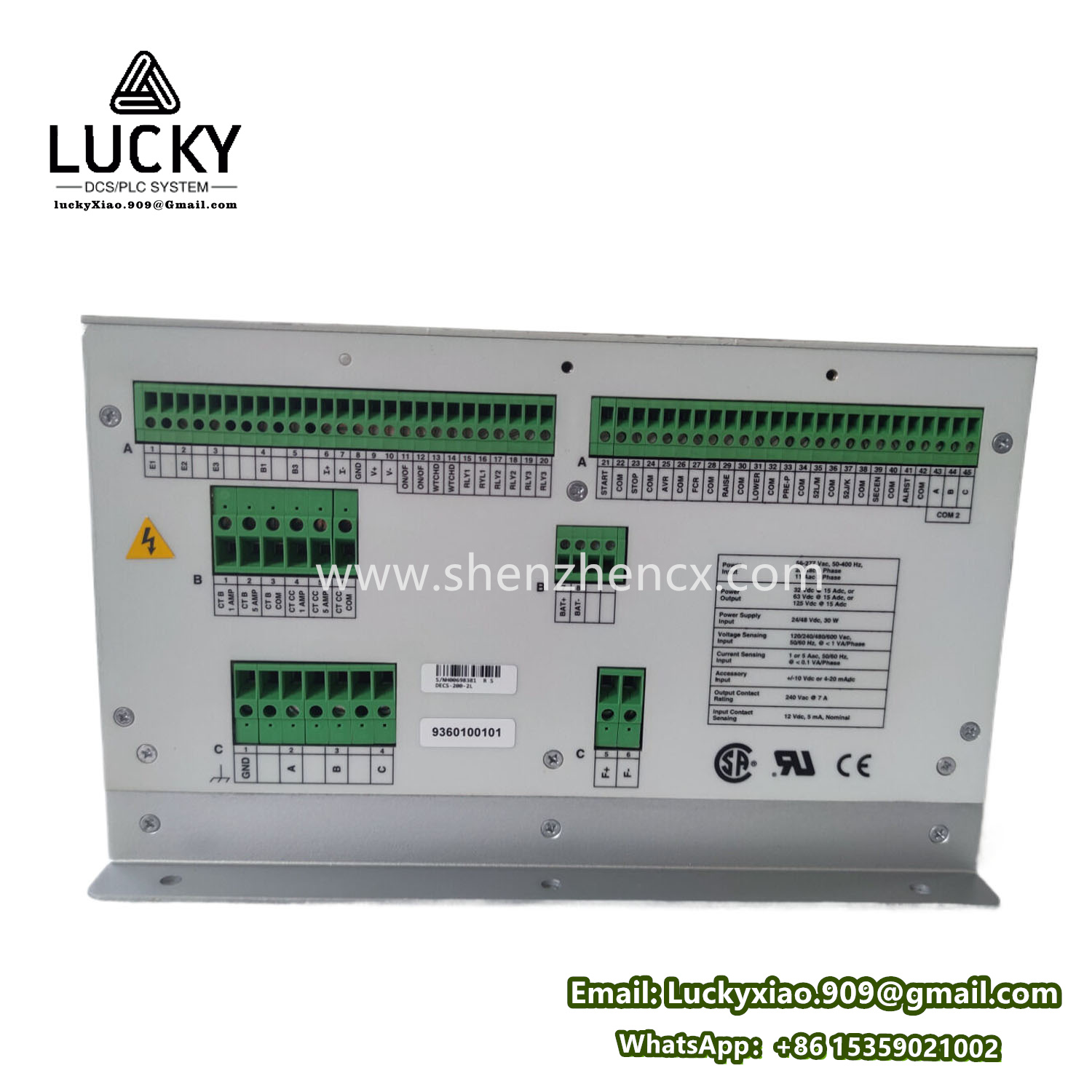

- Wiring (follow terminal block labels on rear panel):
-
-
- Control Power: Connect L/N (AC) or +/-(DC) to “POWER IN” terminals; attach PE wire to the dedicated ground stud (12 AWG minimum) .
-
-
-
- Voltage Sensing: Wire generator output terminals (L1/L2/L3) to “VT INPUT” (use twisted-pair shielded cable).
-
-
-
- Current Sensing: Connect current transformer secondary to “CT INPUT” (ensure polarity matches device markings).
-
-
-
- Field Output: Connect “FIELD +” and “FIELD -” to the generator’s rotor field winding (use 4 mm² copper wire).
-
-
- Safety Lockout: Disconnect all power sources before wiring; use insulated tools to avoid arc flash.
- Post-Installation Verification
-
- Visually inspect all connections for tightness and correct polarity.
-
- Use a multimeter to check for short circuits between power terminals and ground.
3.2 Configuration & Operation
- Initial Setup via BestCOMS Software
-
- Software Installation: Insert the BestCOMS CD into a Windows PC (486 DX2 or faster, 20 MB RAM minimum); follow the installer prompts to create a desktop shortcut.
-
- Communication Setup: Connect a serial cable from the PC’s COM port to the DECS-200-1L’s front-panel RS-232 port. In BestCOMS, select “Communications > Port Settings” (9600 baud, 8 data bits, 1 stop bit, no parity) and click “Connect”.
-
- Basic Configuration:
-
-
- Navigate to “Generator Setup” and enter rated voltage (e.g., 480 VAC) and frequency (60 Hz).
-
-
-
- Go to “Control Mode” and select “AVR” (voltage regulation) or “PF” (power factor control).
-
-
-
- Use the “PID Calculator” tool to auto-tune proportional (P=2.0), integral (I=0.5s), and derivative (D=0.1s) parameters based on generator time constants.
-
- Local Operation via Front Panel
-

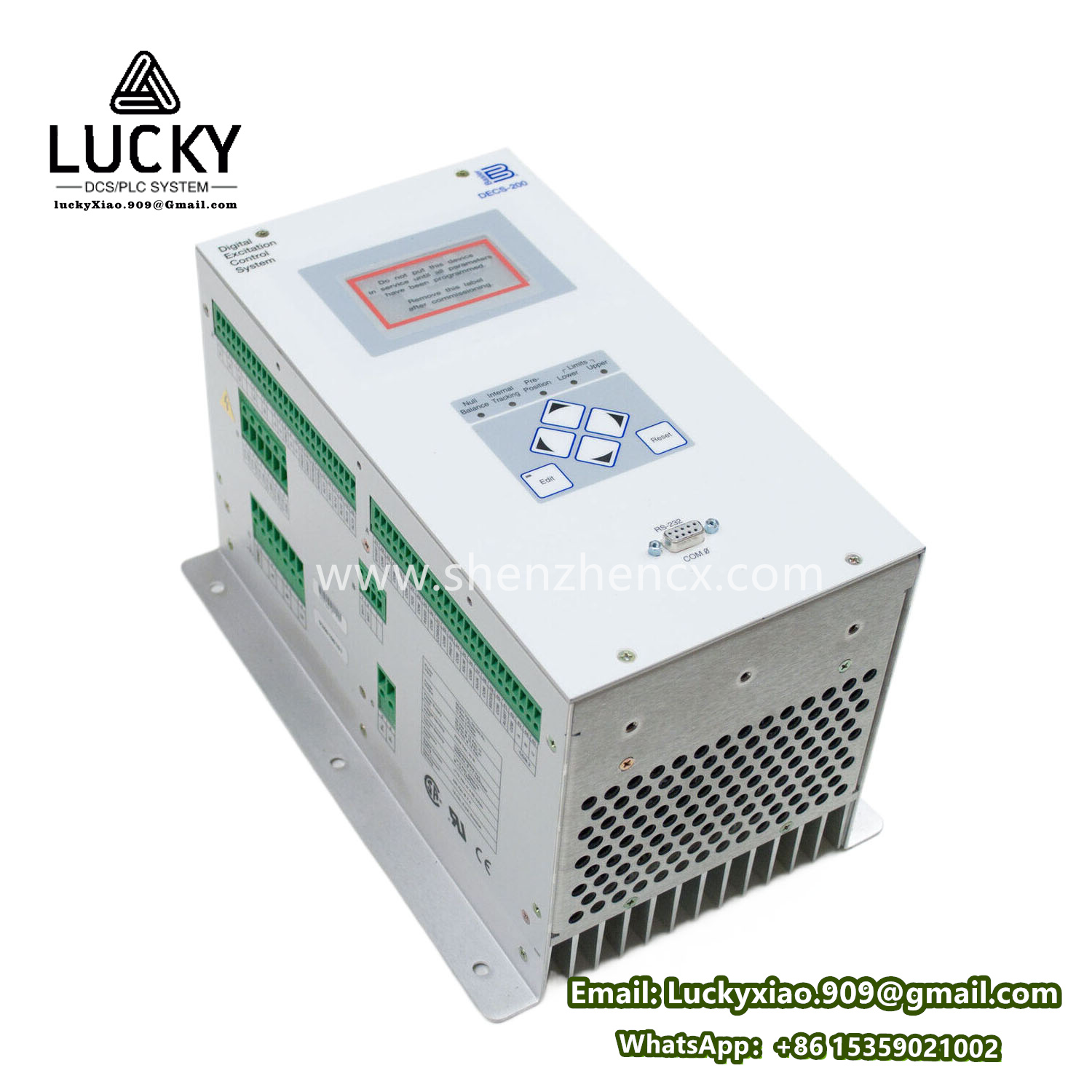

- Status Monitoring: The 2-line LCD displays terminal voltage, field current, and operating mode; green LED = normal, red LED = fault (e.g., over-excitation).
-
- Manual Adjustment: Use the “VOLTAGE UP/DOWN” buttons to tweak setpoints (1 VAC increments) when in manual mode.
-
- Alarm Reset: Press the “RESET” button after resolving faults (e.g., clear a short circuit before resetting).
- Maintenance & Troubleshooting
-
- Routine Checks: Monthly inspect wiring tightness and clean ventilation slots with compressed air (0.3 MPa max).
-
- Common Faults:
-
-
- Red LED On: Check BestCOMS “Alarm Log” for details (e.g., “OEL Tripped” = reduce field current).
-
-
-
- No Output Voltage: Verify control power and voltage sensing wiring; check SCR fuses (internal, 5 A).
-
-
- Calibration: Annually verify voltage regulation accuracy with a precision multimeter (adjust via “Calibration” tab in BestCOMS).
4. System Introduction
The DECS-200-1L is the core of BASLER’s Generator Excitation Control Ecosystem, a scalable solution that integrates excitation regulation, protection, and monitoring for synchronous generators. This ecosystem is designed to optimize generator performance, extend equipment lifespan, and ensure compliance with grid codes (e.g., IEEE 421.5).
4.1 System Architecture
- Sensing Layer: Interfaces with voltage transformers (VTs) and current transformers (CTs) to collect real-time generator data (terminal voltage, stator current) and feed it to the DECS-200-1L.
- Control Layer: The DECS-200-1L executes control algorithms (AVR/PF) to adjust field current via the PWM power stage. It also communicates with the protection layer to trigger limits (e.g., SCL) during abnormal conditions.
- Protection Layer: Embedded safety functions (OEL, UEL, EDM) prevent generator damage. For example, the Over-Excitation Limiter reduces field current if terminal voltage exceeds 110% of rated value for >5 seconds.
- Monitoring & Integration Layer: BestCOMS software provides a dashboard for viewing metering data (voltage, current, PF) and generating compliance reports. The RS-485 port enables integration with SCADA systems or generator paralleling controllers (e.g., BASLER DECS-400).
4.2 Key System Features
- Redundancy Support: Configurable for 1+1 redundant operation (primary/backup DECS-200-1L modules) with automatic failover (<20 ms) for mission-critical applications .
- Grid Paralleling: Supports VAR sharing between multiple generators via RS-485 Modbus, ensuring balanced reactive power distribution.
- Predictive Diagnostics: BestCOMS logs fault data (timestamped) and issues warnings for deteriorating components (e.g., “Rotating Diode Degradation” via EDM), enabling proactive maintenance.
5. Recommended Related Models in the Same Series
For applications requiring specialized capabilities or higher performance, the following DECS-200 series models are recommended:
- BASLER DECS-200-2L: A DC-powered variant optimized for mobile applications (e.g., marine generators). It accepts 20-140 VDC control power and features a compact design (10% smaller than the 1L model) for space-constrained enclosures.
- BASLER DECS-200-3L: High-power excitation controller with 25 A continuous output current, designed for large generators (1-5 MW) in industrial plants. It adds advanced features like load compensation and voltage droop control for grid parallelism.
- BASLER DECS-200N-L1: Nuclear-qualified model (IEEE 323) for safety-critical applications (e.g., nuclear plant backup generators). It includes redundant power supplies, radiation-hardened components, and compliance with 10 CFR Part 50.
- BASLER DECS-200-M1: Modbus/TCP-enabled version with Ethernet connectivity, supporting remote monitoring via web browsers. Ideal for distributed power systems where centralized control (e.g., wind farms) is required.
