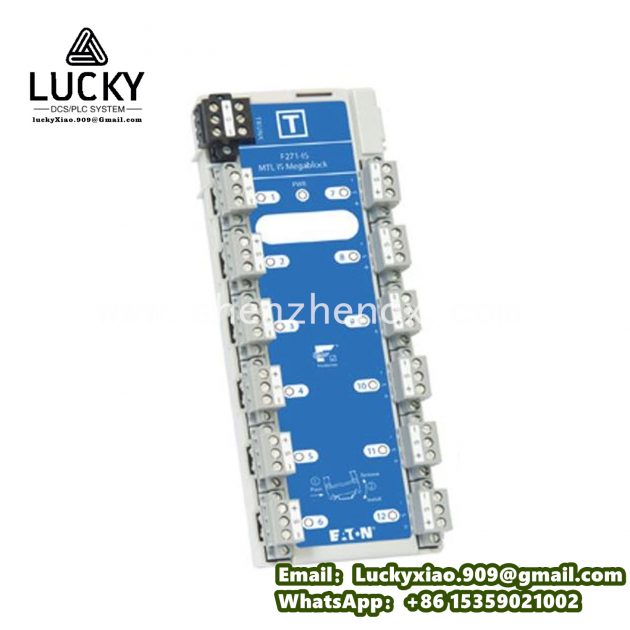

Introduction to EATON F271-IS
Product Description
The EATON F271-IS is a specialized intrinsically safe (IS) control relay designed for hazardous environments where explosive gases, vapors, or dust may be present. As part of Eaton’s F-Series, this relay is engineered to prevent the ignition of flammable atmospheres by limiting electrical energy to levels below those required for ignition, making it ideal for applications in oil and gas processing, chemical plants, pharmaceutical manufacturing, and mining operations.
The “F271-IS” designation highlights its core attributes: “F271” indicates a compact, mid-range control relay, while “IS” denotes intrinsic safety certification, ensuring compliance with global standards for hazardous area equipment. Unlike standard control relays, the F271-IS integrates with intrinsic safety barriers to isolate and protect circuits in hazardous zones (e.g., Zone 0/1 for gases, Zone 20/21 for dust). Its robust construction includes a rugged housing and sealed connections to withstand harsh conditions, while its modular design allows flexible configuration for monitoring and controlling low-power devices such as sensors, valves, and alarms in explosive environments.
Technical Parameters
- Control Function: Multi-functional logic relay with 16 programmable functions (timers, counters, comparators)
- Number of Inputs: 8 digital inputs (intrinsically safe, 24V DC)
- Number of Outputs: 4 relay outputs (non-intrinsically safe, 250V AC/30V DC, 5A max)
- Intrinsic Safety Ratings:
-
- Input circuits: Ex ia IIC T4 Ga (ATEX/IECEx)
-
- Suitable for Zone 0, 1, 2 (gases) and Zone 20, 21, 22 (dust)
- Power Supply: 24V DC (18-30V DC), isolated via intrinsic safety barrier
- Power Consumption: ≤3W (including barrier losses)
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Relative Humidity: 5-95% RH (non-condensing)
- Vibration Resistance: 10-500Hz, 10g peak (IEC 60068-2-6)
- Shock Resistance: 30g peak (11ms duration, IEC 60068-2-27)
- Protection Rating: IP20 (enclosure); IP65 (when mounted with optional housing)
- Dimensions: 90mm × 60mm × 60mm (W × H × D)
- Weight: Approximately 150g
- Certifications: ATEX, IECEx, UL Class I Div 1, CSA, IEC 61131-2
Usage Methods
- Installation:
-
- Mount the relay in a non-hazardous area (e.g., control room) or in a certified explosion-proof enclosure if installed near hazardous zones.
-
- Connect via approved intrinsic safety barriers (e.g., Eaton’s MTL barriers) to interface with sensors/actuators in hazardous areas.
-
- Ensure wiring is routed through sealed conduits to prevent gas/dust ingress, with separate channels for power and signal cables.
- Wiring and Connection:
-
- Connect 24V DC power to the relay via an intrinsic safety barrier, ensuring the barrier’s voltage/current limits match the relay’s requirements.
-
- Wire intrinsically safe inputs to sensors in hazardous zones (e.g., gas detectors, limit switches) using twisted-pair, shielded cable with the shield grounded at the barrier end.
-
- Connect relay outputs to non-hazardous devices (e.g., alarms, valves in safe areas) via terminal blocks, ensuring load currents do not exceed 5A per output.
-
- Verify all connections comply with local hazardous area wiring codes (e.g., NEC 500, IEC 60079-14).
- Programming and Configuration:
-
- Use Eaton’s F-Series Programming Software to configure logic functions (e.g., “If Gas Detector Input = ON → Activate Alarm Output”).
-
- Set input delay filters (10ms-1s) to prevent false triggers from electromagnetic interference in industrial environments.
-
- Program timers for time-delayed actions (e.g., “Shut Down Valve 5s After High Pressure Alarm”).
-
- Test logic in a safe environment before deploying to hazardous areas, simulating input signals to verify output responses.
- Operation and Maintenance:
-
- Monitor status via LED indicators (power, input activation, output faults) on the relay front panel.
-
- Perform quarterly inspections: check barrier connections for tightness, verify cable shields are grounded, and ensure no signs of corrosion.
-
- Calibrate connected sensors annually, as drift in sensor output may affect relay logic accuracy.
-
- Avoid hot-swapping connections; power down the system before modifying wiring to prevent sparking.
System Introduction
The EATON F271-IS operates as a critical safety controller in hazardous area systems, integrating three key layers:
- Intrinsic Safety Layer: Limits electrical energy to inputs via barriers, ensuring no spark or thermal effect can ignite flammable atmospheres.
- Logic Control Layer: Executes programmed logic, processing inputs from hazardous-area sensors to trigger outputs in safe zones (e.g., shutting down equipment or sounding alarms).
- Isolation Layer: Physically and electrically separates hazardous (Zone 0/1) and non-hazardous circuits, preventing energy transfer between zones.
In an oil refinery application, the F271-IS monitors 4 gas detectors in a Zone 1 area via intrinsic safety barriers. If any detector signals a flammable gas leak, the relay activates two outputs: one triggering a local alarm in the safe area control room, and another shutting down a pump via a non-hazardous contactor. The system’s intrinsic safety design ensures even a fault in the relay or wiring cannot ignite the gas, while the logic prevents false shutdowns by requiring two detectors to confirm the leak.
Related Models in the Series
- EATON F272-IS: 12-input, 6-output variant for larger systems (e.g., multi-zone chemical storage facilities).
- EATON F271-IS-ANA: Includes 2 analog inputs (4-20mA) for monitoring variable sensors (e.g., continuous gas concentration transmitters).
- EATON F271-IS-COM: Adds RS485 (Modbus RTU) for remote monitoring, ideal for integrating with SCADA systems in offshore platforms.
- EATON F251-IS: Compact 4-input, 2-output model for simple applications (e.g., single-tank overfill protection).
- EATON F271-IS-EX-H: High-temperature version (-40°C to +70°C) for hazardous areas with extreme temperatures (e.g., foundries, incinerators).
- EATON F271-IS-DUST: Specialized for Zone 20/21/22 dust environments, with enhanced protection against conductive dust ingress.
