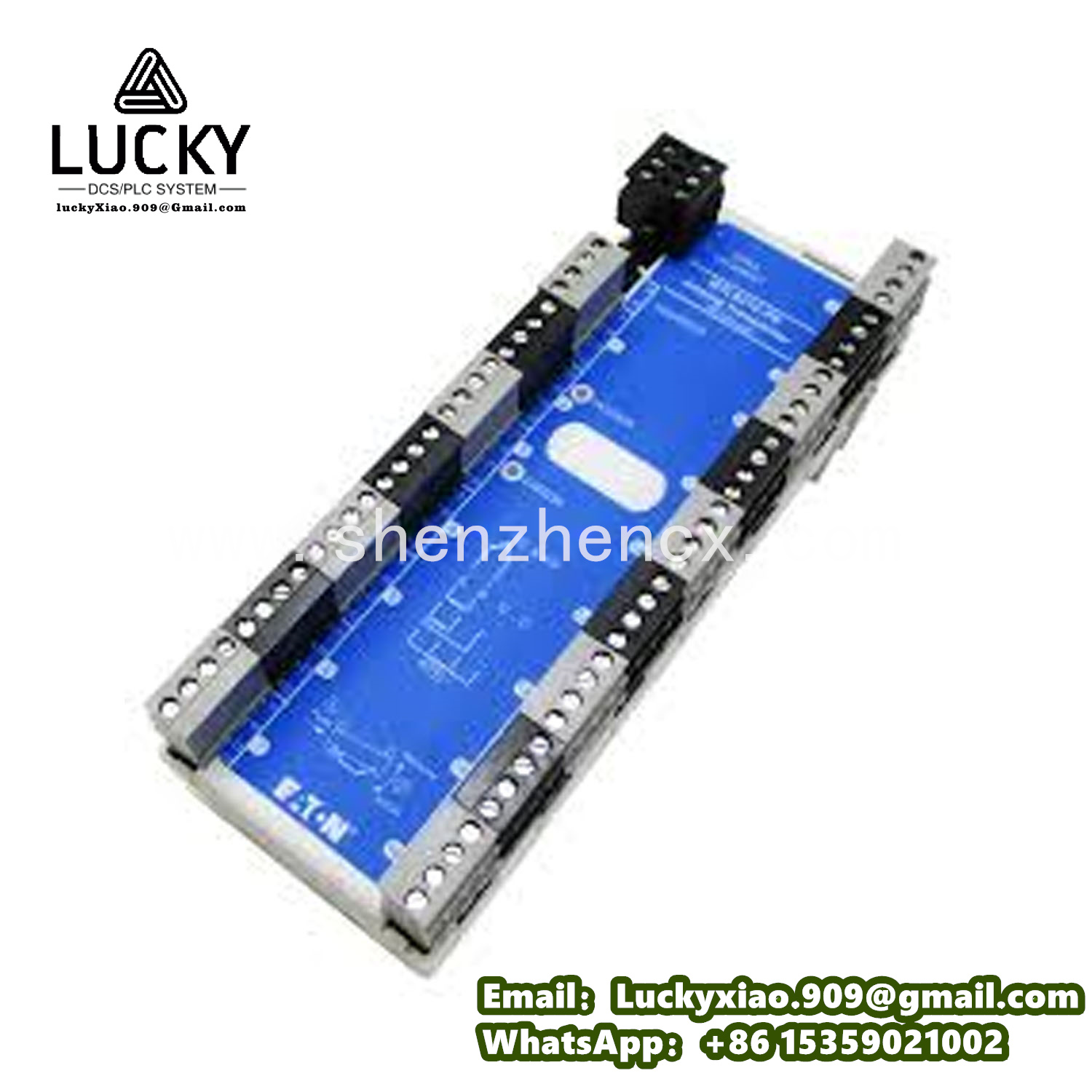

Introduction to EATON MTL831C
Product Description
The EATON MTL831C is a high-performance single-channel intrinsic safety barrier designed to ensure safe operation of electrical equipment in hazardous environments where flammable gases, vapors, or dust are present. As a key model in Eaton’s MTL800 Series of intrinsic safety solutions, this barrier is engineered to limit electrical energy (voltage, current, and power) to levels below those required to ignite explosive atmospheres, making it essential for industries such as oil and gas exploration, chemical processing, and pharmaceutical manufacturing.
The “MTL831C” designation highlights its specialization as a single-channel barrier with enhanced surge protection, making it ideal for applications where a single critical sensor or transmitter needs reliable protection in harsh or high-risk environments. Unlike multi-channel barriers, the MTL831C focuses on delivering robust isolation and surge immunity for individual signals, ensuring uncompromised safety and signal integrity even in areas prone to electrical disturbances (e.g., near high-voltage equipment or in lightning-prone regions). Its compact design allows for easy integration into tight control cabinets, while galvanic isolation prevents ground loops and electromagnetic interference (EMI) that could disrupt sensitive measurements.
Technical Parameters
- Number of Channels: 1 independent channel (isolated from power supply and ground)
- Intrinsic Safety Ratings:
-
- Ex ia IIC T4 Ga (ATEX/IECEx)
-
- Suitable for Zone 0, 1, 2 (gases) and Zone 20, 21, 22 (dust)
- Input Signal Type: 4-20mA analog (transmitter/sensor side)
- Output Signal Type: 4-20mA analog (safe area/controller side)
- Surge Protection: 10kA (8/20µs waveform) for transient overvoltage immunity
- Power Supply: 24V DC (18-30V DC)
- Power Consumption: ≤1.2W
- Isolation:
-
- Channel-to-ground: ≥2.5kV AC (rms) for 1 minute
-
- Power-to-signal: ≥2.5kV AC (rms) for 1 minute
- Accuracy: ±0.1% of full scale (4-20mA)
- Response Time: ≤1ms (signal bandwidth 0-5kHz)
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Relative Humidity: 5-95% RH (non-condensing)
- Vibration Resistance: 10-500Hz, 10g peak (IEC 60068-2-6)
- Shock Resistance: 30g peak (11ms duration, IEC 60068-2-27)
- Protection Rating: IP20 (DIN rail mounting)
- Dimensions: 35mm × 100mm × 32mm (W × H × D)
- Weight: Approximately 80g
- Certifications: ATEX, IECEx, UL Class I Div 1, CSA, IEC 61131-2
Usage Methods
- Installation:
-
- Mount the barrier on a standard DIN rail in a non-hazardous area (e.g., control room) or in a certified explosion-proof enclosure if positioned near hazardous zones.
-
- Ensure a minimum clearance of 30mm above and below the barrier to facilitate heat dissipation, as continuous operation at high temperatures can affect isolation performance.
-
- Group barriers by hazardous zone classification to simplify compliance checks and wiring management.
- Wiring and Connection:
-
- Connect the 24V DC power supply to the barrier’s power terminal, using a 500mA fused circuit to protect against overcurrent.
-
- Wire the hazardous area side (Ex) to the sensor/transmitter in Zone 0/1 using twisted-pair, shielded cable. Ground the cable shield only at the barrier end to avoid ground loops that could compromise safety.
-
- Connect the safe area side (Non-Ex) to a controller, PLC, or HMI (e.g., EATON XV Series) using shielded cable, with the shield grounded at both ends to minimize EMI.
-
- Verify that total cable capacitance (≤1nF/km) and inductance (≤50µH/km) do not exceed the barrier’s limits, as excessive values can reduce intrinsic safety margins.
- Configuration and Testing:
-
- The barrier operates passively with no programming required. However, verify signal accuracy using a calibrated multimeter or oscilloscope to ensure 4-20mA signals are transmitted without distortion.
-
- Perform an insulation resistance test (≥100MΩ at 500V DC) between the channel and ground before commissioning to confirm intact isolation.
-
- Test surge protection functionality using a transient generator (8/20µs waveform) to ensure the barrier withstands 10kA surges without degradation.
- Operation and Maintenance:
-
- Monitor the barrier’s status via an optional diagnostic module (e.g., MTL870) to detect faults such as open circuits or short circuits in the hazardous area wiring.
-
- Conduct quarterly visual inspections: check for loose connections, corrosion on terminals, or physical damage to the housing.
-
- Avoid hot-swapping connections in hazardous areas; always power down the system before modifying wiring to prevent sparking.
-
- Replace the barrier if insulation resistance drops below 100MΩ or if surge protection performance degrades (e.g., after a significant transient event).
System Introduction
The EATON MTL831C functions as a critical safety component in hazardous area systems, integrating three key layers:
- Intrinsic Safety Layer: Limits voltage (≤18V DC), current (≤93mA), and power (≤1.3W) to the hazardous area circuit, ensuring no ignition source is present even during fault conditions.
- Surge Protection Layer: Absorbs transient overvoltages (up to 10kA) caused by lightning or switching events, preventing damage to sensitive sensors and maintaining signal integrity.
- Isolation Layer: Provides galvanic isolation between the hazardous area and safe area, eliminating ground loops and blocking EMI that could disrupt measurements or compromise safety.
In an offshore oil platform application, the MTL831C protects a critical pressure transmitter in a Zone 1 area. It limits electrical energy to the transmitter, preventing ignition of flammable hydrocarbons, while its surge protection safeguards against lightning-induced transients common in marine environments. The barrier transmits accurate pressure data to a safe area PLC, enabling real-time monitoring and control of the process without compromising safety.
Related Models in the Series
- EATON MTL834C: 2-channel barrier with the same surge protection (10kA) as the MTL831C, ideal for systems requiring protection for two sensors (e.g., temperature and pressure transmitters).
- EATON MTL838C: 4-channel barrier without enhanced surge protection, suitable for multi-sensor applications in low-EMI environments (e.g., chemical storage tanks).
- EATON MTL831IS: Single-channel barrier with integrated HART protocol support, enabling bidirectional communication with smart transmitters for configuration and diagnostics.
- EATON MTL831B: Single-channel barrier with an extended temperature range (-40°C to +70°C), designed for extreme environments such as arctic pipelines or desert refineries.
- EATON MTL841C: Single-channel barrier for digital signals (24V DC), protecting discrete sensors (e.g., emergency stop buttons) in hazardous areas.
- EATON MTL851C: Single-channel barrier with HART and surge protection, combining the MTL831C’s transient immunity with bidirectional communication for smart sensors.
