Introduction to EATON XC-CPU202-EC4M-8DI-6DO-XV
Product Description

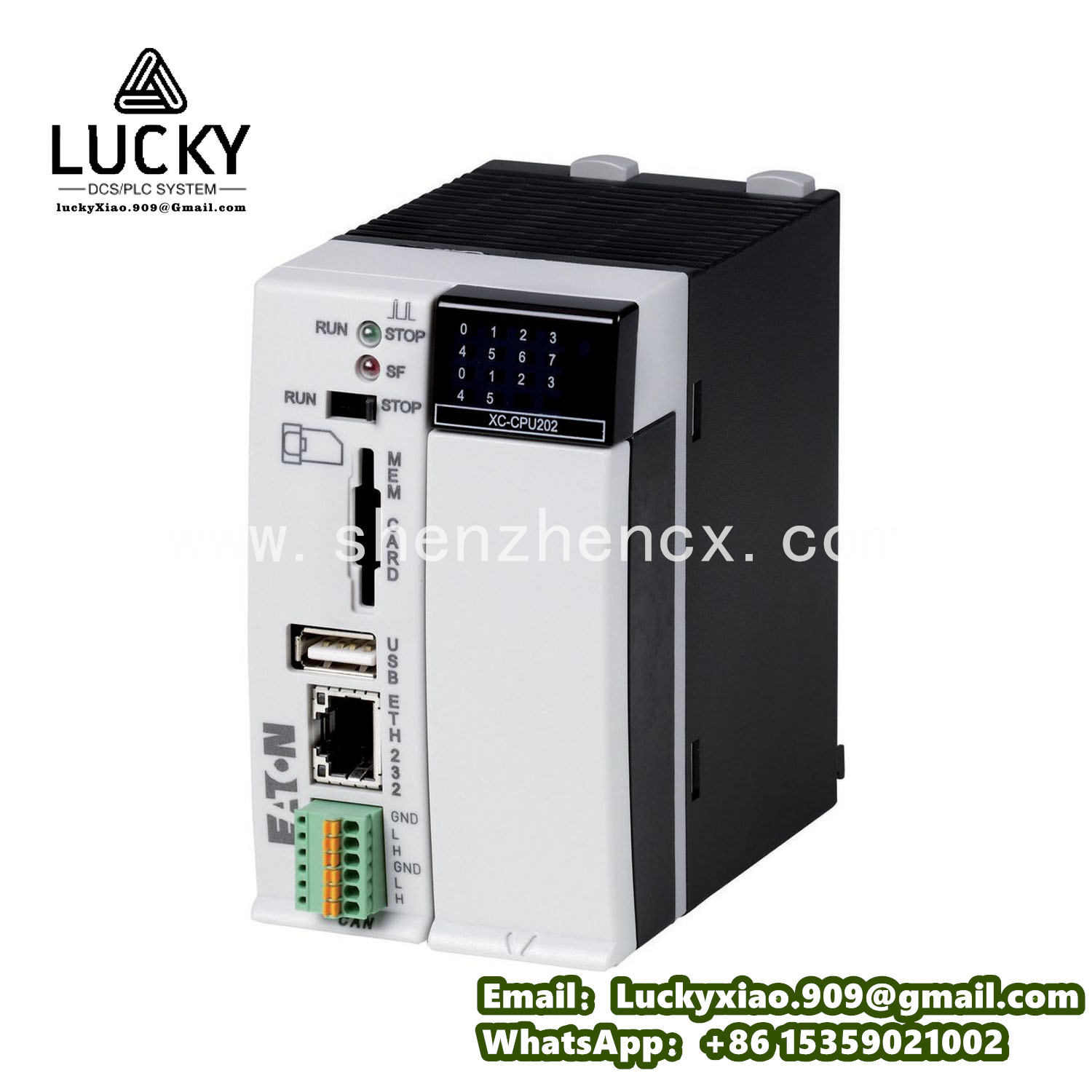

The EATON XC-CPU202-EC4M-8DI-6DO-XV is a compact, high-performance programmable logic controller (PLC) designed for (small to medium-sized automation systems). As part of Eaton’s XC Series, this PLC combines robust processing capabilities with integrated I/O, making it ideal for applications such as material handling, packaging machinery, and industrial equipment control. The model designation highlights its key features: “CPU202” indicates a mid-range processor, “EC4M” denotes enhanced communication capabilities, “8DI-6DO” specifies 8 digital inputs and 6 digital outputs, and “XV” signifies compatibility with Eaton’s XV Series HMIs for seamless human-machine interaction.
This PLC is engineered to deliver reliable performance in harsh industrial environments, with resistance to vibration, temperature fluctuations, and electromagnetic interference. Its compact design allows installation in space-constrained control panels, while support for multiple industrial protocols ensures easy integration with sensors, actuators, and third-party devices. The XC-CPU202-EC4M-8DI-6DO-XV is particularly valued for its user-friendly programming environment and tight integration with Eaton’s HMI systems, enabling efficient development and operation of automated processes.
Technical Parameters
- Processor: 32-bit ARM Cortex-M4, 168 MHz clock speed
- Memory: 256 KB RAM; 1 MB flash memory (expandable via microSD card up to 32 GB)
- Programming Software: Eaton EasySoft Pro (supporting IEC 61131-3 languages: LD, FBD, ST, IL, SCL)
- Digital Inputs: 8 channels (24V DC, PNP/NPN configurable); input current 3 mA; response time ≤1 ms
- Digital Outputs: 6 channels (24V DC, relay); max current 2A per output, 8A total
- Communication Interfaces:
-
- Ethernet: 1 × 10/100BASE-T port (Modbus TCP/IP, Ethernet/IP)
-
- Serial: 1 × RS485 port (Modbus RTU master/slave)
-
- USB: 1 × USB 2.0 port (programming, data logging)
- Expansion Capability: Up to 4 expansion modules (digital, analog, or specialty I/O)
- Power Supply: 24V DC (18-30V DC); power consumption ≤8W
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Relative Humidity: 5-95% RH (non-condensing)
- Vibration Resistance: 10-500 Hz, 10g peak (IEC 60068-2-6)
- Shock Resistance: 30g peak (11 ms duration, IEC 60068-2-27)
- Protection Rating: IP20 (module); IP40 when mounted in a enclosure
- Dimensions: 100mm × 75mm × 30mm (W × H × D)
- Weight: Approximately 120g
- Certifications: CE, UL 508, IEC 61131-2, RoHS
Usage Methods
- Installation:
-
- Mount the PLC on a DIN rail using the integrated clips, ensuring secure fixation to resist vibration.
-
- Install in a control cabinet with adequate ventilation, maintaining a minimum clearance of 50mm around the module for heat dissipation.
-
- Avoid mounting near high-voltage components or sources of electromagnetic interference to ensure signal integrity.
- Wiring and Connection:
-
- Connect the 24V DC power supply to the terminal block, using a 1A fused circuit and twisted-pair cable to minimize electrical noise.
-
- Wire digital inputs to sensors (e.g., limit switches, photoelectric sensors) using 24V DC wiring, ensuring correct polarity for PNP/NPN configuration.
-
- Connect digital outputs to actuators (e.g., relays, solenoids) via the relay terminals, ensuring load currents do not exceed 2A per output.
-
- Establish Ethernet connection to HMIs or other devices using shielded Cat5e cable, grounding the shield at both ends.
-
- Use the USB port for programming or data transfer, connecting to a PC running EasySoft Pro software.
- Programming and Configuration:
-
- Install Eaton EasySoft Pro software and create a new project, selecting the XC-CPU202-EC4M-8DI-6DO-XV as the target device.
-
- Program control logic using IEC 61131-3 languages, defining inputs, outputs, and variables for the application (e.g., conveyor control, packaging sequences).
-
- Configure communication parameters (IP address, Modbus registers) to enable data exchange with HMIs and other devices.
-
- Test the program in simulation mode before downloading to the PLC, verifying logic correctness and I/O behavior.
- Operation and Maintenance:
-
- Power on the PLC and verify the status LED indicates normal operation (green); troubleshoot if fault codes are displayed (red/yellow).
-
- Monitor system performance via connected HMIs or software, checking for input/output status and program execution.
-
- Perform monthly inspections: check wiring connections for tightness, clean dust from ventilation slots, and verify power supply stability.
-
- Back up program and configuration files to a PC or microSD card regularly to prevent data loss.
-
- Update firmware annually via USB to access new features and performance improvements.
System Introduction
The EATON XC-CPU202-EC4M-8DI-6DO-XV functions as the core of small to medium automation systems, integrating four key layers:
- Control Layer: The 32-bit processor executes user-programmed logic, processing inputs from sensors and generating outputs to control actuators based on predefined rules.
- I/O Layer: Digital inputs capture signals from sensors (e.g., position, presence), while digital outputs control actuators (e.g., motors, valves) to execute physical processes.
- Communication Layer: Facilitates data exchange with HMIs, other PLCs, and enterprise systems via Ethernet and serial protocols, enabling remote monitoring and control.
- Integration Layer: Seamlessly connects with Eaton’s XV Series HMIs, allowing operators to visualize processes, adjust parameters, and respond to alarms in real time.
In a packaging machine application, the PLC receives inputs from photoelectric sensors detecting product presence and limit switches indicating conveyor positions. It executes logic to start/stop conveyors, activate sealing mechanisms, and trigger label applicators based on product type. The connected XV Series HMI displays real-time production counts and machine status, allowing operators to adjust speeds or acknowledge alarms, with data shared between the PLC and HMI via Ethernet for synchronized operation.
Related Models in the Series
- EATON XC-CPU101-EC4M-4DI-2DO-XV: Entry-level variant with 4 digital inputs and 2 digital outputs, ideal for simple automation tasks (e.g., small conveyor systems).
- EATON XC-CPU202-EC4M-8DI-6DO-ANA-XV: Includes 2 analog inputs (4-20mA) and 1 analog output for applications requiring variable control (e.g., temperature regulation).
- EATON XC-CPU303-EC4M-16DI-12DO-XV: High-capacity model with expanded I/O, supporting larger systems (e.g., multi-station packaging lines).
- EATON XC-CPU202-EC4M-8DI-6DO-PROFIBUS-XV: Equipped with Profibus-DP interface for integration with Profibus networks (e.g., in automotive manufacturing).
- EATON XC-CPU202-EC4M-8DI-6DO-WIFI-XV: Wireless-enabled variant with Wi-Fi connectivity for remote monitoring and programming (e.g., in distributed systems).
- EATON XC-CPU202-EC4M-8DI-6DO-EX-XV: Explosion-proof version (ATEX Zone 2) for hazardous environments (e.g., chemical processing equipment).
