Introduction to EMEROSN 1C31189G03
Product Description

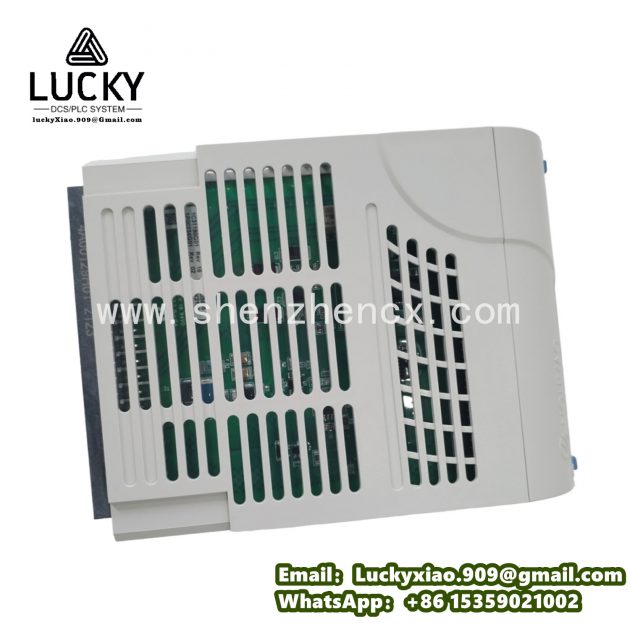

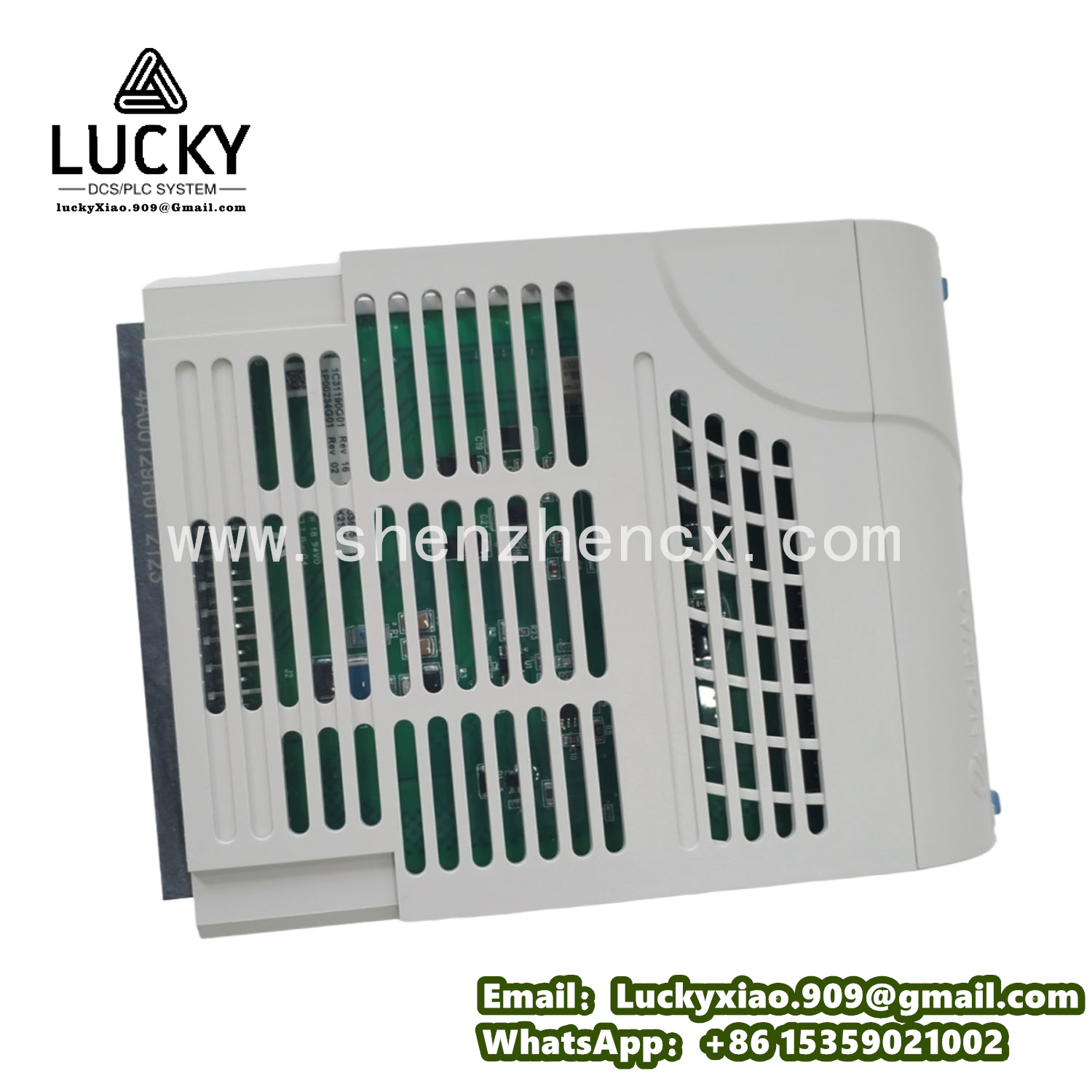

The EMEROSN 1C31189G03 is a rugged, industrial analog input module designed for precise measurement and integration of analog sensor signals in process control systems. As a key model in EMEROSN’s 1C31-series—specialized for harsh industrial environments like power plants, petrochemical refineries, and water treatment facilities—it excels at converting continuous physical signals (e.g., temperature, pressure, flow) into digital data that can be processed by distributed control systems (DCS) or programmable logic controllers (PLCs).
What distinguishes the 1C31189G03 from generic analog modules is its focus on accuracy and reliability: it features advanced signal conditioning to minimize noise interference (common in industrial settings with high-voltage equipment), and its robust construction ensures stable performance even in extreme temperatures or vibration. The model’s compact design (compatible with EMEROSN’s 1C31-series rack systems) makes it easy to integrate into existing control cabinets, while its compliance with industry standards (e.g., IEC 61000 for EMC) ensures compatibility with global automation ecosystems.
The model designation “1C31189G03” follows EMEROSN’s industrial part numbering convention:
- 1C31: Denotes the 1C31 product family (industrial I/O and control modules).
- 189: Identifies the specific module type (analog input, 8-channel configuration).
- G03: References the hardware revision (3rd generation, with enhanced noise immunity and calibration stability).
Typical use cases include:
- Measuring steam pressure (via 4–20mA transmitters) in a power plant’s boiler system, with data sent to a DCS for pressure regulation.
- Monitoring temperature (via RTD sensors) in a petrochemical refinery’s distillation columns to ensure process safety.
- Collecting flow rate data (via 0–10V flow meters) in a water treatment plant, enabling optimized pump operation and resource conservation.
Technical Parameters
To simplify understanding, specifications are organized by functional category, with practical relevance highlighted for clarity:
1. Analog Input Capabilities
|
Parameter
|
Details
|
|
Number of Channels
|
8 independent analog input channels (isolated from each other and power supply).
|
|
Input Signal Types
|
Configurable per channel: 4–20mA DC (current), 0–10V DC (voltage), or RTD (Pt100, Pt1000).
|
|
Input Resolution
|
16-bit (for current/voltage signals); 18-bit (for RTD signals) — ensures precise measurement of small signal changes (e.g., 0.01mA variations in pressure transmitters).
|
|
Input Accuracy
|
±0.05% of full scale (at 25°C) for current/voltage; ±0.1% of full scale for RTD — meets strict process control standards (e.g., ISO 9001).
|
|
Input Isolation
|
2.5kV AC galvanic isolation between channels and system ground — prevents ground loops and electromagnetic interference (EMI) from damaging sensitive components.
|
|
Signal Conditioning
|
Built-in low-pass filters (1Hz–1kHz, software-selectable) and surge protection (up to 10kA) — reduces noise from nearby motors or VFDs.
|
2. Communication & Integration
- Host Compatibility: Designed for EMEROSN’s 1C31-series DCS/PLC racks (e.g., 1C31203G01 rack); compatible with third-party systems via Modbus RTU (RS485) or Ethernet/IP (optional adapter).
- Data Transfer Rate: Up to 100 samples per second (SPS) per channel — fast enough for dynamic processes (e.g., pressure spikes in pipelines) without overwhelming the host system.
- Calibration: Factory-calibrated with NIST-traceable standards; field calibration supported via software (no physical potentiometers) — reduces maintenance time and ensures long-term accuracy.
3. Environmental & Mechanical Ratings
- Temperature Range: Operating: -40°C to +70°C (-4°F to +158°F); Storage: -55°C to +85°C (-67°F to +185°F) — withstands extreme conditions in outdoor or industrial indoor settings.
- Vibration/Shock: 10–500Hz, 2g peak (random vibration, IEC 60068-2-6); 30g peak (11ms duration, IEC 60068-2-27) — durable enough for power plants or manufacturing facilities with heavy machinery.
- Protection: IP20 (module); IP54 when installed in a sealed 1C31-series rack — protects against dust and minor moisture ingress.
- Power Supply: 5V DC (from rack power supply); Power consumption: ≤2W (typical, with all 8 channels active) — energy-efficient for 24/7 operation.
4. Certifications
- Industrial: CE (EMC compliance: EN 61000-6-2/4), UL 508 (industrial control), RoHS 2.0.
- Safety: IEC 61508 SIL 2 (suitable for safety-critical process control, e.g., emergency shutdown systems).
- Process Standards: Compliant with ISA 50.1 (industrial instrumentation) and IEC 61131-2 (programmable controllers).
System Overview
The EMEROSN 1C31189G03 acts as a “precision signal bridge” between field sensors and industrial control systems, integrating three core functional layers to ensure accurate, reliable data flow:
1. Signal Acquisition Layer
This layer collects raw analog signals from field sensors and prepares them for processing. For example, in a petrochemical refinery:
- A Pt100 RTD sensor measures the temperature of a distillation column (ranging from 0°C to 300°C), outputting a small resistance change.
- The 1C31189G03’s RTD input channel converts this resistance change into a digital signal, applying cold-junction compensation to eliminate temperature drift errors.
- A low-pass filter removes noise from nearby pumps, ensuring the signal accurately reflects the column’s actual temperature.
2. Data Conversion & Transmission Layer
The module converts conditioned analog signals to high-resolution digital data and transmits it to the host control system. Key features of this layer include:
- High Resolution: 16–18-bit conversion ensures even small signal variations (e.g., a 0.1°C temperature change) are detected — critical for maintaining process quality.
- Fast Transfer: Up to 100 SPS per channel ensures real-time monitoring; for slower processes (e.g., water flow), the sample rate can be reduced to save bandwidth.
- Isolation: Galvanic isolation prevents electrical faults in the field (e.g., a shorted sensor cable) from affecting the host DCS/PLC, enhancing system safety.
3. Monitoring & Diagnostics Layer
The 1C31189G03 includes built-in tools to simplify maintenance and troubleshooting:
- Status LEDs: Per-channel LEDs indicate signal presence (green = normal, red = fault) — technicians can quickly identify issues like open sensor cables.
- Software Diagnostics: The module sends diagnostic data to the host system (e.g., “Channel 3: Overrange,” “Calibration due in 90 days”) — enabling predictive maintenance and reducing unplanned downtime.
- Calibration Tracking: Stores calibration history (date, results) for compliance audits (e.g., FDA requirements for pharmaceutical manufacturing).
Example: Power Plant Boiler Pressure Monitoring
In a coal-fired power plant, the 1C31189G03 is used to monitor boiler pressure:
- Sensors: 8 pressure transmitters (4–20mA output) are installed at different boiler locations, measuring pressure from 0 to 100 bar.
- Acquisition: The 1C31189G03’s input channels convert the 4–20mA signals to digital data, filtering out noise from boiler pumps.
- Transmission: Data is sent to the plant’s DCS via the 1C31-series rack bus. If pressure exceeds 90 bar, the DCS triggers a relief valve to prevent overpressure.
- Diagnostics: If a transmitter fails (e.g., outputs a constant 20mA), the module alerts the DCS, and maintenance is dispatched to replace the sensor.
Related Models in the 1C31-Series
The 1C31-series offers a range of I/O modules tailored to different signal types and application needs—here are key alternatives to the 1C31189G03:
- EMEROSN 1C31190G01:
-
- 8-channel analog output module (instead of input) — converts digital commands from the DCS/PLC to 4–20mA/0–10V signals for controlling actuators (e.g., control valves, variable-speed drives).
-
- Ideal for process control applications where the system needs to adjust equipment based on input data (e.g., regulating boiler fuel flow based on pressure readings).
- EMEROSN 1C31233G01:
-
- 16-channel digital input module — monitors discrete signals (e.g., limit switches, door interlocks) instead of analog sensors.
-
- Suitable for applications like manufacturing line status monitoring (e.g., “Conveyor 1: Running,” “Safety door: Closed”).
- EMEROSN 1C31189G04:
-
- 8-channel analog input module (4th-generation) with enhanced accuracy (±0.02% of full scale) and support for thermocouples (K, J, T types) — designed for high-precision temperature measurement (e.g., pharmaceutical manufacturing).
- EMEROSN 1C31189G03-EX:
-
- Explosion-proof variant (ATEX Zone 1, IECEx) with reinforced housing and intrinsic safety barriers — safe for hazardous environments (e.g., oil refineries, chemical plants with flammable gases).
- EMEROSN 1C31224G01:
-
- Mixed I/O module (8 analog inputs + 8 digital outputs) — combines the 1C31189G03’s input capabilities with digital outputs for controlling small actuators (e.g., solenoid valves).
-
- Ideal for hybrid systems (e.g., a water treatment plant that monitors flow rate via analog inputs and controls pumps via digital outputs).
- EMEROSN 1C31188G01:
-
- 4-channel analog input module (half the 1C31189G03’s channels) — compact and cost-effective for small-scale applications (e.g., a lab reactor with 2 temperature and 2 pressure sensors).
