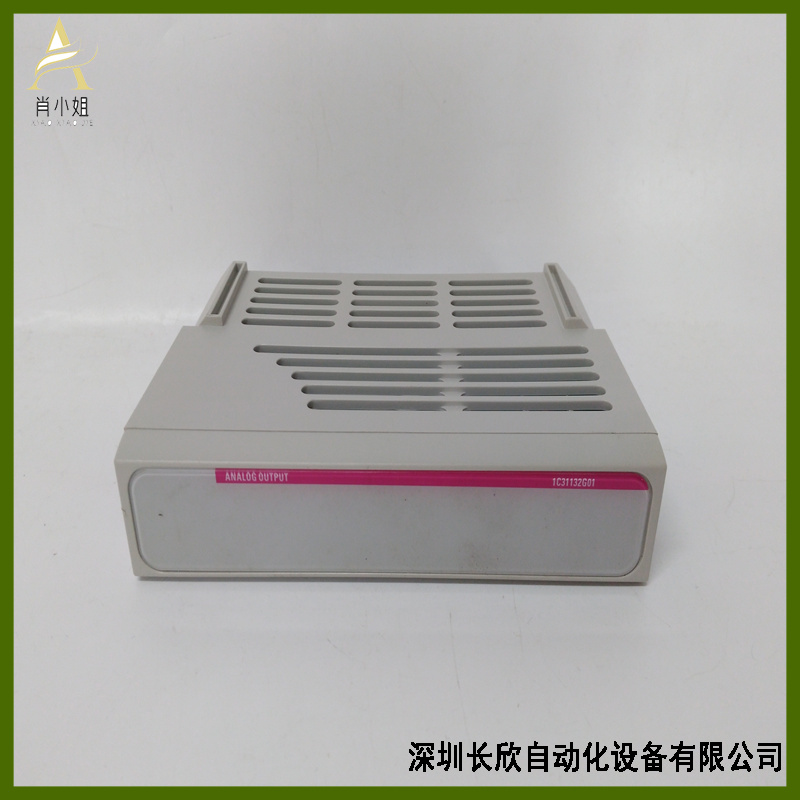

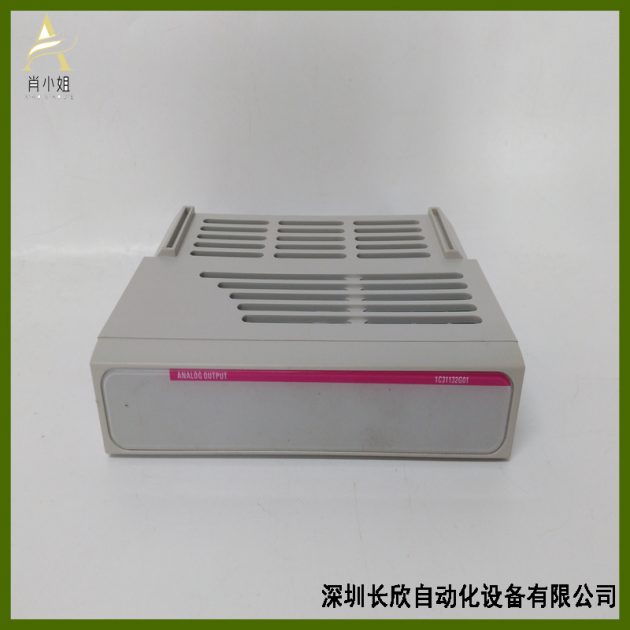

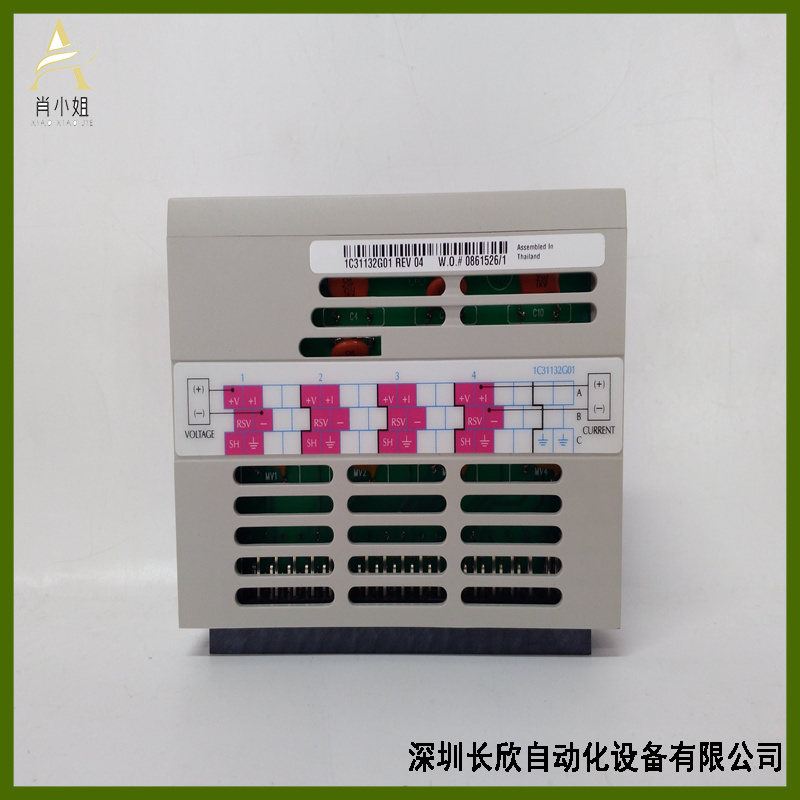

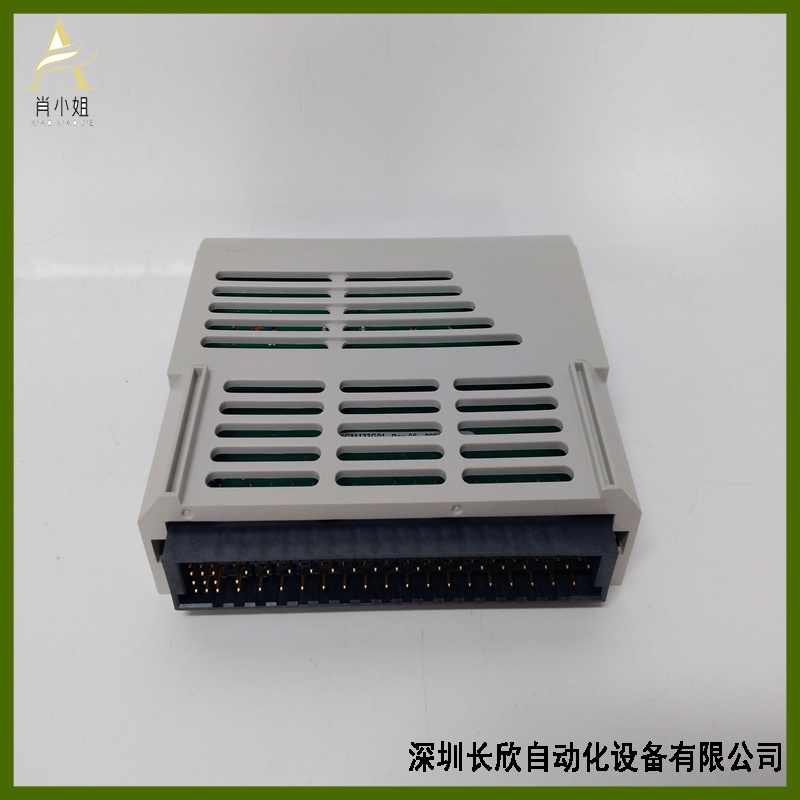

Emerson 1C31132G01 is a versatile 4-in-4-out analog I/O module tailored for the Ovation DCS, and also compatible with the DeltaV system. It can convert analog signals to digital ones and vice versa, supporting input ranges like -20mA to +20mA and output ranges such as 0mA to 20mA or -10V to 10V, with 14/16-bit resolution and ±0.1% full-scale accuracy for reliable industrial control. Equipped with isolated channels to avoid ground faults and noise interference, it also has over-voltage, overload and short-circuit protection functions. Powered by 24VDC and operating stably at -20°C to 60°C, it features non-volatile memory to preserve calibration data during power outages and LED indicators for real-time status monitoring. Certified by ATEX, IECEx, CE and UL, this rugged module is widely used in power generation, petrochemicals and water treatment to regulate process parameters like temperature and pressure.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
For more detailed information, please click here:https://www.szcxgk.com/chanpinzhongxin/
