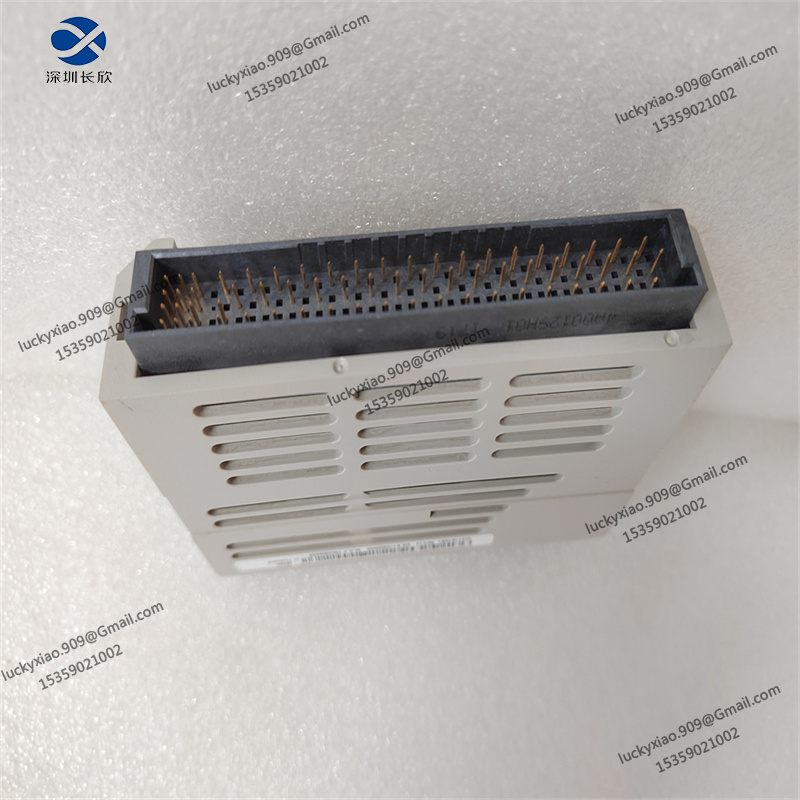

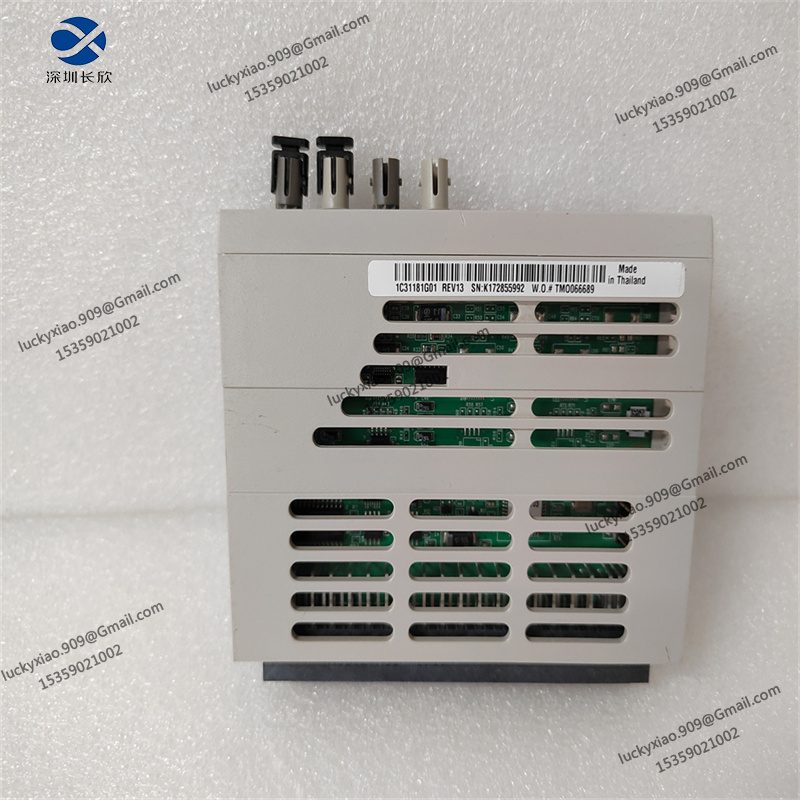

Emerson 1C31181G01 is a high-performance remote I/O module dedicated to the Ovation distributed control system (DCS). It offers functions like passive node switch input acquisition, relay output and high-frequency counting, and enables flexible I/O point expansion by networking multiple modules in the series via bus. Powered by 10 – 30VDC with reverse polarity protection, it operates stably at -30°C to 60°C and 5% – 90% non-condensing humidity, featuring 2500VDC photoelectric isolation for switching inputs and two internal and external watchdog channels for reliability. Supporting RS232/RS485 communication and Modbus RTU protocol, it allows remote command control and easy integration with industrial systems. Compact in size, it can be installed via guide rails or screws, and is widely used in data collection and equipment control for energy, manufacturing and other industrial automation scenarios.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
