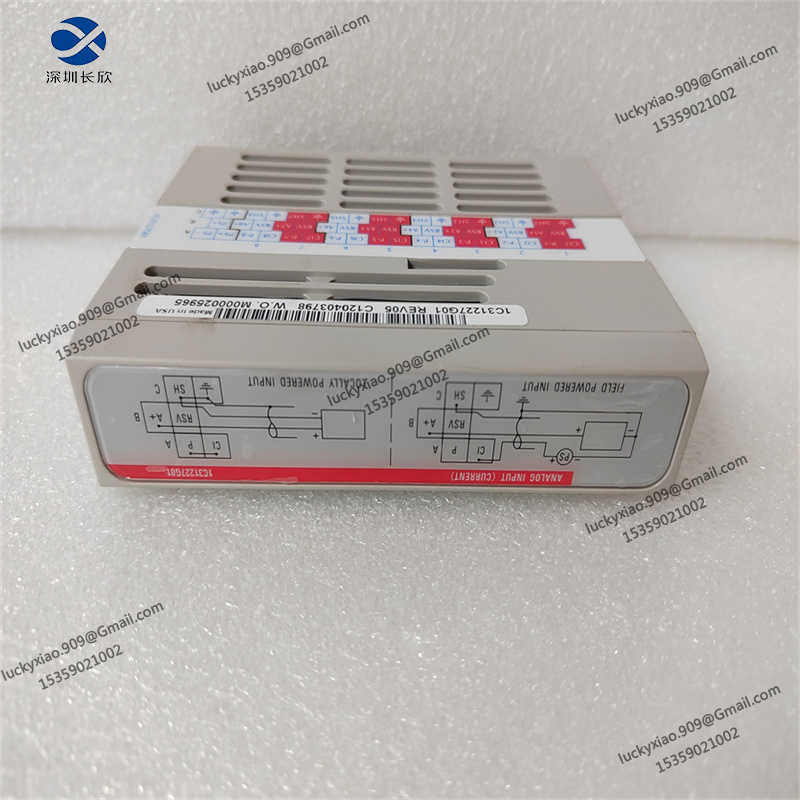

Emerson 1C31227G01 is an 8-channel analog input module tailored for the Ovation Distributed Control System (DCS). It is specialized in receiving 4 – 20mA analog current signals from field devices like pressure transmitters and flow meters, and converting them into digital signals for the Ovation DCS via 14-bit analog – to – digital conversion. Each channel is individually isolated, which can effectively block electromagnetic interference in industrial environments and protect internal circuits from surge damage. Supporting hot – swap functionality, the module allows on – site replacement without halting the production process, and its built-in intelligent diagnostic features facilitate timely detection of potential faults. It operates stably within a temperature range of -20°C to +60°C, and is widely applied in power generation, petrochemicals, water treatment and other industries to guarantee accurate and real-time collection of key process parameters.
Emerson’s Ovation system is a distributed control system (DCS) specifically designed for the power generation and water/wastewater treatment industries. As a reliable innovation platform, it provides comprehensive control capabilities and powerful system integration. The main components of Ovation system include:
1. Host: It is the core of the entire system, responsible for data processing, storage, and forwarding, as well as controlling the execution of logic.
2. Screen: It is an interface for users to interact with the system, used to display real-time data, alarm information, trend charts, etc., and allows users to set parameters and control operations.
3. Sound system: Provides sound alarm function. When the system detects abnormal situations or faults, it will emit sound prompts through the sound system, so that operators can respond in a timely manner.
4. Projector: In some applications, it may be used for large screen display, allowing multiple people to simultaneously view system status and operation information.
5. Touch devices: such as touch screens, provide an intuitive operating interface, allowing users to easily perform various controls and settings.
6. Control system: including control logic, algorithms, and strategies, used to achieve precise control of industrial processes.
7. I/O modules and interfaces: used for connecting and exchanging data with external devices such as sensors, actuators, etc. These modules can convert signals from external devices into digital signals that the system can recognize, or convert control signals from the system into instructions that external devices can execute.
8. Communication and network equipment: Ensure data communication and information sharing between internal components of the system and between the system and other external systems.
9. Software and firmware: including operating systems, control software, databases, etc., to provide necessary support and guarantees for the normal operation of the system.
